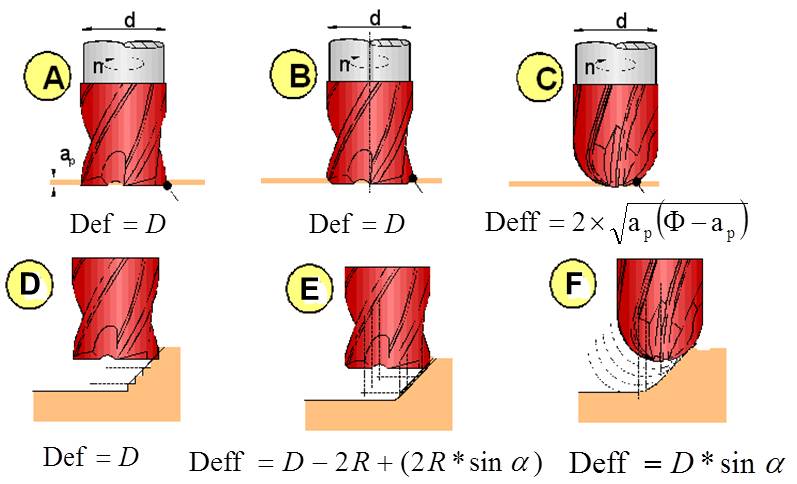

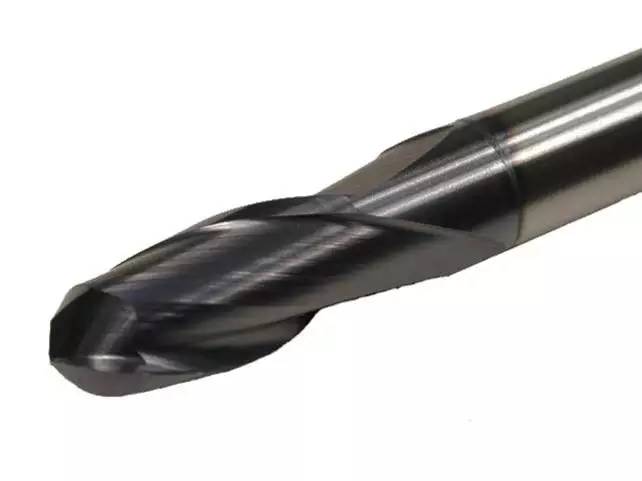

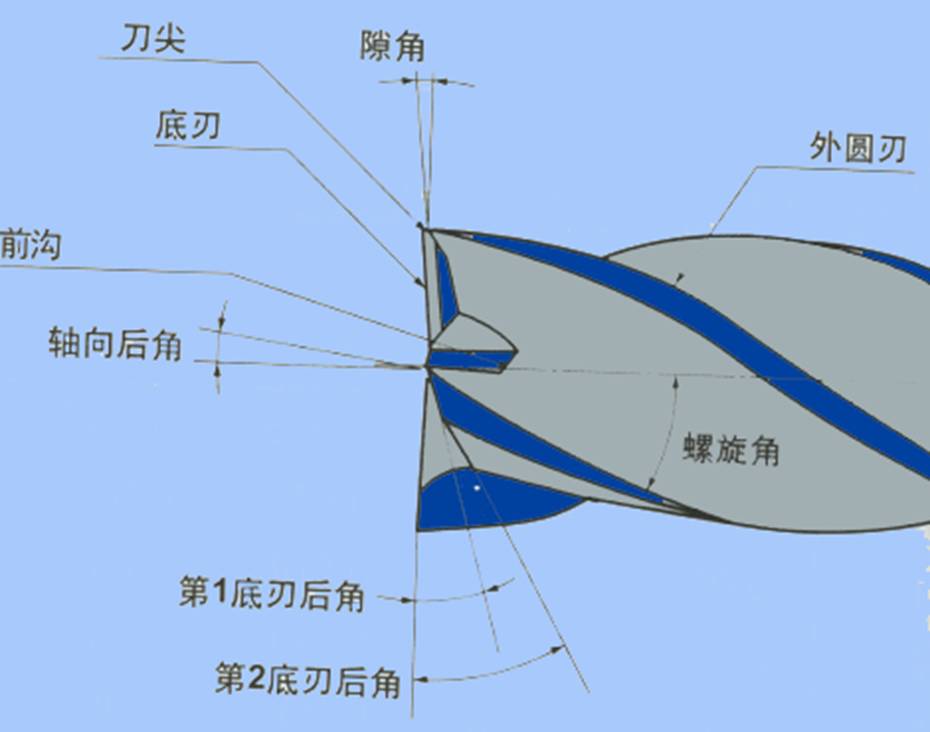

Every cut is a negotiation between the tool edge and the material. The end geometry decides what the tool can and cannot do. A flat bottom cutter leaves a sharp internal corner and a visible step. A corner-radius cutter spreads load along an arc, which raises tool life on hard alloys. A ball end mill produces a scalloped floor and is the only sensible choice for a 3D contoured surface. An indexable end mill trades edge sharpness for changeover speed.

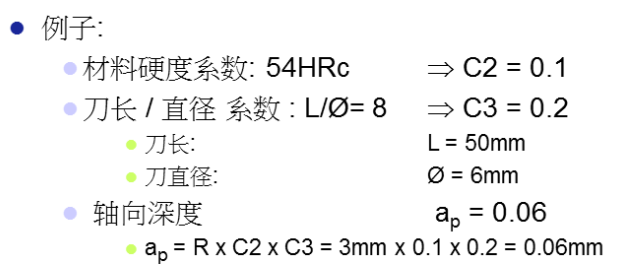

Corner radius is usually the first number to check on a finishing tool. A 0.4 mm radius on a 6 mm cutter concentrates stress and chips easily in 17-4PH or Ti-6Al-4V. Step up to 0.8 mm or 1.0 mm radius and the same cut runs cooler, though the smallest internal corner you can produce also grows. If the drawing shows a 0.5 mm internal radius, a 1.0 mm tool cannot make it. No amount of programming fixes that.

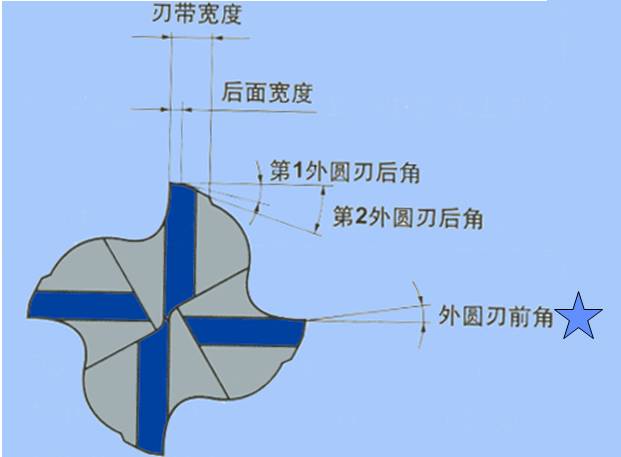

Flute count controls chip evacuation and surface finish at the same time. Two or three flutes give room for chips in aluminum and allow higher feed per tooth. Four to six flutes stiffen the core and improve finish in steel, but they clog quickly in deep pockets cut dry. Helix angle matters too: 45° is the general-purpose choice, while 30° reduces lifting force on thin floors and 60° shears soft aluminum more cleanly.

Coating is the last variable, not the first. TiAlN tolerates the heat of dry cutting in steel and stainless. AlTiN holds up better above 800 °C. Uncoated carbide is still the right answer for aluminum, because a coating adds friction and built-up edge on a soft, gummy material. Diamond-like coatings help on abrasive composites but add cost that only pays back in long runs.

• 1
  Sharp corner neededFlat bottom cutter, smallest available radius.
• 2
  Hard alloy, long runCorner radius plus TiAlN coating.
• 3

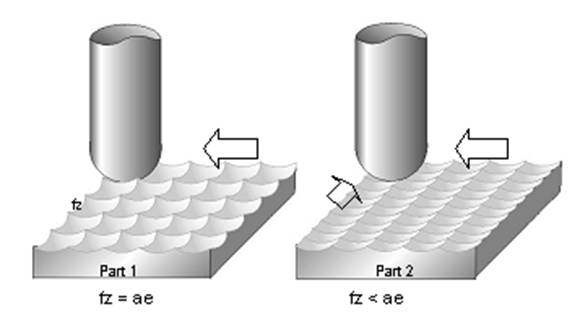

  3D contoured surfaceBall end mill, stepover under 10% of diameter.
• 4
  Aluminum at high feedTwo or three flutes, uncoated carbide.

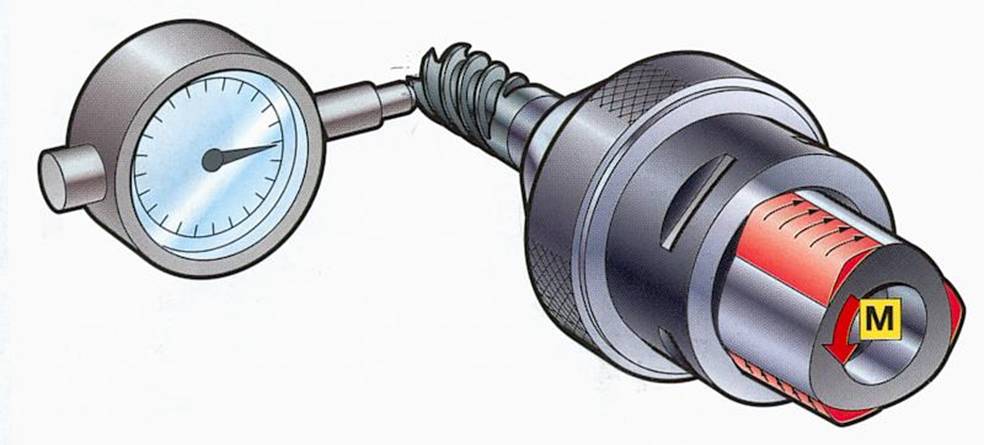

A program assumes the part is rigid. In practice the fixture, vise, tool holder and spindle each add compliance, and the sum shows up in the cut. The softest link in that chain sets the achievable surface finish. A heavy vise bolted to a clean table with a dialed-in jaw beats a light clamp every time, even on the same machine.

Vise jaw lift is a common and quiet source of error. When the movable jaw rises during clamping, the part tilts and the top face cuts out of parallel. Machining soft jaws to the part profile removes most of that lift. For thin plates, support the underside across its full area; otherwise the cutter pushes the floor down and the finished thickness varies across the part.

Five-axis work adds a second problem: the part must be reachable from many directions without re-clamping. A Ø400 mm rotary table with a tombstone lets four or five faces run in one setup, which removes stack-up error from re-fixturing. That is the main reason we hold 16 simultaneous 5-axis centers. On a simple prismatic part with one critical face, though, a three-axis machine with a solid vise is often faster to set and just as accurate.

Zero-point systems are worth the cost when a part needs three or more setups. They repeat position within a few microns and cut the dial-in time to minutes. On a one-off prototype, the investment rarely pays back. Decide by setup count, not by how modern the fixture looks.

• 1
  Thin floor, open pocketSupport underneath, reduce axial depth, climb mill.
• 2
  Four or more setupsZero-point pallet, dial in once.
• 3
  Single critical faceThree-axis plus solid vise is enough.

Metal moves when it warms. Aluminum expands about 23 × 10⁻⁶ per °C, so a 100 mm feature grows roughly 0.0023 mm for every degree of temperature rise. A spindle that has run for ten minutes is not at the same temperature as one that started cold an hour ago. On a ±0.005 mm job, that difference is a real part of the error budget, not a rounding term.

Coolant choice changes both heat and chip flow. Flood coolant removes heat from the cutting zone and from the part, but it can shock carbide edges in interrupted cuts. Through-tool coolant reaches the bottom of deep holes where flood never arrives. Air blast works well for aluminum and graphite, where a wet chip sticks and recuts. For plastics, air or mist is usually the only option because coolant can stain or stress-crack the surface.

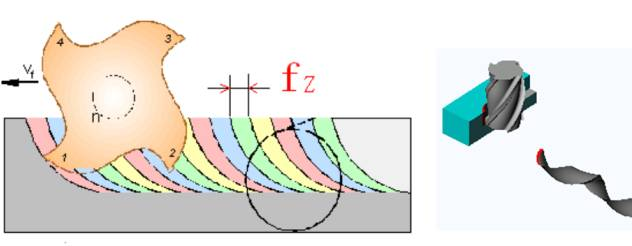

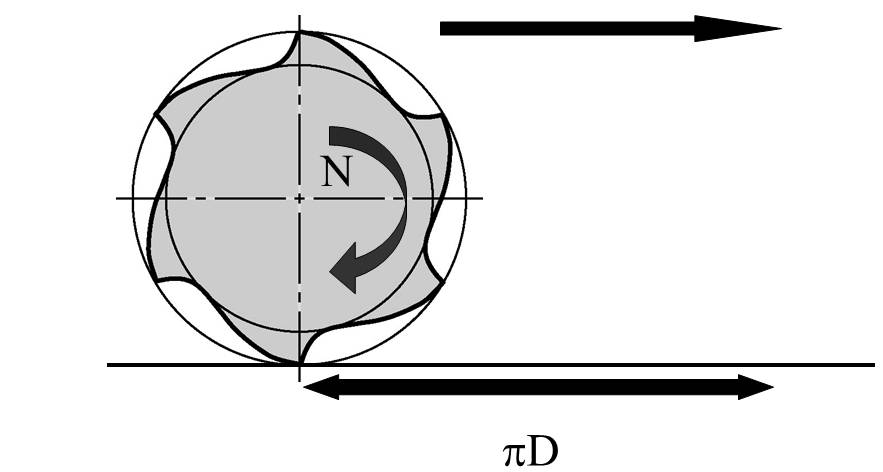

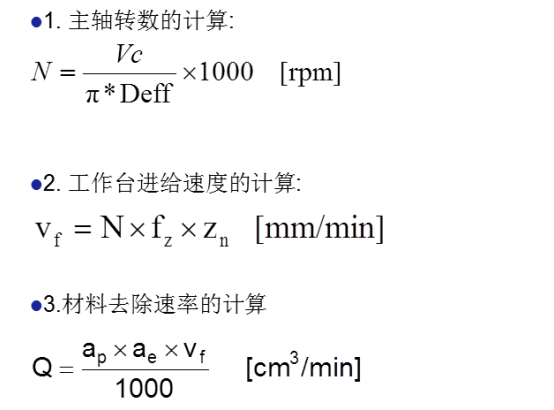

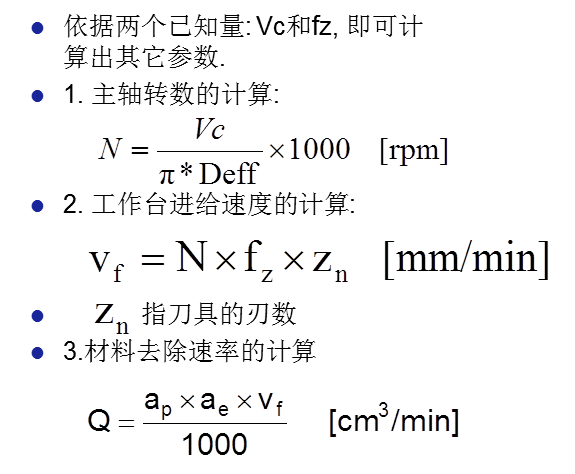

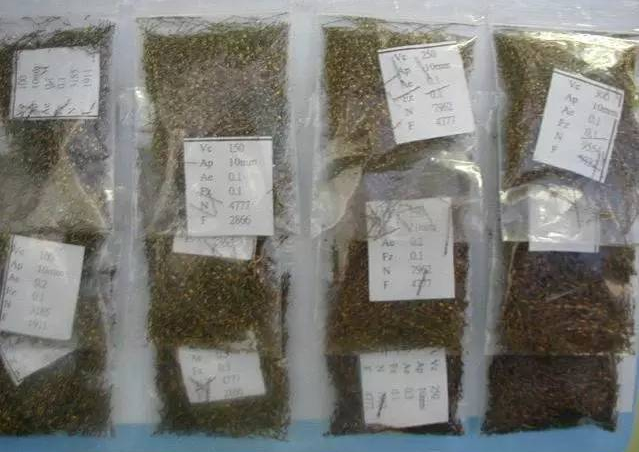

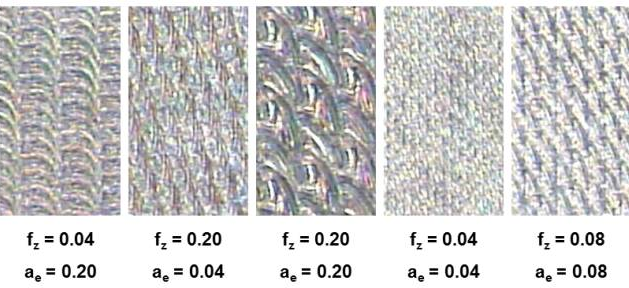

Chip load, not spindle speed, drives tool life. Feed per tooth below about 0.02 mm burnishes the edge instead of cutting and generates heat fast. Push the feed high enough that each tooth bites, and the tool runs cooler even at higher spindle speed. On a 10 mm, four-flute carbide cutter in 6061, a starting point of 0.05 mm per tooth at 8,000 rpm is reasonable and can be tuned from the chip shape.

Warm-up routines are cheap insurance. Run the spindle at moderate speed for 10 to 15 minutes before a tight-tolerance feature, and keep the shop temperature stable through the shift. A door left open in winter changes the machine geometry more than most operators expect.

• 1
  Thin chipsRaise feed per tooth, not just rpm.
• 2
  Deep holeThrough-tool coolant, peck if needed.
• 3
  Plastic partAir or mist, avoid flood coolant.

Measurement is part of the process, not a separate step at the end. First article inspection confirms the setup before the run continues; in-process checks catch drift while there is still material to correct. A part that passes only at final inspection has already consumed its second chance.

Measure from the drawing datum. A convenient face or a vise jaw is not the datum unless the drawing says so, and the difference often equals the tolerance you are trying to hold. On a part with a Ø50 mm bore called out from a machined face, checking from the opposite face will hide a real error or invent one.

Calibration status and probe qualification belong in the same conversation. A CMM that has not been verified, or a touch probe with a worn stylus, produces numbers that look precise and are not. For tight work, qualify the probe against a known ring gauge before the run, and re-check after any crash or tool change.

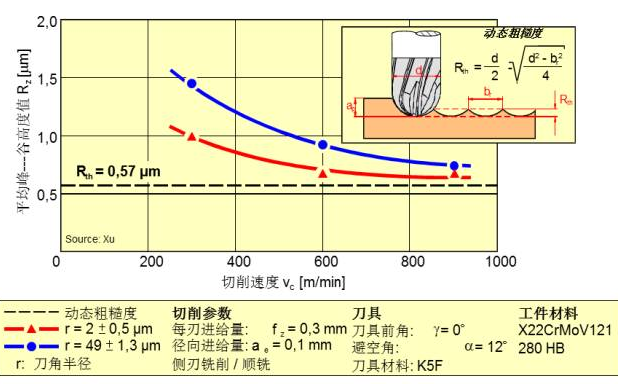

Report what the drawing asks for. A flatness callout on a thin plate is not answered by a caliper reading across two points. Where a drawing specifies Ra 0.8–1.6 μm, surface finish needs its own measurement rather than an assumption from the tool path.

We inspect 100% of parts before shipment, covering raw material check, in-process monitoring and final inspection, with reports available on request. That does not replace the operator's own checks at the machine.

• 1
  Before the runFirst article inspection against the drawing.
• 2
  During the runIn-process checks at fixed intervals.
• 3
  Before shipmentFinal inspection, reports on request.
