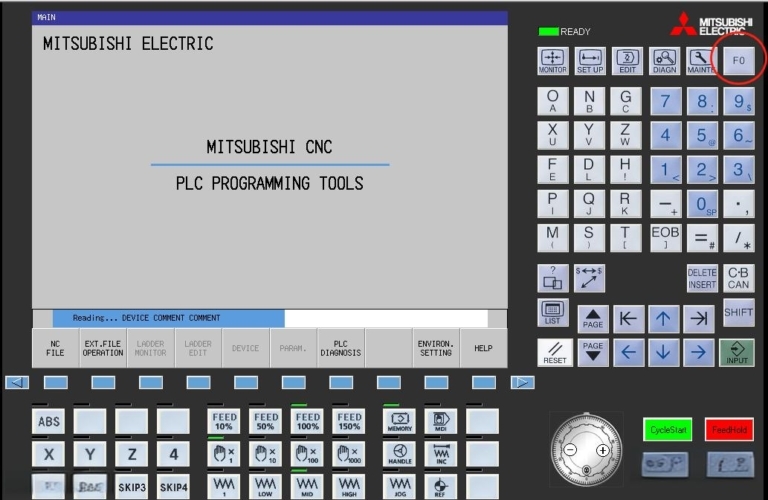

A machining center has three control layers. The top layer is the CNC, which reads the part program and turns each block into a commanded path. The middle layer is the servo drive and motor, which converts that command into torque. The bottom layer is the feedback device, usually an encoder on the motor or a linear scale on the axis. Every dimensional problem you see at the spindle traces back to one of these three.

The CNC does not know where the table is. It only knows what it asked for. The scale or encoder tells it what happened. When people say a machine lost position, they usually mean the difference between command and feedback grew larger than the in-position window. That window is often a few counts, sometimes 0.005 mm or less on a finishing axis.

Interpolation is the part engineers forget. In contouring, the CNC must keep two or more axes moving so the tool tip follows a curve. If one axis lags, the tool does not stop. It cuts a slightly different curve. This is why a machine can hold ±0.005 mm on a straight bore and still produce a visible facet on an arc.

• 1
  CNCProgram execution, look-ahead, interpolation, compensation tables
• 2
  Servo driveCurrent loop, velocity loop, position loop, tuning gains
• 3
  FeedbackMotor encoder or linear scale, reference mark, cable shielding
• 4
  PLCTool changer, coolant, interlocks, safety logic

Motor encoders measure motor rotation, not table position. Ball screw pitch error, thermal growth and thrust bearing play all sit between the encoder and the workpiece. A machine with a 4,000 mm X travel and motor feedback can hold a few hundredths of a millimeter over the full stroke on a good day. Add a linear scale and the same machine can hold much tighter because the scale sees the table itself.

Thermal behavior is the second limit. A spindle running at 12,000 rpm for two hours warms the headstock; the casting grows; the tool tip moves. Control builders compensate by modelling spindle growth against speed and run time. That model is a curve fit, not a measurement. It works well inside the calibrated range and drifts outside it.

Backlash and lost motion show up in a specific pattern. A bore is round but the pitch between two holes is short in one direction. That is a reversal error, not a scale problem. Most controls hide it with backlash compensation, which is a number you enter, not a fix you make.

• 1
  Motor encoderCheap, sealed, blind to screw and thermal error
• 2
  Linear scaleReads the table directly, needs clean mounting and shielding
• 3
  Glass scale vs. steel tapeGlass for short axes, steel tape for long travel

Look-ahead is the control's ability to read several blocks ahead and slow the feed before a sharp corner. Too little look-ahead and the machine overshoots every corner. Too much and the cycle time grows without any accuracy gain. The setting is usually a tolerance value, not a speed. Set it to the accuracy the part actually needs, not to the tightest number in the drawing.

Cutter compensation introduces its own error. The control offsets the path by the tool radius, and on inside corners the offset path can self-intersect. Some controls loop the tool around the corner; others alarm out. If you see a small gouge on an internal corner, check the compensation type before you touch the machine.

Feed rate on arcs is another common trap. A control that does not clamp feed on small radii will try to run the programmed feed at the tool center, which means the cutting edge sees a much higher speed. The result is chatter on the inside of a pocket and a finish that swings from Ra 0.8 μm to Ra 3.2 μm on the same pass.

• 1
  Look-ahead toleranceMatch it to the drawing, not to the machine spec
• 2
  Compensation typeType A and Type B behave differently on internal corners
• 3
  Arc feed clampCap feed on radii below 3× tool diameter

Squareness and parallelism are set when the machine is assembled. They move when the machine gets hot or when the foundation settles. A machining center that cut a square part in January can cut a slightly rhombic part in July if the shop has no temperature control. For work near ±0.005 mm, a stable room matters as much as the machine specification.

Spindle growth is the largest single thermal error on most vertical machines. A typical spindle can grow 20–40 μm over a long shift. Roughing generates more heat than finishing, so the error is worst right after a heavy cut, which is exactly when many shops start their finish pass. A warm-up cycle or a short dwell before finishing removes most of it.

Ball screw growth follows the same logic on the long axis. On a 4,000 mm travel machine the screw can extend measurably over a shift, and the error is largest at the far end of travel. Some controls compensate with a screw pitch table; others rely on the scale. Neither helps if the screw is preloaded too tight and running hot.

• 1
  SpindleWarm-up cycle before finishing, roughly 15–30 minutes
• 2
  Ball screwPitch compensation table, check at both ends of travel
• 3
  RoomA few degrees of shop swing is visible on tight bores

Servo alarms are usually named after the symptom, not the cause. An overload alarm on the Z axis can come from a dull tool, a chip jam in the way cover, a failing thrust bearing or a drive that is not tuned. The alarm tells you which axis tripped. It does not tell you why.

Start with the mechanical side. Push the axis by hand with the drive off if the machine allows it, and feel for tight spots. Then check the load meter on a dry run. A Z axis that draws noticeably more current on the way up than on the way down has a mechanical or counterbalance problem, not a control problem.

Electrical noise is the last thing most people check and one of the more common causes of intermittent faults. A scale cable routed alongside a spindle or servo power cable can pick up noise and produce random following errors that never repeat on demand. Look at the cable routing before you replace a drive.

• 1
  Mechanical firstHand feel, load meter, way lubrication
• 2
  Electrical secondCable routing, shield grounding, connector seating
• 3
  Parameters lastChange one at a time and record the old value

A machine specification is a starting point. The achievable tolerance on a real part depends on the feature, the material and the setup. A single bore in aluminium on a warm machine is a different job from a 4,000 mm frame with bores at both ends. The first can sit at ±0.005 mm. The second needs a scale, a stable room and a plan for thermal growth.

Feature geometry matters just as much. Thin walls move when you cut them, so the control holds position while the part deflects. Deep pockets trap chips, and a recut chip will mark a finish faster than any control error. When a drawing calls for Ra 0.8–1.6 μm, the process around the machine has to support it.

On our 16 simultaneous 5-axis centers we treat the control as one part of the process, not the whole answer. In-process probing catches drift on long runs before the parts are finished. Final inspection reports are available when the drawing calls for them, and we run 100% inspection before shipment.

• 1
  Small featuresGeometry is easier to hold than long spans
• 2
  Long spansFeedback type and thermal plan decide the result
• 3
  Thin wallsControl accuracy cannot fix part deflection
