Die casting pushes molten metal into a hardened steel cavity at high pressure, holds it under pressure while it solidifies, then ejects the part. For a battery cover the shot weight is small, often 30–120 g, so cycle times run short: 20–45 s on a hot-chamber zinc machine, 35–70 s on a cold-chamber aluminium cell. The die itself is the expensive part. A two-cavity cover tool is a real investment, and the whole economic case rests on spreading that cost across tens of thousands of parts.

Two things happen at the same time as the cavity fills. Air has to leave, and metal has to shrink. Vents and overflow wells handle the first. Shrinkage handles the second, and it is the reason a raw casting is never dimensionally final. Zinc alloys shrink about 0.4–0.7%, aluminium 0.5–0.7%, magnesium roughly 0.5–0.7%. Toolmakers compensate in the cavity dimensions, but the compensation is a single number applied to a part that does not shrink evenly.

Thin sections cool first. Thick sections, like a latch boss or a rib root, stay liquid longer and pull metal from the surrounding wall as they shrink. That is how sink marks appear on the visible outer face of a cover. It is also how internal porosity forms. A cover can measure perfectly on the outside and still crack at the latch after a few hundred cycles.

The gate position decides a lot of this. Gating into the thickest section lets the runner feed the boss during solidification. Gating into a thin wall means the wall freezes before the boss is fed. On a cover, the thick points are the latch tab and the hinge lugs, so that is where the gate usually goes, even if it makes degating and finishing slightly harder.

• 1
  Hot-chamberZinc and magnesium. Fast cycles, good thin-wall filling, lower tool wear.
• 2
  Cold-chamberAluminium and higher-melting alloys. Slower, higher tonnage, better for structural covers.
• 3
  Vacuum assistPulls gas out of the cavity before the shot. Reduces porosity at latch and rib roots.

Zinc alloy 3 and alloy 5 are the default for small consumer covers. They fill thin walls well, take a fine texture straight from the die, and plate or paint without much preparation. The density is high at about 6.6 g/cm³, so a cover feels solid and heavy in the hand. For a handheld remote that weight is often acceptable, and sometimes wanted.

Aluminium ADC12 weighs roughly a third of zinc. It conducts heat away from the battery compartment better and holds up under repeated flexing. The trade-off is filling behavior: thin ribs and sharp latch details are harder to reproduce, and the as-cast surface is duller and more porous, so it usually needs tumbling, blasting or painting before it looks finished.

Magnesium AZ91D is the lightest option at about 1.8 g/cm³ and shields EMI, which matters if the remote carries a radio module. It is also the most demanding. Magnesium oxidizes quickly, needs a chromate-free conversion coating plus paint or powder, and the melt must be protected against ignition. Costs go up, and not every die caster runs it.

Pick the alloy from the failure mode you care about, not from a data sheet. If the cover is dropped on tile, aluminium or magnesium at 0.9–1.2 mm wall usually survives better than a thin zinc cover that dents. If the cover is mostly decorative and snaps on once, zinc at 0.6–0.8 mm is cheaper and finishes better.

• 1
  Zinc alloy 3 / 5Best surface detail and plating. Use for thin decorative covers.
• 2
  Aluminium ADC12Light, heat tolerant, good for thicker structural covers.
• 3
  Magnesium AZ91DLightest and EMI shielding, needs full coating system.

A cover is a shell. Shells distort. The single most useful rule is to keep the nominal wall uniform within about 25%. If the ribbed area is 1.2 mm, the flat field should not drop to 0.7 mm, because the thin zone freezes early and the thick zone keeps shrinking against it. Warp shows up as a rock in the part: press one corner and the opposite corner lifts.

Draft is what lets the cover slide out of the cavity without dragging. A typical figure is 1° to 2° on the outer walls and 0.5° to 1° on internal ribs and bosses. Texture changes this. A heavy leather-grain finish on the outer face needs 2° to 3°, because the texture itself is undercut relative to the pull direction.

The latch is where covers fail. A cantilever snap needs a root radius of at least half the wall thickness, and the flexing section should be shorter and thinner than the root. If the root is sharp, stress concentrates and the tab cracks after a few hundred cycles. Adding a 0.3–0.5 mm radius at the root costs nothing in the tool and changes the fatigue life completely.

Battery contact pressure is the other hidden load. The cover is pushed outward by the spring contacts the whole time it is closed. A flat cover with no ribs will bow outward over months. Two shallow ribs across the inner face, 0.8–1.2 mm tall, give enough stiffness without adding sink marks on the visible side. Put them where the bosses already are so the wall thickness stays even.

• 1
  Uniform wallKeep variation under 25% of nominal to limit warp.
• 2
  Draft1–2° plain walls, 2–3° on textured outer faces.
• 3
  Snap root radiusAt least half the wall thickness, no sharp corner.

Cold shuts look like a seam or a hairline on the surface. They happen when two metal fronts meet after one has already started to freeze. On a cover the usual location is the far corner opposite the gate, or around a thin rib. Fixes: raise the die temperature, widen the gate, or move the gate so the fill front arrives together. Raising shot speed alone often just moves the problem.

Porosity is gas trapped during fill or shrinkage voids from thick sections. The two look similar on a radiograph but have different fixes. Gas porosity clusters near the gate and at the end of fill; it responds to better venting, vacuum assist, or a slower first-stage shot. Shrinkage porosity sits in the thick boss or latch root and responds to gate position and cooling layout, not to venting.

Sink marks are the visible version of shrinkage. A 0.05 mm depression on a matte surface is invisible. The same depression on a glossy anodized face reads as a shadow. If the outer face must be glossy, move the rib or boss, or reduce its thickness to about 60% of the nominal wall. Polishing the tool more will not remove a sink mark.

Flash is metal escaping the parting line. A little flash is normal on a used tool, and it is trimmed. Persistent flash at one corner usually means the die is not closing flat, often from a worn leader pin or thermal distortion. Chasing it with higher clamp tonnage distorts the tool. Check the die first.

• 1
  Cold shutFill fronts meet late. Raise die temp, widen gate.
• 2
  Gas porosityTrapped air near gate or end of fill. Vent or vacuum.
• 3
  Shrinkage voidThick boss starved of feed. Move gate, add cooling.

A raw cover is close, but the features that mate with other parts are usually not close enough. The battery opening rim, the hinge bore, the latch engagement face and the screw bosses all have fit requirements. Die casting holds general tolerances around ±0.1 mm on small covers and drifts with tool wear. When the cover has to sit flush within 0.05 mm, or a latch has to engage at a fixed height, the casting is machined.

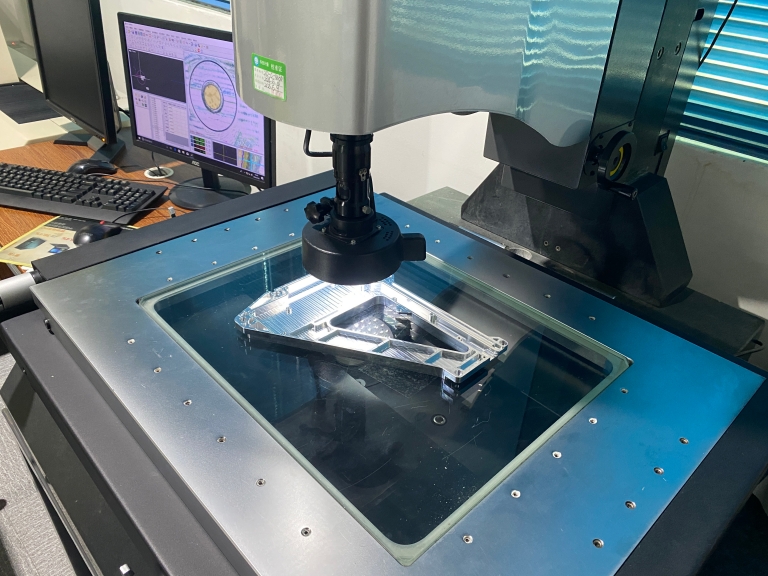

The usual operations are light. Face the parting line flat, bore the hinge holes to size, mill the latch engagement surface, and spot-face the screw bosses. Because only a few surfaces see the cutter, cycle time is short, often under 60 s per cover on a compact 3-axis machine. We run these on our three-axis and four-axis cells and hold ±0.005 mm where the drawing calls for it.

There is a second reason to machine: the cover may need a thread, a counterbore or a flat sealing face that cannot be cast at all. Casting a thread is possible but the crest is weak and the pitch drifts. Cutting it after casting gives a clean, full-form thread in a few seconds.

Machining also fixes tool wear. As the die ages, the casting grows by a few hundredths. If the datum faces are machined after casting, the functional dimensions stay in tolerance even when the raw casting drifts. That extends die life before refurbishment and keeps late-production parts interchangeable with early ones.

• 1

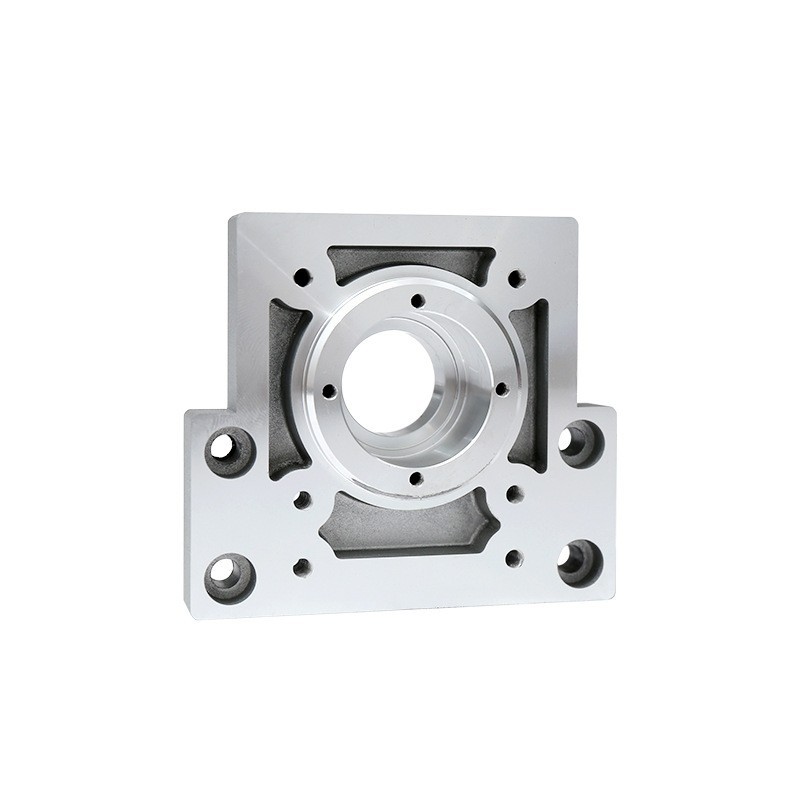

  Face and boreParting line, hinge bore, latch face, boss spot faces.
• 2
  ThreadsCut after casting for full-form threads and clean crests.
• 3
  Datum correctionMachining absorbs die wear so function stays in tolerance.
