A steering knuckle carries the wheel, the brake caliper and the strut, and it steers. Every load path runs through it. When the part is cast rather than forged, the casting process of aluminum alloy has to produce a near-net shape with no internal porosity in the hub, the strut ear or the steering arm root. Those are the three places fatigue cracks start.

The casting route is usually gravity die casting or low-pressure die casting in A356-T6, or high-pressure die casting in ADC12 when volume is high and loads are moderate. Sand casting still appears for prototypes and low-volume commercial vehicles. Each route changes wall thickness limits, draft angles and the amount of machining stock you must leave.

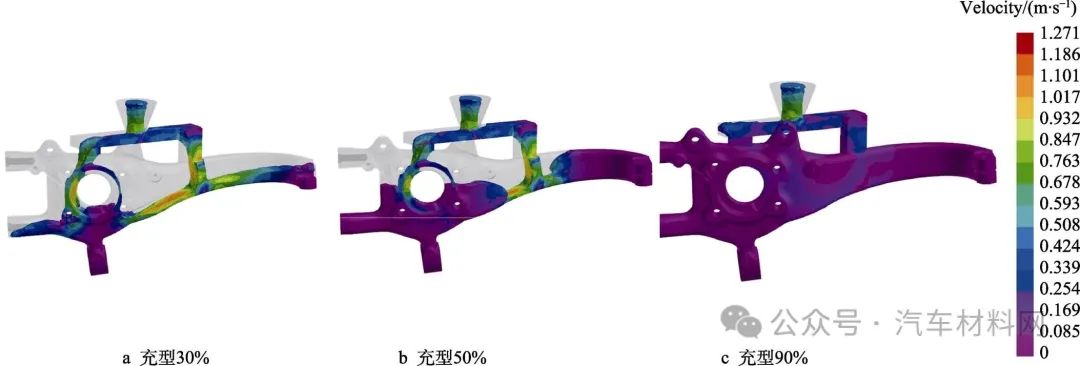

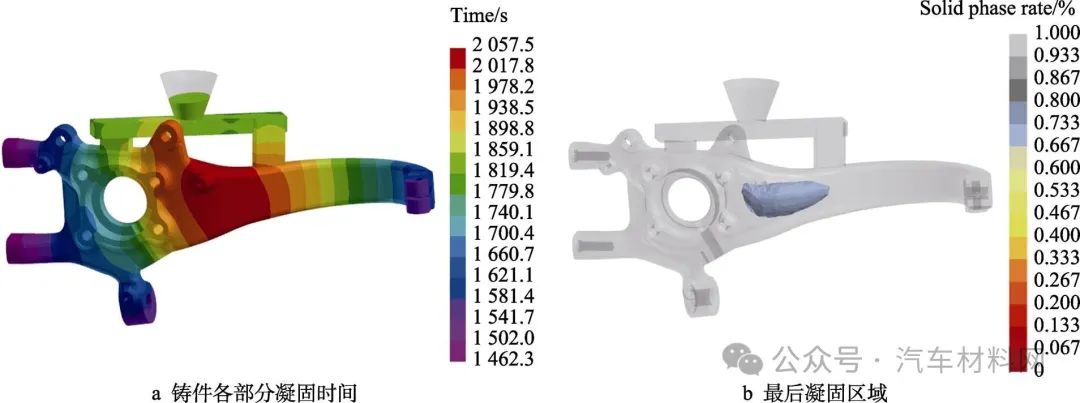

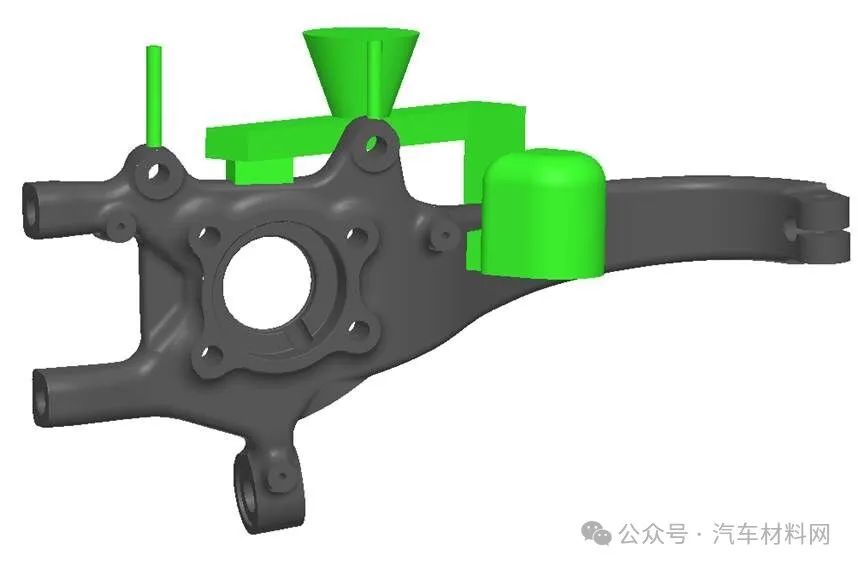

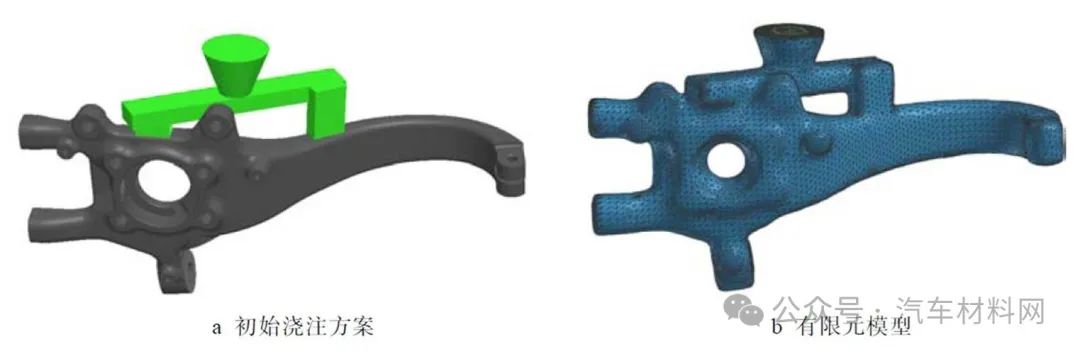

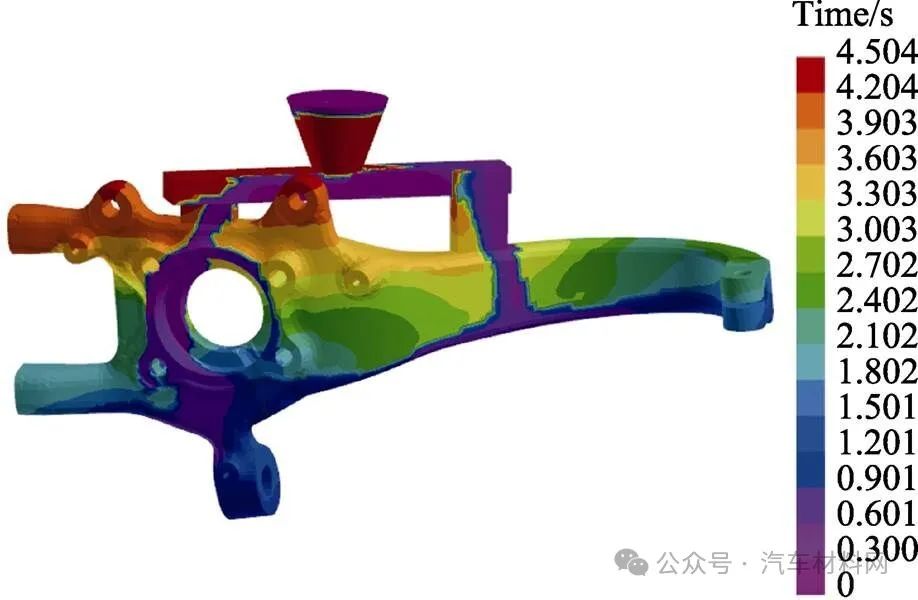

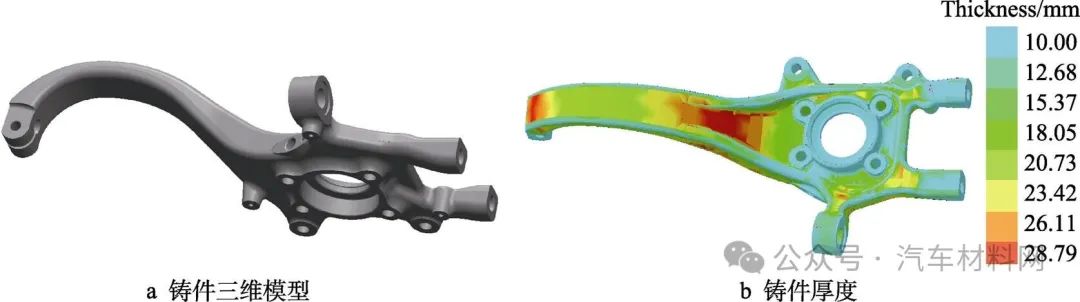

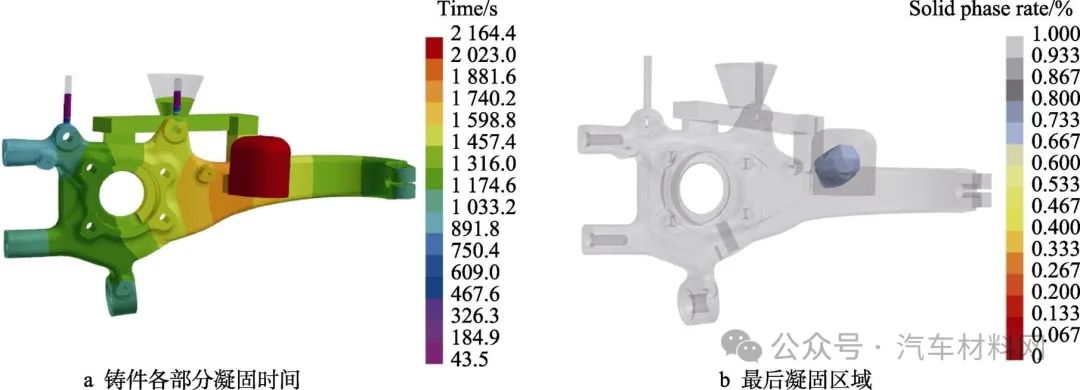

Wall thickness on a knuckle typically runs 6–12 mm in the hub and 5–8 mm in the arm. Thin sections cool fast and fill poorly; thick sections shrink and pull porosity. The process window is narrow, so the gating design does most of the work before the first shot is poured.

Design the part so the hub bore, the strut bolt holes and the ball joint taper are the only machined features. Everything else stays as-cast with 1.5–3 mm stock. That keeps the casting cheap and pushes the tight tolerances to the CNC side where they belong.

• 1
  Gravity die castingA356-T6, 3–8 mm walls, good for 5,000–50,000 parts per year.
• 2
  Low-pressure die castingBetter feeding, fewer gas defects, tooling cost higher than gravity.
• 3
  High-pressure die castingADC12, thin walls, high volume, but trapped gas limits heat treatment.
• 4
  Sand castingPrototypes and low volume, rough surface, generous machining stock.

A356 is the default for a cast knuckle. It pours well, responds to T6 heat treatment and reaches roughly 240–280 MPa tensile with 6–10% elongation. That combination of strength and ductility is what a safety part needs. ADC12 is stronger in the as-cast condition but brittle, and it cannot take a full T6 cycle without blistering from trapped gas.

If your loads are high and the knuckle is a single load path, A356-T6 or a modified A356 with tighter iron and hydrogen limits is the right call. Keep iron below 0.15% and hydrogen below 0.15 ml/100 g Al. Above those numbers, ductility drops and fatigue life falls with it.

Do not mix alloys in the same melt. Residual iron from recycled ADC12 will push A356 out of specification within one heat. Keep separate crucibles, separate ladles and separate scrap bins, and verify chemistry on every melt before you pour.

For a prototype run, sand casting in A356 is often enough to prove the geometry. When the design freezes, move to gravity die casting for the same alloy. The mechanical properties carry over, so your test data stays valid.

• 1
  A356-T6Best balance of strength and elongation for a safety-critical knuckle.
• 2
  A356 + Sr modificationChanges silicon morphology, improves elongation by 2–4%.
• 3
  ADC12High-volume, thin-wall, low heat treatment risk, lower ductility.
• 4
  Avoid mixed meltsIron contamination is the fastest way to fail a fatigue test.

A356 knuckles go through solution treatment at 540 °C for 4–8 hours, a warm water quench at 60–80 °C, then artificial aging at 155–165 °C for 4–6 hours. The quench is the step that moves dimensions. Cold water quenches faster and gives higher strength but warps thin arms. Warm water trades a little strength for straightness.

Measure the knuckle before and after heat treatment, not just after. If the strut ear moves more than 0.3 mm, the quench rate is wrong or the part was not fixtured during the drop. Fix the quench before you add machining stock, because extra stock will not save a warped casting.

Aging temperature is the strength control. A 10 °C drift on the furnace changes yield strength by roughly 15 MPa. Log every load with a thermocouple in a dummy part, not just the furnace air temperature.

After heat treatment, the casting goes to a straightening check on a fixture. Parts that do not seat on the fixture are scrapped or reworked. Do not hide a bent casting under CNC stock; the bore will still be off-axis when it is machined.

• 1
  Solution treat540 °C, 4–8 hours, until the eutectic silicon spheroidizes.
• 2
  QuenchWarm water at 60–80 °C to limit distortion in the steering arm.
• 3
  Age155–165 °C for 4–6 hours, target peak yield strength.
• 4
  Straighten checkFixture seat check before any CNC operation begins.

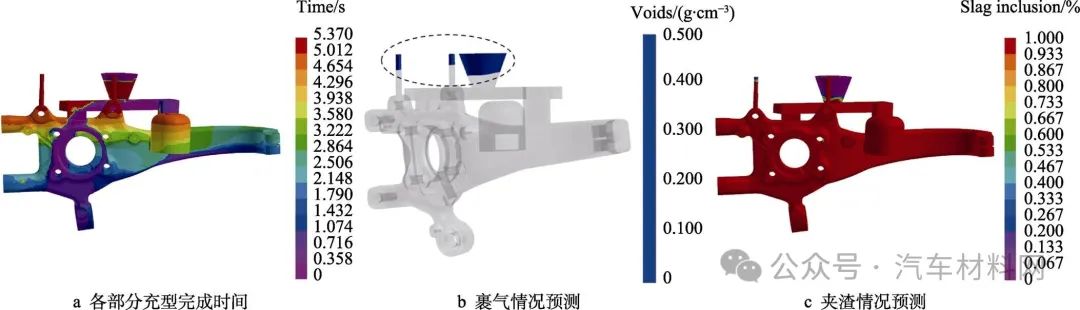

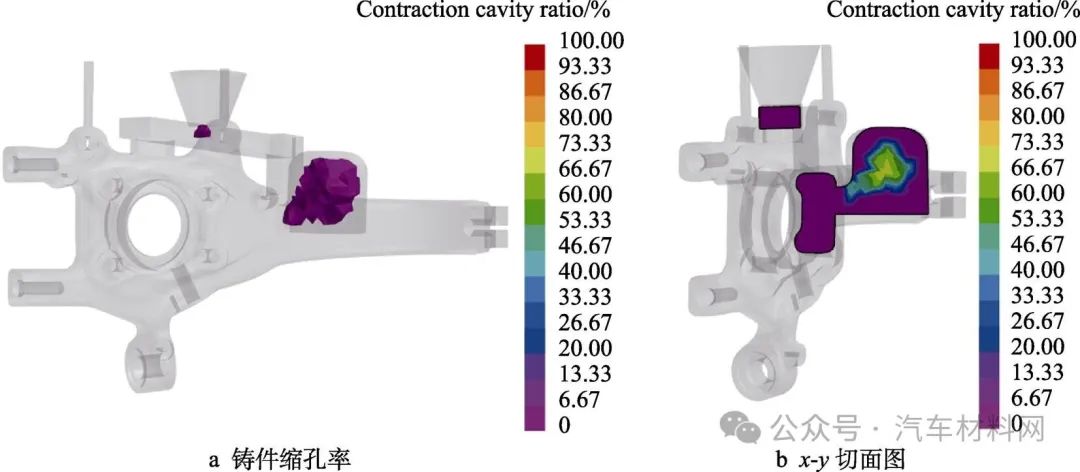

Radiography comes first. Shoot the hub, strut ear and steering arm root at 2–3% of production, or 100% of the first article. Any porosity cluster larger than 2 mm across in a fatigue-critical zone means the gate or riser is wrong. Fix the tool, not the inspection rate.

Dye penetrant finds surface cracks and cold shuts on the arm. Do it after shot blasting, because blast media hides small indications. A cold shut on a steering arm is a reject, not a rework, no matter how shallow it looks.

Dimensional check comes after heat treatment, on a CMM, using the same datum scheme the customer drawing defines. Casting datums and machining datums are not always the same. Agree on the datum set with the customer before you build the fixture.

Keep the process data with the parts. Pour temperature, die temperature, quench delay, aging load number and X-ray film ID should all be traceable to the serial number. That record is what an IATF 16949 audit will ask for, and it is what saves you when a field failure needs root cause.

• 1
  X-rayHub, strut ear and arm root. First article plus 2–3% of production.
• 2
  Dye penetrantAfter shot blast, on all machined and as-cast surfaces of the arm.
• 3
  CMMPost-heat-treatment, customer datum scheme, full first article report.
• 4
  TraceabilityMelt, heat treat load and film ID tied to the part serial number.

The casting gives you a shape within 1.5–3 mm of the finished part. The CNC work gives you the bearing bore, the strut bolt holes, the ball joint taper and the caliper mounting faces. Those are the features with real tolerance, and they should never be cast to size.

A knuckle is a one-setup part on a 5-axis machine if you fixture on the strut ear and the arm. That keeps the bearing bore and the ball joint taper in the same coordinate frame, which is what controls steering geometry. Two setups usually mean two datums and a stack-up error you cannot inspect away.

Bearing bores on aluminum knuckles typically hold ±0.005 mm with a roundness under 5 μm. That calls for a boring head or a fine-boring cycle, not an end mill. Leave 0.15–0.25 mm for the finish pass and keep the feed low to avoid chatter in the thin hub wall.

Surface finish on the bore and taper runs Ra 0.8–1.6 μm. If the drawing calls for Ra 0.2–0.8 μm, plan a separate finishing pass and check that the casting has no porosity breaking through the bore wall. A porous bore will never hold finish, no matter how slow you cut.

• 1
  One setup, one datum5-axis machining keeps bore and taper in the same frame.
• 2
  Bore tolerance±0.005 mm with roundness under 5 μm on the bearing seat.
• 3
  Finishing stockLeave 0.15–0.25 mm for the final bore and taper passes.
• 4
  Porosity checkInspect the bore wall before finishing; breakouts are scrap.
