Resin 3D Printing vs Filament: 7 Costly Mistakes to Avoid

• 1
  The seven mistakes at a glance
• 2
  Mistake 1: Ignoring mechanical anisotropy
• 3
  Mistake 2: Underestimating true cost per part
• 4
  Mistake 3: Assuming printer tolerance equals part tolerance
• 5
  Mistake 4 and 5: Supports, cavities, and long-term stability
• 6
  Mistake 6 and 7: Scaling up, and refusing the hybrid route
• 7
  How GreatLight approaches resin 3D printing vs filament decisions
• 8
  Step by step: working through the seven mistakes

Both resin and filament parts are stronger in the print plane than across it. On an FDM part the interlayer bond is usually the weak link, and a bracket loaded perpendicular to its layers can fail at a fraction of the in-plane tensile value on the same datasheet. Resin behaves differently but not better. Most UV-cured materials are brittle, with low elongation, and impact strength drops further after full post-cure.

The symptom is a clean break that follows the layer lines, often on the first drop test or the first over-torque. Engineers see a datasheet tensile number and assume the part will carry that load in any direction. It will not.

Before choosing between resin and filament, write down the actual load case: tensile, elongation at break, service temperature, chemical exposure. Then ask the supplier for X, Y and Z values, not a single headline number. If the best additive option still misses the requirement, the part belongs in machined plastic or aluminum.

We see this often on functional brackets, motor mounts and impellers. A resin print looks right and measures right, then fails in service. Reorienting the part so layers run along the load path buys some margin, but it does not close a two-to-one gap.

• 1
  Read the Z columnIf the datasheet only gives one tensile value, treat it as in-plane only.
• 2
  Reorient before redesignRotating the build can move the weak axis away from the load path.
• 3
  Set a hard cutoffIf Z strength is under half the requirement, switch process instead of tuning.

A spool or a bottle is cheap. The process around it is not. Resin printing pulls in isopropyl alcohol baths, a curing station, nitrile gloves, disposable containers and the labor to run all of it. Filament printing runs for many hours per build and usually needs sacrificial supports that are thrown away. Print time is machine time, and machine time has a rate.

The symptom appears at the quoting stage: the additive number looks great at one piece and becomes uncomfortable at fifty. Nothing changed except the hidden hours got multiplied.

Build a fully loaded cost per part before you commit. Include material, machine hours, post-processing labor, support removal, curing, inspection and the scrap rate from failed builds. Then compare that number against a machined version of the same geometry.

For functional brackets, motor housings and impellers, machining from solid stock is often faster and cheaper once quantity passes a few dozen pieces. The break-even moves with geometry. A thin, lattice-like part stays additive. A blocky part with a few critical bores does not.

• 1
  Count the consumablesIPA, gloves, filters and failed builds belong in the part cost.
• 2
  Use hourly rates, not material priceMachine amortization and tooling are part of the real rate.
• 3
  Re-quote at 10, 50 and 200 piecesThe cheapest process usually changes with volume.

A printer spec sheet might claim a positional accuracy figure, and buyers often copy that number straight onto a drawing. That number describes where the machine can place a point, not what the finished part will measure after shrink, support removal, washing and post-cure.

The symptom is a print that passes its own inspection but will not fit its mating part. Holes come out undersized, flat faces bow, and thin walls move after cure. The error is not random, which makes it harder to catch: it repeats.

Start the tolerance stack from the finished part requirement. Add the shrinkage of the specific resin or filament, the dimensional change from post-cure, and the variability of your orientation and support strategy. What remains is the tolerance you can actually promise.

When a feature truly needs tight control, print it oversize and machine the critical faces afterward. This is normal practice, not a workaround. A printed housing with two machined bores will hold position far better than the same housing printed to final dimension.

• 1
  Separate the two numbersMachine accuracy and part accuracy are different claims.
• 2
  Measure after curePost-cure is where many resin parts move the most.
• 3
  Leave stock on critical faces0.3–0.5 mm is enough for a light finishing pass.

Support removal is where a clean print becomes a scratched part. Resin supports leave witness marks on cosmetic faces and can tear a thin wall on the way off. Filament supports weld to the model when the gap is too tight and break free with a chunk of the surface. The symptom is a part that measures correctly and looks unacceptable.

Internal cavities are worse. A hollowed resin part traps uncured resin and cleaning fluid if it has no drain path. Weeks later it weeps, cracks, or smells. Design 2–3 mm drain holes at the lowest points of the build orientation, and make sure the wash can actually reach the inside.

Environmental resistance is the fifth trap. Uncured or under-cured resin keeps reacting with UV and moisture. A part that lives indoors is fine. The same part on an outdoor enclosure yellows and embrittles within months. Filament parts absorb moisture too, and a wet spool prints porous and weak.

The fix is specification, not hope. Ask for a grade that is stabilized for the exposure, specify the coating or paint if UV is in play, and dry filament before a critical build. Note the service environment on the drawing so the shop can choose the material.

• 1
  Drain paths are geometryAdd them in CAD, not in the slicer as an afterthought.
• 2
  Support marks are predictableKeep supports off cosmetic faces or plan a finishing step.
• 3
  Dry the filamentWet nylon or TPU prints porous and fails early.

A prototype process is not a production process. The first ten parts come off a machine that a technician watches. Part one hundred comes off a machine that nobody watched, and the resin batch, the room temperature, or the nozzle have drifted. The symptom is a slow creep in dimensions or a sudden jump in the failure rate, with no change on the drawing.

If additive must go to volume, qualify it like any other process. Lock the parameters, record the material lot, inspect the first articles, and monitor in process. Without that discipline, the drift is invisible until a customer finds it.

The seventh mistake is treating precision CNC as a separate road. It is not. Print the geometry that only additive can make, then machine the faces that carry load, seal, or locate. One part can use both, and that combination often beats either process alone.

We run this hybrid route often: an SLA or SLS blank with stock left on the critical surfaces, then a light pass on a 3-axis or 5-axis machine. The printed body carries the shape. The machined surfaces carry the tolerance.

• 1
  Qualify before you scaleFirst article plus in-process checks, not a verbal assurance.
• 2
  Watch the drift, not the averageA tight average with growing spread is an early warning.
• 3
  Split the part by functionShape from additive, interfaces from machining.

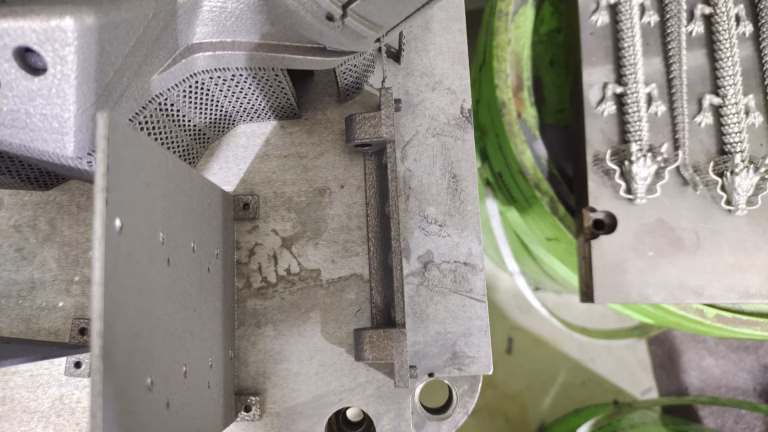

GreatLight Metal Technology has operated from Dongguan since 2011 and now runs three wholly-owned plants covering 7,600 m², with 150 technicians and 127 high-precision CNC machines. Our own shops include SLM, SLA and SLS printers alongside 3-axis, 4-axis and 5-axis machining centers, so the process recommendation is not tied to one technology.

That mix matters for troubleshooting. When a printed part keeps failing, we can test the load case, reorient the build, change the resin grade, or move the stressed features to a machined version. The answer comes from the part, not from which machine is idle.

We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Machining tolerances reach ±0.005 mm with surface finishes from Ra 0.2–0.8 μm when a critical face needs it. There is no minimum order quantity, so a single prototype and a 10,000-piece run go through the same inspection discipline.

If you are not sure which mistakes apply to your part, send the model. We will come back with a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours of approval.
