A robot arm linkage is not a bracket. It is the structural member that carries torque from a reducer output to the next joint or to the end effector. Every force the arm generates passes through it, so its behavior sets the arm's repeatability more than the servo does. If the linkage bends 0.1 mm under a 300 N load, no encoder resolution will recover that lost position.

The design targets conflict. Maximum stiffness fights minimum mass. Cable routing and sensor mounts force pockets that remove material exactly where bending stress is highest. Bearing bores must sit on a common axis within microns, yet they are often on opposite walls of a hollow casting replacement. These are the constraints that make robot arm linkages CNC machined parts rather than welded fabrications.

Machining solves part of this. A single setup on a five-axis center cuts both bores without repositioning, so the bore-to-bore axis stays true. Wall thickness can be held where a casting would drift. The tradeoff is cost per part at high volume, which is why many robot programs machine linkages through pilot builds, then evaluate casting later.

• 1
  Stiffness governs repeatabilityDeflection under payload shows up as position error at the tool center point.
• 2
  Mass governs dynamicsLinkage weight adds to the inertia every upstream joint must accelerate.

Most articulated-arm linkages land on 6061-T6 or 7075 aluminium. 6061-T6 gives predictable chips, welds if needed, and machines fast on three-axis and five-axis alike. 7075 buys roughly twice the yield strength for the same envelope, at the cost of higher tool wear and a sharper sensitivity to stress risers. On a linkage, that sensitivity matters: a 7075 part with a sharp internal corner will crack where a 6061 part would simply yield.

Steel enters when stiffness per unit volume is the binding constraint and there is no room to grow the section. 4140 and 4340 are common for high-torque shoulder links; 17-4PH stainless shows up in cleanroom, food, and medical-adjacent cells where corrosion resistance and hardness both matter. Titanium TC4 (Ti-6Al-4V) appears in humanoid and mobile platforms where every gram counts, but expect slower roughing and a real risk of thin-wall chatter.

Geometry drives setup count more than material does. A link with bores on two parallel walls usually needs one five-axis setup plus a flip. A link with a single through-bore and an open web can often run on a three-axis machine with two fixtures. Show the load case and the datum scheme with the model; the shop can then tell you whether the part is a five-axis job or a three-axis job with a good fixture.

• 1
  6061-T6Default for robot links. Good stiffness-to-weight, easy to anodize, low tool wear.
• 2
  7075Higher strength, tighter machining window. Radius every internal corner.
• 3
  4140 / 4340Use when section height is fixed and stiffness must come from the material.
• 4
  TC4 (Ti-6Al-4V)Weight-critical mobile and humanoid links. Plan for slower cycle times.

A joint binds for one of two reasons: the two bearing bores are not coaxial, or the bore diameters are wrong for the bearing fit. Both look identical to a technician pushing the arm by hand. The difference matters because fixing them requires different process changes.

Coaxiality is a setup problem. If the two bores are cut in separate operations with a re-clamp between them, the error comes from fixture repeatability, not from the machine. That is why the practical approach is to cut both bores in one five-axis setup with the part held on a stable face and the rotary table indexing between them. A Ø400 mm rotary table plus a probing pass before the finish cut keeps the axis honest.

Diameter fit is a metrology problem. A bearing outer ring needs an interference or transition fit, typically H7 or tighter depending on the bearing class. Hold that with a boring head and a warm-up cycle, and check with an air gauge or bore micrometer, not a caliper. For linkages that carry reversing loads, add a roundness check: a bore can measure correct on diameter and still be lobed enough to let the bearing rock.

• 1
  One setup, both boresRemoves fixture repeatability from the coaxiality stack-up.
• 2
  Probe before finishingConfirms stock position on a near-net or previously machined face.
• 3
  Measure diameter and roundnessDiameter alone will not predict joint bind.

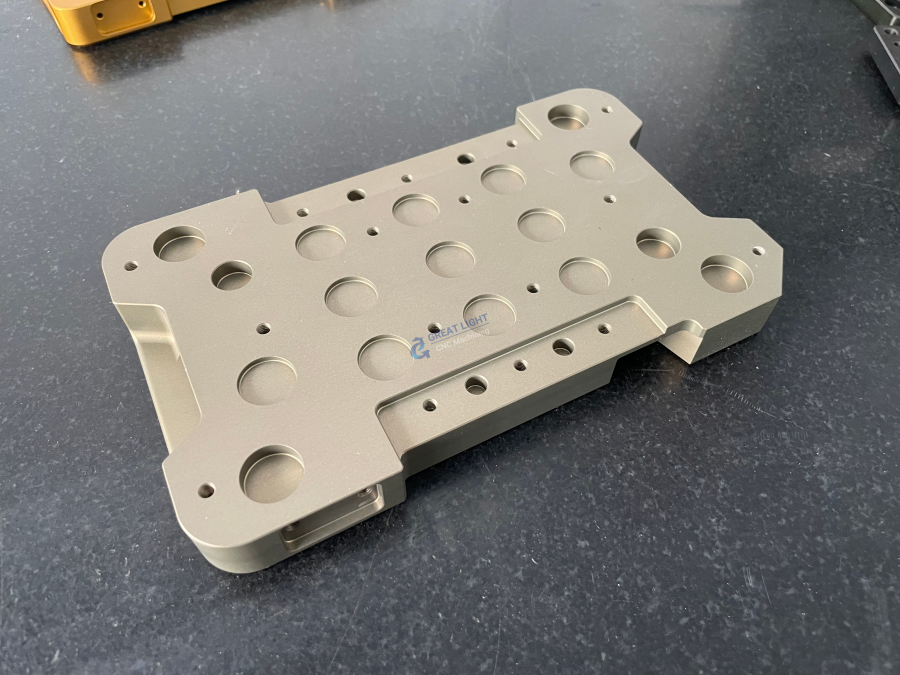

Anodizing grows the part. Type II clear adds roughly 5–15 μm per surface; hardcoat adds more. A bore that met print before anodizing will be undersized after it. On linkages with bearing seats and dowel holes, either mask those features or plan the pre-plate dimension so the finished bore lands in tolerance. This single detail causes more scrap on linkage batches than any machining error.

Surface finish interacts with fatigue. A Ra 0.8–1.6 μm finish on the outer web is fine for most links. But a sharp machined corner at a stress concentration will start a crack regardless of finish. If the load case is dynamic, specify a corner radius and a bead blast or tumbling pass to remove the machining lay direction at the fillet.

Hardcoat anodizing on aluminium linkages has a second use: it resists the fretting wear that appears where a link bears against a hardened pin. Electroless nickel on steel links gives similar protection with tighter dimensional control, since it deposits more uniformly than anodize. For cleanroom or medical cells, passivation on 17-4PH is usually the right call, and it does not change dimensions.

• 1
  Mask bearing boresOr pre-size for the coating growth. Decide before the first cut.
• 2
  Radius stress cornersA fillet plus bead blast beats a polished sharp corner in fatigue.
• 3
  Match coating to wear modeHardcoat for aluminium fretting, electroless nickel for steel.

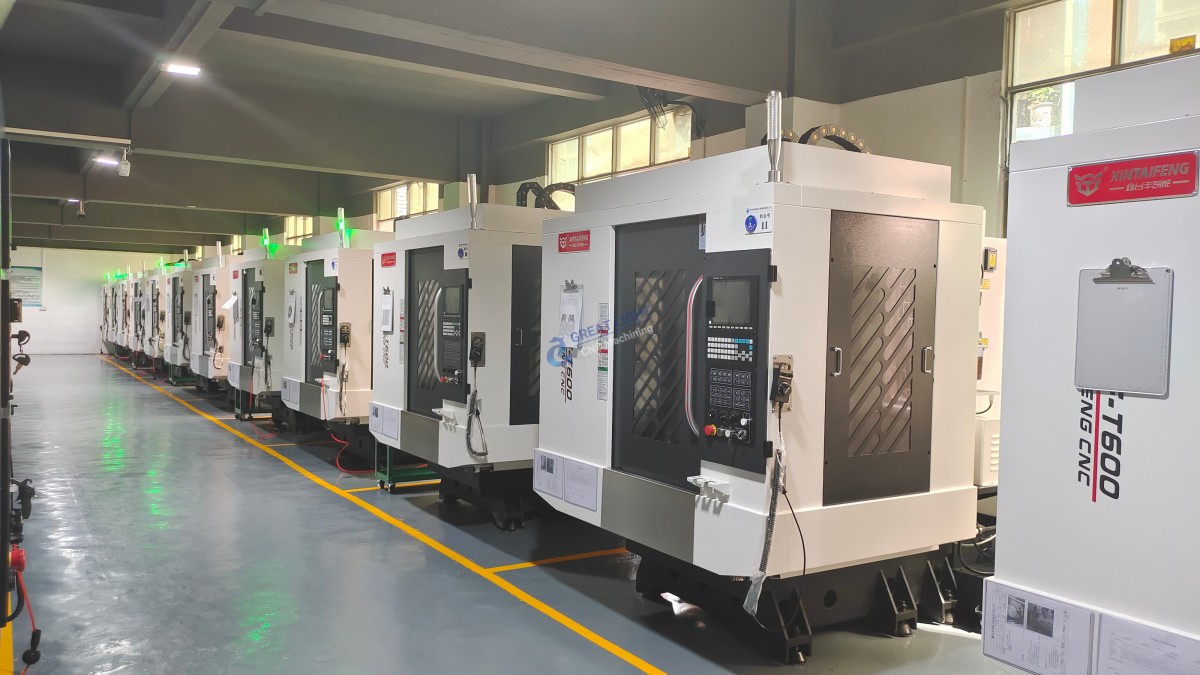

Quoted tolerance is the least useful number in a supplier conversation. A shop can promise ±0.005 mm and still miss it if the machine is not thermally stable, if there is no in-process measurement, or if the fixture is improvised. Ask instead which machine the part will run on, how many setups it needs, and how the bores will be verified before the part leaves the floor.

The second thing to verify is vertical integration. A linkage that needs anodizing, then precision grinding on a bearing seat, then laser marking will touch three vendors if the shop only mills. Every handoff adds a re-clamp and a dimensional risk. A shop that machines and finishes in house removes those handoffs and shortens the loop when a dimension drifts.

Third, confirm the documentation trail. For robot builds that ship into automotive or medical lines, the linkage may need material certs, inspection reports, and a certificate of conformance. Ask for a sample inspection report before you order, not after. It tells you more about a supplier's process discipline than any capability page.

• 1
  Machine and setup countAsk which machine, how many setups, and how bores are verified.
• 2
  In-house finishingFewer vendors, fewer re-clamps, faster correction on drift.
• 3
  Inspection report sampleRequest one before the first order. Read the actual numbers.
