Grinding removes very little material with a very large number of cutting points. That makes it sensitive to anything that changes the geometry of the contact zone: wheel grade, dress condition, balance, coolant, and the stiffness of the whole loop from wheelhead to fixture. When a defect repeats on every part, the cause is almost never random. It sits in one of those variables.

Start by deciding whether the defect is thermal, mechanical or kinematic. A blue patch is thermal. A regular pitch of chatter marks is mechanical. A size that changes from one end of the part to the other is kinematic, meaning geometry is off. This single split saves hours, because each class has a different correction path.

The machine control itself is rarely the culprit. CNC grinding machines hold position well when the wheel is dressed, balanced and fed the right amount of coolant. When we see a batch go out of tolerance, the offset table usually tells the story before the code does.

• 1
  Thermal defectsBurn, heat checks, soft spots. Fix coolant and infeed depth.
• 2
  Mechanical defectsChatter, spiral marks, waviness. Fix balance, stiffness and speed.
• 3
  Kinematic defectsTaper, out-of-round, wrong size. Fix alignment, centers and dress.

Burn shows as a straw, brown or blue tint that follows the contact path. Under magnification you often find a tempered layer a few micrometres deep with lower hardness. On a hardened shaft this is a fatigue risk, not just a cosmetic issue.

The usual cause is too much heat per unit of contact time. A wheel that is too hard keeps dull grits in the cut, so rubbing replaces cutting. The same happens when the wheel speed is high and the workpiece speed is low, or when coolant never reaches the arc of contact because the nozzle aims behind the wheel.

Cut the first pass depth to 0.005–0.01 mm on hardened steel above 50 HRC. Aim the coolant nozzle at the contact point, not at the top of the wheel, and keep flow high enough to flush the zone. If burn persists, drop one grade softer and re-dress.

• 1
  First pass depth0.005–0.01 mm on hard material, up to 0.02 mm on soft steel.
• 2
  Wheel gradeOne grade softer usually removes burn without losing form.
• 3
  Coolant aimNozzle at the arc of contact, 1–2 bar for most external work.

Chatter is a vibration that gets copied onto the surface as a regular pattern. You can usually count the marks per revolution and work back to a frequency. If the pitch matches spindle speed, the wheel is the source. If it matches the workhead, the part or fixture is the source.

An unbalanced wheel is the most common single cause. Even a small imbalance grows at 30 m/s and shows up as a fine spiral. Balance after every mount, and re-check runout at the wheel flange. More than 0.005 mm of radial runout on a vitrified wheel will show on the part.

Poor Ra on a finishing pass is a separate problem. A glazed wheel polishes instead of cutting, so the surface looks shiny but reads high on a profilometer. Re-dress with a sharp diamond at a slow cross-feed, then add two or three spark-out passes with no infeed.

• 1
  BalanceBalance the wheel after each mount, before the first dress.
• 2
  RunoutKeep radial runout under 0.005 mm at the flange.
• 3
  Spark-out2–3 passes with zero infeed to clear elastic deflection.

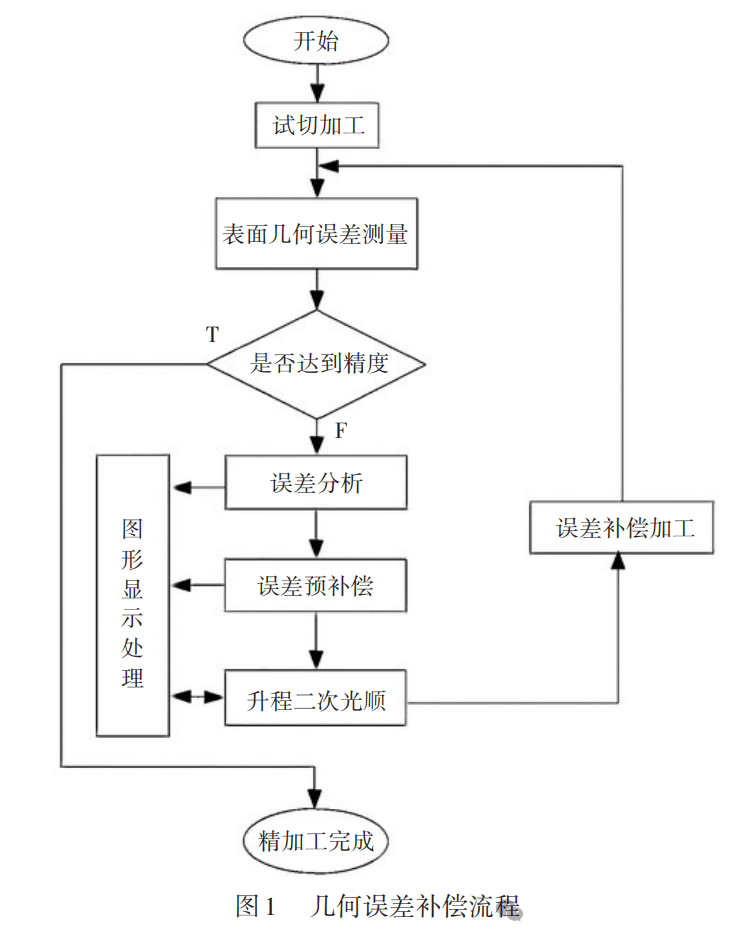

Taper means the diameter changes along the part. On an external grinder this is nearly always alignment or a worn center. Check the table swivel and the tailstock center first, because both are quick to test and both move over time.

Size drift across a batch has a different signature. The first parts are good, then size creeps in one direction. Thermal growth of the wheelhead and workhead accounts for most of it. Warm the machine for 20 to 30 minutes under load, then set the offset.

Roundness errors that repeat at three or five lobes point to workholding rather than the machine. A three-jaw chuck or a thin-wall tube can deflect under grinding force and spring back. Use a face driver or a mandrel when the wall is under 3 mm.

• 1
  Taper checkMeasure both ends, then realign table and re-cut centers.
• 2
  Warm-up20–30 min under load before setting the wear offset.
• 3
  Thin wallsSwitch to a face driver or mandrel below 3 mm wall.

Not every grinding defect is worth chasing on the machine. If a part is thin-walled, has an interrupted surface, or needs a form that the wheel cannot hold, the cost of holding ±0.005 mm on a grinder can exceed the value of the feature.

In those cases we look at the drawing again. Sometimes a milled or turned feature at Ra 0.8–1.6 μm is enough, and the grinder only needs to hit the critical bore or journal. That split reduces setup time and lowers scrap.

When grinding is the right call, keep the process narrow. One wheel, one dressing cycle, one coolant setting, then inspect 100% before shipment. Narrow processes repeat. Wide ones drift.

• 1
  Keep grinding forHardened surfaces, tight roundness, fine Ra on a critical fit.
• 2
  Move to milling forOpen tolerances, interrupted cuts, complex 3D forms.
• 3
  Split the drawingGrind only the critical feature, machine the rest normally.
