5 Thread Treatment Methods in CNC Machining Centers

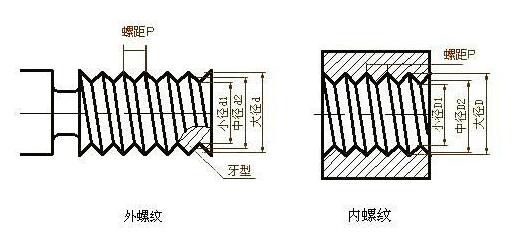

This guide covers the five thread treatment methods in CNC machining centers we run every week: rigid tapping, thread milling, single-point turning, thread forming and thread whirling. For each one, you get the setup sequence, cutting parameters, and the failure mode that tells you it is the wrong choice.

In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
Rigid tapping: the default thread treatment method in CNC for small holes
Rigid tapping is the thread treatment method in CNC shops reach for first. The tap is held in a synchronous holder or directly in the spindle, and the machine feeds it at exactly the pitch you program. On a modern machining center the spindle encoder and the Z axis stay locked, so there is no floating holder to compensate for mismatch. That makes the process fast and repeatable, and a single M8 tap can cut hundreds of holes before it needs to be replaced.
Setup starts with the tap drill. For a cut thread, the drill diameter is the nominal diameter minus the pitch. An M8 × 1.25 tap takes a 6.8 mm drill. For a forming tap, add roughly half the pitch instead, so an M8 × 1.25 forming tap takes a 7.4 mm hole. Getting this wrong is the most common cause of a broken tap: too small and the torque climbs until the tap snaps, too large and the thread comes out with a flat crest.
Cutting speed depends on material. In 6061 aluminum we run 15–25 m/min with a spiral-flute tap and plenty of coolant. In 304 stainless that drops to 5–8 m/min. Cast iron runs dry at 8–12 m/min. Peck tapping is not needed in aluminum, but in deep holes in stainless, program a retract every 1.5 × D to clear chips.
The method has hard limits. Threads closer than about 1.5 mm to a shoulder need a spiral-point tap and a clearance groove, or you will not reach full depth. Threads below M3 in hard steel break taps often enough that thread milling is cheaper in the long run. And a tap cannot correct a hole that is out of position, so drill accurately first.
- 1Tap drill for cut threadNominal diameter minus pitch (M8 × 1.25 → 6.8 mm).
- 2Tap drill for formingNominal diameter minus pitch plus half pitch (M8 × 1.25 → 7.4 mm).
- 3Speed in aluminum15–25 m/min, coolant on, spiral flute.
- 4Speed in 304 steel5–8 m/min, retract every 1.5 × D for chip clearing.
Thread milling: one tool, any diameter, safer in blind holes
Thread milling uses a single-point or multi-tooth cutter that orbits the hole while moving down by one pitch per revolution. Because the tool is smaller than the hole, it never gets wedged. That single fact is why thread milling is the safer thread treatment method in CNC when the hole is blind, deep, or made of a material that grabs a tap.
The programming is a helical interpolation. Feed rate is calculated at the tool center, not the thread crest, so the number you put in the program is lower than the actual cutting speed at the edge. If you skip that correction, the insert chips on the first pass. A 16 mm thread mill cutting a 0.5 mm radial step at 100 mm/min feed works well in 6061; drop to 40–60 mm/min in 4140 steel.
The payback is tool life and flexibility. One 16 mm thread mill covers M14 through M20 in coarse and fine pitch, so you do not stock a tap for every size. If a thread is gaged undersize, you re-run the helix with a larger offset instead of scrapping the part. In a job shop running mixed lots, that flexibility often beats the raw speed of tapping.
Thread milling is not the right answer for every hole. In a hole smaller than about M6, the tool is too slender to survive, and tapping wins. It is also slower per hole, so a part with 60 identical M8 holes is better tapped. Use thread milling when the part is expensive, the hole is blind, or the material is hard.
- 1Best hole rangeM6 and larger; below M6 the cutter is too weak.
- 2Feed in aluminumAbout 100 mm/min at tool center with a 0.5 mm radial step.
- 3Feed in 414040–60 mm/min, climb direction, air blast.
- 4Main advantageAdjustable offset lets you save an undersize thread without scrapping the part.
Single-point turning: external and large internal threads on the lathe
On a lathe, single-point threading is the standard thread treatment method in CNC turning. A 60° insert traverses along the part at the thread pitch while the spindle rotates, cutting one flank at a time. The tool is cheap, the geometry is easy to inspect, and the method handles thread pitches and diameters that no tap or mill can reach, including 4,000 mm long shafts on our mill-turn centers.
The key parameter is the infeed strategy. Plunge straight in and the chip gets wide and the insert breaks. Use flank infeed or alternating flank infeed, which spreads the cut across both edges. A typical 60° insert in 1045 steel runs at 120–180 m/min with a 0.05–0.15 mm depth per pass. In 316 stainless, 80–120 m/min and 0.05–0.10 mm per pass. Always leave 0.02–0.05 mm for a spring pass to clean up the flanks.
The most common error is thread crest width. If the insert tip radius does not match the pitch, the crest comes out flat or sharp. Check the insert chart before you start. The second error is running without enough coolant or air on the leading edge, which work-hardens stainless and tears the thread.
Single-point turning is slow per thread but very accurate. On a good lathe you can hold ±0.02 mm on the pitch diameter and a 0.8–1.6 μm finish. That is why aerospace and hydraulic fittings are almost always single-pointed, even when the thread is small.
- 1Infeed methodFlank or alternating flank, never straight plunge on steel.
- 2Speed in 1045120–180 m/min, 0.05–0.15 mm depth per pass.
- 3Speed in 31680–120 m/min, 0.05–0.10 mm per pass, spring pass 0.02–0.05 mm.
- 4Finish targetRa 0.8–1.6 μm with ±0.02 mm pitch diameter.
Thread forming: no chips, stronger threads in ductile metal
Thread forming does not cut. The tap has a lobed profile that presses the metal into the thread shape, cold-working the grain around the root. The result is a thread with no chip and a fatigue strength roughly 20–30% higher than a cut thread in the same material. In parts that see vibration, that matters more than the cycle time.
The method only works on ductile material. Aluminum, low-carbon steel, copper and brass all form well. Cast iron, titanium and hardened steel do not, because they either crumble or spring back. If you are not sure, check elongation: above about 12% is usually safe to form.
The forming tap needs a larger hole and more torque. Lubrication must be good, because the metal is being displaced, not sheared. In 6061 aluminum, run 20–30 m/min with a forming lubricant. In 1018 steel, 8–12 m/min. The hole must be drilled accurately; a tapered or oversized hole makes the formed crest lopsided.
One warning: forming taps are expensive and less forgiving of hole size than cutting taps. If the hole is 0.1 mm too small, the tap will break. If it is 0.1 mm too large, the thread will be weak. We usually prove the process on a scrap part before running a batch.
- 1Works on6061, 2024, 1018, 1045, copper and brass with elongation above 12%.
- 2Does not work onCast iron, titanium, hardened tool steel.
- 3Speed in 606120–30 m/min with forming lubricant, larger tap drill.
- 4Strength gainAbout 20–30% higher fatigue strength than a cut thread.
Thread whirling: long, thin threads in hard material
Thread whirling is the least common thread treatment method in CNC, and the one most people have never seen. The workpiece rotates slowly while a ring of inserts orbits around it at high speed. The inserts only touch a short arc of the thread at a time, so the cutting force is spread and the part does not deflect. It is the standard method for bone screws and small lead screws in 17-4PH or titanium.
Whirling is done on a dedicated whirling head mounted on a Swiss-type lathe or a mill-turn center. The inserts are ground to the exact thread profile, so the thread form is generated in one pass. Parameters depend on the head, but typical whirling runs at 1,000–3,000 rpm on the cutter ring with a slow workpiece rotation. The result is a thread with a fine, uniform surface and no burr.
The trade-off is setup. Each thread profile needs its own insert set, and the head must be dialed in. For a one-off part, that setup costs more than the part is worth. For a run of a few hundred bone screws, whirling is faster and more consistent than single-point turning, and it leaves a cleaner root radius.
Use whirling when the thread is long relative to its diameter, the material is hard, or the root radius must be controlled for fatigue. Do not use it for a standard M8 hole in an aluminum bracket. That is a tapping job.
- 1Typical partsBone screws, lead screws, long thin threads in 17-4PH or Ti-6Al-4V.
- 2Why it worksShort arc of contact keeps cutting force low and stops part deflection.
- 3Setup costHigh; justified only on runs of a few hundred parts.
Step by step: picking and proving a thread method
Run these checks in order before you write the program.
- 11. Measure the thread and the wall clearanceNote the nominal diameter, pitch and depth-to-diameter ratio. Check the distance from the thread axis to the nearest shoulder or wall. If clearance is under 1.5 mm, a standard tap will not reach full depth.
- 22. Check the material and its elongationAluminum and low-carbon steel form well. Stainless 304 and 316 cut well but work-harden. Titanium and hardened steel need whirling or single-pointing. Look up elongation before you choose forming.
- 33. Confirm the hole is blind or throughThrough holes can be tapped from either side. Blind holes need a thread mill or a spiral-flute tap with a controlled depth. Leave at least 3–4 pitches of full thread and a clearance groove if the drawing requires it.
- 44. Pick the drill or hole size from the methodCut thread: nominal minus pitch. Forming: nominal minus pitch plus half pitch. Thread mill: hole diameter is usually nominal minus pitch, but check the cutter chart because multi-tooth mills need a specific minor diameter.
- 55. Set speeds from the material tableStart at the low end of the range for the material and increase only after you hear the cut. In stainless, keep the tool moving; dwelling work-hardens the surface and kills the next pass.
- 66. Cut one part and gage itUse a go/no-go gage on the pitch diameter, and check the crest with an optical comparator if the thread is critical. Do not run the full batch until the first part passes.
- 77. Log the tool lifeRecord how many holes or threads the tool cut before it needed replacement or regrinding. That number, not the catalog, tells you the real cost per thread.
Thread method comparison by part geometry and material
Each row is a decision you can make from the drawing alone.
| Situation | Best method | Why | Watch out for |
|---|---|---|---|
| M3–M12 through hole in aluminum | Rigid tapping | Fastest cycle, simple setup | Correct tap drill size |
| Blind hole, M8, 304 stainless | Thread milling | No chip packing, adjustable offset | Lower feed at tool center |
| External thread on a 500 mm shaft | Single-point turning | No tool length limit | Flank infeed, spring pass |
| M6 in 6061, high vibration | Thread forming | Stronger root, no chips | Larger tap drill, good lube |
| Bone screw in Ti-6Al-4V | Thread whirling | Low force, clean root radius | High setup cost |
| M20 internal thread in 4140 | Thread milling | One tool covers many sizes | Reduce feed to 40–60 mm/min |
| M2 in hardened tool steel | Thread milling or whirling | Tapping breaks too often | Slender tools need light passes |
| Cast iron housing, M10 | Rigid tapping, dry | Cast iron cuts dry and clean | No coolant, air blast only |
Pick the method from the drawing, not from habit
If the hole is M12 or smaller, through, and in aluminum, tap it. If it is blind, deep, or in hard steel, mill or whirl it. The method follows the geometry, and the geometry is already on your drawing.
Questions engineers ask about thread treatment
Can I tap a hole that is already hardened?
Not with a standard tap. Hardened steel above about 35 HRC will break a tap or chip the flutes. The practical options are thread milling with a carbide cutter at reduced speed, or whirling if the thread is long and thin.
If the part is not yet hardened, cut the thread before heat treatment and allow for the small dimensional shift, or leave stock and finish the thread after.
How do I know if a thread mill will fit a blind hole?
Add the thread depth, the cutter length below the shank, and a clearance of at least 1.5 mm at the bottom. If the total is longer than the flute length of the cutter, the shank will rub the hole wall.
Single-point thread mills are shorter than multi-tooth mills and fit tighter blind holes. Multi-tooth mills are faster but need more room.
Why did my formed thread come out with a split crest?
A split crest almost always means the hole was drilled too large, or the material had low elongation and cracked instead of flowing. Re-check the forming tap drill size: it should be nominal diameter minus pitch plus half pitch.
The second cause is poor lubrication. Forming displaces metal and generates heat, so use a dedicated forming lubricant, not a general coolant.
What speed should I use for tapping 304 stainless?
Start at 5–8 m/min with a sharp spiral-flute tap and full coolant. If the tap squeals, slow down; squealing means the flutes are rubbing and the material is work-hardening.
In holes deeper than 1.5 × D, program a retract every 1.5 × D to clear chips. Do not peck so often that the tap reverses direction mid-hole, which chips the cutting edges.
Is thread milling worth it for a small batch?
For a one-off part with a blind hole in hard material, yes. The setup is a helix and a tool offset, and you can adjust the offset if the thread is undersize.
For 50 identical M8 holes in aluminum, no. Tapping is faster and the tooling is cheaper. Match the method to the batch, not to the catalog.
Can GreatLight cut threads to a class of fit?
We machine to the thread class on your drawing and gage the pitch diameter before shipment. For critical threads we can provide an inspection report on request.
Our general tolerance is ±0.005 mm, and we inspect 100% of parts before they ship. Upload a drawing and we return a DFM note with the quotation.
