A porous skin is a thin titanium sheet with a dense array of holes, slots or a mesh pattern. It is used for acoustic panels, heat shields, lightweight covers and flow-distribution plates. The sheet metal route starts from flat stock, not from a casting or a forging, because the open area is easier to produce while the part is still flat and unconstrained.

The first decision is stock thickness. Most porous skins we run fall between 0.5 mm and 3 mm. Below 0.5 mm, the sheet distorts from its own cutting heat and handling becomes the main cost. Above 3 mm, laser cutting time and dross risk climb quickly, and milling from plate often becomes the cheaper option.

High-strength grades such as TC4 (Ti-6Al-4V) behave differently from commercially pure TA1 or TA2. TC4 has roughly twice the yield strength, so it springs back harder after forming and holds residual stress longer after cutting. That is why the route below puts a stress-relief cycle between cutting and final machining.

• 1
  Best fitFlat or gently curved skins, 0.5–3 mm thick, open area 20–60%.
• 2
  Poor fitDeep-drawn domes, thickness above 5 mm, or holes below 0.3 mm across a large field.
• 3
  Grade noteTA1/TA2 cut and form more easily; TC4 holds strength but needs more stress control.

Fiber laser cutting is the default for hole patterns in titanium sheet. A 1 kW to 3 kW source cuts 1 mm TC4 at 8–15 m/min with nitrogen assist at 12–16 bar. The narrow kerf, usually 0.1–0.2 mm, lets you hold hole position to ±0.05 mm across a 1,000 mm panel when the sheet is clamped flat.

Waterjet cutting suits thicker stock and heat-sensitive geometry. It leaves no heat-affected zone, so there is no recast layer and no thermal distortion. The trade-off is speed and edge quality: taper grows with thickness, and abrasive cost adds up on a dense pattern. For a 2 mm TC4 skin with 3 mm holes on a 5 mm pitch, laser is usually two to three times faster.

CNC drilling is only worth it when hole count is low and tolerance is tight. Titanium work-hardens at the surface, so a dull drill rubs instead of cutting and the next hole comes out oversized. Use sharp carbide, peck cycles, and generous flood coolant. For hundreds of small holes, laser wins on cost.

Pick the method by hole size first. Below 1 mm, laser. Between 1 mm and 6 mm on thin sheet, laser or waterjet. Above 6 mm and on thick stock, waterjet or a mill-turn operation.

• 1
  LaserFast, tight kerf, needs flat clamping and nitrogen assist.
• 2
  WaterjetNo heat effect, good for thick or crack-sensitive parts, slower.
• 3
  DrillingLow hole count, high tolerance, watch work hardening.

Two forces fight flatness. The first is residual stress locked into the rolled sheet. When you cut a dense hole pattern, you remove material unevenly and the balance of that stress changes. The panel bows or twists, sometimes hours after cutting. The second is heat. Laser cutting puts a steep thermal gradient into a thin section, and titanium sheds that heat slowly.

The countermeasure is sequence, not force. Cut an outer relief border first, then fill the hole field from the center outward. This lets each cut release stress into already-open space instead of into solid metal. Leave 3–5 mm of uncut border until the field is complete, then trim it in a second pass.

For TC4 skins under 1.5 mm thick, we add a stress-relief cycle after cutting: vacuum or inert-atmosphere anneal, hold, then slow cool. This costs one furnace cycle but removes most of the movement before final milling. Skipping it usually shows up as a part that passes incoming inspection and fails after anodizing.

When the skin needs a curve, form it after stress relief, not before. Forming a stressed sheet bakes the distortion into the shape and you cannot pull it back with a fixture.

• 1
  Cut orderRelief border, then hole field center-out, then trim border.
• 2
  ClampingVacuum table or low-stress clamps; avoid point loads on thin sheet.
• 3
  Stress reliefOne cycle before forming and before final machining.

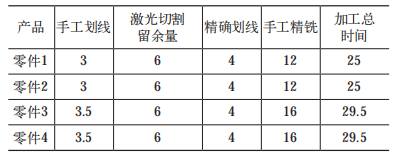

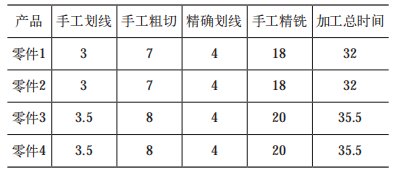

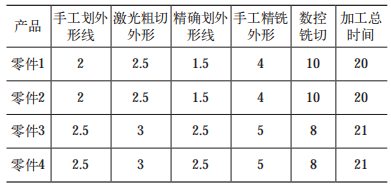

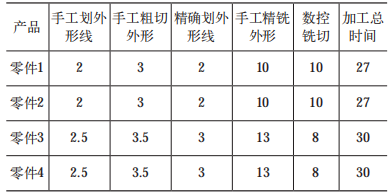

Laser cutting gives you the holes. It does not give you the boss, the mounting flange, the edge profile or the seal face. Those features need milling, and on a thin perforated panel the challenge is holding the part without crushing it or springing it out of position.

We fixture porous skins on a support plate with a matching hole pattern, so the vacuum or the clamp load passes through the open area and the panel sits flat. For a 1,000 mm panel we rough at 0.5–1.0 mm radial engagement and finish at 0.2–0.3 mm with a 6 mm carbide end mill. Spindle speed for TC4 sits around 60–90 m/min surface speed with high-pressure coolant.

A 5-axis machine lets you tilt the tool and reach flange faces and angled edges in one setup. Fewer setups mean fewer chances to bend the panel between operations. Our simultaneous 5-axis centers handle up to 4,000 × 400 × 150 mm travel, which covers most single-panel skins.

Do not chase a mirror finish on a porous skin. Open area and edge quality matter more than surface gloss. A bead-blasted or as-machined finish at Ra 1.6–3.2 μm is usually the right target, and it hides the marks left by hole cutting.

• 1
  FixtureSupport plate with matching holes, vacuum or low-stress clamps.
• 2
  Cutting dataTC4: 60–90 m/min surface speed, 0.2–0.3 mm finish stepover.
• 3
  Finish targetRa 1.6–3.2 μm is normal; polishing adds cost and little value.

Inspection on a porous skin is three separate checks: the hole field, the outer form, and flatness. Measure them in that order, because hole cutting is where most variation starts.

For the hole field, use an optical comparator or a vision system rather than pin gauges. Pushing a pin through a hundred holes tests the pin, not the part, and it can deform thin walls. A vision scan gives you position and diameter across the whole field in one pass. Typical acceptance is ±0.05 mm on hole position and ±0.02 mm on diameter for a 1 mm sheet.

Form features go on a CMM. Datum the part on the mounting face, not on the perforated area, or the open field will pull your readings around. For flatness, lay the panel on a granite surface and measure gap with a feeler gauge or a dial indicator on a height stand. A 1,000 mm titanium skin at 1 mm thickness should hold within 0.3–0.5 mm total flatness after stress relief.

Ask for the reports before shipment. Raw material certification, cutting parameters, stress-relief cycle record and dimensional data should travel with the parts, especially for aerospace and medical programs.

• 1
  Hole fieldVision or optical scan; avoid pin gauges on thin walls.
• 2
  FormCMM on the mounting datum face.
• 3
  FlatnessGranite plate and indicator; 0.3–0.5 mm typical on a 1 m panel.
