Sinusoid Electrical Servo in Engraving Machines

• 1
  How a sinusoid electrical servo in engraving machines produces motion
• 2
  Position loop, pulse input and resolution in engraving work
• 3
  Heat, duty cycle and where the sinusoid loses its edge
• 4
  What this means for the machined parts around the drive
• 5
  Process settings that keep the loop stable
• 6
  Boundary conditions and failure modes
• 7
  Sinusoidal vs trapezoidal drive for engraving axes

A sinusoid electrical servo feeds three-phase current into the motor windings as smooth sine waves instead of switching blocks of current on and off. The rotor position comes from an encoder or resolver, and the drive calculates the current angle continuously. Because the current vector stays 90° ahead of the rotor field, torque stays nearly constant as the shaft turns.

That constant torque is the reason engraving machines use this drive. An engraving spindle or axis changes direction thousands of times per job, and any torque ripple shows up as a visible mark. A trapezoidal drive produces a small jump in torque at each commutation step, roughly six per electrical revolution. On a 0.5 mm deep pass in brass, that jump can leave a faint ripple on the wall of the cut.

The sinusoidal drive spreads current across the full revolution, so the same average torque arrives with far less variation. In practice the axial motion becomes smooth enough that the tool marks come from the cutter geometry, not the motor. That is the whole point of the design.

It also runs cooler at part-load. Current is distributed across three phases instead of concentrated in two, so copper losses drop for the same output torque. On a machine that runs 12-hour shifts, that difference is measurable in spindle and axis temperature.

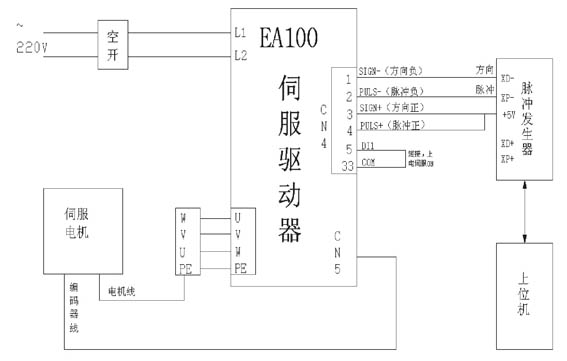

An engraving controller usually sends pulses or a fieldbus command to the servo drive, and the drive closes the position loop internally. One pulse equals one encoder count after electronic gearing. A 17-bit encoder gives 131,072 counts per revolution, so a 10 mm ball screw resolves about 0.08 μm per count before gear ratio.

That number is not the accuracy of the machine. It is only the smallest step the loop can command. Backlash, screw pitch error, thermal growth and tool deflection all sit on top of it. A machine that resolves 0.08 μm may still hold ±0.01 mm on a real part.

The sinusoid electrical servo in engraving machines matters here because smooth current means the loop does not have to fight torque steps. The drive can apply very small corrections without overshooting. On fine text or shallow relief, those corrections are most of the motion.

Keep the pulse frequency in mind. A drive rated for 4 Mpps accepts a 4 MHz pulse train, which is plenty for a 3,000 rpm spindle axis with a 131,072 count encoder. Push beyond that and the drive drops counts, and the part shows it.

Sinusoidal commutation cuts harmonic losses, but it does not remove heat. The motor still has I²R loss in the windings, iron loss in the stator, and friction in the bearings. What changes is the distribution. A sinusoidal drive at 50% load may run 15–25% cooler in the winding than a trapezoidal drive at the same mechanical output.

That margin buys duty cycle. An axis that would derate after 30 minutes of continuous engraving can often hold its rating through a full shift. The controller can keep acceleration and jerk limits higher, so cycle time drops without a bigger motor.

There is a crossover point. Below roughly 200 rpm, where the drive spends most of its time near zero speed, the advantage shrinks. Cogging torque and encoder quality dominate at low speed, and a well-tuned trapezoidal drive with a good encoder is close enough for coarse work.

The sinusoid also needs a correct rotor angle. If the encoder offset is wrong, the drive loses torque and heats up. A 10° electrical offset error can cost several percent of torque and add heat at the same time.

The drive sits inside a housing, and that housing is a machined part. Motor mounts, encoder brackets, heat sink plates and the spindle cartridge all carry the same alignment requirement. Bore concentricity between the motor pilot and the encoder seat drives the electrical angle offset, so it is not a cosmetic dimension.

We machine these parts from 6061-T6, 7075, 304 stainless and occasionally titanium TC4. A servo housing bore typically runs at H7 with a Ra 0.8–1.6 μm finish so the stator presses in without distortion. Tighter than that adds cost with little gain.

Flatness on the mounting face matters as much as the bore. A 0.02 mm bow across a 100 mm face tilts the motor axis and pushes the rotor off center. That shows up later as current ripple, not as a visible defect on the housing.

We hold ±0.005 mm on critical features and inspect 100% before shipment. Reports are available on request. For prototype runs there is no minimum order quantity, so a single housing can be tested before committing to a 10,000-part run.

Tuning a sinusoid electrical servo in engraving machines starts with the current loop, then velocity, then position. Set the current loop bandwidth first, usually 1–2 kHz for a small servo. If the current loop is slow, no amount of position gain will fix the following error.

Next set velocity gain and integral time. A common starting point is a velocity loop bandwidth around 100–200 Hz and an integral time of 10–20 ms. Raise gain until the axis hums, then back off by 30%. That leaves margin for a warm machine.

Position gain follows. For engraving, a proportional gain that gives a following error under 5 μm at 10 m/min is a reasonable target. Feed-forward on velocity and acceleration cuts that error further without raising gain.

Finally check jerk limits. Smooth jerk is what protects the tool edge on direction changes. Most controllers accept a jerk time constant; set it to 5–15 ms for fine engraving and watch the corner definition.

A sinusoid electrical servo in engraving machines does not fix a mechanical problem. If the ball screw has 0.03 mm backlash, the drive will simply command corrections into that dead band and the part will still show a step at each reversal. Measure backlash before blaming the drive.

Encoder noise is the second common failure. A sinusoid drive needs a clean rotor angle. Shielded cable, a separate ground and a short run from encoder to drive solve most cases. A 5 V differential signal over 5 m of unshielded cable is asking for trouble.

Third is gain mismatch between axes. If the X axis follows 3 μm and the Y axis follows 9 μm at the same feed, a circle becomes an ellipse. Match the axes before you tune the contour.

Fourth is thermal drift. A machine that cuts well cold and drifts 0.02 mm after two hours has a thermal problem, not a drive problem. Warm up the spindle and let the frame stabilize before the first finishing pass.
