Should CNC Machining Choose Climb Milling or Conventional Milling?
Climb milling and conventional milling cut the same slot in two different ways, and the choice changes chip load, surface finish and tool life. This guide is for engineers and buyers who need to decide per feature, not per shop.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
Climb milling vs conventional milling: what changes on the floor
Figures below are typical ranges for aluminium and mild steel on a rigid VMC with preloaded ball screws.

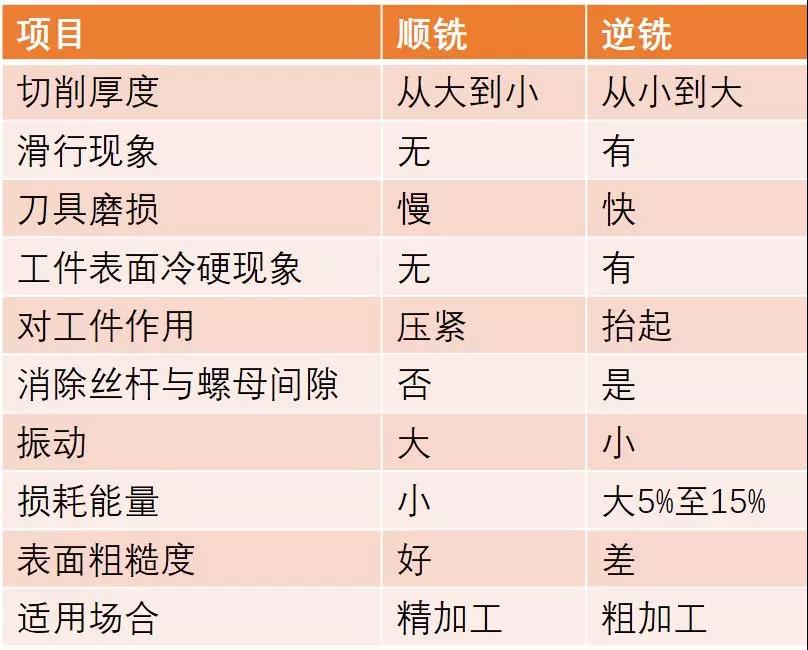

| Factor | Climb (down) milling | Conventional (up) milling |
|---|---|---|
| Chip thickness at entry | Maximum, then falls to zero | Zero, then rises to maximum |
| Edge contact | Cuts from the first contact | Rubs before it bites |
| Surface finish on aluminium | Ra 0.2–0.8 μm achievable | Ra 1.6–3.2 μm typical |
| Tool life on 6061 | Longer, load is steady | Shorter, rubbing heats the edge |
| Backlash sensitivity | High, table can be pulled in | Low, screw stays loaded |
| Best on cast skin | Poor, breaks the skin from below | Good, lifts the scale off |
| Thin wall 0.8 mm | Chatter risk is high | Better, softer entry |
| Drawbar and fixture load | Pulls part upward | Pushes part into the fixture |
The verdict
Use climb milling by default on rigid CNC machines, and switch to conventional milling only for cast skins, thin walls and machines with real backlash.
What actually decides the cutting direction

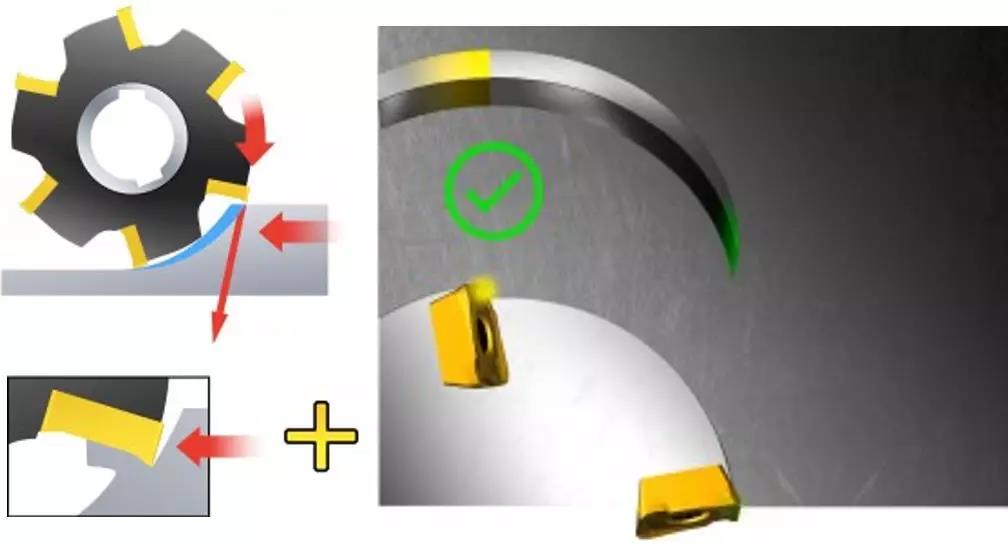

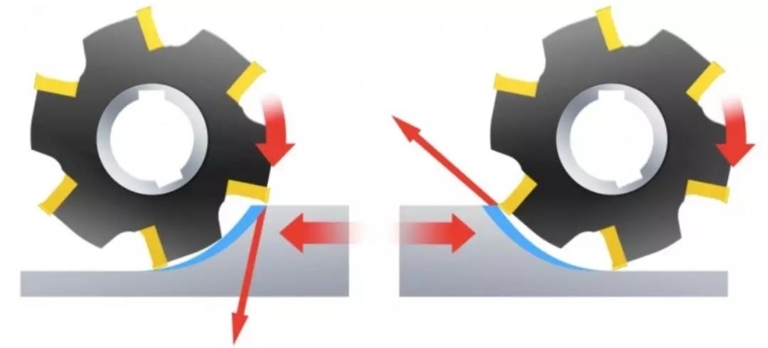

In a climb milling pass the cutter feeds in the same direction the teeth travel at the point of contact. The tooth enters at maximum chip thickness and the chip tapers to zero at the exit. That taper is the whole point. The edge is loaded from the first moment and stops cutting as the chip thins, so it never slides across the finished wall.

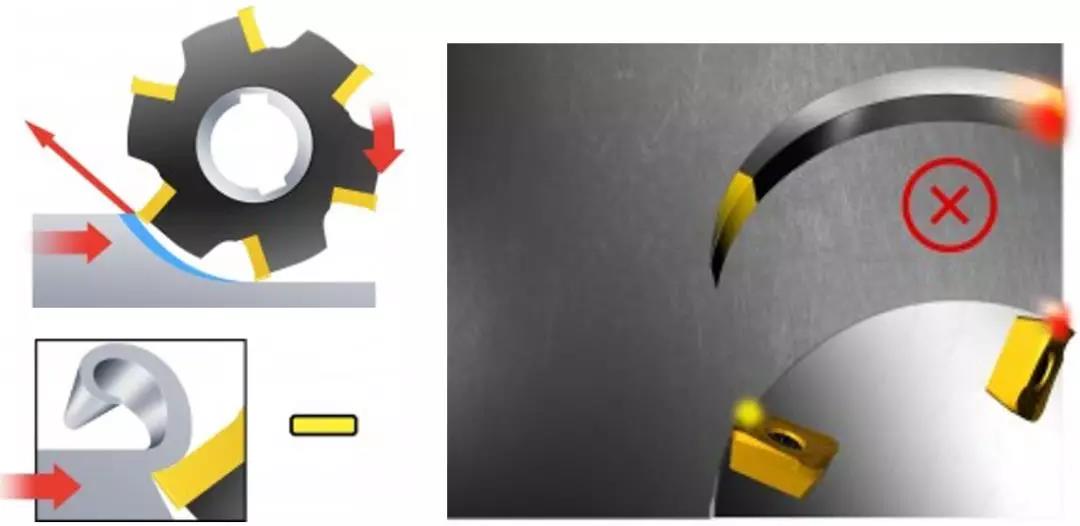

In conventional milling the feed opposes the tooth path. The tooth starts at zero thickness, rubs, then bites. Rubbing generates heat and work-hardens the surface. On stainless grades like 304 or 17-4PH that layer can be two to three times harder than the bulk material, and the next tooth then cuts hardened metal instead of clean stock.
Spindle rotation does not change between the two. On a vertical mill the spindle stays clockwise. What changes is which side of the cutter the feed sits on, and that is set in CAM or by the operator. This is why the same tool, same speed and same feed can leave two very different walls.
The practical question is not which method is better in general. It is whether the machine, the fixture and the part geometry can survive the pull that climb milling creates. If they cannot, conventional milling is the safe answer, not the slow one.
Backlash and machine rigidity: the two hard limits
Climb milling pulls the table in the direction of feed. If there is lost motion between the screw and the nut, the table moves until that gap closes. The cutter then grabs more material than the program asked for. On a worn knee mill that shows up as a sudden jump in load, a chipped tooth or a gouged wall.
On a CNC with preloaded ball screws the lost motion is normally under 0.01 mm, so climb milling is safe and repeatable. That is why most production programs are written as climb passes. We run preloaded ball screws on our machining centers, and we hold ±0.005 mm on features that need it.
Rigidity matters just as much. Climb milling pulls the part upward, away from the table. A tall thin rib or a part held on three clamps will lift and sing. Conventional milling pushes the part down into the fixture, which is why it is still used on thin walls, gummy plastics like POM, and long slender parts.
Check the fixture before you change the toolpath. Adding a support jack or switching to a full-profile soft jaw often lets you keep climb milling where the machine itself is fine.
Material and feature fit
Aluminium, brass and most plastics cut cleanly with climb milling. The continuous chip load keeps the edge cool, and 6061-T6 with sharp carbide at 3,000–8,000 rpm leaves a wall that needs no secondary operation. Copper alloys behave the same way, though beryllium copper needs attention to dust control rather than direction.
Titanium and Inconel are different. TC4 (Ti-6Al-4V) and Inconel work-harden fast, so rubbing is expensive. Climb milling with a high-pressure coolant supply is the normal answer, but tool runout must stay under 0.01 mm. If runout is larger, one tooth does the work and fails early no matter which direction you feed.
Castings and forgings bring a skin of scale, sand or hard oxide. Conventional milling lifts that skin and lets the tooth break through from underneath. Climb milling hits the skin from the top and can chip carbide on the first pass. A common sequence is a conventional roughing pass at 1.5–2 mm depth, then climb passes for the finish.
Thin-wall parts are the third case. Below about 1.5 mm wall thickness, the cutting force matters more than the chip shape. Conventional milling, or a climb pass with a very light radial stepover of 0.2–0.3 mm, usually holds the wall straighter.
How this affects supplier selection
A shop's answer to climb or conventional milling tells you something about its machines. If every job is programmed as conventional because "that is how we always did it", the machine may have backlash the shop is working around. Ask what the ball screw lost motion is on the machine that will run your part.
Ask for the CAM strategy too. A supplier who sets direction per feature, and can explain the choice on a cast boss versus a pocket wall, is working from process knowledge rather than a template. That matters more on small lots than on a 10,000-piece run where the program is proven once and repeated.
Certification is a separate filter. ISO 9001:2015 covers general process control, while IATF 16949:2016 and ISO 13485:2016 add automotive and medical traceability. If your part is an engine bracket or a surgical instrument housing, the paperwork has to match the industry.
Finally, look at the inspection loop. A finish claim of Ra 0.2–0.8 μm is only meaningful if someone measures it. Ask whether surface finish and critical dimensions are recorded on the first article and on the final inspection report.
Step by step: choosing and proving the direction
Run this sequence once per new part, then keep the notes with the program.
- 11. Measure backlash on the axis you will cutIndicate the table against a stop and jog in 0.01 mm increments. Under 0.01 mm lost motion, climb milling is safe. Above 0.03 mm, plan conventional passes or repair the screw.
- 22. Check tool runout before anything elseDial the cutter body at the flutes. Keep total runout under 0.01 mm. If it is larger, fix the holder or collet first; direction will not save an unbalanced cut.
- 33. Set climb milling as the default for finishingUse climb passes on aluminium, brass, plastics and pre-machined steel. Feed per tooth 0.05–0.15 mm for a 10 mm carbide end mill in 6061, spindle 6,000–10,000 rpm.
- 44. Switch to conventional for the first pass on castingsRough at 1.5–2 mm axial depth to break the skin, then change to climb for semi-finish and finish. Do not finish a sand-cast surface with a climb pass on the raw skin.
- 55. Test the thin-wall case both waysOn walls under 1.5 mm, run one test with climb and 0.2–0.3 mm stepover, and one with conventional. Compare with a dial indicator and a surface finish check, then keep the winner.
- 66. Record the direction in the setup sheetNote per feature: climb or conventional, depth of cut, stepover, coolant. The next operator should not have to guess from the toolpath alone.
- 77. Confirm on the first articleMeasure the critical dimensions and the finish, then release the run. Keep the first-article record with the program number.
Common questions
Does climb milling always give a better surface finish?
On a rigid machine with preloaded ball screws, yes for most metals. The chip thins to zero at the exit, so the edge does not drag across the finished wall.
On a machine with visible backlash, or on a thin part that lifts, conventional milling can leave the better wall because the cutter never grabs.
What chip load should I use for climb milling in aluminium?
For a 10 mm carbide end mill in 6061-T6, 0.05–0.15 mm feed per tooth at 6,000–10,000 rpm is a normal range. Keep radial engagement below 50 percent of diameter on finishing passes.
If the chip comes off as dust rather than a flake, the feed is too low. Rub marks and a bright polished band on the wall mean the same thing.
Can I mix both directions in one program?
Yes, and on mixed parts you often should. Climb for pockets, profiles and finished walls; conventional for a raw cast boss or a thin rib that needs support.
Keep a note per feature in the setup sheet so the next run does not silently change the strategy.
Is conventional milling ever faster?
The feed rate is usually lower because rubbing adds heat. But on a casting with hard scale, a conventional roughing pass protects the carbide and avoids a broken tool, which is faster overall.
On manual machines without ball screws, conventional milling is the only safe option and the feed limit is set by the operator anyway.
How does this affect a quote from a supplier?
It shows up in the toolpath and in the tool cost. A shop running climb milling with preloaded screws and proper runout control uses fewer cutters and less rework.
When you send a drawing, mention the surfaces that need a specific finish. That lets the shop plan the direction and the stepover instead of guessing.
Does the material change the rule?
Yes. Titanium, Inconel and 17-4PH work-harden quickly, so rubbing from conventional milling is costly and climb milling with good runout is preferred.
Plastics like POM and HDPE can grab and lift, so a lighter climb pass or a conventional pass with sharp, polished flutes works better.
