How to Measure and Set Up a Circular Tube Cutting Machine

• 1
  Key takeaways
• 2
  What the measuring routine actually controls
• 3
  Measuring the tube before it goes into the chuck
• 4
  Cutting parameters that follow from the measurements
• 5
  Errors that show up on the first part
• 6
  Step by step: setting the circular tube cutting machine
• 7
  Which setup method fits which tube

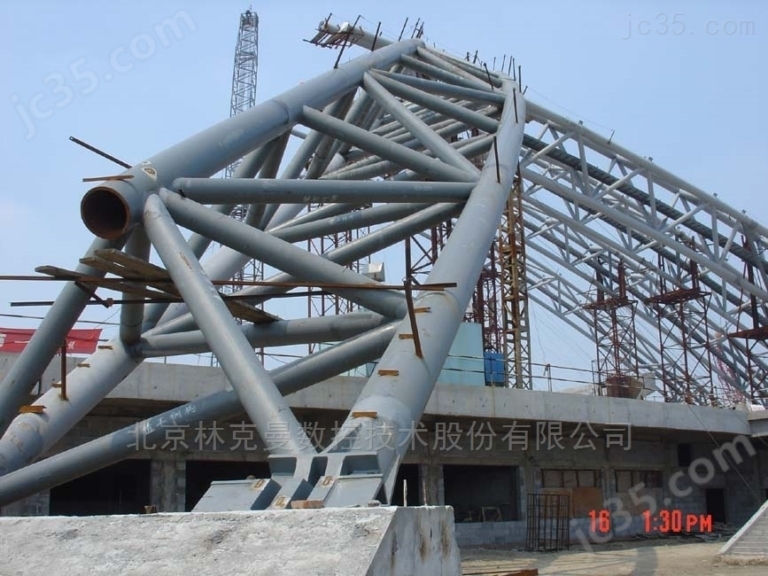

An intersection line circular tube cutting machine does not cut a straight end. It cuts a saddle, a cross hole or a layered profile, and the shape is only correct if the machine knows where the tube axis really is. Nominal OD in the drawing is a starting point, not a measurement. Tube arrives with mill tolerance, weld seam height and a slight bend along its length.

The measuring routine has one job: convert the physical tube into a coordinate frame the controller can trust. That means finding the true center at the chuck, finding the true center at the support, and comparing the two. Any difference between them becomes an angular error in the cut path.

On a 500 mm long part, a 0.20 mm center offset at the support throws the cut plane off by roughly 0.02°. That sounds small. On a Ø150 mm tube it moves the saddle edge about 0.05 mm, which is already outside a ±0.05 mm fit for a welded joint.

So the setup order matters. Measure first, clamp second, probe third, cut last. Skipping a step and correcting with cutter compensation later works only on straight cuts. On a saddle, compensation shifts the whole curve.

• 1
  Tube OD toleranceHot-finished round tube typically varies 0.3–0.8 mm from nominal. Welded tube varies less on OD but more on wall.
• 2
  Wall thickness variationEccentric wall changes where the knife exits. Measure wall at four points, not one.
• 3
  StraightnessA bow of 1 mm over 1,000 mm is normal for commercial tube. It shows up as center drift.
• 4
  Surface conditionScale, rust and weld spatter change probe readings. Clean the touch area.

Use a digital caliper or a micrometer for OD and wall, and a laser or dial indicator for runout. Take OD readings at four points 90° apart, at three stations along the length: 50 mm from each end and at the middle. Record the largest and smallest values. The average becomes your working OD.

Wall thickness is the number people skip, and it is the one that causes the most rework. Measure at the same four points with an ultrasonic gauge. On drawn tube, wall can vary 8–12% around the circumference. If your cut depth is set from nominal wall, the knife will either leave a burr or dig into the support.

Check straightness by rolling the tube on a flat granite plate with a dial indicator on top. A 1,000 mm tube that bows more than 1.5 mm should be straightened or moved to a shorter cut. Long bowed tube will fight the chuck and the support at the same time.

Clean the area where the probe will touch. A 0.1 mm flake of scale reads as a 0.1 mm center shift. On stainless and aluminum, wipe with a lint-free cloth and check for burrs from the previous saw cut.

• 1
  Working ODAverage of four readings. Use this in the controller, not the nominal value.
• 2
  Wall rangeNote min and max. Set cut depth from the minimum value.
• 3
  LengthMeasure to the reference end. A 2 mm length error moves every saddle along the axis.

Once the center is known, the rest of the parameters are arithmetic. Cut depth per pass should stay between 0.15 and 0.35 × wall thickness for steel, and 0.25 and 0.5 × wall for aluminum. On a 3 mm wall steel tube, that means passes of 0.45 to 1.05 mm. Deeper passes push the tube away from the support and open the saddle.

Feed rate depends on the knife type and material. A carbide insert on mild steel runs 80–150 mm/min in the cut. Stainless 304 runs slower, 40–80 mm/min, because it work-hardens at the cut edge. Aluminum runs fast but needs clearance for chip evacuation, so keep the air blast on and check for built-up edge every 20 parts.

Spindle speed for tube cutting is usually lower than for solid bar. Most round tube in the Ø20–Ø150 mm range runs 200–600 rpm. Larger tube, above Ø200 mm, drops to 80–200 rpm. If you hear a ringing sound, the speed is too high or the support is loose.

Coolant matters more on the saddle than on a straight cut because the knife exits the wall at an angle. Flood coolant aimed at the exit point, not the entry. On stainless, use a high-pressure jet. On aluminum, use a mist or a light flood to keep chips moving.

• 1
  Depth per pass0.15–0.35 × wall for steel, 0.25–0.5 × wall for aluminum.
• 2
  Feed rate80–150 mm/min mild steel, 40–80 mm/min stainless 304, 200–400 mm/min aluminum.
• 3
  Spindle speed200–600 rpm for Ø20–Ø150 mm, 80–200 rpm above Ø200 mm.
• 4
  CoolantAim at the exit point. High pressure on stainless, mist on aluminum.

A saddle that is too deep on one side and too shallow on the other usually means the chuck center and support center disagree. Check the support height first. A 0.10 mm height error on a 500 mm span tilts the cut by about 0.01°, which is enough to see with a profile gauge.

A saddle that is correct in shape but off along the tube axis is a length error. The controller places the cut from the reference end. If the reference end was not faced square, the whole profile shifts. Face the reference end before measuring, or measure from a known shoulder.

Burrs on the exit side come from too much depth per pass or a dull knife. Reduce depth by 20% and check the insert. On stainless, a burr that looks like a smear means the feed is too low and the material is work-hardening.

Ovality in the finished cut, where the saddle is wider at one point than another, points to tube ovality that was not measured. The four-point probe catches this. Enter the average OD and the controller will still cut a round path, but the wall at the thin point will be smaller than expected.

• 1
  Tilted saddleSupport height or lateral position is off. Re-probe both ends.
• 2
  Shifted saddleLength value or reference end is wrong. Face the end and re-measure.
• 3
  Exit burrDepth per pass too high, or insert worn. Reduce depth and inspect.
• 4
  Uneven wallTube ovality or wall eccentricity. Map wall at eight points.
