Turning and crusher compo: technical principles and process characteristics
This page explains how a turning and crusher compo machine — a mill-turn center that turns and mills in one setup — actually works, what its limits are, and which parts belong on it. It is written for engineers and buyers who need to judge fit before they release a drawing to production.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7

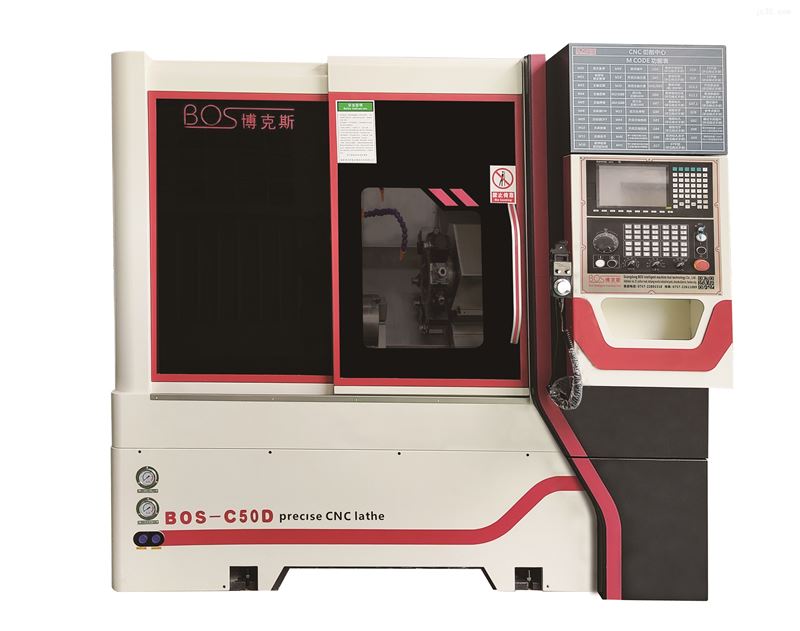

What turning and crusher compo means on the shop floor
The name is clumsy, but the machine is not. A turning and crusher compo is a turning center that also carries live tooling and a C or B axis, so milling, drilling, and tapping happen on the same spindle that just turned the outside diameter. The part never leaves the chuck between the two operations. That single fact drives most of the process characteristics you care about: fewer setups, tighter position control between features, and a different set of failure modes.
On a classic two-machine route, you turn the OD on a lathe, then move the part to a mill and find the same datum again. Every re-chuck adds stack-up error, and a few tenths of a millimeter is normal even on good equipment. A turning and crusher compo removes that handoff. The turned surface and the milled pocket share one coordinate frame, so a bolt circle drilled after turning stays concentric with the bore that locates it.
The trade-off is not free. Live tooling on a lathe turret is less rigid than a dedicated milling spindle, and the work envelope is shaped differently. You get fewer axes of freedom at the tool tip than on a five-axis mill, and long slender end mills chatter sooner. Knowing where the machine stops being the right answer matters as much as knowing where it wins.
GreatLight runs 16 mill-turn centers among 127 high-precision CNC machines, alongside 16 simultaneous 5-axis machining centers and 12 four-axis mills. That mix matters: a mill-turn center is one tool in the set, not a replacement for the rest.
The four subsystems that decide accuracy
A turning and crusher compo machine is built from four subsystems that each contribute error or remove it. The spindle and chuck set the rotating datum and the part's runout. The turret or tool block positions both static turning tools and live rotary tools. The C axis indexes the spindle in degrees so milling can happen off-center. A B axis, when present, tilts the tool for angled features and reduces the number of special tools you need.
The C axis is the quiet workhorse. On a plain lathe the spindle only rotates; on a mill-turn center it can stop and index to any angle. That turns the spindle into a rotary table lying on its side. A cross-drilled oil passage at 30° becomes a simple indexed move instead of a fixture problem. Position accuracy of the C axis is usually stated in arc-seconds, and it directly limits the angular tolerance of any cross feature.
Live tool holders add a second spindle inside the turret. Their speed is lower than a machining center spindle, often one third to one half, and their runout is harder to hold. That is why small-diameter deep holes and fine surface finishes still favor a milling machine. On a mill-turn center, keep live-tool work to features where the tolerance is driven by position, not by surface texture.
Thermal behavior closes the loop. Turning generates continuous heat at the insert, and the headstock grows along the Z axis as the machine warms. Shops that hold ±0.005 mm over a long run usually run a warm-up cycle and compensate Z drift. If a drawing has a tight length tolerance between two faces, ask how the shop handles thermal growth before you assume the machine alone covers it.
How a job is actually set up and proven out
Programming a turning and crusher compo job starts with the turned profile, because that is the datum everything else references. The CAM model is built from the finished part, then the turning operation is posted first so the coordinate frame is fixed at the spindle centerline and the Z zero face. Milling operations are posted against that same frame. If the programmer re-datums between operations, the whole advantage disappears.
Tool list design is where jobs get won or lost. Every live tool in the turret occupies a station that could hold a turning tool, and stations are finite. On a part with a turned OD, a face groove, six cross holes, and a milled flat, you are looking at eight to twelve stations before you start. Shops that plan the tool list against the station count finish the job in one cycle; shops that add tools late end up with a second operation anyway.
First-article inspection should check the relationship between features, not just each feature alone. Measure the runout of the turned bore to the milled bolt circle, and the perpendicularity of a milled face to the turned axis. Those are the numbers that prove the single-setup claim is real on your part. Feature-to-feature checks catch the errors that a single-feature check will happily pass.
Chip control is unglamorous and it matters. Turning produces long stringy chips; milling produces short ones; both share one chip conveyor. On gummy aluminum and stainless, a broken chip cycle at the wrong moment wraps the live tool holder. Program peck cycles and coolant pressure for the material, and plan a mid-cycle chip break on long roughing passes.
Boundaries: where the process stops paying off
The clearest boundary is feature size against spindle speed. Live tooling on a mill-turn center usually runs slower than a dedicated mill spindle, and tool runout grows with speed. A Ø1 mm drill asked to go 8 diameters deep on a mill-turn center will walk and break. Move that feature to a machining center or split the operation. Small tools and deep holes are the first things to hand off.
The second boundary is stiffness. When a live tool reaches far from the turret to clear a large diameter, the overhang goes up and chatter starts. Parts with a large OD and features near the centerline are awkward, because the tool has to reach across. If a part is mostly a big disc with light milling, a mill with a rotary table is often the better machine, and it will hold a better finish.
The third boundary is tolerance stack between the two spindles. On a machine with a sub-spindle, parts transfer from main to sub between operations. That transfer introduces its own error, and features cut on the sub-spindle are not in the same frame as features cut on the main. When a drawing calls for tight concentricity on both ends of a part, check whether both ends can be cut on the main spindle before you accept a transfer.
None of these limits are reasons to avoid the process. They are the questions to ask before quoting. A part with a turned body, a few cross holes, and a milled flat is almost always faster on a mill-turn center. A part that is 90% milling with a short turned stub usually is not.
Material behavior on a combined machine
Aluminum is the easy case. Grades like 6061, 6061-T6, 7075, and 6082 turn and mill well, hold tight tolerances, and let you run high live-tool speeds. The risk is built-up edge on the turning insert and chip welding in deep pockets. Higher rake angles, sharp inserts, and generous coolant keep aluminum where it belongs: fast and accurate on one machine.
Stainless is where the process earns its keep and also where it bites. Grades 303, 304, 316, 316L, and 17-4PH work-harden if the tool rubs instead of cuts, so feed per tooth matters more than spindle speed. A live tool that dwells in a cross hole will harden the surface and dull the next drill. Keep the feed up, the depth of cut steady, and never let the tool spin in place.
Titanium and high-temp alloys push heat into the tool. TC4 (Ti-6Al-4V) and Inconel cut slowly, and a mill-turn center's lower live-tool speed becomes a real constraint on milling passes. These parts usually run on a five-axis mill for the milling content and a lathe for the turned content, unless the milling is light. Magnesium AZ31B and AZ91D cut fast but need chip handling rules because fine magnesium chips are a fire risk.
Plastics and composites behave differently again. POM, PEEK, and carbon fibre machine cleanly but generate dust and stringy chips that clog conveyors. Sharp tooling and high rake angles reduce heat, and dust extraction matters more than coolant. Carbon fibre also wears tools fast, so plan insert changes into the cycle count rather than reacting to a bad finish.
How to verify the claim on your own part
Ask for a first-article inspection report that lists feature-to-feature relationships, not only individual dimensions. The report should show runout between the turned datum and milled features, and perpendicularity of milled faces to the turned axis. If those two numbers are missing, the single-setup benefit has not been demonstrated on your geometry.
Ask how many setups the quote assumes. A quote that lists three operations on a machine sold as one-setup is telling you something. It may still be the right route, but you should understand why the setup count went up before you approve it. Tool station limits, part size, and feature access are all legitimate reasons.
Check the inspection method for the tightest feature. A ±0.005 mm tolerance needs a measurement method that can resolve it, which usually means a CMM with a stated uncertainty well below the tolerance band. Calipers and micrometers have their place on the shop floor, but they cannot verify the tolerance that justified the machine choice.
When a turning and crusher compo beats separate operations
Match your part features to the row that describes it.
| Part feature or condition | Mill-turn center | Separate lathe + mill |
|---|---|---|
| Concentric OD and bolt circle | One setup, shared datum | Two setups, stack-up risk |
| Cross holes and angled ports | C axis indexes, no fixture | Angle plates or second op |
| Face features under 10 mm deep | Live tooling handles it | Mill handles it easily |
| Deep small holes, Ø3 mm × 10× D | Chatter risk, low live-tool speed | Better on a rigid mill |
| Part length above 500 mm | Bar feeder and steady rest help | Lathe plus mill, more handling |
| Batch from 1 to 10,000+ | No minimum order quantity | Setup cost repeats per op |
| Surface finish finer than Ra 0.4 μm | Possible but harder to hold | Mill or grinder is safer |
| Hardened steel above 45 HRC | Limits on live tooling | Milling with proper tooling |
The short version
If your part is a turned body with cross holes, angled ports, or a milled flat, a turning and crusher compo machine wins on setup count and datum control. If your part is mostly milling, has deep small holes, or needs a finish finer than Ra 0.4 μm, put the milling on a dedicated mill and keep turning where it belongs.
Questions engineers ask next
How many setups does a turning and crusher compo job really save?
For a typical turned body with cross holes and a milled flat, the usual two or three setups collapse into one, which removes a re-chuck and the stack-up that comes with it.
The saving is real only when every feature can be reached from the main spindle without removing the part. If a feature is cut on a sub-spindle, that is a second setup in practice, and the datum changes.
Can a mill-turn center hold ±0.005 mm on milled features?
It can, but the tolerance is driven by position accuracy of the C axis and by thermal stability, not by the milling spindle alone.
Ask for the feature-to-feature number in the first-article report. A milled bolt circle held to ±0.005 mm relative to a turned bore is the number that matters, and it should be measured on a CMM, not with hand tools.
What part size fits best?
Parts with a length up to roughly 500 mm and a moderate diameter are the sweet spot, because the tool can reach the features without long overhang.
Large discs with light milling are usually better on a mill with a rotary table, where the tool does not have to reach across the part. Long shafts need a steady rest and careful chip control.
Does the process work for one prototype?
Yes. Setup cost is the main penalty, and it is paid once whether the batch is one part or 10,000. There is no minimum order quantity, so a single prototype can be run on the same route as the production part.
Running the prototype on the production route is worth doing, because it proves the fixture, tool list, and inspection method before the volume run starts.
Which materials should stay off this machine?
Hardened steel above 45 HRC is hard on live tooling, and titanium or Inconel with heavy milling content is usually faster on a dedicated mill.
Magnesium cuts well but needs strict chip handling because fine chips are a fire risk. Plastics and carbon fibre need dust extraction rather than flood coolant.
How do you control chips when turning and milling share one conveyor?
Program a chip break cycle on long roughing passes and match coolant pressure to the material. Aluminum and stainless are the two grades that wrap a live tool holder most often.
On a job with heavy turning followed by light milling, a mid-cycle chip clear before the live tools engage keeps the tool holder and the conveyor clear.
