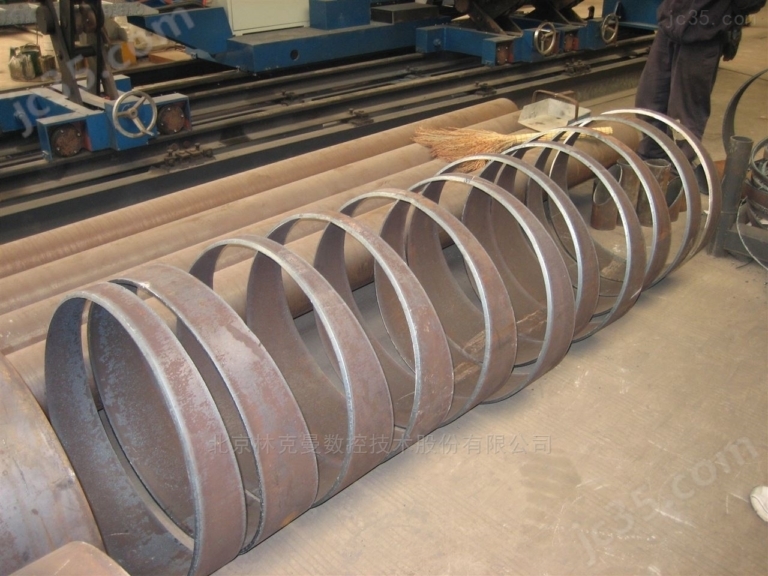

The Pipe Cutting Machine Is a Device Specially Designed to Cut Various Pipe Materials
A pipe cutting machine severs tube and pipe by one of four energy paths: a knife edge, a toothed blade, an abrasive wheel, or a thermal beam. Each path leaves a different cut face, and that face decides whether the next weld or thread will hold. This page explains the mechanism behind each type and when a given method stops being the right choice.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
What a pipe cutting machine actually does to the wall
Every cut removes material from a curved wall. That is the whole problem. A flat plate lets a blade or beam meet a straight surface at a constant angle. A pipe presents a convex surface, so the contact point moves as the tool advances. The wall is also thin relative to its diameter, so the cutting force tends to bend the tube before it shears it.
A pipe cutting machine manages that geometry in one of two ways. It either wraps the cut around the circumference, as a roller cutter or a rotating saw does, or it moves the beam while the pipe stays still, as a laser or plasma head does on a CNC axis. The first approach is mechanical and cheap; the second is thermal and accurate but needs motion control.
The choice shows up in the cut face. Mechanical cutting leaves a small burr and a slight chamfer where the wheel deformed the wall. Thermal cutting leaves a heat-affected zone, a thin oxide layer, and a kerf that is wider at the top than the bottom. Both are workable. Neither is free.
One number drives most decisions: wall thickness divided by diameter. Below roughly 1:20, the tube behaves like a shell and will ovalize under clamping pressure. Above 1:5, it behaves like a solid bar and the cutting force has somewhere to go. Know which regime you are in before you pick a method.
- 1Thin wall, large diameterClamp pressure is the enemy. Use light fixturing and a low-force process.
- 2Thick wall, small diameterCutting force is manageable; speed and heat become the limits.
- 3Squareness, not just lengthAn out-of-square cut face throws the weld gap off around the circumference.
Manual and abrasive wheel cutting: where the pipe cutting machine starts
The simplest pipe cutting machine is a hinged frame with a hardened wheel and a feed screw. The wheel does not cut in the machining sense. It presses a narrow ridge into the wall, and the stress concentration cracks the metal ahead of the wheel. The pipe then fractures around the circumference. That is why a roller cutter leaves a raised lip on the inside diameter.
This method suits copper, brass, and thin-wall stainless in the field. It is fast, quiet, and needs no power. It fails on thick-wall steel, where the feed screw cannot generate enough pressure, and on any material that work-hardens, because the roller leaves a hardened ridge that later cracks under vibration. Stainless is the classic victim.
Abrasive wheel cutting replaces the roller with a thin disc spinning at 3,000–5,000 rpm. The disc grinds a kerf roughly 1–3 mm wide. It cuts steel, stainless, and cast iron without regard to hardness, and it is the cheapest way to sever thick-wall pipe in a fabrication shop. The trade-off is heat.
An abrasive cut puts 200–600 °C into a narrow band beside the kerf. On carbon steel that band cools fast and hardens. On stainless it can sensitize the grain boundary, which is a corrosion risk in chemical service. If the pipe will be welded, grind back 2–3 mm from the cut face to reach sound metal.
Blade and saw cutting: the workhorse for structural pipe
A circular saw or band saw cuts with a toothed edge, so it produces a chip rather than a crack or a grind. The cut face is cleaner than an abrasive cut and the heat stays low if the feed rate is matched to the blade. This is the standard method for structural steel pipe up to Ø300 mm or so.
Blade selection follows material hardness. Carbon steel pipe uses a bi-metal blade at 60–100 m/min surface speed. Stainless needs 20–40 m/min and a positive rake tooth to stop work hardening at the cut. Aluminum runs fast at 300 m/min with a coarse tooth and a lubricant, or the chips weld to the tooth tips.
The failure mode here is blade wander. As the saw enters the curved wall, the tooth grabs and the blade deflects sideways. The result is a cut that is square at the start and out by 0.5–1.5 mm at the bottom. Vise jaws with a V-block profile hold the pipe on three points and cut that error roughly in half.
For pipe that will be welded, a saw cut is usually good enough as-is. For pipe that will be threaded, the end face needs to be square within about 0.5° or the die will cut a tapered thread. Check with a machinist square at four points around the circumference.
- 1Bi-metal bladeCarbon and alloy steel at 60–100 m/min.
- 2Positive rake, fine pitchStainless at 20–40 m/min to avoid work hardening.
- 3Coarse tooth plus lubricantAluminum at 300 m/min to stop chip welding.
Thermal cutting: when the pipe cutting machine uses a beam
Laser, plasma, and oxy-fuel cutting all remove metal by melting or burning it. The head never touches the pipe, so there is no clamping deformation and no tool wear. That is a real advantage on thin-wall tube, where a mechanical clamp would crush the section before the blade touched it.
Fiber laser cutting of steel pipe runs a kerf of 0.2–0.6 mm with a heat-affected zone under 0.2 mm on thin wall. It holds position well enough to cut holes and slots in the same setup, which is why it dominates tube for furniture frames and exhaust systems. On wall above about 6 mm the cutting speed drops sharply and the kerf widens.
Plasma cuts thicker material at lower cost but leaves a rougher edge, with a bevel of 3–8° and a dross layer on the underside. Oxy-fuel is the cheapest way through very thick wall, but the heat input is large and the cut face needs machining before any structural weld.
The engineering consequence is always the same: a thermally cut edge is metallurgically different from the parent pipe. On alloy steel that can mean a hard, brittle layer a few tenths of a millimeter deep. Remove it before welding or fatigue loading, or the crack will start there.
When a pipe cutting machine is the wrong choice
A cutting machine severs a straight section. It does not produce a contoured saddle for a branch connection, and it does not generate a compound angle at a node. Those cuts need a CNC mill with a rotary table or a 5-axis head, where the tool path follows the intersection curve. Trying to hand-grind a saddle on a Ø200 mm header is how you get a weld gap that varies from 0 to 4 mm.
The second limit is ovality. Any clamping method that presses on the outside of a thin-wall tube will distort it. If the drawing calls for roundness within 0.1 mm after cutting, a chuck-style cutter will not hold it. Use an internal mandrel, or switch to a thermal process with no contact.
The third limit is material. Titanium and Inconel cut poorly with abrasive wheels because the heat stays in the cut and the material work-hardens. They need slow saw speeds with flood coolant, or a laser with nitrogen assist to keep the kerf clean.
At GreatLight we machine pipe ends and fittings on 127 CNC machines, including 16 simultaneous 5-axis centers, when a plain cut is not enough. Wall sections up to 4,000 mm long fit the larger travels, and we hold ±0.005 mm on machined faces. That covers the jobs where a saw or a wheel stops being accurate enough.
- 1Branch saddlesNeed 5-axis interpolation, not a straight cut.
- 2Roundness under 0.1 mmExternal clamping will not hold it.
- 3Titanium and InconelHeat stays in the kerf; slow speeds and coolant are mandatory.
Pipe cutting methods compared by cut quality and material fit
Pick the row that matches your wall thickness and the next operation on the pipe.
| Method | Typical wall range | Cut face condition | Best fit |
|---|---|---|---|
| Roller cutter | 0.5–3 mm | Raised inner lip, slight burr | Copper and thin tube, field work |
| Abrasive wheel | 1–20 mm | Burr, 200–600 °C heat band | Thick steel, non-critical welds |
| Band or circular saw | 2–50 mm | Clean chip cut, low heat | Structural pipe, threading |
| Fiber laser | 0.5–6 mm | Narrow kerf, small HAZ | Thin tube, holes and slots |
| Plasma | 3–40 mm | 3–8° bevel, dross underside | Heavy wall, rough work |
| CNC mill-turn | 1–150 mm | Machined face, ±0.005 mm | Precision fittings and flanges |
Choose by the next operation, not by the cut
If the pipe will be welded after a rough fit, a saw or abrasive cut is enough. If it will be threaded, flanged, or measured to ±0.005 mm, cut it on a CNC mill-turn and skip the rework.
Questions engineers ask about pipe cutting
How do I stop a roller cutter from cracking stainless pipe?
A roller cutter work-hardens the ridge it presses into the wall. On 304 or 316 stainless that ridge can reach two to three times the parent hardness, and it cracks later under vibration or thermal cycling.
Use an abrasive or saw cut instead, or anneal the cut end before service. If the pipe is thin-wall, a saw with a positive rake tooth at 20–40 m/min is the safer route.
What wall thickness can a band saw handle before it wanders?
Blade wander shows up when the tooth pitch is too fine for the wall and the chips cannot clear. On steel above about 12 mm wall, drop to a coarser pitch and reduce feed so each tooth takes a real chip.
Support the pipe with V-block jaws on three points. That alone removes most of the squareness error at the bottom of the cut.
Does laser cutting leave a weldable edge?
Yes, on thin wall with a nitrogen assist. The kerf stays clean and the heat-affected zone is usually under 0.2 mm, which is well inside the weld fusion zone.
With oxygen assist the edge oxidizes and needs grinding back before welding. Check the cut face for a dark, rough layer and remove it if present.
Can I cut a branch saddle on a pipe cutting machine?
No. A cutting machine severs a section; it cannot follow the intersection curve between a branch and a header.
That contour needs a CNC mill with a rotary table or a 5-axis head. We cut those on 5-axis centers where the tool path is generated from the solid model, so the weld gap stays uniform around the joint.
How much does the cut face matter if the pipe is not welded?
It matters for sealing. A pipe that presses into an O-ring or gasket seal needs a face square within about 0.1 mm and a finish around Ra 1.6 μm or better.
A saw cut will not hold that. Machine the face on a lathe or mill-turn center after cutting, then deburr the inner and outer edges to a 0.2–0.5 mm break.
What is the largest pipe diameter you can machine after cutting?
Our largest travel is 4,000 × 400 × 150 mm, and we run a Ø400 mm rotary table on the mill-turn centers. That covers most pipe flanges and end fittings.
For plain cutting, the practical limit is set by the saw or laser bed, not by the machining centers. Send the drawing and we will confirm the setup within 12 hours.
