The Plastic Trail Chain in Machine Tools: Flexibility and Fatigue Life
A plastic trail chain carries cables, oil lines, and gas lines through the moving axes of a machine tool. This page explains how the links bend, where the material gives up, and how to size a chain so it outlives the cable inside it.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
How a plastic trail chain actually bends

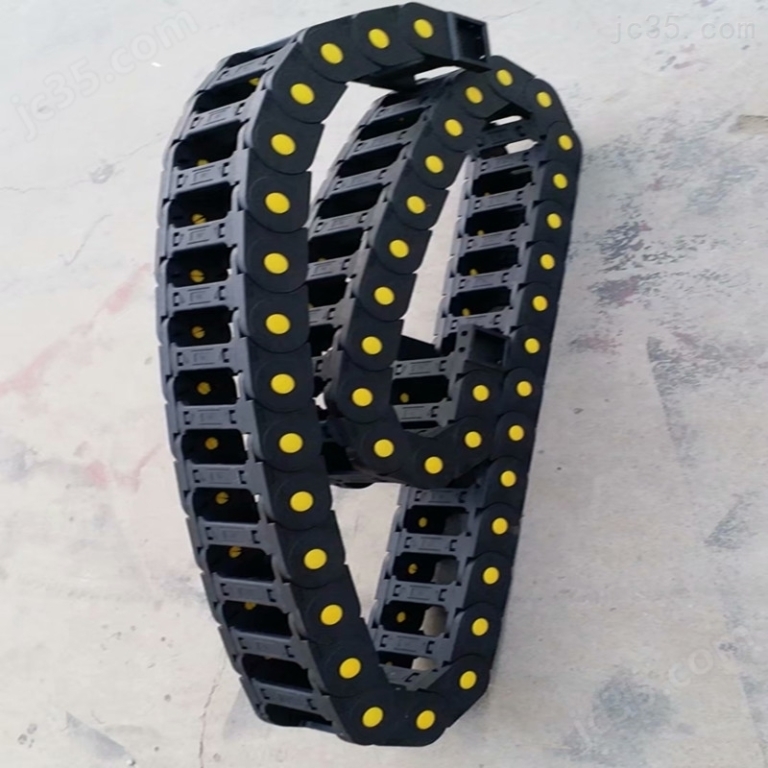

A plastic trail chain is a series of injection-molded links pinned to each other so the assembly can fold back on itself. Each link has two side plates, a cross bar, and a pin joint. When the moving axis travels, one end of the chain stays fixed while the other rolls into a loop and back out. The cables sit in the cavity between the side plates and never see the loop.
The bend happens only at the pin joints. Every other part of the link stays rigid, which is why the cavity keeps a constant cross section even at full stroke. That constant section is the whole point. A cable tie-wrapped bundle swings, rubs, and kinks. A chain constrains the cable to a known path.
Nylon and glass-filled polyamide are the usual link materials. They give a low friction coefficient against themselves, absorb shock at the end of stroke, and do not need lubrication. A steel chain carries more load per unit width but it is heavier, noisier, and it will not forgive a misaligned guide channel.
The pin joint is the part that wears. Each full stroke cycle flexes every joint in the loop twice, once going in and once coming out. At 60 strokes per minute on a 1,000 mm axis, a joint near the fixed end sees roughly 120 flex events per minute. That number drives the fatigue life.
Why flexibility and fatigue resistance travel together
Flexibility in a trail chain is not softness. It is the ability to reach a tight bend radius without cracking the link or raising the force needed to move the axis. Fatigue resistance is the ability to repeat that bend several million times. The two properties pull in the same direction: a link that bends at low stress also survives more cycles.
Glass-filled polyamide raises tensile strength but lowers elongation. A 30% glass-filled link may hold 180 MPa tensile while a plain PA6 link holds 80 MPa. The plain link, however, tolerates a smaller bend radius before surface crazing starts. For short strokes with many cycles, the tougher unfilled grade often lasts longer.
Temperature shifts the whole picture. Above roughly 80 °C, most PA grades lose stiffness and the cavity starts to sag under cable weight. Below -20 °C, impact strength drops and a link can crack on a cold start. Self-extinguishing grades for welding cells usually sit in a narrower window.
Chip ingress matters as much as load. Fine cast iron dust works into the pin joints and acts as lapping compound. A chain that runs clean for 10 million cycles next to an aluminum job may fail at 2 million beside a dry cast iron job without a cover.
Sizing the cavity, the radius, and the fill
Measure the thickest cable first. The inner height of the chain must clear that cable plus 10 to 15% for slack and thermal growth. If the thickest cable is 12 mm, an inner height of 14 to 15 mm is the floor. A chain that just fits will pinch the cable on the inside of the loop.
Inner width follows the sum of cable diameters plus gaps. Leave at least 10% of the inner width empty. Cables should sit side by side, not stacked, and heavy hoses go at the outer edge where the radius is largest. If the bundle fills more than 80% of the width, the chain will tilt on its side during fast travel.
Bend radius is set by the cable, not the chain. A continuous-flex cable rated for 7.5 × its diameter needs a chain radius at least that large. A 10 mm cable therefore needs a 75 mm minimum bend radius. Buying a tighter chain to save space is the most common field error we see.
Chain length is not the axis stroke. The required length is roughly the travel plus the loop circumference plus a mounting allowance at each end. For a 1,000 mm axis with a 75 mm radius loop, plan on about 1,250 to 1,400 mm of chain. Too short and the chain pulls on the cable at full extension.
When a plastic trail chain is the wrong choice
Plastic wins on most machine tools up to about 2,000 mm of travel with moderate cable weight. Past that, self-supporting length becomes the limit. An unsupported plastic chain sags in the middle of a long horizontal run, and the sag adds load to the drive and rubs the cavity.
Hot zones push you to steel or to a hybrid. Near a spindle motor or a welding head, radiant heat can exceed the continuous service temperature of the link grade. Steel links with plastic separators handle that better, at the cost of noise and mass.
High cycle counts at short stroke are the second boundary. A pick-and-place axis doing 200 strokes per minute will flex a joint more in one shift than a gantry axis does in a month. Here the answer is often a smaller, lighter chain with a shorter loop, not a heavier one.
Heavy hydraulic lines are the third. Once a bundle exceeds roughly 20 kg per meter, plastic links deflect and the pin bores ovalize. Steel or a steel-plastic hybrid chain is the honest answer. We would rather quote the hybrid than replace a sagging plastic chain twice a year.
Installation details that decide service life
Mount both ends on the same plane. If the fixed end sits 5 mm lower than the moving end, the chain will twist slightly on every stroke and the pin joints will wear on one side. Shim the brackets until the two mounting faces are level within 1 mm.
Keep the loop free. The chain must be able to form its full radius without touching a guard, a way cover, or the machine frame. A loop that grazes a cover wears through the outer link in months. Give the loop at least 20 mm of clearance on all sides.
Route cables loosely inside the cavity. Cables should be able to slide a little as the chain bends. Clamping them hard to the cross bars transfers all the bending strain into the copper. Use separators to keep layers apart when you must have two rows.
Check the guide channel. A plastic chain running in a steel channel needs about 1 to 2 mm of side clearance and a smooth, painted surface. Rough or unpainted channel walls abrade the link sides and generate dust that finds its way into the pin joints.
Plastic trail chain vs steel: where each one fits
Use this as a first filter before you open a catalog.
| Criterion | Plastic trail chain | Steel chain |
|---|---|---|
| Travel length | Up to about 2,000 mm | 4,000 mm and beyond |
| Noise level | Low, quiet at high speed | Noticeably louder |
| Weight per meter | Low, light on the axis | 3 to 5 × heavier |
| Ambient temperature | Roughly -20 to +80 °C | Well above 150 °C |
| Corrosion | No rust, no lubrication | Needs plating or stainless |
| Chip and dust | Sealed joints help | Open joints trap debris |
| Bundle weight | Moderate cable loads | Heavy hydraulic lines |
| Field repair | Replace a link section | Replace a link section |
The short answer
If your axis travels under about 2,000 mm, runs below 80 °C, and carries a cable bundle under 20 kg per meter, a plastic trail chain gives you the longest cable life for the least weight. Above any of those three numbers, specify steel or a hybrid and stop fighting the material.
Questions we get from the shop floor
How do I know the bend radius is too tight?
Look at the cable jacket on the inside of the loop after a few thousand cycles. A tight radius leaves fine transverse cracks or a shiny, flattened band. If you see either, the chain radius is below the cable rating, not the chain rating.
Measure it directly. Coil the cable around a mandrel at the chain radius for one hour, then inspect. A jacket that shows stress whitening at that radius will fail in service.
Can I add cables to an existing chain later?
Only if the cavity still has about 20% free width and the added weight stays inside the chain rating. Otherwise the chain tilts on fast moves and the outer link wears against the guide channel.
The honest option is to step up one frame size, or add a second chain for the new lines. Mixing power and signal in a nearly full cavity also raises electrical noise on encoder cables.
Why does my plastic chain squeak at high speed?
Dry pin joints plus a fast loop produce a stick-slip sound. Check that the loop is not rubbing a cover, and that the chain is running straight in its channel. A misalignment of 2 to 3 mm is enough to make noise.
Most PA grades run dry by design. Do not spray general-purpose oil on the chain. It attracts chips and turns the joints into a grinding paste.
Does a plastic chain need a support tray?
For horizontal runs past roughly half the self-supporting length, yes. The tray carries the chain through the middle of the stroke and keeps the loop from sagging.
For vertical and short horizontal axes, no tray is needed. Keep the fixed end at the bottom so the chain hangs rather than pushes.
What shortens chain life the most in practice?
Chip ingress, then misalignment, then overload. Cast iron and graphite dust wear the pin bores faster than any normal load cycle. A simple cover or an air purge extends life more than a heavier chain does.
Heat is the quiet one. A chain running at 90 °C will lose stiffness in a few months even with perfect alignment and clean joints.
How do cables inside the chain affect fatigue life?
A loose, well-separated bundle lets each cable find its own neutral axis and adds little load. A tight, bundled stack forces all cables to bend at the same radius, so the outermost one takes the most strain.
Keep the fill under 80% of the inner width and use separators. That single change often doubles cable life on a fast axis.
