A CNC machine treatment center holds a part in one fixture and cuts from several sides in the same cycle. That flexibility is exactly why the datum decision matters more here than on a single-spindle mill. Every dimension in the program traces back to a zero point. If the zero point is a rough casting surface, the finished wall thickness drifts with the casting. If it is a pre-machined face, the wall holds.

The usual order is face, then bore, then everything else. Cut a clean face first and use it as Z zero. Drill and ream the primary bore early, then use that bore for the XY origin. This mirrors the way the part will be measured on a CMM, which keeps the drawing, the machine and the inspection report on the same reference frame.

Watch for parts where the functional datum is not accessible at the start of the cycle. A housing with a bearing bore on the far side may need two setups, or a flip fixture, before that bore exists. Program the sequence so the datum surfaces are made as early as the geometry allows, not as a cleanup at the end.

One more habit: write the datum list into the setup sheet, not only into the CAM file. Operators load fixtures from the sheet. When the zero point is only in software, a fixture change on the night shift can move it without anyone noticing until the first inspection report.

• 1
  Face firstCut and use a clean face as Z zero before drilling anything.
• 2
  Bore earlyCreate the main bore, then pick XY from it to match CMM setup.
• 3
  Two setups are fineIf the functional datum is on the far side, add a flip instead of guessing.

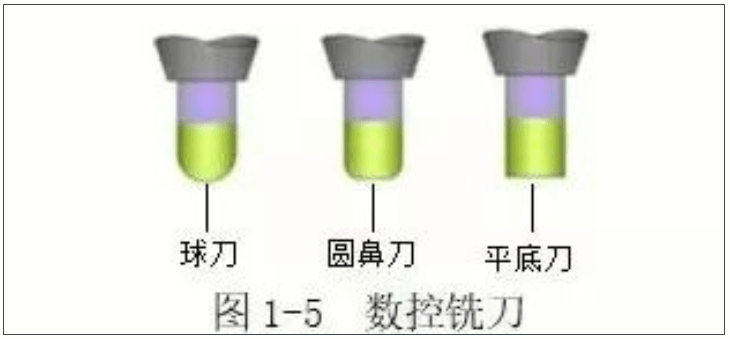

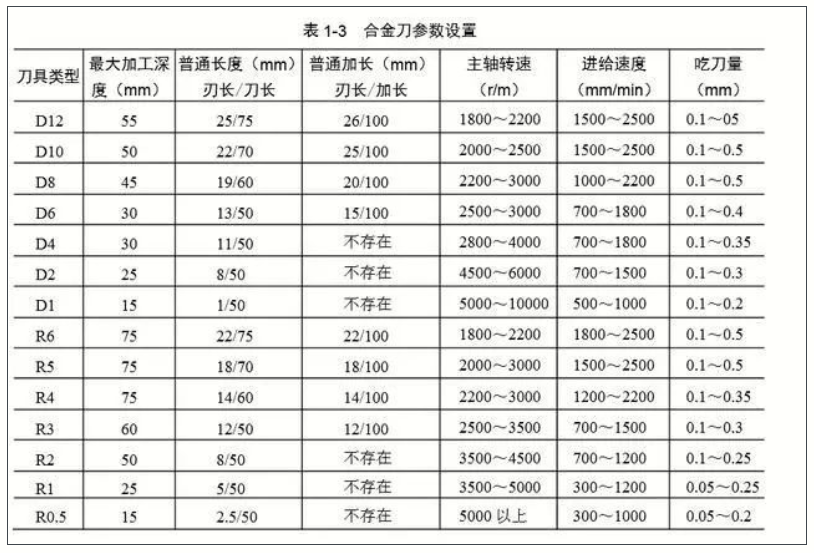

Tool load is the second hard indicator. On a treatment center the tool usually has a long reach to clear the fixture, and a long tool bends. A 12 mm end mill with 80 mm of gauge length behaves nothing like the same cutter at 40 mm. Radial engagement and axial depth have to come down as the length-to-diameter ratio goes up.

For aluminium (6061-T6, 7075, 6082) we normally run carbide with 8–12% cobalt binder, 3-flute geometry, high spindle speed and air blast rather than flood coolant. A 10 mm tool at 3×D can take 0.5–1.0 mm radial and 1.5×D axial at 12,000–16,000 rpm. Stretch the same tool to 6×D and the safe radial cut drops to roughly 0.2–0.4 mm.

Stainless (303, 304, 316L, 17-4PH) and titanium (TC4, Ti-6Al-4V) are a different story. They work-harden under a rubbing cut, so the feed per tooth must stay above a floor even when the radial width is small. Keep the cutter engaged, use trochoidal paths in slots, and never let the tool dwell in the cut.

Inconel, tool steel and hardened 440C push the load further. Here we drop to 0.1–0.2 mm radial, increase the number of passes and accept lower material removal rate. Trying to keep the aluminium parameters on these materials is the single most common cause of tool breakage we see on incoming programs.

• 1
  Length mattersHalve the radial cut when gauge length doubles past 4×D.
• 2
  No dwellStainless and titanium harden if the tooth stops moving in the cut.
• 3
  Match the materialAluminium speeds on Inconel break tools, not records.

A ±0.005 mm tolerance on the drawing is not the same as a ±0.005 mm process window. The machine, the tool, the thermal state of the casting and the fixture all contribute. When a part carries a true position of Ø0.05 mm between two bores, that budget is shared: spindle growth, tool runout, probe error and material stress relief each take a slice.

The practical split we use: reserve about half the stated tolerance for the cutting process and keep the rest for setup and measurement. On a bore with ±0.01 mm diameter, that means the boring bar is set to hit nominal with roughly ±0.005 mm of process variation, and the remaining margin absorbs reaming drift and thermal change over the batch.

Tight tolerances also change inspection. A Ø0.05 mm true position callout is not verifiable with calipers. It needs a CMM or a functional gauge, and the program should leave the datum features accessible for that check. If the fixture covers a datum face at the end of the cycle, the part cannot be verified without unclamping it, which invalidates the measurement.

There is a boundary here. When a feature is tighter than ±0.005 mm, or when it is a fit that depends on surface finish, grinding or a separate finishing pass is often cheaper than fighting the milling process. Deciding that before programming saves a scrapped batch.

• 1
  Half budget ruleGive the cutter about 50% of the stated tolerance band.
• 2
  Inspect what you clampKeep datum faces reachable for the CMM without unclamping.
• 3
  Know the limitBelow ±0.005 mm, grinding usually beats milling.

A treatment center rotates the part, so the fixture has to hold it rigid in every orientation. A vise that is fine for a top-face operation can allow the part to shift when the table indexes 90°. The program then cuts a face that has moved, and the error shows up as a taper or a step at the tool change.

Thin-wall parts are the classic case. A 2 mm aluminium wall will deflect under a standard vise. We switch to soft jaws machined to the part profile, add a support ring or a low-melt potting compound, and reduce radial depth to 0.2–0.5 mm. The number of passes goes up, but the wall stays straight.

Access is the other half. A 5-axis centre can tilt the tool to reach an undercut face, but only if the holder clears the fixture. It is worth checking holder and fixture in CAM, not on the machine. A collision found in simulation costs a few minutes. The same collision found at 12,000 rpm costs a spindle and a delivery date.

For long parts, our 4,000 × 400 × 150 mm travel machines handle 4,000 mm maximum processing size, and those parts need multiple clamps along the length. Each clamp is a potential distortion point, so the sequence has to release and re-clamp in a defined order, not all at once.

• 1
  Soft jawsMachine jaws to the part profile for walls under 3 mm.
• 2
  Simulate accessCheck holder and fixture clearance in CAM before the setup.
• 3
  Release in orderLong parts need a defined clamp release sequence.

The last check is whether the program can prove itself. A treatment center that runs 40 tools across five faces has many chances to drift, and the operator cannot see inside the cut. Probing on the machine closes that gap. Touch off the datum, probe the first bore after roughing, and let the control adjust the finishing offset before the finish pass runs.

We inspect 100% before shipment, with raw material check, in-process monitoring and a final inspection, and we supply reports on request. The program side of that is straightforward: leave the measurement points in the code so the same features are checked that were machined, and log the offsets. A program that probes only at the end tells you the part is scrap, not that it is drifting.

First-article runs matter here. On a prototype or a new revision, run one part, measure it fully, then adjust the offsets and cutting parameters before the batch starts. Our quotation and free DFM analysis come back within 12 hours, and production can start within 24 hours, so there is time for that first-article loop without losing the schedule.

Handover is part of verification too. The setup sheet, tool list, offset table and probe routine should travel together. When a program moves to another machine or another shift, those four documents are what keep the second run identical to the first.

• 1
  Probe mid-cycleAdjust finishing offsets from a probe reading, not from a hunch.
• 2
  First articleMeasure one part fully before releasing the batch.
• 3
  Four documentsSetup sheet, tool list, offsets and probe routine stay together.
