The role of automatic lathe feeders in the production of various electronic components
This page explains how automatic lathe feeders load bar stock into sliding-head and turret lathes, and what that means for small electronic parts such as pins, contacts, spacers and shells. It is written for design engineers and process engineers who need to decide between bar-fed turning and milling. After reading, you can tell which parts suit a feeder, which do not, and what tolerances and finishes are realistic.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
How automatic lathe feeders move bar into the cut

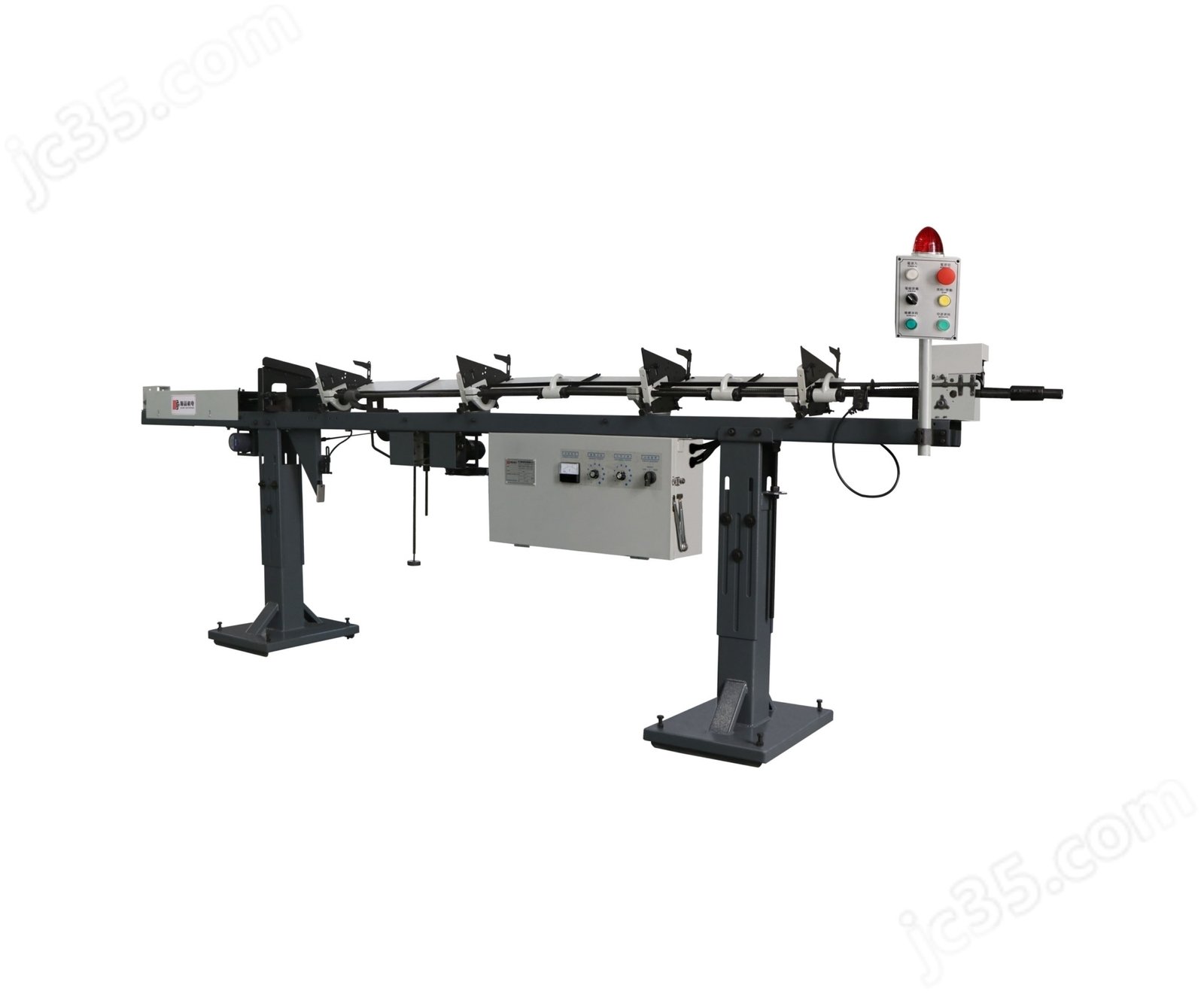

Automatic lathe feeders sit behind the headstock and push round bar stock into the spindle bore. The bar travels through a guide channel, a pusher, and a collet, then stops against a hard stop or a preset Z position. The lathe closes the collet and the tool starts cutting. When the part is done, the collet opens, the feeder advances again, and the cycle repeats without an operator at the door.
The mechanism is simple in principle and fussy in practice. Bar straightness, end chamfer and surface condition all affect how well the bar feeds. A bar with a burred end can jam in the guide channel. A bent bar rubs the channel wall and produces noise, heat and inconsistent push force. That push force is what sets the repeatability of the Z datum, so any drag shows up later as a length variation.
Most feeders use either a chain, a belt or a pneumatic pusher. Chain and belt types handle longer bars and heavier stock. Pneumatic pushers respond faster, which matters for short cycle times on small electronic parts. Some machines use a magazine that holds several bars and loads them one at a time, so a single setup can run unattended for hours.
On a sliding-head lathe, the bar itself moves in Z while the tools stay close to the guide bushing. This is why the feeder and the guide bushing must be matched. The bushing supports the bar right at the cut, so a feeder that pushes unevenly will show up as taper or chatter on a Ø1 mm pin. The feeder is not cutting, but it decides whether the cut is stable.
- 1Guide channelMatches bar diameter; too loose causes chatter, too tight causes jams.
- 2PusherChain, belt or pneumatic; sets feed force and response time.
- 3Hard stopDefines the Z datum for every part in the run.
- 4MagazineHolds multiple bars for unattended running.
Which electronic components suit automatic lathe feeders
Bar-fed turning wins when the part is round, longer than it is wide, and needed in volume. Electronic pins, male and female contacts, standoffs, spacers, sleeves, connector shells and sensor housings all fit this description. Typical diameters run from Ø0.5 mm to Ø32 mm, and the length-to-diameter ratio often exceeds 3:1. Those slender proportions are exactly what a sliding-head lathe handles well.
The material list is broad. Brass C36000 and copper C110 turn freely and are common for contacts. Stainless 303 and 304 cover pins that need corrosion resistance. Aluminium 6061 and 7075 suit shells and heat spreaders. Titanium and 17-4PH appear when the part must survive high temperature or repeated mating cycles. Each material changes the cutting parameters, but the feeder logic stays the same.
The feeder also decides how the part is gripped. A round bar in a collet gives concentricity that is hard to match with a vise on a mill. For a contact that must sit true inside a connector body, that concentricity matters more than absolute size. Runout of 0.01 mm on a Ø2 mm pin is visible in the mating force, and the operator feels it during assembly.
Where the method loses ground is on flat or asymmetric parts. If the component has a rectangular body, a wide flange or a slot that runs the full length, the bar cannot supply that shape. You can still turn a round blank and mill the flats in a second operation, but the second op adds handling, a second fixture and a second chance for error. At that point, mill-turn or pure milling is usually the better route.
- 1Good fitPins, contacts, spacers, sleeves, shells, sensor bodies.
- 2Poor fitFlat plates, wide flanges, long full-length slots.
- 3Material rangeBrass, copper, stainless, aluminium, titanium, 17-4PH.
- 4VolumeEconomic from a few hundred pieces up to 10,000+ runs.
Boundary conditions that decide the process
Bar diameter is the first hard limit. A feeder rated for Ø20 mm cannot run Ø25 mm stock, no matter how the part is drawn. The second limit is bar length. Long bars are efficient because they need fewer reloads, but they also whip if the guide channel is loose. On small diameters, a 3 m bar spinning at high speed needs a stable channel and a straight bar to avoid vibration.
The third limit is the part itself. Features that need a second axis of rotation, such as cross-drilled holes at an angle, may need live tooling. Some sliding-head lathes carry that tooling, some do not. If the design needs a milled flat on one side and a drilled hole at 90°, check the machine configuration before assuming bar-fed turning will finish the part in one cycle.
Tolerance and finish come from the machine, not the feeder. A well-set sliding-head lathe holds ±0.005 mm and Ra 0.8–1.6 μm on small diameter work. The feeder's job is to keep the Z datum stable so those numbers repeat across thousands of parts. If the feeder slips, the diameter stays fine but the length drifts, and that is the failure mode that ruins a run.
Chip control is another boundary. Brass and free-machining steel break chips easily. Aluminium and titanium can string, and a long chip wrapped around the guide bushing will mark the bar and, in bad cases, stop the feed. High-pressure coolant and pecking cycles help, but the geometry of the part still decides how hard chip control will be.
- 1Diameter ceilingSet by feeder and spindle bore, not by the part drawing.
- 2Bar lengthLonger bars mean fewer reloads but higher whip risk.
- 3Live toolingNeeded for cross holes and off-axis flats.
- 4Chip controlBrass breaks; aluminium and titanium string.
What the feeder contributes to tolerance and finish
It is easy to overstate what a feeder does. It does not hold tolerance. It does not set surface finish. What it does is deliver bar at a repeatable position, at a repeatable force, every cycle. That repeatability is what lets the lathe hold ±0.005 mm over a long run. Without it, the first hundred parts might be fine and the next thousand might drift.
Length tolerance is the clearest example. On a pin with an overall length of 8 mm and a ±0.02 mm callout, the hard stop position and the collet grip are the controlling factors. If the feeder pushes the bar against the stop with varying force, the bar compresses slightly and the length changes. Soft materials show this more than hard ones, which is why brass contacts can be fussier than stainless pins at the same tolerance.
Surface finish on turned diameters is mostly a function of tool geometry, speed and feed. A feeder that chatters will leave marks, but so will a dull insert. When we see periodic marks on a turned part, we check the guide bushing and the bar straightness first, then the tool. The pattern usually tells you which one is at fault.
Concentricity between two turned diameters is a lathe and collet property. A sliding-head lathe cuts both diameters in one setup, so the relationship stays tight. This is a real advantage for contacts and sensor housings, where the mating features sit on the same axis. Milling the same part from plate would need two or three setups and a fixture that repeats well enough to match.
- 1Feeder controlsZ datum repeatability and feed force consistency.
- 2Lathe controlsDiameter tolerance, roundness, surface finish.
- 3Collet controlsConcentricity and grip on the bar.
- 4Material mattersSoft metals show feed-force variation more.
How to specify bar-fed turning for electronic parts
Start with the bar stock, not the finished part. Give the machine shop the alloy, the bar diameter and the temper. If the part must come from Ø6 mm bar, say so. If the shop is free to choose, they may pick a diameter that reduces the number of passes and lowers cost. That choice affects the machining plan, so it is worth discussing early.
Call out the features that need a second operation. A cross hole, a milled flat or a slot on one side all push the part toward live tooling or a second setup. Mark those features on the drawing and ask whether the machine can finish them in one cycle. The answer changes the price and the lead time, and it is better to know before the run starts.
State the tolerance that actually matters. A ±0.005 mm callout on every dimension drives cost with no benefit. Put the tight tolerance on the mating diameter or the length that stacks in an assembly, and leave the rest at general tolerance. Bar-fed turning is capable, but tight tolerance everywhere is not free.
Finish and material certification follow the same logic. Anodizing, plating and passivation are all available, and the choice affects the final diameter. If a plated contact must fit a housing, the plating thickness belongs in the tolerance stack. For medical and automotive electronic parts, ISO 13485:2016 and IATF 16949:2016 documentation can be provided. Inspection reports are available on request.
- 1Specify the barAlloy, diameter and temper drive the plan.
- 2Flag second opsCross holes, flats and slots change the route.
- 3Tighten only what mattersMating diameters and stack lengths.
- 4Include finishPlating thickness belongs in the tolerance stack.
Bar-fed turning compared with milling for electronic parts
Use this table to pick a route before you request a quote.
| Factor | Bar-fed turning | CNC milling |
|---|---|---|
| Part shape | Round, slender, symmetrical | Flat, prismatic, asymmetric |
| Typical diameter | Ø0.5–32 mm | Any size up to 4,000 mm |
| Length to diameter | Often above 3:1 | Below 3:1 in most cases |
| Concentricity | Held in one setup | Needs multiple setups |
| Cross holes | Needs live tooling | Standard operation |
| Setup count | Usually one | Two or more |
| Best volume | Hundreds to 10,000+ | One to thousands |
| Surface finish | Ra 0.8–1.6 μm typical | Ra 1.6–3.2 μm typical |
Pick the route that matches the part, not the other way round
If the component is round, slender and needed in volume, automatic lathe feeders on a sliding-head lathe give you concentricity and repeatability that milling struggles to match. If it is flat, wide or full of off-axis features, mill it. Bar-fed turning can add a second operation, but that adds handling and error. Choose the shape first, then the machine.
Questions engineers ask about automatic lathe feeders
Does the feeder affect the diameter tolerance on a turned pin?
No. Diameter is set by the tool, the spindle and the slide, not by the loader. The feeder controls how the bar reaches the Z datum and how much force it applies against the stop.
Where the feeder matters is length repeatability. If the push force varies, the bar compresses differently against the stop and the overall length drifts across the run. Soft metals show this more than hard ones.
What bar diameter range can a typical feeder handle?
It depends on the machine and the guide channel fitted. On the sliding-head lathes we run, the practical range for small electronic work is roughly Ø0.5 mm to Ø32 mm, with the channel matched to the bar.
Going above the feeder rating is not an option. A feeder rated for Ø20 mm will not run Ø25 mm stock, even if the spindle bore could take it.
Can a bar-fed lathe drill a cross hole in a contact?
Only if the machine carries live tooling and the control supports the axis. Some sliding-head lathes have it, some do not. It is a machine configuration question, not a feeder question.
If the cross hole is on the drawing, flag it before quoting. The answer decides whether the part finishes in one cycle or needs a second setup on a mill.
Why do brass contacts sometimes drift in length more than stainless pins?
Brass is softer, so the bar end deforms slightly against the hard stop under push force. If that force varies, the compressed length varies with it.
Stainless resists that deformation, so the same feeder setting gives a more stable length. The fix is usually a lighter, more consistent push, not a tighter tolerance callout.
What is the smallest batch that makes bar-fed turning worthwhile?
There is no minimum order quantity on our side. The economics come from setup time spread across the run, so a few hundred pieces can already beat milling if the part is round and slender.
For one or two prototypes, milling or a short bar run both work. The decision usually comes down to how soon you need the part and how close the prototype must be to production geometry.
Does plating thickness affect the fit of a turned contact?
Yes, and it belongs in the tolerance stack. Gold, silver and electroless nickel all add thickness on the mating diameter, and that changes the insertion force.
Tell us the final plated dimension, not just the machined dimension, so the pre-plate size can be set correctly.
Send us the part drawing and we will tell you which route fits
We review the geometry, the bar size and the tolerance stack, then quote bar-fed turning or milling based on what the part actually needs.
