The first mistake usually starts at the quotation stage. A supplier writes ±0.001 mm on the quote because the sales team wants the order, then the shop floor runs the job on a machine that has not been calibrated this quarter. The parts arrive at ±0.015 mm and the argument begins. Our own working tolerance is ±0.005 mm across a qualified process, and we publish that number rather than a smaller one we cannot repeat. Ask any supplier for the tolerance they can hold on 100 parts, not on one.

Tolerance is not free. Going from ±0.05 mm to ±0.005 mm typically adds an extra finishing pass, a temperature-controlled room or a CMM check on every part. If the feature is a mounting boss that sits under a washer, that money buys nothing. Put tight tolerances only on fits, mating faces, bearing bores and anything that moves. Everything else can breathe.

DFM is the second trap. A design with a sharp internal corner forces the shop to switch from milling to EDM, which can multiply the cost of that feature by five or more. A pocket that is 60 mm deep and 10 mm wide needs a long, thin tool that deflects, so the walls come out tapered and the floor finishes poorly. Keep depth-to-width ratios under 4:1 where you can, and add a corner radius at least equal to the tool radius.

None of this means the design is bad. It means the drawing was finished before a machinist read it. A free DFM review before you release the model is the cheapest step in the whole project. We return a marked-up model and a cost note within 12 hours, and most of the savings come from three or four small geometry changes rather than a redesign.

• 1
  Tighten only where it functionsFits and bores get the tight callout; cosmetic and clearance features stay loose.
• 2
  Corner radius ≥ tool radiusA 3 mm radius lets a 6 mm cutter clear the corner in one pass.
• 3
  Avoid deep narrow pocketsBelow 4:1 depth-to-width, deflection stays manageable.
• 4
  Review before releaseA DFM pass on the model costs nothing and catches the expensive items.

Surface finish is specified late, and that is why it costs so much. As-machined surfaces sit around Ra 1.6–3.2 μm, which is fine for brackets, housings and internal structure. Visible consumer parts and sealing faces need more: Ra 0.8–1.6 μm is a common target, and optical or sliding surfaces can go to Ra 0.2–0.8 μm. Each step down means a slower spindle, a smaller stepover and more inspection time.

The mistake is not choosing a fine finish. It is choosing a fine finish on a face that will be masked, painted or hidden inside an assembly. Mirror polishing a surface that gets powder coated wastes the entire polishing step. Decide Ra per face, mark it on the drawing, and say which faces must not be touched by the deburring brush.

Material selection has the same shape. Engineers pick 7075-T6 for strength, then find that the extrusion size they need is not stocked and the plate has a six-week lead time. Or they specify 316L for corrosion resistance on a part that never sees moisture, when 303 machines twice as fast and cuts the cycle time. Both grades are in our standard stock, but the price and the schedule are not the same.

Look at three things before you lock the alloy: the mechanical property you actually need, the stock form the shop can buy this week, and how the material behaves in the cut. Titanium Ti-6Al-4V and Inconel are available here, but they run at a fraction of the feed rate of 6061 aluminium and they wear tools faster. That shows up in the price, not in the datasheet.

• 1
  Match Ra to the faceCall out finish per surface, not as one global note.
• 2
  Do not polish what gets coatedMasked and painted faces only need a clean as-machined surface.
• 3
  Check stock before alloyA datasheet grade that is not on the shelf adds weeks.
• 4
  Hard alloys cost in timeInconel and Ti-6Al-4V cut slowly and wear tooling fast.

A prototype is not a process. When the first five parts are cut on a five-axis center with a bespoke fixture and hand-finished by a senior machinist, the second hundred cannot follow the same route. The shop either re-tools for a three-axis setup or keeps hand-finishing, and the parts start to differ. The fix is to freeze the process sheet, the fixture design and the inspection plan at the same time you approve the first article.

Ask what changes between the prototype and the production run. Machine, workholding, tool path, inspection frequency and finishing vendor should all be listed. If any answer is vague, the second order is where the surprise lands. At our plant the same process sheet follows the part from one piece to a 10,000-piece run, and 100% inspection before shipment applies to both ends of that range.

Drawing translation is the quiet one. A STEP file carries geometry; it carries no tolerance, no finish, no thread class and no note about which face is the datum. When the 3D model and the 2D drawing disagree, the shop has to guess, and guesses cost money. Send one master file, add a notes sheet, and flag every known conflict rather than leaving the machinist to find it.

Threads are a frequent casualty. A model may show a cosmetic thread with no callout, so the shop has to decide between a modeled thread and a tapped hole. Say M6 × 1.0, 6H, 12 mm deep, and there is no decision left to make. The same applies to laser marking: our minimum character height is 1.5 mm, so a logo scaled to 0.8 mm will not read cleanly on an anodized face.

• 1
  Freeze the process with the partFixture, tool path and inspection plan are approved together.
• 2
  List what changes at volumeMachine, setup and finishing vendor should be named.
• 3
  One master file plus notesSTEP for geometry, a notes sheet for every requirement.
• 4
  Call out threads and marksThread class, depth and minimum mark height belong on the drawing.

Most sourcing problems are decided before the purchase order. A supplier who cannot name the machines on the floor, the calibration interval or the inspection equipment will not solve a tolerance problem later. Ask for the equipment list, the calibration records and the certifications. We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022, and we send the certificates with the quote rather than on request.

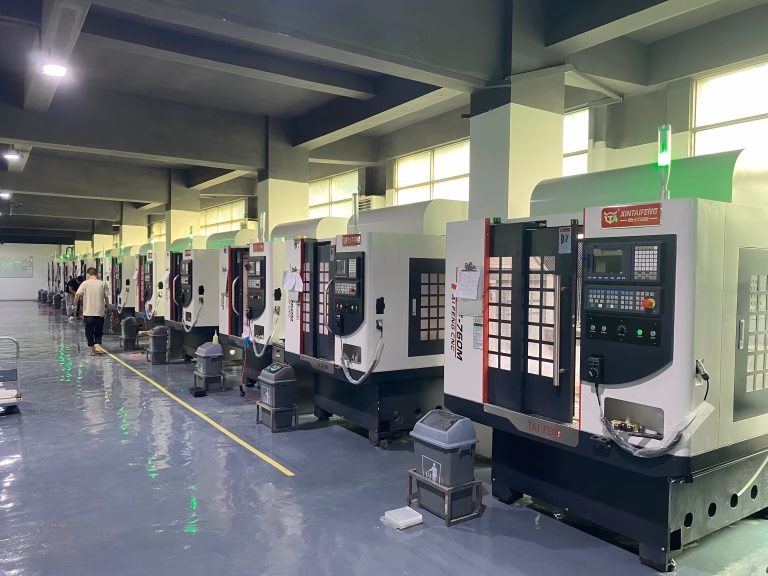

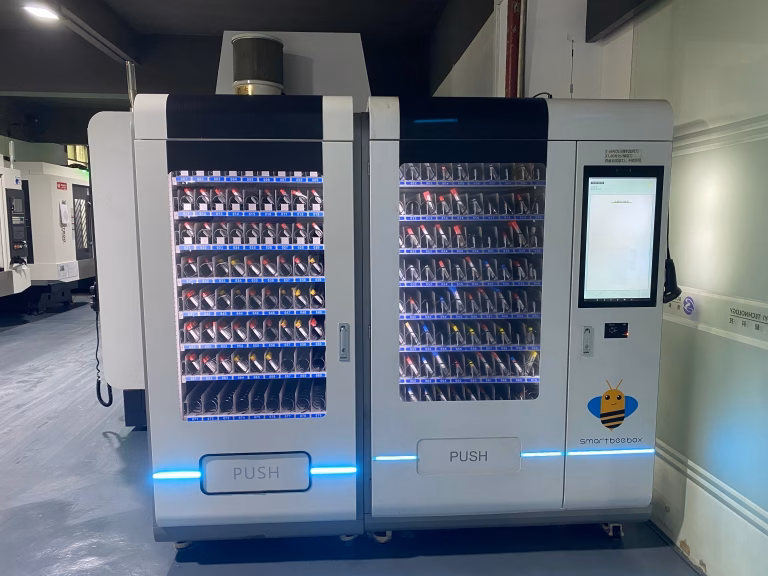

Capacity matters as much as paperwork. A shop with one five-axis center will queue your job behind its biggest customer, and the schedule slips. Our 127 high-precision CNC machines include 16 simultaneous 5-axis centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers, across three wholly-owned plants covering 7,600 m². That spread is what keeps a job moving when one machine goes down.

Size range tells you whether the supplier is even a fit. Our maximum processing size is 4,000 mm, with travels of 4,000 × 400 × 150 mm and 750 × 1,150 × 550 mm, plus a Ø400 mm rotary table for round work. A small part on a huge machine wastes setup time; a large frame on a compact machine cannot be done at all. Send the envelope with the RFQ.

Finally, ask who does the finishing. Anodizing, plating, powder coating, black oxide, bead blasting and laser marking are steps where parts get lost or damaged, and where a subcontractor adds days to the lead time. Keeping those steps in-house is one reason our historical late-delivery probability stays below 2%. It is also why we can start production within 24 hours of an approved DFM review.

• 1
  Ask for records, not claimsCalibration interval and equipment list before the PO.
• 2
  Check machine countOne 5-axis center means your job waits in line.
• 3
  Send the part envelope4,000 mm maximum size; a Ø400 mm rotary table handles round parts.
• 4
  Ask who finishes the partIn-house anodizing and plating removes a handoff and a delay.
