What Are Horizontal Machining Centers?

• 1
  Key takeaways
• 2
  What makes horizontal machining centers different
• 3
  Tombstones, pallets, and the setup that never stops
• 4
  How the cut behaves on a horizontal spindle
• 5
  Which materials and features suit the HMC
• 6
  Size, travel, and what actually fits on the table
• 7
  When a horizontal machining center beats a vertical mill
• 8
  How we hold tolerance on a horizontal machine
• 9
  Horizontal vs vertical machining center

On a vertical machining center the spindle points down and the operator looks straight at the work. A horizontal machining center turns that arrangement 90 degrees. The spindle sits parallel to the floor, the part stands on a table or pallet that also sits parallel to the floor, and the tool enters from the side. The spindle is box-shaped and builds out from a column instead of hanging from a head.

That geometry changes chip flow first. Chips fall away from the cut by gravity rather than landing back in the pocket and getting recut. On deep pockets in aluminum or cast iron, recutting is one of the biggest causes of poor surface finish and premature tool wear. A horizontal spindle with through-coolant clears the pocket, so the next tooth meets clean metal.

The second change is reach. Because the part rotates on a B-axis table, the machine can present four faces to the tool without an operator touching the fixture. On a vertical mill that work would need two or three separate setups, each one a chance to lose 0.02 mm of position between operations.

The trade-off is real. A horizontal machining center occupies more floor space, costs more per spindle, and needs a heavier foundation. It earns that back on parts with multiple faces and enough volume to keep the pallets moving.

• 1
  Spindle axisParallel to the floor, tool enters from the side.
• 2
  WorkholdingTombstones on pallets, often four faces per cycle.
• 3
  Chip evacuationGravity-assisted, less recutting in deep pockets.

A tombstone is a cube or rectangular block mounted on a pallet. Each vertical face carries its own vise or fixture plate, so four, six, or even eight part stations can run from one pallet load. The operator loads the next pallet while the spindle is still cutting the current one. That overlap is where the throughput comes from.

Pallet changers usually hold two pallets, sometimes six or more on a flexible manufacturing system. A twin-pallet changer on a mid-size machine can swap in 10 to 20 seconds, and the spindle rarely sits idle. On a part with a 6-minute cycle, that idle time is the difference between 8 and 10 parts per hour.

The catch is fixturing cost. A tombstone with four dedicated fixtures can cost more than the first batch of parts. That cost only pays back when the same part runs repeatedly, or when the fixtures are modular and can be re-pinned for the next job. For a one-off bracket, none of this makes sense.

Position accuracy between faces also depends on the rotary table, not just the spindle. A Ø400 mm table with a built-in rotary scale holds index position tightly, but if the tombstone itself is not dialed in on the pallet, every face inherits the error. We indicate the tombstone on the pallet before the first cut.

• 1
  Multi-face setupFour to eight part stations per pallet load.
• 2
  Pallet swapTwin-pallet changers typically 10–20 seconds.
• 3
  Fixturing costJustified only by repeat volume or modular reuse.
• 4
  Index accuracyDepends on the rotary table and tombstone dial-in.

A horizontal spindle is short and stiff. The tool hangs out from a box column rather than from a quill, so deflection under load is lower than on a comparable vertical machine. That stiffness shows up in heavier radial depths of cut and longer tool life in stainless and titanium.

Coolant also behaves differently. With the tool entering from the side, high-pressure through-coolant pushes chips down and out of the pocket. On a vertical machine the same pocket traps chips at the bottom, and the operator has to stop and blow them out. On parts with deep bores or long pockets this alone can cut cycle time by 15 to 30 percent.

Thermal growth is a factor on both machine types, but it shows up differently. The horizontal spindle grows along its own axis, which moves the tool in Z. A warm-up cycle of 15 to 20 minutes before the first tight-tolerance feature keeps that drift predictable. We run the same warm-up routine on every machine.

Rigid tapping, boring, and thread milling all benefit from the shorter tool path from spindle face to part. That is why horizontal machining centers show up in engine blocks, transmission housings, and hydraulic manifolds, where bores and faces must stay aligned across several sides.

• 1
  Spindle stiffnessBox column, short overhang, less deflection.
• 2
  Chip clearingThrough-coolant pushes chips down and out.
• 3
  Thermal driftAlong the spindle axis; 15–20 minute warm-up helps.

Aluminum and cast iron are the classic HMC materials. Both cut fast, produce a lot of chips, and reward the chip evacuation that a horizontal spindle gives you. Aluminum 6061, 7075, and ADC12 die-cast housings are common jobs. Cast iron manifolds and pump bodies also run well because the graphite in the iron lubricates the cut.

Stainless 303, 304, and 17-4PH run on horizontals when the part has multiple faces and tight bore alignment. The stiffness helps with work hardening, and the pallet system keeps the machine cutting while the operator deburrs. Titanium TC4 and Inconel are possible but slower, and tool cost per part rises sharply.

Plastics and carbon fibre are usually a poor fit. Soft materials need sharp tools and high rpm, and the horizontal geometry offers no real advantage. A vertical mill with a clean enclosure is easier to keep free of dust.

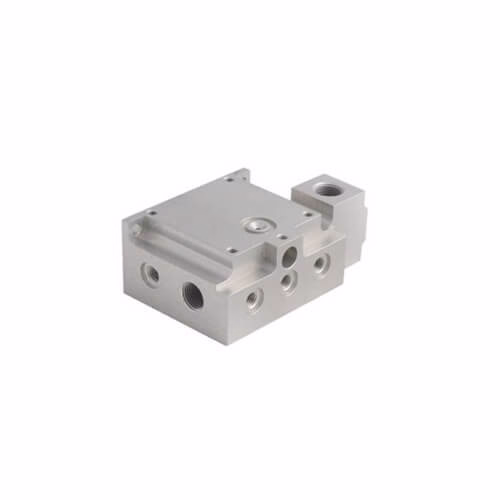

The features that matter most are the ones that cross faces: intersecting bores, bolt patterns on four sides, dowel holes that must line up, and faces that need to be square to each other within ±0.005 mm. If the part has one face and one operation, the HMC is overkill.

• 1
  Best fitMulti-face housings, bores crossing several sides.
• 2
  Good fitStainless and alloy steel parts with repeat volume.
• 3
  Poor fitThin plates, single-face work, soft plastics.

Horizontal machining center size is usually quoted as X, Y, and Z travel. A compact machine might give 500 × 500 × 450 mm, a mid-size one 750 × 1,150 × 550 mm or 600 × 600 × 600 mm. Large horizontals reach 4,000 × 400 × 150 mm for long, narrow parts like rails and beams.

Travel is not the same as part size. The tombstone, the rotary table, and the tool length all eat into it. A part that fits the travel envelope in X may still not clear the tombstone when the table indexes. We check the 3D model against the actual machine envelope before quoting, not against the travel numbers alone.

Weight matters too. A loaded pallet has a limit, and a heavy steel fixture plus a large casting can push past it. The rotary table has to index that mass accurately every cycle, so the limit is conservative by design.

For parts longer than the X travel, a horizontal spindle can still work if the part is indexed and machined in segments. That approach needs overlapping features and a good datum strategy, and it is usually a sign that the part should be redesigned for a different process.

• 1
  Compact travel500 × 500 × 450 mm, 500 × 310 × 200 mm.
• 2
  Mid-size travel750 × 1,150 × 550 mm, 600 × 600 × 600 mm.
• 3
  Large travel4,000 × 400 × 150 mm for long parts.
• 4
  Real limitTombstone, table, and tool length reduce usable travel.

Volume is the first filter. A part that runs 50 pieces a year does not need a pallet changer. A part that runs 5,000 pieces a year, with four faces to machine, will pay back the fixturing and the higher hourly rate within the first few batches.

Part geometry is the second filter. If the part is a cube, a housing, or a manifold with features on four or five sides, a horizontal machining center collapses multiple operations into one. If the part is a flat plate with holes on one face, a vertical mill does the same job for less.

Tolerance stack-up is the third filter. Every extra setup adds a position error. On a part where a bore on one face must align with a bore on the opposite face within ±0.005 mm, one setup on a horizontal machine is the safer route. Two setups on a vertical machine means two chances to drift.

None of this is absolute. A 5-axis vertical machine with a trunnion can also reach five faces in one setup, and it handles contoured surfaces better. The choice often comes down to whether the part is prismatic with flat faces, or organic with compound angles.

• 1
  Choose HMCPrismatic parts, four or more faces, repeat volume.
• 2
  Choose VMCFlat plates, single-face work, low volume.
• 3
  Choose 5-axisContoured surfaces and compound angles.

Tolerance on a horizontal machining center depends on the machine, the fixture, and the thermal state of the spindle. Our process targets ±0.005 mm (±0.0002 in) on critical features, with surface finish between Ra 0.8 and 1.6 μm for most machined faces and Ra 0.2 to 0.8 μm when a bore needs it.

Inspection is not a final step only. We check raw material on arrival, monitor dimensions in process, and run a final inspection before shipment. Reports are available on request. For a part with four machined faces, that means checking the relationship between faces, not just the size of each feature.

The pallet system helps here. Because the part stays on the same pallet from the first operation to the last, the datum does not change. That is the main reason a horizontal machine holds alignment on multi-face parts that a sequence of vertical setups would lose.

We run 127 high-precision CNC machines across three plants, including 16 simultaneous 5-axis machining centers and 16 mill-turn centers. Horizontal work is planned alongside those machines so a part gets the process that fits its geometry, not the one that happens to be free.

• 1
  Target tolerance±0.005 mm (±0.0002 in) on critical features.
• 2
  Surface finishRa 0.8–1.6 μm standard, Ra 0.2–0.8 μm on request.
• 3
  Inspection100% before shipment; reports on request.
