What Is CNC Drawing? Wire, Rod and Tube Forming Explained
A CNC drawing machine pulls wire, rod or tube through guides and bends it to programmed angles. It is not a mill. This page explains the mechanism, the tolerance limits and the part shapes where forming beats machining.
How CNC Drawing Actually Forms Metal
Start with stock. A coil of wire or a straight length of rod goes into a feed unit. Rollers grip the material and push it forward a set distance. On a wire former that distance might be 0.5 mm per increment; on a tube bender it can be 500 mm in one push. Feed length is the first number the program controls.
Then the tooling acts. A bending head, a mandrel or a set of rollers applies force at a fixed point while the material is held. The material yields past its elastic limit and keeps the new angle. CNC drawing means the machine pulling stock through the tooling under tension, which keeps bend radius consistent from part one to part ten thousand.
A controller runs the sequence. It sets feed length, bend angle, rotation between bends and cycle speed. For flat 2D wire forms the rotation axis stays locked. For 3D forms the head rotates the part between bends, so a single wire can bend in several planes without a second setup.
Springback is the correction that matters most. Every metal returns a little after the tool releases. The controller adds an overbend, typically 1–5° depending on material and radius. Get that value wrong and every part in the run is off by the same amount, which is easy to spot on the first article.
Which Materials Bend Well and Which Fight Back
Mild steel, copper and brass are the forgiving group. They take tight radii, hold angle after springback correction, and rarely crack at the outside of a bend. C101 and C110 copper and C36000 brass are common in electrical contacts and fittings because they form cleanly at small radii.
Aluminium sits in the middle. 6061-T6 bends to roughly 1.5× material thickness minimum radius before surface cracking appears. Softer grades like 5052 and 6063 take tighter radii. If a drawing calls for a 1× radius in 6061-T6, the bend line often needs annealing first, and that adds a step.
Stainless is the difficult group. 304 and 316 work-harden as they deform, so a tight bend can split. Minimum inside radius for 304 is usually around 1× thickness in the annealed state and larger after cold work. 17-4PH in the H900 condition is worse; bend it in the solution-treated state, then age it.
Titanium and Inconel need heat or very generous radii. TC4 (Ti-6Al-4V) at room temperature will crack at radii under about 3× thickness. These materials are usually machined from billet instead, and that is a design decision, not a machine limitation.
Parts That Belong on a Drawing Machine
Wire forms are the clearest case. A spring clip with six bends, two radii and a hook at each end is slow on a mill and fast on a former. Once the dies are set, cycle time drops to seconds and the bend angles repeat without operator input.
Tube and pipe frames are the second case. Seat frames, handlebars, medical carts and rack structures are long parts with repeated bends along one axis. A CNC tube bender with a mandrel holds the cross-section round through the bend, which a mill cannot do without leaving a seam or a machined flat.
Brackets and busbars are the third case. Flat stock with a few bends, holes and a cut profile can be formed on a press brake or a wire former and then drilled or punched. The bend positions stay inside ±0.1 mm, which is enough for most mounting hardware.
There is a fourth case that catches people: hybrid parts. A formed wire frame with machined end fittings needs both processes. We machine the fittings to ±0.005 mm and form the frame, then assemble. Splitting the work this way usually costs less than machining the whole part from one billet.
Design Rules That Keep Formed Parts Out of Trouble
Keep the bend radius at or above the material minimum. For 6061-T6 aluminium, plan on 1.5× thickness. For 304 stainless, 1× thickness annealed. For TC4 titanium, 3× thickness. Draw the radius on the model; leaving it to the shop means a guess that may not match your fit.
Leave straight length between bends. Two bends closer than about 2× the material diameter cannot be formed without the tooling hitting the previous bend. If the design needs them closer, plan on machining that section or accept a larger radius.
Watch hole-to-bend distance. A hole placed within 2× thickness of a bend line will distort as the metal stretches. Move it further out or drill after forming. The same applies to slots and notches near a bend.
State the bend direction and the datum. A drawing that shows angles without a datum leaves the first bend ambiguous. Give one end as datum and dimension every angle from it, and the first article will match the model.
CNC Drawing vs CNC Milling: What Each Process Gives You
Pick by geometry, not by habit.

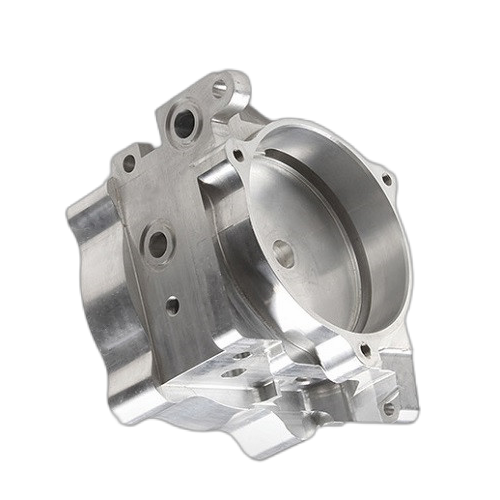

| Factor | CNC drawing (forming) | CNC milling |
|---|---|---|
| Best geometry | Long, constant-section bends | Pockets, bores, faces, 3D contours |
| Tolerance | ±0.1 mm typical on bend position | ±0.005 mm on machined features |
| Wall thickness | Unchanged by the process | Set by stock and tool access |
| Tooling cost | Bend dies per radius and material | Fixtures only; no per-radius die |
| Setup change | New die for each bend radius | Reprogram and re-fixture |
| Part count fit | High volume, repeat runs | One-off to 10,000+ runs |
| Material waste | Low; near-net from coil | Higher; chips removed from billet |
| Typical parts | Springs, clips, brackets, frames | Housings, manifolds, plates, shafts |
When Forming Beats Milling, and When It Does Not
If the part is long, has a constant cross-section and repeats, form it on a drawing machine. If it has pockets, bores or tight tolerances under ±0.05 mm, machine it. Hybrid parts get both.
Questions Engineers Ask About CNC Drawing
Is a CNC drawing machine the same as a wire EDM?
No. Wire EDM cuts metal with a spark between a thin wire and the workpiece; the wire never becomes part of the part. A CNC drawing machine feeds wire, rod or tube as the finished material and bends it into shape.
The confusion comes from the word wire. If your drawing shows a cut profile in a plate, you want EDM or milling. If it shows a bent wire form, you want forming.
What tolerance can I realistically hold on bend angle?
Bend position typically holds ±0.1 mm and bend angle about ±0.5° on a well-set machine. Springback compensation is what makes that possible, and it is tuned on the first article for each material and radius.
Tighter than ±0.3° is possible on thin wire with a stable material lot, but it needs a first-article check and often a small overbend adjustment mid-run.
Can you form a part and machine it in the same order?

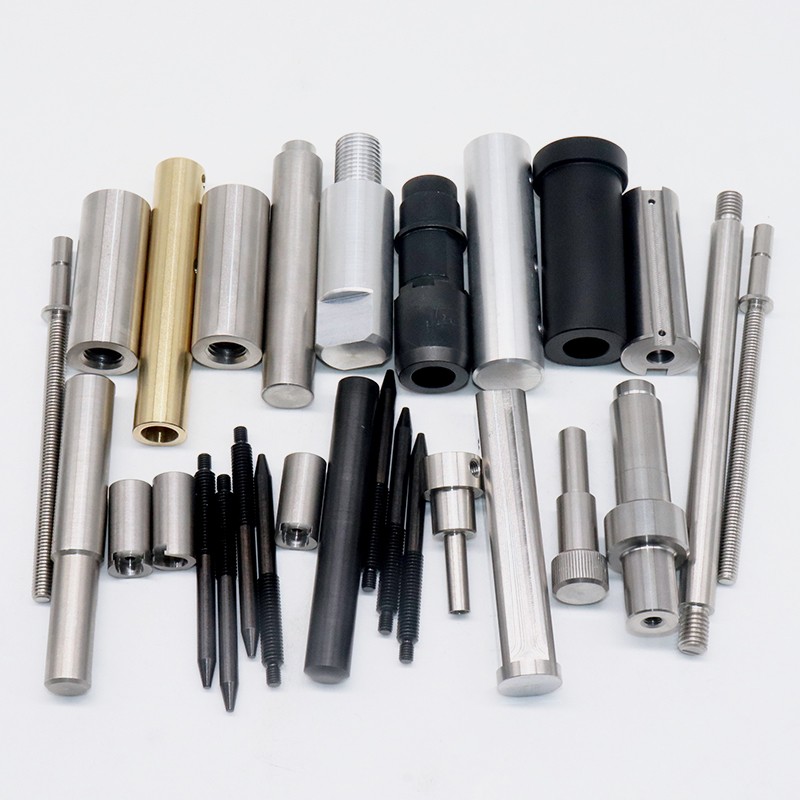

Yes. We run forming and CNC milling and turning under one roof, so a wire frame with machined end fittings ships as one assembly. The machined features hold ±0.005 mm while the formed sections hold ±0.1 mm.
Send the step file and the bend table together. The bend table tells us the radii and angles; the model tells us where the machined interfaces sit.
What file format do you need for a formed part?
A 3D model plus a flat bend table works best. The model defines the finished shape; the bend table lists feed length, angle and rotation for each bend so the program can be checked against your intent.
For simple 2D wire forms, a dimensioned drawing with a datum is enough. We return a DFM note within 12 hours if a radius or a hole position will not form cleanly.
Does forming change the material properties?
Yes, locally. The bend zone work-hardens, which raises yield strength there and can lower ductility. For most brackets and clips that is harmless. For parts that see fatigue cycling, say so at quote time.
Stainless and titanium are the two groups where this matters most. If a bend sits in a high-cycle stress area, we can adjust the radius or specify an annealed condition before forming.
What is the smallest and largest part you can form?
Wire diameters start around Ø0.3 mm and run to about Ø12 mm; tube goes to roughly Ø50 mm depending on wall thickness. Bent profiles can run to 4,000 mm in length on our larger equipment.
Below Ø0.3 mm the material is better handled as a stamped or etched part. Above the tube limit, the section is usually fabricated from plate or machined from billet.
