What Parts of Cell Phones Are Processed Using Laser Technology?
A phone is a stack of dissimilar materials held to tight tolerances: glass, aluminium, stainless, copper, polymer, and adhesive. We explain which parts of cell phones processed using laser technology cover, what each laser operation actually does to the material, and where the process reaches its limits. Written for engineers and buyers who need to judge a process route, not a marketing page.

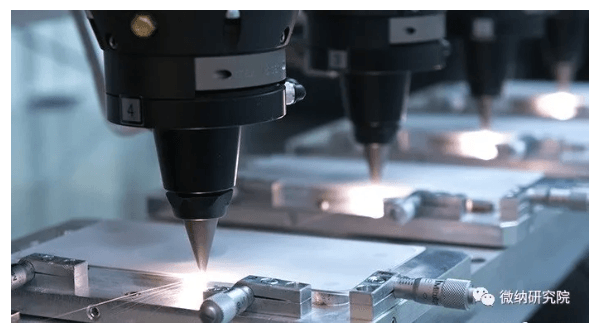

Where Cell Phones Processed Using Laser Sit In The Build
A smartphone is assembled from roughly 40 to 60 functional parts before final test. Lasers do not touch every one of them. The process earns its place where a mechanical tool cannot reach, where heat has to stay local, or where the cut edge must be clean enough to bond without extra steps.
The work splits into four families. Cutting and singulation separates one part from a sheet or wafer. Welding joins two metals without filler. Drilling opens vias and speaker ports. Marking writes traceability data on a surface. Each family uses a different wavelength, pulse length, and power level, and each has a different failure mode.
Engineers usually meet this topic when a housing arrives with a hairline crack at a weld, or when a flex circuit delaminates after reflow. The laser step is often the cause, and it is often the fix. Knowing which parts get lasered helps you trace a defect back to the right process window.
The rest of this page walks through the parts in the order a phone is built: frame and housing first, then display, then board-level work, then the small internal components. For each one we give the laser type, the reason it is used, and the point where it stops working.
Frame, Housing, And Midplate
The midframe is the structural spine of a phone. Aluminium 6061 and 6063, sometimes 7075, are common; stainless 304 and 316L appear on premium frames. Laser cutting trims stamped or extruded blanks to the final outline, and laser welding closes the seam on unibody designs.
Fiber lasers at 1,070 nm handle aluminium and stainless well. A 1 kW to 3 kW source cuts 0.3 mm to 1.0 mm sheet at 3 m/min to 8 m/min with a kerf around 0.1 mm. Nitrogen assist keeps the cut edge oxide-free, which matters if the frame is later anodized.
Laser welding is the harder operation. A continuous seam on a 0.6 mm aluminium wall needs about 400 W to 800 W with a spot overlap above 70 percent. Below that, porosity appears. Above it, the heat-affected zone grows and the anodized finish shows a colour shift after dyeing.
Not every frame suits laser welding. Die-cast frames with internal porosity outgas under the beam and produce pinholes. For those, we usually recommend a machined or extruded frame instead. It costs more per part, but the weld holds.
The midplate also carries laser-drilled holes for pogo pins and antenna windows. These are typically 0.3 mm to 0.8 mm in diameter, drilled with a pulsed fiber laser in a few milliseconds per hole.
Display Glass And Cover Lens
Cover glass is where laser processing is most visible to the user, even though the user never sees the laser. The glass is cut to shape, and the edges are then ground and polished. Laser cutting replaced diamond scribing for curved outlines and notch geometry.
A picosecond or femtosecond laser at 532 nm or 355 nm removes glass by cold ablation. Pulse energy in the 10 μJ to 50 μJ range and repetition rates of 100 kHz to 500 kHz keep the heat-affected zone under 5 μm. That is what allows a 0.5 mm to 0.7 mm thick cover glass to be cut without micro-cracks that would later propagate.
The trade-off is throughput. Cold ablation is slower than a CO2 laser, which can cut glass in one pass but leaves a rough edge and a visible heat zone. For a phone cover, the edge quality wins. For an internal glass spacer, the CO2 laser is fine.
Laser drilling also produces the earpiece mesh and camera aperture openings in some designs. Holes from 0.05 mm to 0.2 mm are drilled through glass or through a laminated stack. Once the stack includes an adhesive layer, the laser has to cut two materials with very different absorption, which usually means two passes at different parameters.
PCB, Flex, And Antenna Structures
The printed circuit board and the flexible circuits inside a phone are dense with laser operations. Laser direct imaging writes the resist pattern. UV laser drilling opens microvias in the dielectric. Laser cutting singulates rigid-flex panels that a router would tear.
Microvias in a phone board are typically 50 μm to 150 μm in diameter through 50 μm to 100 μm of dielectric. A UV laser at 355 nm drills these with a taper under 15 μm per side. CO2 lasers can drill blind vias faster in FR-4, but they struggle with polyimide flex and with the glass-reinforced grades used near the antenna.
Laser cutting of flex circuits is common because mechanical punching deforms the copper traces near the edge. A UV or green laser cuts polyimide at 0.1 mm to 0.3 mm per pass with a kerf near 20 μm. The copper underneath is left intact if the parameters are set correctly; if they are not, you get a short after bending.
Antenna structures are increasingly laser-direct-structured. A laser activates a doped polymer surface, and copper then plates only where the beam passed. This lets the antenna follow the inside of a curved frame. The line width is around 100 μm to 300 μm, and the adhesion depends on how clean the polymer surface was before activation.
Camera Module, Speaker, And Battery Tabs
The camera module has several laser steps. The lens barrel is laser-marked for traceability. The image sensor cover glass is laser-cut from a wafer. The autofocus actuator flex is laser-welded to the module frame, usually with a pulsed Nd:YAG or fiber laser at low energy to avoid damaging the nearby polymer.
Speaker and microphone meshes are laser-drilled through stainless or PET. Hole diameters run 20 μm to 80 μm, and the hole pattern has to be uniform or the acoustic response changes. A dirty lens or a drifting focus during drilling shows up as a 1 dB to 2 dB variation across units.
Battery tabs are laser-welded to the protection circuit board. Aluminium and nickel tabs need different parameters because their reflectivity differs. A 1,064 nm fiber laser at 100 W to 300 W with a short pulse works for both, but the aluminium weld is usually wider and needs a larger overlap.
Laser marking closes the loop on traceability. A 2D data matrix on a battery, a flex, or a frame lets the factory trace a defect to a machine and a shift. Minimum character height for a readable mark is about 1.5 mm, and the mark has to survive the finish process that follows.
When Laser Processing Is The Wrong Choice
Laser cutting loses to stamping above certain volumes. A progressive die runs millions of parts at a fraction of the per-part cost. Laser wins when the outline changes between revisions or when the annual volume is under about 50,000 units, because tooling amortization dominates the comparison.
Thick aluminium is another boundary. Above 3 mm, fiber laser cutting slows sharply and the cut edge develops dross. For a phone this rarely matters, since frames are thin, but it matters for the fixture that holds the frame during assembly.
Reflective metals need care. Bare copper and gold-plated surfaces reflect most of a 1,070 nm beam back into the optics. A back-reflection sensor is not optional. Without it, you damage the delivery fiber and the next 200 parts run out of focus.
Heat is the quiet failure. A laser weld that looks perfect under magnification can leave a heat-affected zone that cracks during drop test. If a frame passes visual inspection but fails assembly, cut a cross-section and check the grain structure before blaming the alloy.
Finally, laser processing does not fix a bad fit-up. If two parts to be welded have a gap above 0.1 mm, the weld will be weak no matter which parameters you choose. Fix the fixture first.
Laser Type By Phone Part
Match the source to the material and the feature size.
| Part | Laser type | Why this source | Practical limit |
|---|---|---|---|
| Midframe outline | Fiber, 1,070 nm | Cuts 0.3–1.0 mm aluminium fast | Kerf about 0.1 mm |
| Unibody seam weld | Fiber, CW or pulsed | Local heat, no filler needed | Porosity in die-cast frames |
| Cover glass outline | Picosecond, 532 nm | Cold ablation, clean edge | Slower than CO2 |
| Microvia in HDI board | UV, 355 nm | Small taper in polyimide | Low throughput per via |
| Flex circuit singulation | UV or green | No copper deformation | Short if overlap is wrong |
| LDS antenna trace | UV, 355 nm | Activates curved surfaces | Adhesion depends on cleaning |
| Battery tab weld | Fiber, pulsed | Handles Al and Ni | Different width per metal |
| Traceability mark | Fiber or UV | Permanent, machine readable | 1.5 mm minimum height |
The Short Version
Choose laser processing for thin walls, curved outlines, and features under 0.2 mm where mechanical tools tear or deform the material. Choose stamping, die casting, or CNC milling instead when the part is thick, the volume is high, or the geometry needs a machined surface finish that a laser edge cannot give.
Common Questions
Can a laser cut the whole phone housing in one pass?
No. A housing combines aluminium, polymer, glass, and adhesive in one stack. Each material absorbs a different wavelength, so the job is split into several passes with different sources and parameters.
Expect two to four separate operations for a typical midframe and cover assembly, plus any welding or marking steps.
How small a hole can laser drilling produce in stainless mesh?
For speaker and microphone mesh, 20 μm to 80 μm is a practical working range. Below 20 μm the hole becomes sensitive to lens contamination and the pattern uniformity suffers.
Above 80 μm, you can often use chemical etching instead, which is cheaper for high volumes.
Does laser welding weaken the anodized finish?
It can. The heat-affected zone grows with pulse overlap, and a wider zone shows a colour shift after anodizing and dyeing.
Keeping the overlap between 70 percent and 85 percent and using a shielding gas usually holds the shift inside the cosmetic tolerance. For visible seams, plan a post-weld rework step.
Why do we CNC machine phone parts at all if lasers cut them?
Lasers cut outlines and drill small holes. They do not produce flat sealing faces, threaded bosses, or bores with a controlled diameter. Those still need milling and turning.
Our shop runs both. A typical phone frame gets laser cut to the outline, then CNC machined on the sealing surfaces and mounting features to ±0.005 mm.
What tolerance should we expect on a laser-cut edge?
On thin aluminium and stainless, a fiber laser holds about ±0.05 mm on the outline and a kerf near 0.1 mm.
If the edge has to seal or mate, follow the laser with a light CNC pass. That brings the feature back to ±0.005 mm and removes the recast layer.
How do we start a phone part project with you?
Send the 3D model and the material callout. We review the geometry, flag features that are better milled than lasered, and return a quotation with DFM notes within 12 hours.
Prototypes ship in 3–5 days, and there is no minimum order quantity, so one unit and a 10,000-part run go through the same first article process.
