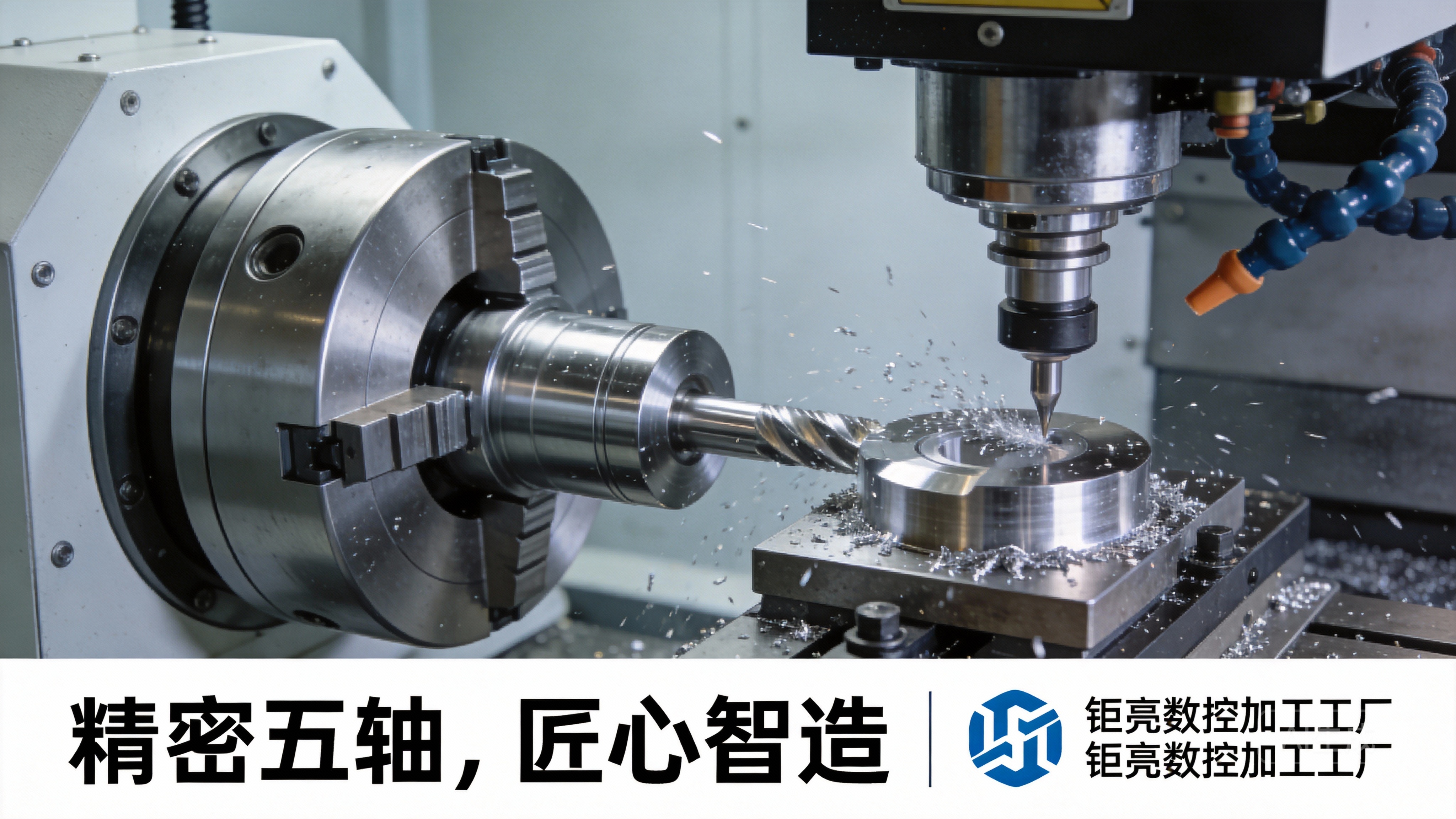

Every milling cut pushes back. The tool pushes the workpiece, the workpiece pushes the table, and the table pushes the column and knee. On a conventional mill the operator feels that loop through the hand wheel and the sound of the cut. A CNC mill closes the same loop through ballscrews, servos and a controller that never feels anything. That single difference explains most of the practical behavior engineers ask about.

A manual machine is usually lighter and has a sliding dovetail or box way with hand-scraped contact. Backlash is real, often 0.05–0.15 mm on the X and Y screws. A CNC machine with preloaded ballscrews and linear rails holds lost motion far lower, so climb milling with a 20 mm carbide cutter at 0.15 mm per tooth becomes repeatable instead of risky.

This is why a conventional mill with CNC machine thinking behind it is not a downgrade. It is a different stiffness budget. On a manual machine you reduce radial depth of cut, use a smaller cutter, and take two or three passes where a CNC would take one. The result may still hit the tolerance if the feature is simple and the material is friendly.

Climb versus conventional milling is the clearest test. Manual mills with worn screws pull into the cut on climb passes. If the screw has 0.1 mm of backlash, a 0.5 mm finishing pass is a coin toss. On a ballscrew-driven CNC with 0.005 mm lost motion, the same pass cuts clean. For one-off plate work in aluminium, that rarely matters. For a stack of 40 brackets, it decides the whole job.

• 1
  Hand wheel feedbackThe operator senses tool load and adjusts feed by feel.
• 2
  Backlash0.05–0.15 mm on typical manual X and Y screws.
• 3
  CNC lost motionPreloaded ballscrews hold it to a few microns.
• 4
  Cut strategyManual work uses lighter radial engagement, more passes.

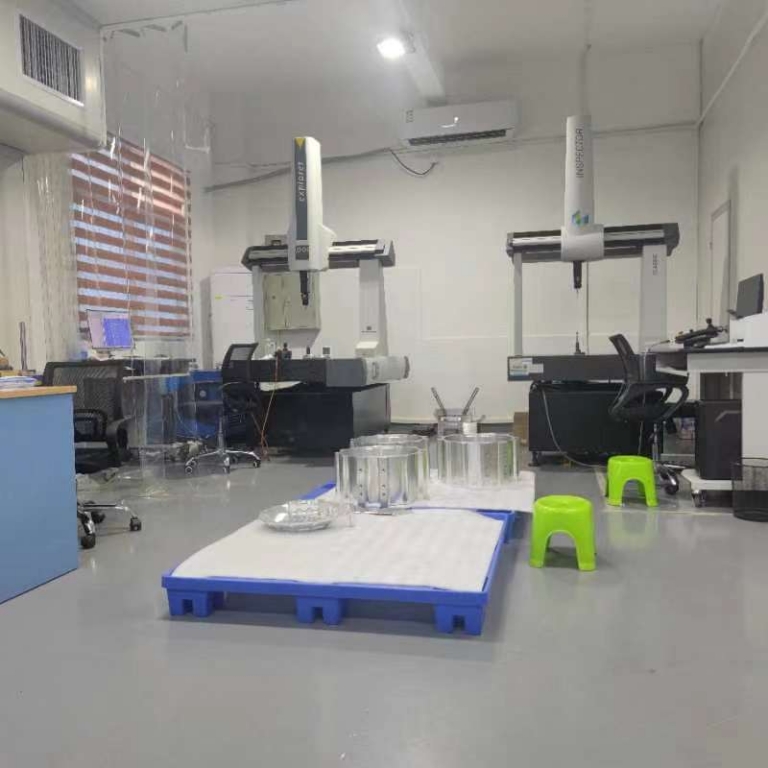

The visible cost of a CNC job is machine time. The hidden cost is CAM programming, fixturing design, tool list building, first-article inspection and program prove-out. For a simple bracket with six holes and two slots, that front end often runs two to four hours before the spindle turns. On a manual mill the same part can be squared, drilled and slotted in under an hour with a vise and an edge finder.

So the crossover is a quantity question, not a technology question. One part favors the manual route. Fifty identical parts favor CNC, because the programming cost is divided by fifty and the cycle time per part drops. Somewhere between those two numbers the economics flip, and the flip point moves with part complexity. A part with a contoured 3D surface flips earlier because hand interpolation is slow and inconsistent.

Fixturing follows the same logic. A CNC job usually needs a dedicated soft jaw set, a fixture plate or a vacuum table so the second part loads the same way as the first. A manual job can be held in a standard milling vise and re-zeroed by hand. That flexibility is worth hours when the batch is one.

Material removal rate adds a second axis. A manual mill in 6061 aluminium with a 16 mm end mill might take 3–5 cm³/min of metal. A three-axis CNC with the same cutter and a rigid setup can run 20–40 cm³/min. For a part that starts from a 100 × 100 × 50 mm block, the roughing difference alone can be thirty minutes.

• 1
  Low quantityOne to five simple parts usually favor a manual setup.
• 2
  Repeat quantityTen and up favor CNC once programs exist.
• 3
  Complex geometryAny 3D contour pushes the flip point lower.
• 4
  Stock removalCNC removes 4–8× more metal per minute on aluminium.

A skilled machinist on a tight conventional mill can hold ±0.025 mm on a single bored hole with a sharp tool and a warm shop. That number is real, but it is not repeatable across a batch. Tool wear gets corrected by hand, and the correction is only as good as the operator's measurement discipline and the machine's thermal state.

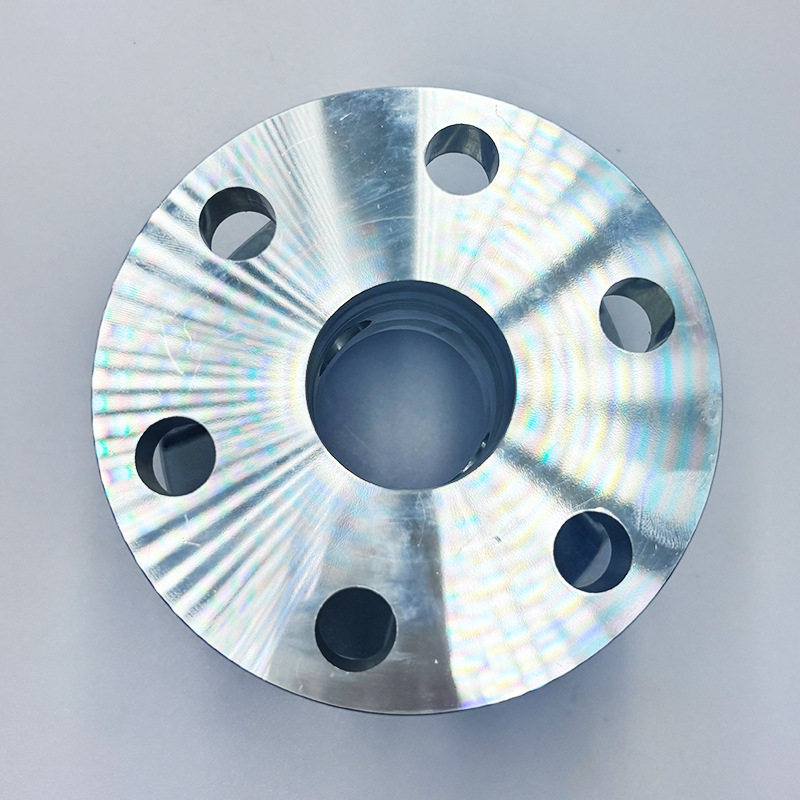

Position tolerance is the harder limit. With dials and an edge finder, hole-to-hole location typically lands within ±0.05 mm over a 200 mm span. A CNC mill with a probe or a tool presetter holds ±0.01 mm over the same span without extra effort, because the controller carries the coordinates instead of the operator's memory.

Surface finish tracks rigidity and feed control. Manual finishing passes in aluminium usually land around Ra 1.6–3.2 μm. A CNC mill running a balanced cutter at a steady chip load reaches Ra 0.8–1.6 μm as a matter of routine, and a finishing pass on a rigid five-axis setup can reach Ra 0.2–0.8 μm on the same material.

Where does that leave a conventional mill with CNC machine comparisons? If your print calls for ±0.005 mm on a bearing bore or a true position of 0.02 mm across a bolt pattern, the manual route is the wrong tool. If it calls for ±0.1 mm on a mounting plate, the manual route is fast and cheap. Read the print before you argue about machines.

• 1
  Single feature±0.025 mm is achievable by hand on a bored hole.
• 2
  Hole pattern±0.05 mm over 200 mm is a fair manual expectation.
• 3
  CNC position±0.01 mm without a probe, tighter with one.
• 4
  FinishManual Ra 1.6–3.2 μm, CNC Ra 0.8–1.6 μm as standard.

A machinist who has cut metal by hand knows what a dull cutter sounds like, how a part moves in a vise under load, and why a deep slot in 4140 steel needs a different approach than the same slot in 6061 aluminium. None of that knowledge arrives through a CAM dialog box. It arrives through chips and broken tools.

That intuition shows up in programs. Someone who has hand-fed a 20 mm end mill knows that a 0.3 mm per tooth load in steel will chatter on a light setup, so they reduce radial engagement and raise axial depth instead. A programmer without that background tends to copy feed and speed tables and then wonder why the part sings.

Manual work also teaches measurement discipline. When you set a zero with an edge finder and a dial indicator, you learn how much a warm spindle grows and how much a vise jaw lifts a thin plate. In a CNC cell those same errors become systematic across a batch, which is worse, not better.

This is the practical case for keeping both machines on the floor. The manual mill is a teaching tool and a repair station. The CNC mill is the production asset. Shops that run only CNC lose the feel that catches a bad program before the first scrapped part.

• 1
  Tool feelOperators learn load limits by sound and hand pressure.
• 2
  Setup intuitionVise and clamp behavior is learned directly, not modeled.
• 3
  Thermal awarenessHand work exposes spindle and part growth early.
• 4
  Shop valueManual mill doubles as a repair and training station.

There are clear boundaries. If the part has a tolerance band under ±0.02 mm on more than one feature, or a true position callout tighter than 0.05 mm across a pattern, hand wheels are the wrong tool. The operator can hit it once and miss it on part three.

Complex geometry is the second boundary. A blended 3D surface, a helical port, or a five-sided part with compound angles cannot be hand interpolated to a usable surface. A CAM toolpath with a ball nose cutter and a constant stepover gets there; a rotary table and a chart does not.

Hard materials push the limit further down. Inconel, titanium TC4 and 17-4PH stainless demand low surface speed, steady feed and high rigidity. A manual mill with a light column will chatter before it cuts, and a chipped carbide edge in titanium is a scrapped part. These materials belong on a rigid CNC with coolant through the tool.

Repeatability is the last boundary. Ten parts that must interchange cannot depend on an operator re-zeroing by hand ten times. A CNC machine repeats the same motion because the code and the fixture hold the position. That is the whole reason the technology exists.

• 1
  Tight toleranceBelow ±0.02 mm on multiple features, use CNC.
• 2
  Freeform surfacesBlended 3D work needs a CAM toolpath.
• 3
  Hard alloysTitanium, Inconel and 17-4PH need CNC rigidity.
• 4
  InterchangeabilityTen identical parts need a repeatable setup.
