Can a Gear Have Fewer Than 17 Teeth?
The 17-tooth rule is a practical limit for standard 20° pressure angle spur gears, not a law of nature. This page explains where the number comes from, what breaks when you go below it, and how to design, cut, or repair a small pinion that still runs quietly. Written for engineers and buyers who need to judge a gear drawing before it goes to the machine.
Symptom, Cause, and What to Do
Read the left column against your own part; the middle column tells you which limit you crossed.
| Symptom | Likely cause | How to resolve |
|---|---|---|
| Tooth root shows a scooped hollow | Undercut from a 20° cutter below 17 teeth | Add profile shift or raise the tooth count |
| Whining noise at running speed | Contact ratio dropped under 1.2 | Check overlap; add profile shift or a helix angle |
| Tip breaks on first load test | Tooth became too pointed after shift | Cap the shift; recut with a larger pressure angle |
| Uneven wear after 50 hours | Root undercut removed the involute flank | Inspect the flank; run a new cutter or change module |
| Rough finish at the root fillet | Feed too high on a small tooth space | Reduce feed per tooth; use a finishing pass |
| Gear jams at assembly | Backlash lost to shift and tolerance stack | Set backlash separately for each pair |
Where the 17-Tooth Limit Comes From

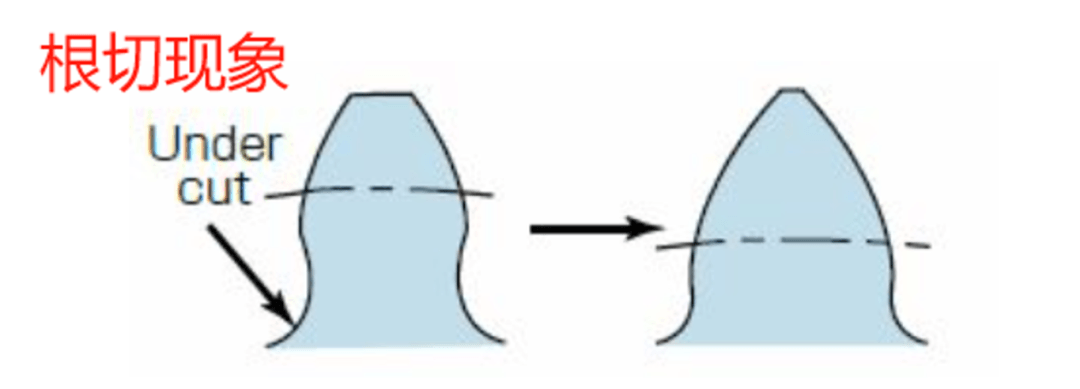

A standard involute gear is cut with a rack-shaped tool. The tool tip has a rounded corner, and when the gear is small, that corner cuts into the working flank near the root. This is undercut. The flank that was supposed to carry load is partly removed, so the tooth gets weaker and the contact pattern shifts.
For a 20° pressure angle and a standard full-depth tooth, undercut starts when the tooth count drops below 17. That is where the number comes from. It is not a design rule handed down by a standards body. It is the point where a straight-sided rack cutter begins to gouge the involute.
The exact threshold depends on pressure angle. A 14.5° gear undercuts below 32 teeth. A 25° gear can go down to about 14 teeth. So the question of whether a gear can have fewer than 17 teeth only makes sense once you state the pressure angle and the cutter.

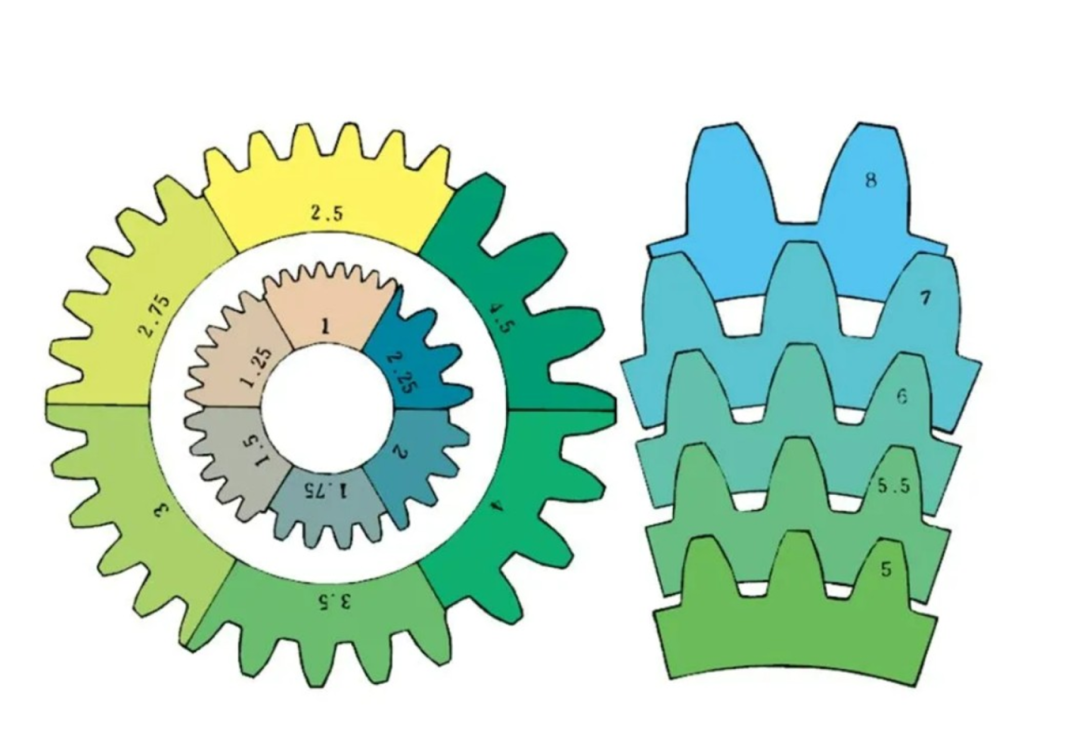

Undercut is progressive. At 16 teeth the loss is small. At 12 teeth the root is visibly hollow and the contact ratio falls. At 8 teeth the tooth looks like a stub with a thin tip, and it will not carry the load you calculated from the pitch diameter.
- 120° standardUndercut begins at 17 teeth
- 225° standardUndercut begins near 14 teeth
- 314.5° standardUndercut begins near 32 teeth
- 412 teeth at 20°Root visibly hollow, contact ratio drops
What Actually Fails Below the Limit
Three things go wrong at once. The root fillet loses material, so bending stress at the root rises. The working flank gets shorter, so the contact ratio falls. And the tooth tip gets thinner, so the tip is easier to chip or round over.
Contact ratio is the number of tooth pairs in mesh at any moment. A well-designed spur pair runs around 1.4 to 1.7. Below about 1.2, load transfers from one tooth to the next with a jump instead of a smooth handover. You hear it as whine and feel it as vibration.

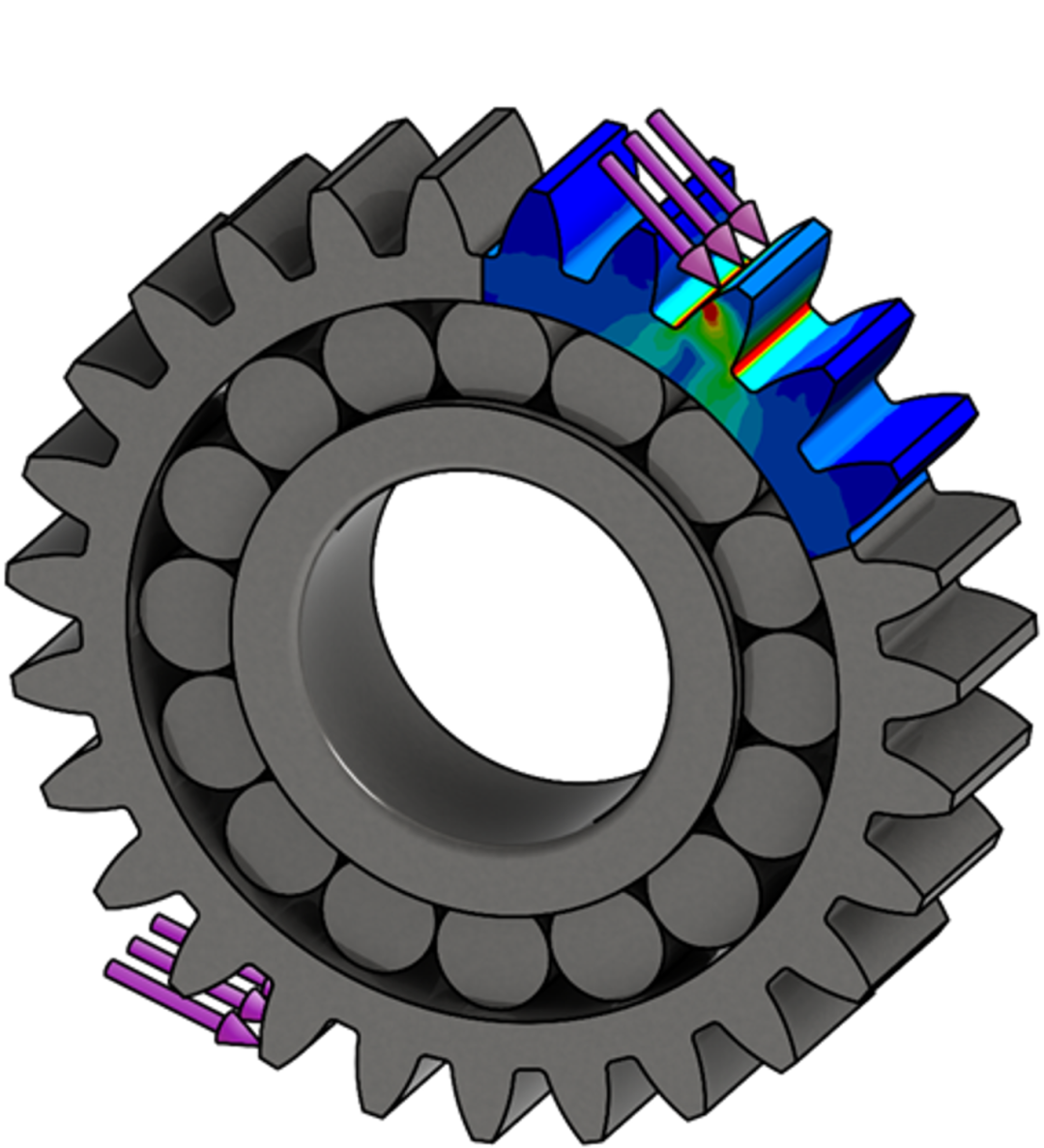

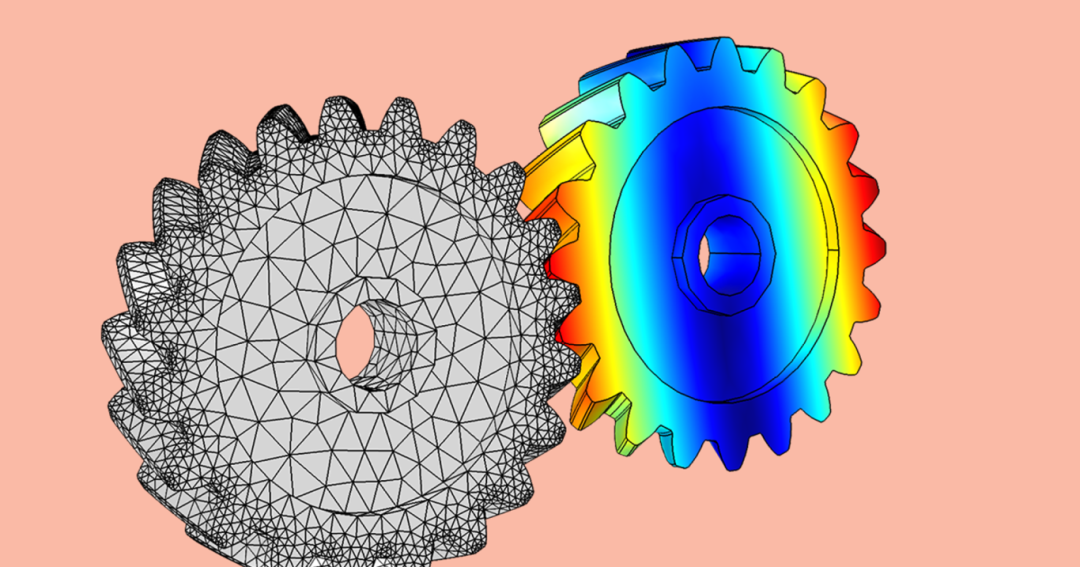

The bending problem is quieter but more serious. Undercut removes exactly the material that resists the bending moment. A 12-tooth pinion can lose 15 to 20 percent of its root section compared with the ideal involute. If your safety factor was 1.5, it is now closer to 1.2.
Tip thinning is the third failure. After heavy profile shift, the tip can become a knife edge. It will survive bench testing and then round over in the field, which changes the contact pattern and starts a wear spiral.
- 1Root stressFillet material removed, bending stress rises
- 2Contact ratioFalls below 1.2, noise and vibration appear
- 3Tip thicknessThin tip chips or rounds over under load
When a Gear Can Have Fewer Than 17 Teeth
You can go below 17 teeth, and plenty of production gears do. The trick is to change something else in the design so the cutter no longer gouges the flank. Profile shift is the most common fix. The cutter is moved outward from the gear center by a shift factor, usually written as x.
A shift of x = +0.3 to +0.5 is enough to keep a 12-tooth pinion free of harmful undercut at 20° pressure angle. The tooth gets thicker at the root and thinner at the tip, so you have to watch the tip. As a rule, keep the tip thickness above 0.25 times the module.
A larger pressure angle is the second route. Moving from 20° to 25° pushes the undercut limit down to about 14 teeth with no shift at all. The trade is higher bearing loads and a stiffer mesh, which matters on a plastic gear or a long shaft.
Helical teeth are the third route. The helix angle adds an effective overlap, so the contact ratio stays healthy even with a low tooth count. A 12-tooth helical pinion at 20° with a 15° helix often runs smoother than a 17-tooth spur.
- 1Profile shiftx = +0.3 to +0.5 keeps a 12-tooth pinion clean
- 2Pressure angle25° drops the limit to about 14 teeth
- 3Helix angleAdds overlap, restores contact ratio
- 4Tip thicknessKeep above 0.25 × module after any shift
Machining a Small Pinion in Practice
A 12-tooth pinion at module 1 has a pitch diameter of 12 mm and a tooth space only about 2 mm wide at the root. The cutter or grinding wheel has little room to clear chips. Feed per tooth has to drop, and a finishing pass is not optional.
On a gear shaping machine, the cutter stroke and the radial feed control the root finish. Deep cuts on a small tooth space push the cutter sideways and leave a rough fillet. Two lighter passes usually give a better root than one heavy pass.
If the pinion is cut on a 5-axis mill instead of a dedicated gear machine, tool runout matters more than usual. A runout of 0.01 mm on a 2 mm cutter shows up directly in the tooth-to-tooth spacing. We measure runout before the first cut, not after.
Heat treatment comes last and it moves the part. A 12-tooth pinion has less mass at the tip, so it heats and cools faster than the body. Distortion at the tip changes the backlash. Leave grinding stock and grind after heat treatment when the tolerance is tight.
Step by Step: Designing and Cutting a Low-Tooth Pinion
Follow the order. Changing the shift after the cutter is ordered wastes a setup.
- 1Confirm the pressure angle and cutterCheck the drawing for 20°, 25°, or 14.5°. The undercut limit moves with it. Do not assume 20° because the mating gear looks standard.
- 2Calculate the minimum tooth countFor 20° full-depth, undercut starts at 17 teeth. For 25°, about 14. For 14.5°, about 32. Write the number on the drawing.
- 3Choose the profile shiftIf the count is below the limit, start with x = +0.3. Raise it in 0.1 steps until the root is clean, then stop. More shift is not better.
- 4Check tip thickness and contact ratioKeep tip thickness above 0.25 × module. Keep contact ratio above 1.2. If either fails, change pressure angle or add a helix.
- 5Set backlash per pairShift changes the center distance. Set backlash for each mating pair, not from a generic table. Measure with a dial indicator on the pitch circle.
- 6Control the cutting passUse two lighter passes on a small tooth space. Reduce feed per tooth and keep cutter runout under 0.01 mm before the first cut.
- 7Inspect after heat treatmentCheck tooth-to-tooth spacing, root fillet, and backlash again. Grind after heat treatment if the tolerance is tight.
Frequently Asked Questions
Is 17 teeth a hard minimum for all gears?
No. It applies to a standard full-depth involute gear cut with a 20° pressure angle rack tool. Change the pressure angle, add profile shift, or use helical teeth and the limit moves down.
A 25° gear can run at about 14 teeth. A 12-tooth pinion with x = +0.4 is common in small gearmotors.
What happens if I ignore undercut?
The root loses material and the working flank gets shorter. You get more noise, faster wear, and a lower bending safety factor than your calculation shows.
The part may pass a bench test and fail in the field once the tip rounds over.
Can profile shift fix any low tooth count?
It helps down to a point. Past roughly 10 teeth at 20°, the tip becomes too thin no matter how you shift it, and you should move to a larger pressure angle or a different gear type.
There is also a mating limit. A heavily shifted pinion needs a matching shift on the wheel.
Does a smaller module make undercut worse?
The undercut limit depends on tooth count, not module. A module 0.5 pinion and a module 5 pinion undercut at the same tooth count for the same pressure angle.
What changes with module is the machining. A small module leaves less room for the cutter, so the root finish is harder to hold.
How do I check for undercut on a finished part?
Look at the root fillet under low magnification. A clean involute blends into the fillet tangentially. An undercut root shows a scooped hollow with a visible step where the flank was cut away.
Pin measurement across two or three teeth will also read low if the flank is missing material.
Can you cut a low-tooth pinion from my drawing?
Yes. We machine gears and gear blanks from aluminium, stainless, steel, and titanium, including 6061, 7075, 4140, 17-4PH, and Ti-6Al-4V, on 3-axis, 4-axis, and 5-axis machines.
Send the drawing and we return a quotation with a free DFM analysis within 12 hours. No minimum order quantity, from one prototype to 10,000+ parts.
