Why Do CNC Tools Pass Deliberately?
Passivation is not a delay in the schedule. It is a controlled edge-preparation step between grinding and coating, and it decides how long a cutting edge survives. This page explains the mechanism, the symptoms of a bad edge, and the numbers we use to set the process.
Symptom, cause, and what to do
Use this table when a coated tool fails earlier than expected. Read the first column, then confirm the cause before you change speeds and feeds.
| Symptom on the part | Likely cause | Action on the tool |
|---|---|---|
| Edge chips after 10–20 min | Micro-notches left by grinding | Passivate the edge, then recoat |
| Built-up edge on aluminium | Rough edge grips the chip | Polish edge, 8–12 μm hone |
| Coating flakes near the corner | Sharp edge, poor coating adhesion | Round the edge before coating |
| Surface finish drifts from Ra 0.8 to 2.0 μm | Edge wear is uneven | Measure edge radius, re-hone |
| Tool squeals on the finish pass | Edge too sharp for the feed rate | Increase hone to 15–20 μm |
| Short life on titanium, 4 mm depth | Edge breakdown at high temperature | Hone 10–15 μm, lower surface speed |
The short answer
Pass a tool deliberately when edge chipping, coating flaking or finish drift is the real cost. Skip it when the failure is built-up edge or when the geometry must stay sharp. Measure the edge, pick the radius, and repeat it.
What deliberately passing a CNC tool actually does

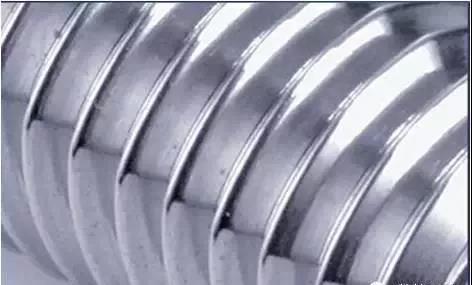

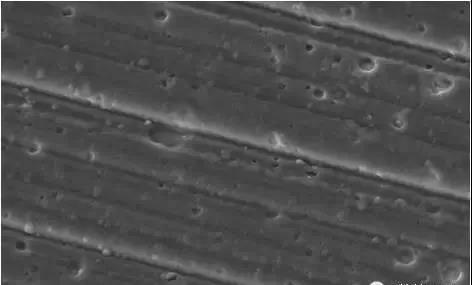

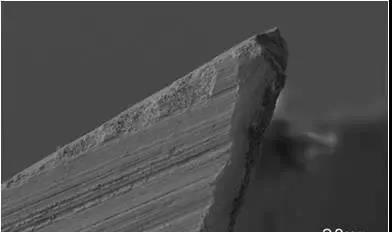

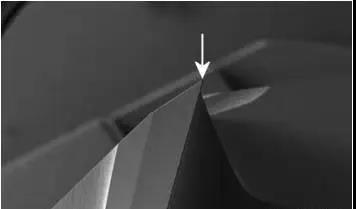

A ground cutting edge is not a clean line. Under a microscope the edge carries micro-notches, small saw teeth and hairline cracks left by the diamond or ceramic wheel. They are only microns deep, but they are where failure starts. In the cut, stress concentrates at each notch, the coating cannot bridge the gap, and a chip begins to grow.

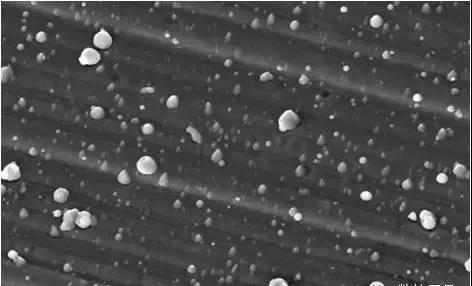

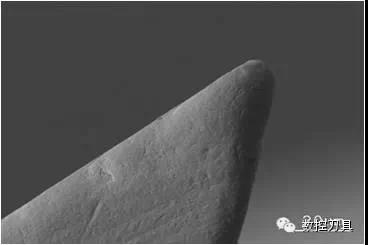

Passivation removes those notches on purpose. The edge is rounded to a controlled radius instead of being left razor sharp. Typical values sit between 8 μm and 20 μm for carbide, depending on the workpiece and the feed per tooth. The goal is a continuous edge with no stress risers, not a blunt edge.
The step also changes coating behaviour. PVD coatings grow from the substrate outward, and a sharp edge thins the coating at exactly the point where the load is highest. A rounded edge gives the coating a uniform base. That is why tool makers passivate before coating, not after.
So why do CNC tools pass deliberately? Because a sharp edge fails fast, and a controlled radius fails slowly. Passivation trades a small increase in cutting force for a large increase in edge stability, and it is repeatable. The same radius can be measured, logged, and reproduced on the next batch.
- 1Before coatingEdge preparation is a pre-coating step, not a repair step.
- 2Measured, not guessedEdge radius is checked, usually 8–20 μm for carbide.
- 3RepeatableThe same hone can be applied to every tool in a batch.
When passivation is the wrong move
Passivation is not universal. A honed edge has a larger contact area, so it needs more thrust force. On a small-diameter tool running at high speed in aluminium, that extra force can cause deflection and chatter. In that case a light polish is enough, and the edge may stay close to sharp.
Polishing alone is also a valid answer. If the failure mode is built-up edge rather than chipping, the fix is to smooth the rake face and reduce friction. Adding a large hone does not help; it just increases cutting force. Match the treatment to the failure mode you actually measured.
Some geometries should not be rounded at all. Thread mills, fine-pitch taps, and small engraving cutters rely on a sharp point to cut to size. Rounding a tap changes the minor diameter of the thread. For those tools, clean the edge chemically or by a light drag-finish and leave the form alone.
There is a limit on cost, too. Passivation adds a step to the tool route. On a cheap high-volume drill used for a clearance hole, the cycle time saved may not pay for the extra handling. Use it where edge failure is the real cost driver: hard materials, long-cycle parts, and tools that hold a tight tolerance.
Which materials justify a honed edge
Titanium and its alloys are the clearest case. Ti-6Al-4V (TC4) has low thermal conductivity, so heat stays at the edge. A sharp edge with micro-notches breaks down quickly. A 10–15 μm hone distributes the load and reduces the chance of a sudden fracture.
Stainless steels 17-4PH and 316L work-harden at the cut. A sharp edge rubs before it bites, and the surface hardens under the tool. A light hone helps the edge start cutting instead of sliding, which keeps the cut below the hardened layer.
Hardened steels and tool steel above 45 HRC also benefit, but the radius must be smaller. Too much hone on a hard, brittle edge causes rubbing and heat. We usually keep the hone at the low end of the range and rely on a smoother edge instead.
Aluminium is the opposite case. The material is soft and the chip is long. A sharp, polished edge with a small hone cuts cleanly and resists built-up edge. Adding a heavy hone here increases cutting force for no gain in life.
Inconel and other nickel alloys sit in the middle. They need edge stability because of the heat, but they also need a positive geometry to keep the cut going. A measured hone of 10–15 μm plus a polished rake face handles both.
How to confirm the passivation worked
Do not judge by the look of the edge. Judge by the cut. Run a controlled test with the same speed, feed and depth as production, and record tool life, surface finish and cutting force. If the edge is right, life increases and finish stays stable.
Check the surface finish over the tool life, not just at the start. An edge that is too sharp shows a finish that drifts upward quickly. An edge that is over-honed shows a finish that starts rough and stays rough, plus higher spindle load.
Look at the chip. A correct edge produces a chip that is consistent in thickness and colour. A chipped edge produces thin, blue, burnt chips at the point of failure. The chip is the cheapest sensor in the machine.
For critical parts, keep a record of the hone value with the tool number. When a tool fails early, you can compare the record with the failure mode and adjust the radius. That is how the process becomes predictable rather than experimental.
On our own 127 CNC machines, edge condition is part of the tool log, and the finish and tolerance of the part are checked against the tool record. If a part moves outside ±0.005 mm, the tool is one of the first things we inspect.
Step by step: how we passivate a tool
Parameters below are the ranges we work with on carbide tools. Adjust for diameter, coating and workpiece.
- 1Inspect the ground edgeLook at the edge at 200× or higher. Mark the notches, chips and grinding lines. If the edge is already chipped, re-grind first.
- 2Set the target radiusPick the hone from the operation: 8–12 μm for aluminium and finishing, 10–15 μm for titanium and stainless, 15–20 μm for roughing and heavy interrupted cuts.
- 3Brush or drag-finish the edgeUse a fine abrasive brush or an elastic grinding medium. Work along the edge, not across it. Keep the pressure low and the time short to avoid rounding the corner.
- 4Polish the rake faceA light polish on the rake face reduces friction and built-up edge. Keep the geometry; remove only the surface peaks.
- 5Measure the resultCheck the edge radius and the edge condition again. A radius outside the target band means the brush pressure or time was wrong.
- 6Clean before coatingRemove all abrasive residue. Contamination at this stage causes coating adhesion failure later.
- 7Coat and logApply the coating, then record the hone value with the tool. The next batch should repeat the same number, not a new guess.
Questions engineers ask about tool passivation
Does passivation make the tool less sharp?
It makes the edge less pointed, not less effective. A controlled radius of 8–20 μm removes the micro-notches that start cracks. The tool still cuts, but it stops chipping at the first interruption.
For finishing aluminium with a small cutter, keep the hone at the low end. For roughing or interrupted cuts in steel, a larger hone lasts longer even though the edge feels blunter.
Can I passivate a coated tool?
You can polish a coated tool lightly, but you cannot create a proper hone after coating. Rounding a coated edge cracks the coating and exposes the substrate.
Edge preparation belongs before coating. If a coated tool shows edge chipping, the tool is usually re-ground, re-honed and re-coated, not touched up in place.
Is passivation the same as edge rounding?
They overlap. Edge rounding describes the geometry, and passivation describes the purpose: removing defects and setting a controlled radius.
In practice, a passivated edge is a rounded edge with a measured radius and a clean surface. The number matters more than the name.
How do I know the hone value is too large?
The signs are higher thrust force, more spindle load, and a finish that will not improve. On a small tool, chatter appears even at moderate feed.
Reduce the hone by 3–5 μm and test again. If the finish improves and the load drops, the previous value was too large for that geometry.
Does this help on aluminium?
Yes, but the target is different. Aluminium needs a smooth edge to prevent built-up edge, not a heavy hone.
A light polish plus a small hone, around 8–12 μm, gives the best balance. A large hone on aluminium increases cutting force without adding life.
Where can I get tools prepared to a measured hone?
Ask the tool supplier for the edge radius and the measurement method. If they cannot give a number, the preparation is not controlled.
We keep tool records with the hone value and the failure mode, so the same edge can be repeated on the next run. Send your drawing and we will match the tool preparation to the material and the tolerance.
