Why Do Tools Vibrate? Causes and Fixes for CNC Machining

• 1
  Vibration Symptom, Likely Cause and Fix
• 2
  Why do tools vibrate: the stiffness loop behind chatter
• 3
  How to tell a parameter problem from a rigidity problem
• 4
  Tool geometry, overhang and holder choice
• 5
  Cutting parameters that feed or starve the vibration
• 6
  Fixturing, workpiece stiffness and machine condition
• 7
  Measure the vibration instead of guessing
• 8
  Material-specific notes that change the fix
• 9
  Step-by-step: settling a vibrating cut

Every cutting edge pushes the tool and the workpiece apart, then the material springs back. If the spring-back force arrives at the wrong moment in the next tooth pass, the next cut is deeper than the last. The amplitude grows instead of fading. That self-excited loop is regenerative chatter, and it is the reason why do tools vibrate questions usually have more than one answer.

The loop only grows when the machine-tool-workpiece system is soft enough and the cutting force is large enough to feed it. Stiffness in the loop comes from four places: the tool and holder, the spindle, the fixture, and the part itself. The weakest link sets the limit. A 12 mm end mill in a good holder can be rigid, yet the same tool will chatter on a plate held only at two edges.

Vibration is not one phenomenon. Forced vibration comes from outside the cut: an unbalanced tool, a worn spindle bearing, a gear or belt drive, or a pump on the same frame. Self-excited chatter comes from the cut itself and often stops the moment you change speed. Telling the two apart is the first practical step, because forced vibration will not respond to a speed change.

There is also a hard boundary you cannot tune away. If the natural frequency of the tool-holder-spindle assembly sits inside your working speed range, you can only move the speed or stiffen the assembly. Adding damping helps, but it does not raise the natural frequency. Boring bars and long end mills are the classic cases where the fix is geometry, not code.

Change spindle speed by 10% and cut the same pass again. If the chatter disappears or moves to a different depth, the loop is speed-dependent and you are probably near a stability lobe. If nothing changes, treat it as a stiffness or fixture problem. This single test saves the most time on the floor.

Next, look at where the marks sit. Chatter on every flute along the full axial depth usually points to the tool or spindle. Chatter only at the bottom of a deep pocket points to the tool overhang. Chatter on a thin wall that gets worse as the wall gets thinner points to the workpiece. Those three locations lead to three different fixes.

Measure runout before you blame the program. A holder with 0.03 mm runout will overload one flute, and the uneven load shows up as a repeating pattern at the tooth passing frequency. Indicate the tool shank near the holder face, not the flute tip, and compare against the holder specification.

Listen for the frequency change. Forced vibration keeps a steady pitch tied to spindle rpm. Chatter often drifts as the tool wears or the part heats up, because the effective depth of cut changes. If the noise wanders, plan for a stability test rather than a single speed tweak.

Keep a simple log: tool, overhang, holder, speed, feed, radial and axial depth, and whether the part rang. After a few jobs the pattern is obvious, and the fix becomes a starting point instead of a guess. Shops that track this stop repeating the same crash twice.

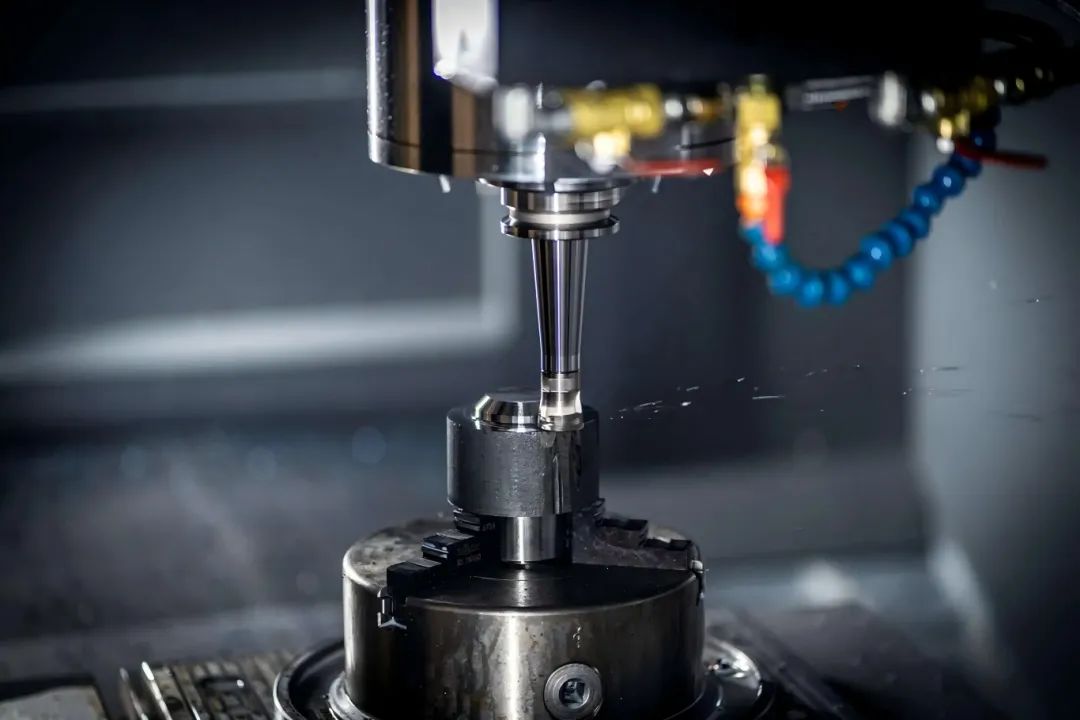

Overhang is the single biggest lever on a milling tool. Deflection scales roughly with the cube of the length, so doubling overhang makes the tool about eight times softer in bending. If a job needs 60 mm of reach, use a tool designed for it rather than a standard length end mill pushed out of the holder.

Flute count changes the force per tooth and the space for chips. A three-flute cutter in aluminium gives more chip room and a lighter cut. A six-flute cutter in steel spreads the load and can run a higher feed, but it also has less room for chips in a deep slot, and packed chips add force that feeds chatter.

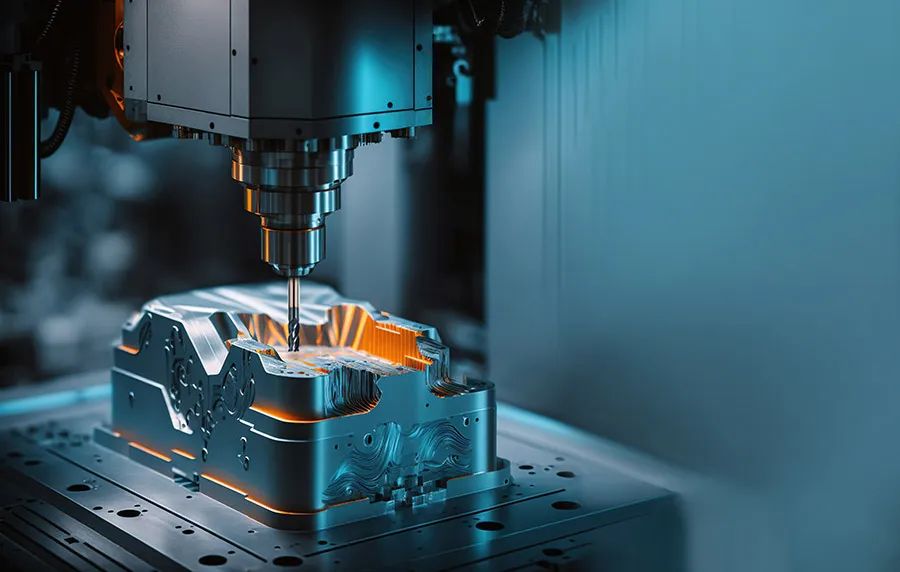

Variable helix and unequal index cutters break the regular tooth impact pattern. They do not remove the instability, but they raise the depth of cut at which it starts. They are worth the cost on deep pockets and on parts where you cannot change the setup.

Balance matters at higher speeds. A holder and tool assembly that is fine at 6,000 rpm can vibrate at 12,000 rpm because the imbalance force grows with the square of the speed. Keep the assembly short, clean the taper, and use balanced holders above roughly 10,000 rpm.

Collets wear. A collet that has been used for hundreds of tool changes loses grip and concentricity. Replace the collet and nut together, and check the holder taper for fretting or scoring. A scored taper never seats the same way twice.

When a tool is long and slender by design, such as a boring bar, the bar itself is the limit. Heavier bars, tuned bars with an internal mass, and bars with a larger shank all raise the stability limit. In deep bores, a small reduction in length-to-diameter ratio often beats any change in feed and speed.

Radial engagement has a large effect in milling. Reducing radial width of cut to about 25–40% of the tool diameter lowers the average cutting force and usually allows a deeper axial cut. This is the basis of high-efficiency milling, and it is the first thing to try when a full-width pass chatters.

Chip load per tooth must stay in a workable range. If you reduce feed too far to stop the noise, the edge rubs instead of cutting, which raises force and heat and can make the vibration worse. Keep the feed per tooth at a level the edge can actually bite, typically 0.02–0.10 mm per tooth for many steels and aluminium alloys, depending on tool size.

Spindle speed selects which stability lobe you are cutting in. Stable pockets repeat at certain speed ranges, and the spacing depends on the natural frequency and the number of teeth. Moving speed by 10% is often enough to leave a bad lobe. When the machine supports it, spindle speed variation or a short speed ramp can also damp chatter.

Depth of cut has a limit that no feed change removes. Above a certain axial depth the process is unstable at every speed within the machine range. Reduce axial depth, or split the pass, and accept the extra time. Chasing the same depth with more coolant or a sharper tool will not fix a stability limit.

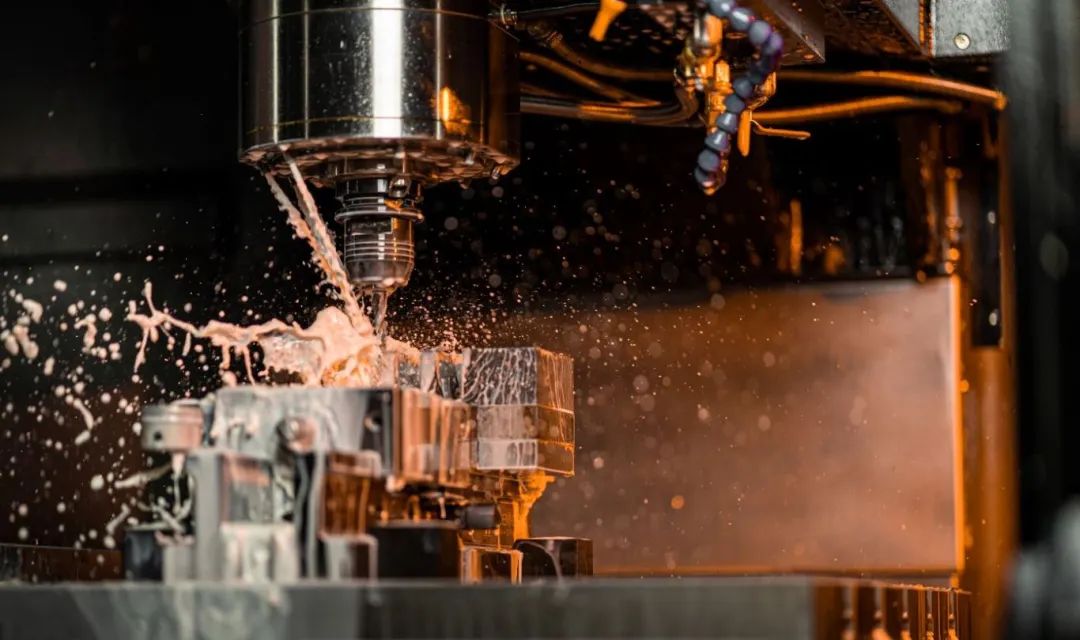

Coolant plays a small role in chatter, but a large one in thermal drift. Flood coolant keeps the tool and part at a steadier temperature, which keeps depth of cut consistent over a long run. On finishing passes, a stable temperature often matters more than the coolant type.

Climb milling usually gives a better finish and slightly lower force on the finished surface than conventional milling, especially on thin walls. Check the machine backlash before switching, because climb milling on a worn axis can produce its own pattern.

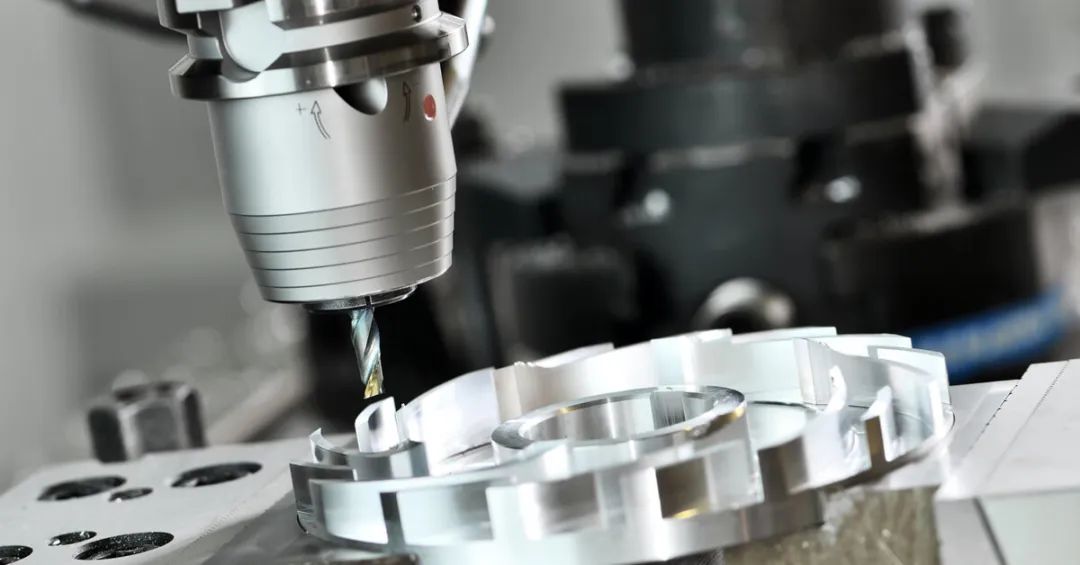

A rigid tool in a soft setup still chatters. Thin plates, rings, and long shafts ring because the part, not the tool, is the flexible element. Support the part close to the cut, add a jack under the overhang, or change the tool path so the last pass is on a supported section.

Clamping can distort a part before the first cut. Over-tightening a vise bows a plate and the cut removes material from a shape that springs back after unclamping. Use soft jaws machined to the part profile, torque consistently, and check flatness after unclamping.

Machine condition sets the ceiling. Spindle runout, worn linear guide preload, a loose ball screw nut, and tired drive belts all show up as vibration under load. If the same program cut cleanly last year on the same machine, measure the machine before you rewrite the program.

Foundation and leveling are not a detail on large machines. A machine on soft or uneven ground can move under a heavy cut. Re-level and re-check anchor torque after moving a machine, and after any major maintenance that disturbs the frame.

Thermal growth changes the geometry over a shift. Spindle and ball screw heat move the tool relative to the part, which changes the effective depth of cut and can push a stable cut into a bad zone. Warm up the machine with a spindle run-in cycle before finishing passes on tight-tolerance work.

Tool wear closes the loop from the other side. A worn edge rubs, raises the cutting force, and pushes the process toward instability. Set a wear limit based on finish and dimensional drift, not on a fixed part count. Inspect the edge under magnification at the interval you set.

A simple accelerometer on the spindle housing or fixture, read with a spectrum analyzer or a phone app, shows the dominant frequency. Compare it with the tooth passing frequency and the spindle rotation frequency. A peak at the tooth passing frequency points to the cut; a peak at spindle rpm points to balance or bearings.

Tap testing is a shop-floor method that needs little equipment. Tap the tool or part with a small hammer while a microphone or accelerometer records the response. The frequency of the ringing is the natural frequency. When your speed range overlaps it, expect trouble, and choose speeds on either side of it.

Surface finish tells you the result but not the cause. Measure Ra after each change, and keep the same measuring direction and cutoff. A finish that improves then degrades as you raise speed is a strong sign you crossed a stability boundary.

For production parts, record the finish and the dimensional result on the same sheet as the parameters. When a part fails inspection, you can see whether the vibration came from the process or from the machine. This record is also the evidence a customer asks for when a batch is questioned.

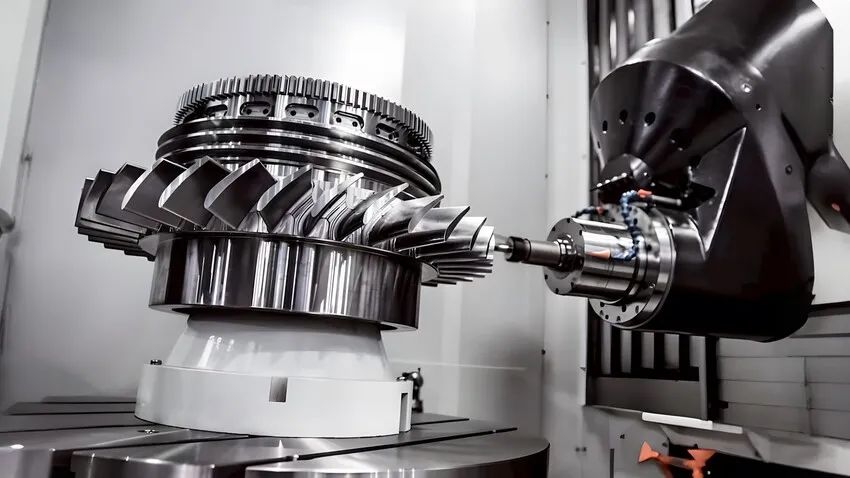

At GreatLight, in-process monitoring runs alongside the cut on our 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers and 16 mill-turn centers. We check raw material, monitor during machining, and inspect 100% before shipment, with reports on request. Our machining tolerance is ±0.005 mm, with finishes from Ra 0.2–0.8 μm on fine work.

Aluminium alloys such as 6061 and 7075 cut easily but are light and can ring as thin parts. The usual fix is engagement and support, not a slower spindle. Aluminium also builds a sticky edge, so keep the chip load high enough to avoid rubbing.

Stainless steels, including 303, 304 and 17-4PH, work harden and need a positive cut. Rubbing from too low a feed raises force and vibration. Keep the tool engaged, avoid dwelling, and expect lower speeds than in aluminium.

Titanium such as TC4 (Ti-6Al-4V) and nickel alloys like Inconel generate high cutting forces and heat at the edge. Reduce radial engagement, use a rigid short tool, and control heat with coolant and moderate speed. Vibration in these materials wears the edge fast, so the loop closes quickly.

Thin-wall and long parts in any material behave as flexible structures. Reduce axial depth, use climb milling, and consider a support or a temporary filler. When the part is the weak link, no tool change will solve the problem.

GreatLight machines aluminium 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12, stainless 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH, steels such as 1018, 1045, 4130, 4140, 4340 and A36, plus copper, brass, titanium, Inconel, magnesium and engineering plastics. Material choice changes the stable window, so we run first articles and adjust before a production run.
