10 CNC Milling Machine Working Secrets Every Engineer Should Know

A machine may position to ±0.005 mm and still cut a bad part. When the workpiece moves a few microns under load, positioning accuracy means nothing. Dynamic workholding starts with the force vector. Find the direction the cutter pushes the part, then place clamps and supports to oppose that vector rather than simply tightening everything. On thin brackets we support under the cut and keep overhang short, because deflection follows the weakest span, not the strongest clamp.

Conventional slot milling buries a large arc of the tool edge in the material. Heat builds, the tool pushes off, and the wall comes out tapered. Trochoidal milling takes a different route: a circular path with a small step-over, usually 5–15% of tool diameter, at high feed. Chip load stays close to constant, radial force drops, and the cutter can use more of its flute length. In aluminium and 4140 we often see tool life improve several times over, and the floor of the slot arrives cleaner.

Neither method is universal. Trochoidal paths need CAM support and a machine that can accelerate through short arcs. On a small machine with slow look-ahead, the same path can stall and rub. For a shallow pocket in plastic, plain offsets are faster and simpler. Match the path to the machine before you match it to the drawing.

Cast iron and steel grow with temperature. A 500 mm column that warms by 1 °C can shift the tool tip by several microns, and the shift is not linear through the day. We keep the shop at 20 ±1 °C, but climate control alone does not fix a cold spindle. A warm-up cycle at mid RPM with coolant circulating brings the spindle to thermal equilibrium. Parts cut at 8 AM then match parts cut at 11 PM.

Probing closes the loop. Before a tight-tolerance feature, we touch off on a datum and update the work offset. The check costs seconds and catches drift that no operator can feel by hand.

Runout at the toolholder is the other quiet error. A holder with 0.01 mm of runout makes one flute do most of the cutting. That flute wears first, the surface finish goes streaky, and the hole runs oversize. Clean the taper, seat the collet correctly, and measure runout on the tool, not on the spindle. Below 0.005 mm is a reasonable target for finishing work.

Runout also costs money. A tool that cuts on one edge cannot run at the feed its coating allows, so cycle time rises for no gain.

A thin wall does not fail because the cutter is too sharp. It fails because the part bends away from the tool, then springs back after the pass. The fix is mechanical, not heroic. Reduce radial engagement, keep the tool short, support the wall from behind, and take a light finishing pass on both sides. We leave enough stock for that pass, because a spring pass on a 0.2 mm wall is not a finishing operation, it is a lottery.

Minimum quantity lubrication suits aluminium, brass and many plastics. A fine oil mist reaches the cutting zone, chips leave clean, and there is no flood coolant to trap in a blind pocket. Surface integrity on aluminium often lands in the Ra 0.8–1.6 μm band without a separate polish. The limits matter too: MQL struggles in deep holes where chips cannot evacuate, and it is a poor fit for materials that need bulk cooling, such as titanium at heavy load.

Climb milling is the default on a machine with good backlash control. The tooth enters at maximum chip thickness and thins toward the exit, which pushes the work into the cutter and leaves a better finish. Conventional milling still has a place on rough castings with hard skin, where the tooth should enter at zero thickness to avoid chipping the edge. Look at the chip: a clean, even chip means the geometry is working.

The length-to-diameter ratio of the tool assembly sets the ceiling on accuracy. A 6 mm cutter hanging 60 mm out of the holder has an L/D of 10. It will deflect, ring and cut a tapered wall no matter how good the program is. Keep L/D at or below 4 for finishing, and step up to a larger shank or a stub holder when the geometry lets you. Every millimetre of overhang costs stiffness fast.

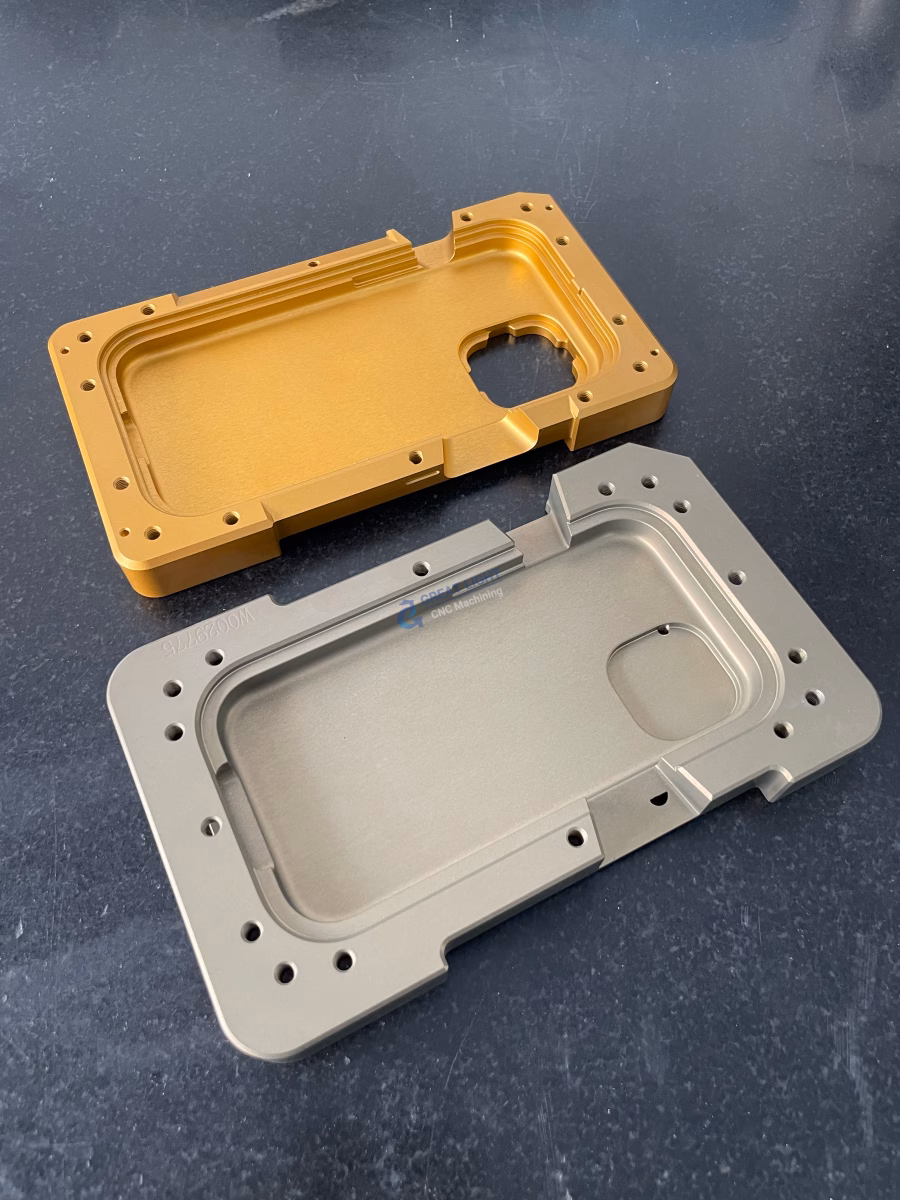

Rest machining removes the material that a previous, larger tool could not reach. The CAM system calculates the leftover stock and cuts only that. The saving is real: smaller tools run for less time, and the wear on them drops. Pair it with 5-axis positioning and a deep pocket with an angled floor becomes one setup instead of three. Fewer setups means fewer datum shifts, and datum shifts are where tolerance disappears.

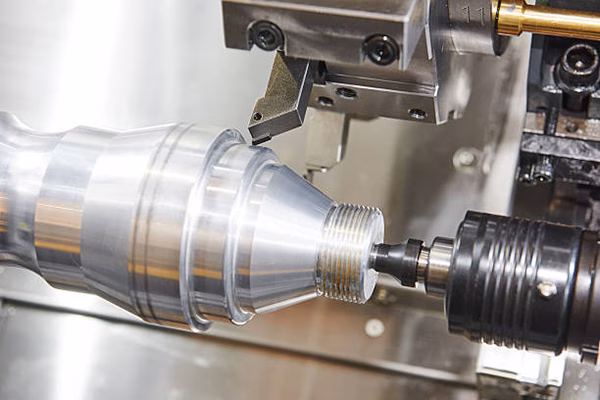

None of this works without a stable process behind it. We run 127 CNC machines, including 16 simultaneous 5-axis centers and a Ø400 mm rotary table, with 100% inspection before shipment and reports on request. The point of the ten rules is that a good program on a loose fixture still produces a loose part.

Send us a drawing and we will tell you which of these ten items actually applies to your geometry, and which ones you can ignore.
