7 Essential CNC Milling Tips Every Beginner Must Know
Moving from a CAD model to a finished metal part is where most beginners lose time and material. This guide covers the seven decisions that matter most on a first milling project: material behavior, cutting parameters, workholding, tool geometry, chip evacuation, in-process checks and how to work with a shop. Read it before you cut, and you can tell which choices are safe and which ones will scrap the part.
What Separates a Good First Part from a Scrap Pile
Seven tips, in the order you actually meet them on a milling job.
Read the Material Before You Read the Toolpath
A beginner usually opens the CAM file first. That is backwards. Aluminum 6061 cuts freely at high spindle speed and forgives a shallow depth of cut. Inconel does the opposite: it work-hardens under the tool, so a light rub pass destroys the edge in seconds. Titanium Ti-6Al-4V sits between them and generates intense heat in a narrow chip zone.
Machinability also drives chip shape. Free-cutting brass C36000 breaks into small chips that clear themselves. PEEK and ABS tend to string and melt, so you need sharp geometry and air blast rather than flood coolant. Stainless 316 work-hardens quickly and needs a constant feed that never lets the tool dwell.
Check three numbers before you program: hardness, thermal expansion and chip behavior. If the material is not in our standard list, ask the supplier for a machinability rating and a suggested surface speed. Guessing here costs more than any other mistake on this list.
- 1Aluminum 6061 / 7075High spindle speed, generous depth of cut, flood coolant.
- 2Stainless 304 / 316Constant feed, never dwell, or the surface work-hardens.
- 3Titanium TC4Low surface speed, rigid setup, lots of coolant.
- 4PEEK / ABSSharp tools, air blast, avoid recutting melted chips.
Set Feeds and Speeds with a Formula, Not a Feeling
Cutting parameters are arithmetic. Start with surface speed for the material, convert to spindle speed, then calculate feed from chip load and flute count. The two formulas below cover most three-axis work on a vertical mill.
RPM = (SFM × 3.82) ÷ tool diameter. Feed rate = RPM × chip load × number of flutes. A 12 mm carbide end mill in aluminum at 600 SFM turns at about 7,640 RPM. With a 0.05 mm chip load on three flutes, that is roughly 1,146 mm/min of feed.
Beginners run tools too slow far more often than too fast. Slow feed rubs the edge instead of cutting, which raises temperature and shortens tool life. Listen to the cut. A steady hum means the parameters are close. Squealing means spindle speed is too high for the setup. Rattling means the tool or the part is moving.
- 1Start conservativeDrop feed by 20% on the first pass, then climb back.
- 2Radial engagementKeep it under 40% of tool diameter on deep cuts.
- 3Axial depthCan exceed tool diameter when radial load is small.
Typical Starting Parameters for Common Materials
Carbide end mill, flood coolant, rigid setup. Verify against your own tooling data.
| Material | Surface speed (SFM) | Chip load per tooth | Notes |
|---|---|---|---|
| Aluminum 6061 | 500–800 | 0.05–0.10 mm | Flood coolant, high RPM |
| Aluminum 7075 | 400–700 | 0.05–0.08 mm | Slightly lower speed than 6061 |
| Stainless 304 | 150–250 | 0.03–0.05 mm | Constant feed, no dwell |
| Stainless 316L | 120–200 | 0.03–0.05 mm | Sharper edge, more coolant |
| Steel 1045 | 250–400 | 0.05–0.08 mm | Coated tool, moderate speed |
| Titanium TC4 | 100–180 | 0.03–0.05 mm | Low speed, heavy coolant |
| Brass C36000 | 300–600 | 0.05–0.10 mm | Free cutting, air or mist |
| PEEK | 200–400 | 0.05–0.08 mm | Air blast, avoid melting |
Workholding Rigidity Decides Your Tolerance
A part that moves cannot hold ±0.005 mm. Vibration shows up as chatter marks, oversize corners and a finish that fails inspection. Quality vises, modular fixtures and custom soft jaws solve most of this before the first cut.
Keep the workpiece as low in the vise as possible. Stickout length multiplies deflection. A part clamped 40 mm above the jaws flexes far more than the same part sitting 10 mm above them. On thin ribs, clamping pressure alone can bend the feature past its tolerance, so use light pressure and support underneath.

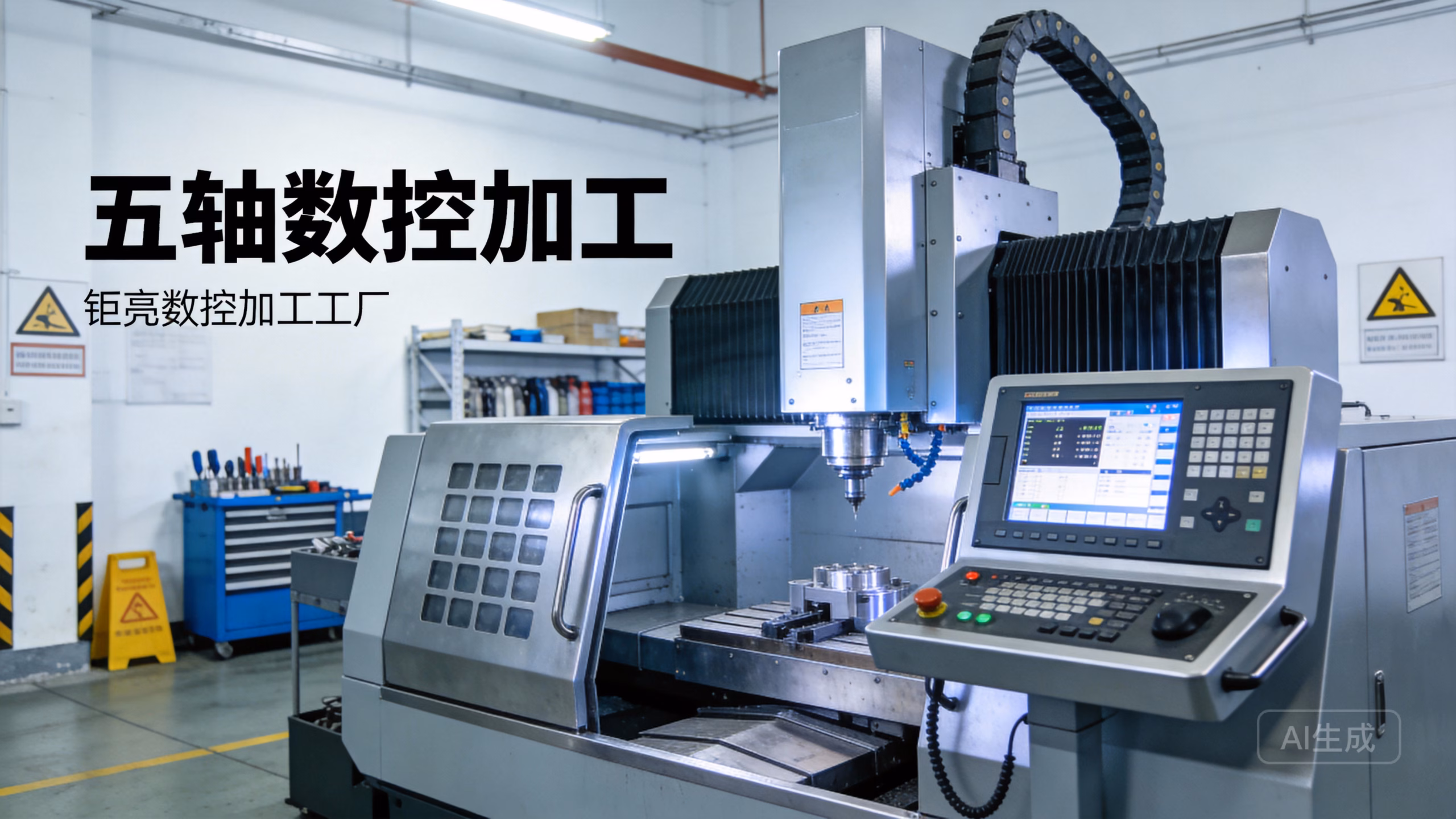

For thin walls or large flat plates, vacuum chucks and 5-axis tombstones hold the part without squeezing it. We run 16 simultaneous 5-axis centers for exactly this reason: fewer setups mean fewer chances for the part to shift between operations.
- 1Minimize stickoutKeep the part close to the vise jaws.
- 2Support thin wallsUse soft jaws or vacuum, not raw clamping force.
- 3Check the setupPush the part by hand before you press cycle start.
Tool Geometry Matters More Than Tool Price
Carbide end mills are the baseline, but the geometry changes the result. Variable helix flutes break up chatter harmonics. A corner radius adds strength where a sharp corner would chip. Coatings such as AlTiN and TiCN hold up to heat in steel and stainless.
Reach is the number beginners ignore. A long, thin tool deflects under load and cuts undersize. Shorten the gauge length or step down in multiple passes. For deep cavities, high-feed mills and trochoidal toolpaths keep radial engagement small while removing material quickly.
Cheap tools are a false economy on tight-tolerance work. A tool that wears mid-run changes the dimension and forces a re-cut. Match the tool to the material and the feature, then replace it on a schedule rather than when it breaks.
- 1Variable helixReduces chatter on tall walls and deep pockets.
- 2Corner radiusStronger edge for roughing steel and stainless.
- 3AlTiN / TiCN coatingBetter heat resistance in ferrous materials.
Chip Evacuation and Coolant Keep the Cut Stable
Chips that stay in the cut get recut. Recutting raises temperature, ruins the finish and can snap the tool. Through-spindle coolant clears deep pockets better than any external nozzle. On aluminum, high-pressure flood coolant also stops chips from welding to the edge.
Coolant concentration is easy to overlook. For most metals, keep the oil-in-water emulsion at 5–8%. Too thin and you lose lubrication and rust protection. Too rich and the sump foams and the nozzles clog. Check the refractometer weekly, not once a quarter.
For plastics and some composites, flood coolant causes more problems than it solves. Air blast or mist clears the chips without thermal shock. Match the strategy to the material, and make sure the chips have somewhere to go before you start.
Inspect In-Process, Not Only at the End
Measuring only the finished part is a recipe for scrap. Thermal growth moves the machine, and tool wear shifts dimensions gradually across a run. A touch probe or a quick test cut after roughing tells you whether the offset is still correct before you spend time on finishing.
Measure the critical feature after roughing. If the thickness is off, adjust the work offset and recut before the finish pass. This one habit catches most dimensional drift. Statistical process control charts help on longer runs where the trend matters more than any single reading.
Keep a simple log: tool number, offset change, time of day. When a dimension drifts, the log shows whether it is the tool or the machine. That is faster than re-measuring the whole part.
Work with a Shop That Gives You Feedback
Beginners often design features that cannot be machined at a reasonable cost. A square internal corner, a deep narrow slot or a thread at the bottom of a blind hole all need a second look. A shop that reviews the model before quoting saves you the rework.
We run 127 high-precision CNC machines across three plants, with a 4,000 mm maximum processing size and a Ø400 mm rotary table. That range covers prototypes and 10,000+ part runs with no minimum order quantity. Uploads stay confidential, and we can sign an NDA on request.
Ask for feedback on the drawing, not just a price. Tool access, wall thickness and tolerance stack are the three things that decide whether your part is easy or expensive to make. Get that answer early and the first part is usually the last revision.
- 1DFM within 12 hoursQuotation and free DFM analysis on every upload.
- 2100% inspectionRaw material check, in-process monitoring, final inspection.
- 3CertificationsISO 9001, IATF 16949, ISO 13485 and ISO 27001.
Beginner Questions We Hear Often
What tolerance can a beginner realistically hold on a manual setup?
On a rigid vise and a sharp tool, ±0.05 mm is a fair target for a first part. Tighter than that needs a probe, a warm machine and a stable setup.
Our production tolerance is ±0.005 mm, but that comes from controlled conditions and in-process inspection, not from a single lucky pass.
Should I use climb milling or conventional milling?
Climb milling is the default on a machine with low backlash. The cutter engages the thickest part of the chip first, which improves finish and tool life.
Conventional milling still has a place on rough castings or when the machine has significant backlash. It lifts the edge instead of pulling the part into the tool.
How do I choose between 3-axis, 4-axis and 5-axis milling?
Three-axis covers flat plates and parts you can reach from one direction. Four-axis adds a rotary table for features around a cylindrical part.
Five-axis reaches undercuts and angled faces in one setup. Use it when the part has compound angles or when extra setups would stack tolerance error.
What surface finish can I expect from a standard milling pass?
As-machined finish usually lands at Ra 1.6–3.2 μm. A finishing pass with a sharp tool and light chip load gets you to Ra 0.8–1.6 μm.
Below Ra 0.8 μm needs a dedicated finishing strategy or a secondary process such as bead blasting or polishing.
How do I avoid tool breakage on a first run?
Keep radial engagement under 40% of tool diameter, shorten the gauge length and never let the tool dwell in the cut.
Run the first pass at reduced feed, listen to the cut, then step up to the calculated values once the setup proves stable.
Can GreatLight handle a single prototype?
Yes. There is no minimum order quantity, so a one-off prototype and a 10,000-part run go through the same process.
Quotation and free DFM analysis come back within 12 hours, and production can start within 24 hours of approval.
