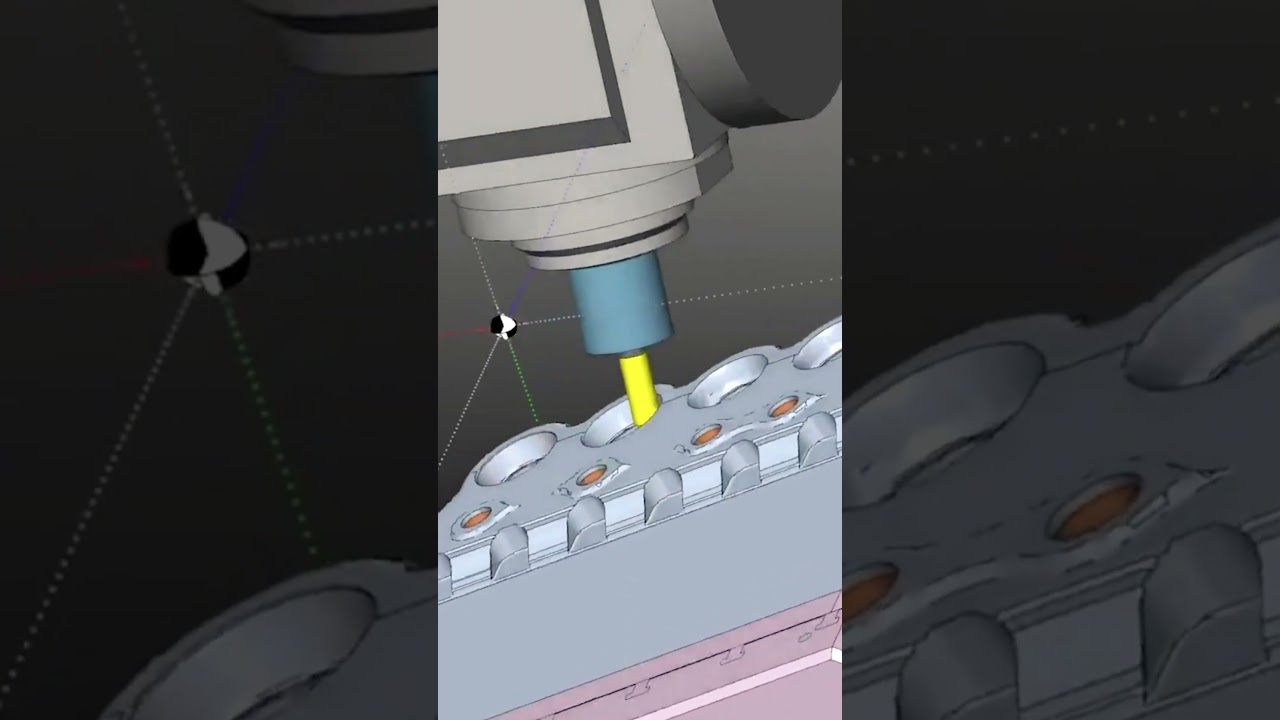

3D animation demonstrates the five-axis CNC machining process of an automobile engine cavity

A 2D drawing shows the finished cavity: wall thickness, corner radii, port geometry, deck flatness. It says nothing about how the tool gets there. A 3D animation demonstrates five-axis motion as a sequence, so you can watch the tool enter a pocket at an angle, swing the rotary table, and keep the cutter engaged through a curved wall instead of lifting and re-entering.

That view is useful for spotting the difference between 3+2 positioning and full simultaneous five-axis. In 3+2, the table tilts to a fixed angle and the cut runs like a three-axis job. In simultaneous mode, two rotary axes move while the linear axes cut. Engine cavities often need both: 3+2 for flat deck faces and bolt pads, simultaneous motion for the curved bowl, valve pockets and blend radii that no fixed angle can reach in one pass.

The animation also shows setup count. Every time the part is re-clamped, you add a fixture, an alignment step and stack-up error. A good animation makes that count visible: one op, two ops, or five. If the render shows four separate fixturings, the price will reflect four.

• 1
  Watch the tool axisA fixed tool axis means 3+2, not simultaneous five-axis.
• 2
  Count the fixturingsEach re-clamp adds fixture cost and tolerance stack-up.
• 3
  Check the reachLook for holder or shank clearance at the deepest pocket.

An engine cavity is usually a thin-wall shell with a stiff deck and a flexible skirt. Clamp it too hard and it springs back after unclamping, so the measured part is not the running part. We plan the fixture around the stiffest features, the deck and the main bearing saddles, and use light pressure on the walls. Where a wall is under 3 mm, we may leave a roughing allowance and take the finishing pass with reduced radial engagement.

Five-axis helps here because the part can be reached from multiple directions without moving it. A Ø400 mm rotary table with a trunnion lets us tilt the cavity so the tool approaches a sloped wall nearly normal to the surface. That keeps the load even along the flute and reduces chatter on long, thin walls.

The animation usually skips fixture design. It should not. On real parts, the trunnion, the soft jaws and the support posts decide whether the cavity holds form after the last pass.

• 1
  Clamp on stiff featuresDeck and saddle areas first, thin walls last.
• 2
  Support under the wallAdjustable posts reduce vibration during finishing.
• 3
  Plan the orderRough, stress-relieve if needed, then finish.

Five-axis earns its rate when a feature cannot be reached from three directions, or when a single setup removes an alignment error that would otherwise cost more than the machining time saved. Engine cavities fit that description: angled valve seats, blended port transitions, curved internal walls and intersecting bores that would need several fixtures on a three-axis mill.

It is a poor fit for a simple open pocket with straight walls and generous radii. A three-axis machine with a good vise will cut it faster and cheaper. The same applies to a part with one flat face and drilled holes on a single axis. Five-axis does not make those parts better, only more expensive.

The practical test is reach and re-fixturing. Count the surfaces that cannot be cut with the tool pointing straight down. If that count is small and the tolerances are loose, stay with three-axis. If the count is large, or if a 0.02 mm flatness callout spans two faces, five-axis usually wins.

• 1
  Choose five-axisAngled seats, blended ports, multi-face tolerances.
• 2
  Stay three-axisOpen pockets, one-face drilling, loose callouts.
• 3
  Decide by countHow many features need an angled approach?

Aluminum is the default for prototype and low-volume engine cavities: 6061-T6 and 7075 machine cleanly and hold a good finish at high spindle speed. A five-axis pass on 6061 usually lands between Ra 0.8 and 1.6 μm with a sharp cutter and air blast. If the cavity will see combustion or hot oil, 7075 gives more strength but is less forgiving of poor chip evacuation.

Cast iron and steel cavities cut slower and push the tool harder. We reduce stepover and feed, and we watch heat at the tool tip because a thin wall will move as it warms. For 4140 or 4340, a roughing pass followed by a stress-relief cycle before finishing keeps the cavity from opening up after unclamping.

Titanium and Inconel are rare in production engine cavities but appear in racing and prototype work. TC4 (Ti-6Al-4V) needs low surface speed, rigid toolholding and a lot of coolant. Five-axis helps because a tilted approach spreads the load, but cycle time is several times that of aluminum. Nothing in the animation changes that.

• 1
  6061-T6General prototype cavities, good finish, fast cycle.
• 2
  7075Higher strength, needs strong chip evacuation.
• 3
  4140 and 4340Rough, stress-relieve, then finish.
• 4
  TC4Low speed, rigid setup, long cycle.

A rendered toolpath can look perfect and still produce a cavity that fails on the CMM. The gap is measurement. We check raw material before cutting, monitor the part between roughing and finishing, and inspect the finished cavity before shipment. Reports are available on request.

The critical checks on an engine cavity are wall thickness, deck flatness, bore position and surface finish in the ports. Wall thickness is usually verified with ultrasonic or a structured-light scan if the wall is internal. Bore position goes on the CMM. Port finish is compared against a roughness standard or measured with a portable profilometer.

If a cavity is out of tolerance, the cause is often thermal or clamping, not the toolpath. That is why we log the fixture setup and the cutting temperature for repeat parts. On aluminum cavities we hold ±0.005 mm on critical bores and ±0.01 mm on position, and we run 100% inspection before shipment.

• 1
  Before cuttingRaw material certificate and hardness check.
• 2
  In processWall thickness and roughing allowance.
• 3
  FinalBore position, flatness, port finish.
