3D printing and motion tracking in veterinary orthopedic work

A veterinary orthopedic case starts with imaging. CT or a laser scan of the limb produces a point cloud, and that data is turned into a solid model of the bone. The surgeon can then print a scale model of the joint, cut it, and rehearse the osteotomy on the bench before the animal is on the table. Printing is fast at this stage and the model only has to be dimensionally honest, not strong.

Motion tracking enters after surgery. Reflective markers sit on the limb or on a body strap, and a camera array records the gait at 100–200 frames per second. The output is a set of joint angles and ground reaction forces, not a picture. Comparing those numbers against a pre-surgery baseline shows whether the limb is loading evenly again.

Neither tool replaces the other. Printing gives you geometry you can hold; tracking gives you motion you can measure. The clinical value comes from putting the two datasets on the same coordinate frame, so a printed guide can be checked against how the animal actually moves.

Where this gets hard is registration. Skin moves over bone, so marker placement drifts by several millimeters between sessions. Any team doing 3D printing motion tracking work has to control that error or the comparison is meaningless. That constraint drives most of the hardware decisions downstream.

Printed parts win when the shape is complex, the run is one unit, and the load is low. Anatomical models, drill guides, cutting templates and trial spacers all fit that description. A resin or nylon guide can be in the surgeon's hands in a day, and if the fit is wrong you reprint instead of remachining.

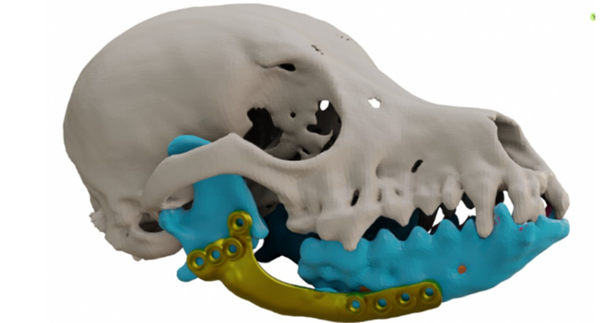

Machined metal wins when the part carries load, wears against another surface, or has to hold a tolerance over thousands of cycles. Bone plates, screws, intramedullary pins, external fixator clamps and instrument handles all fall here. These are the parts where a 0.1 mm error becomes a loosening problem six months later.

The middle ground is a hybrid. Print the geometry that follows the bone, then machine the interface that takes the force. A printed drill guide with a machined stainless bushing is a common example. The bushing holds the drill on axis; the printed body only has to locate it.

Titanium is the usual choice for the machined side. Ti-6Al-4V (TC4) has the strength-to-weight ratio and biocompatibility that veterinary implants need, and it machines predictably on 5-axis centers. 316L stainless is the cheaper fallback for external hardware that never enters the body.

• 1
  Print itAnatomical models, drill guides, cutting templates, trial spacers, low-load fixtures.
• 2
  Machine itBone plates, screws, pins, fixator clamps, bushings, anything cyclically loaded.
• 3
  HybridPrinted body plus machined metal insert at the wear or load interface.

Printed guides typically hold ±0.2 mm on a well-calibrated SLS machine, and that is enough for locating a guide on a bone surface. It is not enough for a drill bushing bore. That bore usually needs ±0.02 mm or tighter, which is why it gets machined and pressed or bonded into the printed body.

Machined implant hardware at GreatLight runs to ±0.005 mm (±0.0002 in) on critical features. Hole position on a bone plate, screw thread pitch, and the seating face of a fixator clamp are the features that matter. Everything else can sit at a looser band and cost less.

Surface finish follows the same logic. A printed guide comes off the machine at Ra 3.2 μm or rougher and that is fine. A screw thread that will be inserted and removed repeatedly wants Ra 0.8–1.6 μm, and a bearing or sliding surface wants Ra 0.2–0.8 μm. Specify finish per feature, not per drawing.

Material choice is driven by the sterilization route as much as by strength. Autoclave cycles at 134 °C will warp many printed resins. If the guide has to be reused, print in a material rated for it or move the part to machined PEEK, which holds its shape through repeated steam cycles.

The scan-to-part path is where most projects lose time. A CT stack arrives as DICOM, gets segmented into a bone surface, and that surface is usually a mesh with far more triangles than a CAM system wants. Nobody machines directly from a raw scan mesh.

The practical route is to fit a clean solid to the mesh. Reference planes get defined, the implant interface is modeled as a proper solid, and hole positions are driven by dimensions rather than by the mesh. That solid is what goes to the 5-axis center. The mesh stays as a reference for fit checks only.

Tolerance stack-up deserves attention here. The scan has its own error, the segmentation adds more, and the print adds more again. If the guide is located off a printed surface and the bushing is machined, the bushing position inherits the print error unless the bushing is set from the solid model independently.

For small runs, one prototype to a few dozen units, no minimum order quantity helps. You can machine three plate variants, test them, and pick a winner without tooling cost. Production can start within 24 hours once the model is frozen.
