5 Clear 3D Printing Secrets to Cut Your Prototype Costs

Most costly prototype files were designed as if they were going to be injection molded. Uniform 2.5 mm walls, solid bosses, no internal cavities. Additive processes do not need any of that. Where a region carries no load, take the material out. A 40% infill instead of solid fill often removes a large share of resin or filament consumption and shortens print time by hours, with no loss of stiffness where it matters.

Supports are the second hidden invoice. Overhangs beyond roughly 45° from the build plate need support material plus removal time. Rotating a part 15° on the build plate can move an overhang below that threshold. Splitting a housing into two pieces that bond or snap together sometimes removes supports entirely. Both changes cost a few minutes in CAD and save hours on the machine.

Wall thickness deserves a number, not a guess. For FDM, 1.2–2.0 mm gives a stiff shell in ABS or PETG without wasting filament. SLA holds 1.0–1.5 mm cleanly. SLS nylon is happy at 1.0 mm because the powder bed supports itself. Going thicker than the load path requires just adds mass, print time, and residual stress. Run a short DFM checklist before you export STL.

• 1
  Remove dead materialHollow unloaded regions or drop infill to 40% instead of solid.
• 2
  Rotate before you splitA 15° tilt often removes supports cheaper than splitting the part.
• 3
  Set a wall numberFDM 1.2–2.0 mm, SLA 1.0–1.5 mm, SLS nylon around 1.0 mm.

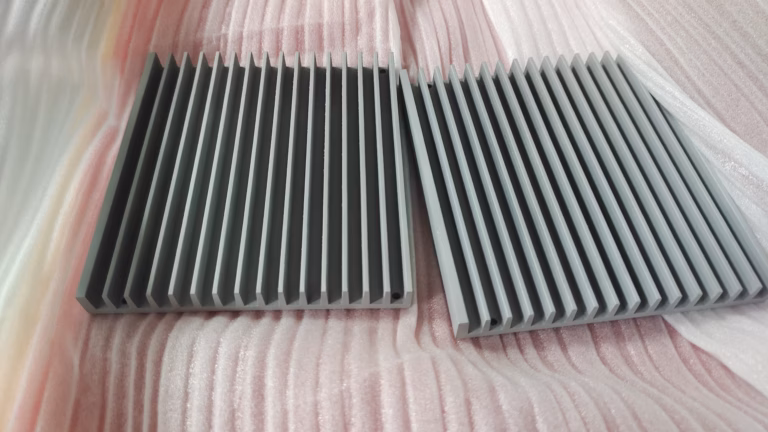

Four processes cover most prototype work: FDM, SLA, SLS, and metal SLM. Each has a range where it is the cheap answer, and a range where it is the expensive mistake. Choosing SLS for a purely visual part pays for powder handling you never use. Choosing SLA for a snap-fit enclosure that will be assembled under load usually ends with cracked hinges and a second order.

FDM with ABS or PETG is the low-cost route for three to ten design-review parts. It shows form and fit. It does not show fine surface detail, and layer lines are visible. SLA delivers smooth surfaces and tight small features, which suits fluid channels, lens housings, and detailed medical models. SLS nylon handles living hinges, snap fits, and ducting because it is strong in every direction. Metal SLM is for brackets and manifolds that must survive real load.

The wrong question is which process is cheapest per cubic centimeter. The right question is which process passes the functional test on the first try. A 4,000 mm part cannot be printed as one piece in most processes, so large frames often shift to CNC. Small, complex, and lightly loaded parts stay additive. Volume matters too. At one or two pieces, tooling-free processes win. Past a few hundred identical parts, the comparison changes.

• 1
  FDMForm and fit checks, 3–10 pieces, visible layer lines.
• 2
  SLASmooth surfaces, small features, fluid and optical parts.
• 3
  SLS nylonLiving hinges, snap fits, ducts, isotropic strength.
• 4
  Metal SLMBrackets and manifolds that carry real load.

Build orientation changes three cost drivers at once: support volume, print height, and the strength of the part in its load direction. A one-degree tilt can be the difference between a clean face and a face that needs sanding. This is why the same file quoted by two suppliers can differ by a wide margin. Orientation is an engineering choice, not a machine setting.

Print time scales with the number of layers, so height is money in FDM, SLA, and SLM. Lay a long bracket flat when the top face is cosmetic. Stand it up when the side faces are the critical ones. For metal SLM, orientation also drives distortion and the amount of support that must be cut off by hand. Those are the hours that show up on the invoice.

Nesting is the second half of the same decision. Parts that fit inside the build envelope side by side share one setup and one warm-up. Parts that force a taller build cost more even when the material volume is identical. On SLS, nesting also controls how evenly the powder bed heats, which affects dimensional consistency across the batch. Ask for a nesting layout before you approve the run.

• 1
  Fewer layers, less costHeight is time on FDM, SLA, and SLM.
• 2
  Support is manual laborEvery support adds removal and finishing time.
• 3
  Nest to fill the bedShared setups lower cost per part across the batch.

Some parts should not be printed whole. A printed housing with two CNC-machined bores is often cheaper and more accurate than a fully printed version that needs reaming afterward. The printed body carries the complex organic shape. The machined features carry the tolerance. Each process does what it is good at, and the total drops.

Interfaces are where this pays. Bearing bores, threaded holes, sealing faces, and dowel pin locations usually need ±0.005 mm and Ra 0.8–1.6 μm. Printed surfaces cannot hold that without secondary work. Machining the interface on a 5-axis center and bonding or bolting it to the printed section avoids the rework loop. We run this hybrid route often for brackets, jigs, and robot end effectors.

There is a limit. Hybrid parts need a defined interface: a flat face, a bolt pattern, a bond gap. If the joint cannot be clamped or fastened, the two halves will not stay aligned. Also, do not machine a feature just because it looks machined. Every setup adds cost. Add a machined interface only where fit, wear, or sealing demands it.

• 1
  Print the shapeOrganic geometry, internal channels, lattice regions.
• 2
  Machine the interfaceBores, threads, and sealing faces at ±0.005 mm.
• 3
  Only where neededEach extra setup adds cost without adding function.

A quotation that arrives with comments is worth more than one that arrives as a single number. A DFM review catches thin walls, unsupported overhangs, and features that will not hold tolerance before the machine starts. Fixing those in CAD costs an hour. Fixing them after a failed build costs a week and a second order.

The questions to put to any supplier are practical. Which surfaces will be as-printed and which will be machined? What tolerance can you hold on the printed feature? Where is the support, and who removes it? Which features will be inspected, and what report do we get? Vague answers usually mean the cost will move after the order.

At GreatLight, a quotation and free DFM analysis come back within 12 hours, and production can start within 24 hours. We hold ±0.005 mm (±0.0002 in) on machined features and inspect 100% of parts before shipment, with reports on request. Printed prototypes and machined prototypes run through the same review, so the file is checked once and the process is chosen on evidence. No minimum order quantity, from one prototype to 10,000+ part runs.

• 1
  Ask which surfaces print as-isSeparates cosmetic faces from functional ones.
• 2
  Ask who removes supportSupport removal time belongs in the quote.
• 3
  Ask for the inspection planKnow what is measured before you approve.
