New operators raise spindle speed first. That is the wrong lever. Chip thickness, not RPM, sets the load the edge actually sees. If the radial engagement is 8 percent of the cutter diameter, the chip is thin, the heat leaves with it, and you can push feed per tooth much harder than a full-width cut allows.

High-efficiency toolpaths do this on purpose. Trochoidal and adaptive clearing hold a constant radial engagement and keep the chip thin. The result is a stable load on the tool and the spindle, and the machine removes more material per minute without chatter. The gain comes from feed per tooth, not from spinning faster.

There is a limit. Deep pockets in soft aluminum with a long reach cutter will deflect before they chatter. A 4,000 mm gantry frame has more compliance than a compact 500 × 500 × 450 mm machine, so the same code runs differently. When we see chatter, we shorten the gauge length or reduce axial depth before we touch the feed. That order matters.

The tell is the chip. A properly thinned chip comes off as a short, consistent comma. If it looks like powder or dust, the load is too low and the edge is rubbing. If it discolors, you are overheating the material. Look at the pan before you look at the screen.

• 1
  Thin chip, high feedRadial engagement near 8–10 percent of cutter diameter; raise feed per tooth, not RPM.
• 2
  Watch the chip shapeComma-shaped chips mean the load is right. Dust means rubbing.
• 3
  Gantry complianceLong reaches deflect earlier on a 1300 × 1000 mm frame than on a compact mill.

A 1310 in an unheated shop moves all day. A 5 °C swing can shift the Z-axis by several microns, which is most of a ±0.005 mm budget. The amateurs power up and cut. The pros run a warm-up cycle first, circulating coolant and axis lubricant until the frame reaches a steady state.

The tool grows too. A carbide end mill in stainless steel will elongate by 0.01 mm or more as heat builds. On long roughing passes that is enough to drop a finishing allowance to zero. Run a short air-cut segment to bring the tool to temperature, then re-measure tool length on the touch probe before the finish pass. Cost is two minutes. The alternative is a scrapped feature.

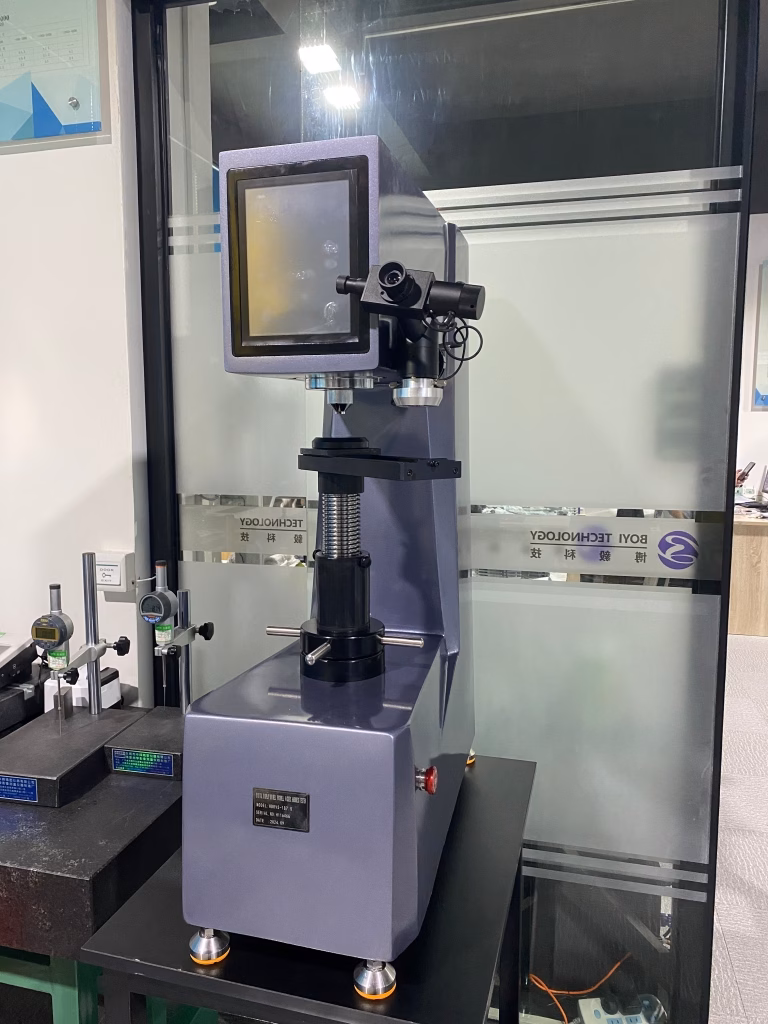

A climate-controlled floor removes most of this variable. Our Dongguan plants run climate control and continuous laser tool measurement on the 1310-class work, which is how the ±0.005 mm number stays real across a shift. In a job shop without that, schedule the tight-tolerance parts for the middle of the day, after the machine has soaked for two hours.

Fixture and part grow together, but not at the same rate. If the part and the fixture are different alloys, the clamp load changes with temperature. Check torque on critical clamps at the start and midpoint of a long run.

• 1
  Warm-up cycleRun the spindle and axes for 30 minutes before the first tight-tolerance cut.
• 2
  Re-measure the toolCarbide grows 0.01 mm or more in stainless. Probe the length after warm-up.
• 3
  Schedule tight work mid-shiftWithout climate control, cut the critical features after the frame has soaked.

A 1300 × 1000 mm bed tempts you to load a dozen parts in one cycle. Uneven clamp pressure warps the vacuum table or lifts an edge you cannot see. The pros design the fixture around the part, not around the table area.

Tall parts get welded-steel riser blocks and low-profile edge clamps that apply force in the shear plane. Thin sheet gets a full-support backing plate so the cutter cannot push the material down. Both moves raise the effective stiffness of the setup far more than tightening a vise harder. Clamping force is not the same as rigidity.

Vacuum is not a universal answer. It holds flat, non-porous stock well. It struggles with warped plate, small footprints, and any part where the load path is off-center. In those cases, mechanical clamps plus a machined soft jaw will beat a vacuum table every time.

We check deflection before the run. A dial indicator on the part edge, a light push with the hand, and a read on the DRO tells you whether the setup will move under cut. If it moves by hand, it moves more under a 12 mm cutter.

• 1
  Riser blocksTall parts need steel risers and edge clamps, not a taller vise.
• 2
  Backing plateThin sheet needs full support under the cut zone.
• 3
  Know vacuum limitsWarped plate, small footprints, and off-center loads need mechanical clamps.

Every operator has a feeds-and-speeds app. Those charts are starting points, not answers. The real variable is the stiffness curve of your specific machine and the acoustic signature of the cut. Two 1310 machines from the same builder can behave differently once the floor and the foundation are factored in.

Titanium on a lightweight gantry is the classic case. Hit a resonant frequency and you get regenerative chatter that no coolant pressure will fix. The fix is not to blindly reduce depth of cut. Change spindle speed by a few percent and listen. The chatter usually drops out at a speed the chart would never suggest.

Aluminum is more forgiving, but long tools still ring. Brass and copper cut clean and let you run high surface speed. Stainless work-hardens, so a light pass that rubs is worse than a heavier one that cuts. These are material-specific behaviors, and a single chart cannot cover all of them.

We log the stable window for each machine and material pair. That record is more useful than any downloaded chart. It tells the next operator where the cut was quiet, not where the book said it should be.

• 1
  Tune to the machineThe stiffness curve, not the chart, sets the stable window.
• 2
  Titanium and resonanceShift spindle speed a few percent to drop out of chatter.
• 3
  Stainless work-hardeningA rubbing light pass is worse than a heavier cutting pass.

A part that measures perfectly but has a sharp edge and a burr reads as unfinished. Engineers notice edges before they notice a 5 μm deviation. Deburring is not cosmetic. It removes stress risers, protects the coating, and prevents handling injuries down the line.

Control the edge in the program. A chamfer pass on a 1310 is cheap and repeatable. Hand deburring a 4,000 mm part is slow and inconsistent. Where the geometry allows, we add a controlled edge break in the toolpath and then finish by hand only where the tool cannot reach.

Surface finish follows. Bead blasting hides tool marks and gives a uniform matte. Brushing leaves a directional grain. Polishing takes a part to Ra 0.2–0.8 μm when the function needs it. Anodizing and plating change the edge profile slightly, so the edge break has to be sized before the coating, not after.

Laser marking is the last step. Minimum character height is 1.5 mm. Put the marking on a face that is not a sealing or mating surface unless the customer asks otherwise. A part with clean edges, a consistent finish, and a legible mark reads as controlled, because it is.

• 1
  Program the edge breakA chamfer pass beats hand deburring on large parts.
• 2
  Finish before coatingAnodizing and plating shift the edge, so size the break first.
• 3
  MarkingLaser marking minimum character height is 1.5 mm.
