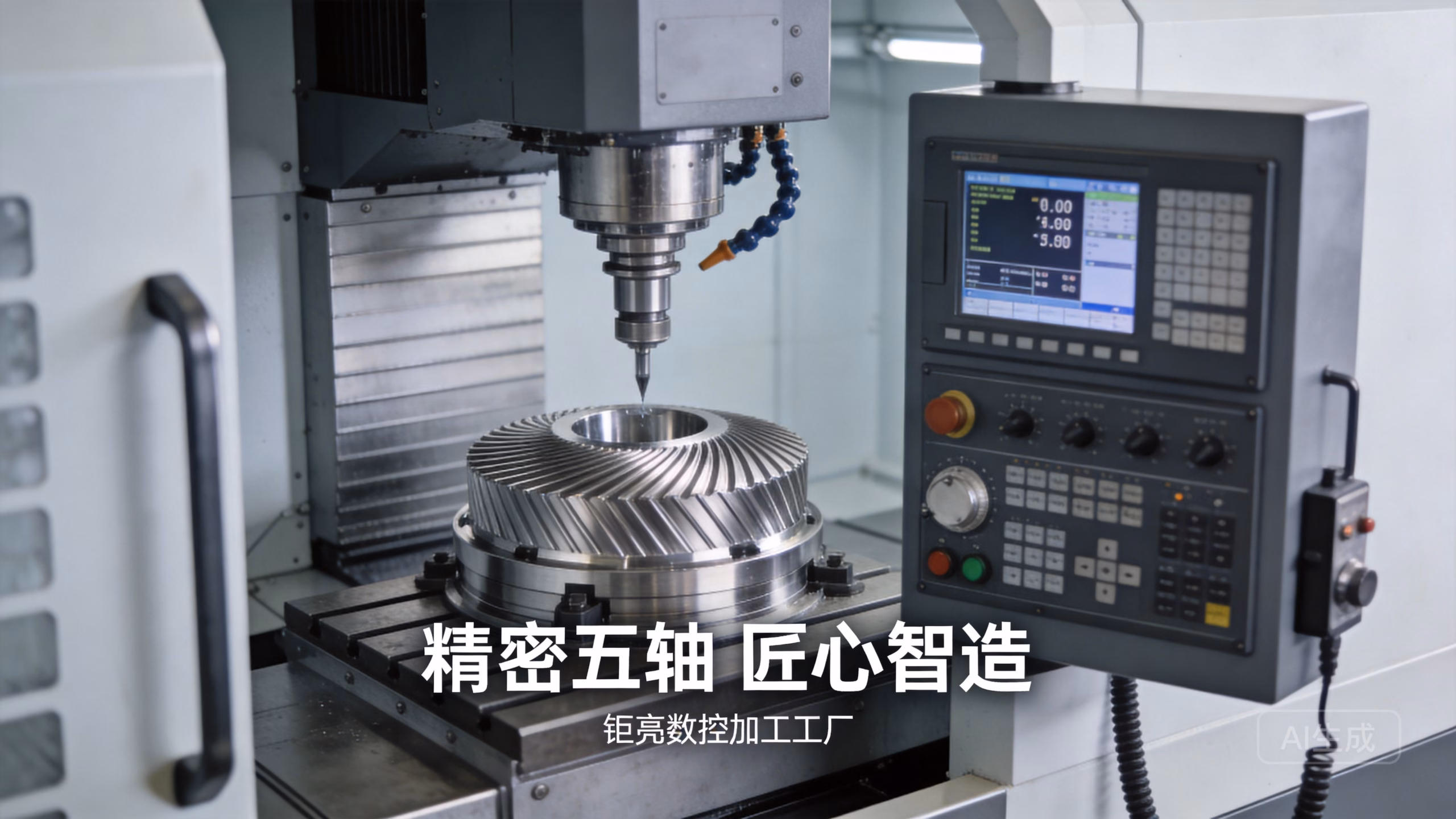

5 Essential Tips for Buying 5 Axis CNC Machines
Most bad 5-axis purchases are not machine faults. They are spec mismatches that only show up on the third job. This guide lists five checks to run before you compare quotes, plus a symptom table for the faults that appear after installation.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
5-Axis Faults: Symptom, Cause, Fix
Read the left column first. If two symptoms match, fix the cheaper cause before touching the machine geometry.
| Symptom | Likely cause | What to do |
|---|---|---|
| Taper and chatter on deep pockets | Tool overhang too long for the spindle nose | Shorten holder assembly; move to a larger taper |
| Bore roundness drifts 0.01–0.03 mm | Rotary table not clamped during finish passes | Clamp C-axis; cut finish in one continuous move |
| Backlash grows over a shift | Thermal growth in the rotary drive | Warm up 20–30 min; re-check backlash cold |
| Surface steps on blended faces | Post-processor outputs 3+2 instead of simultaneous | Verify CAM output; test a known contour part |
| Tool marks at every index position | Work offset error after each rotation | Re-probe the datum after B/C indexing |
| Cycle time 40% over estimate | Feed and speed from a 3-axis library | Re-cut speeds for 5-axis motion and rigid setup |
| Scrap rate spikes on one feature family | Fixture stiffness, not the machine | Add support under the thin wall; reduce depth of cut |
The Short Version
Buy for the 80th percentile part and the features you actually cut, verify accuracy with a paid test cut, and count the handoffs after machining. Machine price is the smallest number in the decision.
Match Travel and Envelope Before Buying 5 Axis CNC Machines
Every 5-axis quote looks similar on paper until you put the part envelope next to the travels. A machine with 500 × 500 × 450 mm of linear travel and a Ø400 mm table will swing a part that a 750 × 1,150 × 550 mm machine handles without a second setup. If your typical part is a 300 mm impeller, the small machine is enough. If it is a 900 mm structural frame, it is not.
Trunnion machines lose usable volume in the corners. When the table tilts, the part sweeps a sphere, so the practical envelope is smaller than the linear travel suggests. Ask for a swing diagram, not just a travel list. Then check whether your longest tool plus holder clears the table at maximum tilt.
The other number that bites is maximum processing size. On a large-format machine rated to 4,000 mm, you still need to confirm the part fits at the tilt angles your job requires. A part that fits flat may not fit at 45°.
Rule of thumb: buy for the 80th percentile part, not the largest one you have ever quoted. Oversized machines cost more per hour to run and are slower on small parts because of the moving mass.
- 1Check swing, not travelAsk for the tilted envelope diagram.
- 2Include the tool lengthHolder plus cutter must clear at max tilt.
- 3Buy for the 80th percentileThe biggest part is usually a one-off.
Simultaneous 5-Axis or 3+2? Read the Part, Not the Brochure
A machine marketed as 5-axis may only index reliably. That is fine for prismatic parts with features on five faces, where the table positions and then the cut runs in three axes. It is not fine for a blisk, an impeller, or a medical implant with continuous curvature. Those need true simultaneous motion with the rotary axes moving while the tool cuts.
The test is simple. If your drawing has surfaces that cannot be reached without the tool axis tilting during the cut, you need simultaneous capability. If every feature can be cut with the part locked at an index position, 3+2 is faster and cheaper. Many shops buy simultaneous machines and then post everything as 3+2, paying for capability they never use.
For simultaneous work, look at the rotary drive type. Direct-drive tables hold position better at high feed rates. Worm-gear tables are stiffer for heavy cuts but slower to index. Neither is better in the abstract; the choice follows your material and cycle time.
One more check: ask how the control handles tool center point management. Without it, every program needs re-posting when the tool length changes. With it, the operator swaps a tool and keeps cutting.
- 1Simultaneous neededCurved surfaces cut while the axis tilts.
- 23+2 is enoughAll features reached from fixed index positions.
- 3Ask about TCPMTool length changes should not need re-posting.
Tolerance, Finish and Thermal Behavior on Real Parts
A spec sheet claiming ±0.005 mm is a claim about a cold machine in a controlled room cutting a small part in aluminium. Your job may be a 400 mm steel housing cut over six hours in a shop that swings 8 °C between shifts. That is where accuracy is won or lost.
Ask three questions. What is the thermal compensation strategy: ball screws with cooling, scale feedback, or nothing? What surface finish can the spindle and control hold on a deep cavity: Ra 0.8–1.6 μm, or Ra 0.2–0.8 μm with a finishing pass? And how is the machine verified after installation: a test cut, a ballbar, or a laser interferometer report?
Finish follows rigidity more than spindle speed. Long tools in deep pockets chatter, and no control setting fixes that. If your parts have deep ribs or thin walls, plan for a smaller cutter and a shorter holder, and check that the machine can reach the floor of the pocket without the holder rubbing.
For tight bores and bearing seats, verify roundness on a real part, not on a test piece. Roundness errors from rotary clamping show up at 0.01–0.03 mm and are easy to miss on a short warm-up cut.
- 1Thermal planCompensation, cooling or scale feedback.
- 2Finish targetState Ra before you compare machines.
- 3Roundness testCut a real bore, measure it, repeat after 4 hours.
Downstream Process Chain and Inspection Support
A 5-axis machine only cuts. Your part still needs heat treatment, anodizing, plating, and dimensional reports. If those steps sit outside the supplier's process chain, every handoff adds days and a new chance for a dimension to move. Ask who does each step and who signs the inspection report.
For regulated work, the certificates matter more than the machine. ISO 9001:2015 covers general quality management. IATF 16949:2016 applies to automotive production. ISO 13485:2016 is the medical device standard. ISO 27001:2022 covers information security, which matters when you send drawings under NDA. A supplier without the certificate your industry requires will slow your audit, not your machining.
Inspection depth is the other differentiator. Look for raw material verification, in-process checks, and a final inspection before shipment, with reports on request. A 100% inspection step before shipment is normal for tight work; sampling is not.
If you outsource machining instead of buying a machine, the same questions apply. Ask how many simultaneous 5-axis centers the shop runs, what the largest travel is, and whether finishing and inspection stay in-house.
- 1One chain or manyCount the handoffs between cutting and shipping.
- 2Certificate fitMatch the standard to your industry, not the marketing page.
- 3Report on requestAsk what the inspection report contains.
Total Cost of Ownership and Lead Time Signals
Purchase price is the smallest number in the decision. Add tooling, fixtures, coolant, spindle service, and the floor space. Then add the cost of learning: programming time, post-processor development, and the scrap from the first month. A cheaper machine with a weak post-processor can cost more in the first quarter than the price difference.
Lead time shows up in two places. How fast does the supplier return a quotation and a DFM review, and how fast do parts ship after the drawing is released? A shop that answers in 12 hours with a manufacturability note is telling you its engineering team is staffed. One that answers in a week is telling you something else.
Ask for the historical late-delivery rate, not a promise. A number below 2% means the shop tracks it. If nobody can quote a number, nobody is measuring it.
Finally, check the commercial terms that affect your risk. No minimum order quantity matters for prototypes. An NDA matters for drawings you cannot share. Secure, confidential upload handling matters for both.
- 1Cost beyond the machineTooling, fixtures, programming, scrap.
- 2Answer speedQuotation and DFM turnaround is a staffing signal.
- 3Tracked deliveryAsk for a rate, not a promise.
Five Checks to Run in Order
Run these before you compare prices. Each one can eliminate a machine or a supplier on its own.
- 1Build the part envelope listTake your last 30 jobs. Record length, width, height, and the tilt angle needed. The 80th percentile becomes your minimum travel and swing requirement.
- 2Classify each job as 3+2 or simultaneousMark every feature that needs the tool axis to tilt during the cut. If more than a quarter of your jobs need it, buy simultaneous. Otherwise, price 3+2 first.
- 3Set a finish and tolerance target per feature familyWrite Ra 1.6–3.2 μm for rough-machined surfaces, Ra 0.8–1.6 μm for sealing faces, and Ra 0.2–0.8 μm only where the drawing demands it. This keeps the machine spec honest.
- 4Ask for the thermal and verification planRequest the compensation method, the warm-up procedure, and the post-installation test: ballbar, laser interferometer, or a certified test cut with roundness data.
- 5Map every downstream stepList heat treatment, coating, plating, marking, and inspection. Mark which are in-house at the supplier and which are subcontracted, then add the handoff days to your schedule.
- 6Request a paid test cutSend a representative part with a tight bore and a blended surface. Measure roundness, flatness, and finish. A supplier that refuses a paid test cut is telling you something useful.
- 7Price the first 90 days, not the machineAdd tooling, fixtures, post-processor work, operator training, and expected scrap. Compare that total, not the invoice.
5-Axis Buying Questions Engineers Ask
Do I need simultaneous 5-axis, or is 3+2 enough?
If every feature can be reached with the part locked at an index position, 3+2 is faster and cheaper. Simultaneous motion is for continuous surfaces such as impellers, blisks, and implant contours where the tool axis must tilt while it cuts.
A practical test: mark the features on your last 30 drawings that need tilting during the cut. If that is more than a quarter of the work, simultaneous capability pays for itself. If it is two parts a year, outsource those and buy 3+2.
What travel and swing should I ask for?
Start from the 80th percentile part in your job history, not the largest one. Then ask for the tilted envelope diagram, not just the linear travel. A trunnion machine loses usable volume in the corners when the table rotates.
Also confirm the longest tool and holder assembly clears the table at maximum tilt. A part that fits flat can still crash at 45°.
How do I verify accuracy claims before signing?
Ask for the verification method: ballbar, laser interferometer, or a certified test cut with roundness and flatness data. Then run your own paid test cut on a representative part with a tight bore and a blended surface.
Measure roundness, flatness, and surface finish. Repeat the bore measurement after four hours of cutting to see thermal drift in real conditions.
What does a post-processor cost in practice?
Budget programming time, post-processor development, and the scrap from the first production month. A machine with weak tool center point management needs re-posting every time a tool length changes, which adds setup time on every job.
Ask the machine builder or the shop to demonstrate a known contour part. If the surface has steps at the blend, the post-processor is not ready.
Which certifications matter for my industry?
ISO 9001:2015 is the baseline for general quality management. IATF 16949:2016 applies to automotive production parts. ISO 13485:2016 is required for medical devices. ISO 27001:2022 covers information security, which matters when drawings are shared under NDA.
Match the certificate to your audit requirement. A supplier with extra certificates is not automatically better, but a missing one will slow your approval.
Should I buy a machine or outsource the 5-axis work?
Outsource first if your 5-axis volume is low or the geometry is new. You avoid capital depreciation and can compare two process routes before committing. Buy when the volume is stable and the part family is known.
When comparing shops, ask how many simultaneous 5-axis centers they run, the largest travel, and whether finishing and inspection stay in-house. Those three answers predict schedule risk better than a price list.
