5 Essential Tips to Master Your HY 6040 CNC Router for Perfect Cuts
A desktop router cuts well only when the frame, the tool, and the fixture agree. This guide walks through five adjustments that change surface finish and dimensional accuracy on an HY 6040, in the order we would check them in the shop. It is written for engineers and machinists running small-batch parts on a benchtop gantry machine. Read it once before your next setup, and you can tell which of your problems are mechanical and which are cutting data.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
Tram and Level the Frame Before Anything Else
Every other tip on this page assumes the machine is square. On a benchtop gantry router, the bed, the X and Y rails, and the spindle axis have to agree within a few hundredths of a millimeter. A gantry that is off by 0.5° across 300 mm of travel changes depth of cut by roughly 2.6 mm on a long part. No CAM setting can compensate for that.
Start with a precision machinist's level on the bed in both directions. Shim the feet until the bubble sits centered, then re-check after an hour, because a benchtop frame settles once the casters or pads take load. Next, sweep the spindle over the bed with a dial indicator on a 100 mm arm. Adjust the gantry until the reading stays within 0.05 mm front to back and left to right.
Then check backlash by hand. Push the gantry along X with the motors disabled and watch the indicator. More than 0.05 mm of lost motion usually means a loose coupler or a worn nut, and it will show up later as oval holes and chatter on climb-cut passes. Tighten or replace the part before you touch a single feed value.
Record the numbers in a log. A machine that held 0.03 mm of tram last month and reads 0.08 mm today is telling you something moved, and the fix is usually cheaper than the scrap.
Set Feeds and Speeds from Chip Load, Not From a Chart
The spindle on an HY 6040 is typically 800 W to 1.5 kW. That is enough for aluminum and plastics in light passes, but not enough to hide a bad feed rate. The number that matters is chip load: feed rate divided by spindle speed divided by the number of flutes. For a 6 mm two-flute carbide end mill in 6061 aluminum, a chip load of 0.02 to 0.03 mm per tooth is a practical target.
Multiply that out. At 12,000 rpm with two flutes and 0.025 mm per tooth, the feed rate lands near 600 mm/min. Run the same cutter at 200 mm/min and the tool rubs instead of cutting; heat builds in the edge, aluminum welds to the flutes, and the finish goes cloudy. Run it at 1,500 mm/min and the spindle bogs down, chatter marks appear, and the cutter snaps.
Depth of cut and width of cut trade against each other. A conservative combination for a 6 mm cutter in aluminum is 0.5 mm axial depth at 50 percent radial engagement. If the machine sounds clean, increase axial depth in 0.25 mm steps before you increase the feed. Fewer, deeper passes usually beat many shallow ones on a light gantry.
Use a ramp or helical entry. Plunging straight down loads the center of the cutter, which has no surface speed, and it is the most common reason small end mills break on benchtop machines.
Fix the Workpiece Before You Fix the Toolpath
A T-slot bed looks rigid until a small part starts moving in it. Vibration from a loose workpiece shows up as a rough floor, a tapered wall, or a dimension that measures fine at the corner and off in the middle. Clamp load has to be high, close to the cut, and low in profile so the tool can reach the part.
For flat plate, double-sided tape or a vacuum fixture works well and keeps the top face clear. Tape suits parts up to roughly 150 mm square with light finishing passes; vacuum suits larger, flatter stock with a good seal. For rigid metals and anything taller than 30 mm, use a machinist vise or a dedicated fixture plate with toe clamps.
Support matters as much as clamping. A thin part that overhangs the vise jaws will deflect under cutting force and spring back, so the finished dimension comes out oversize. Add a sacrificial block under the part or leave tabs that hold it to the parent stock.
Check the setup by pushing the part with your thumb before the spindle starts. Any visible movement means the first pass will move it more. Re-fixture until it is silent under hand pressure.
Inspect the First Part, Then Trust the Process
Inspection on a benchtop router is not a final step; it is a feedback loop. Measure the first part completely, then measure one part every ten or twenty depending on the batch size. The point is to catch drift while there is still time to correct the offset and rerun the affected parts.
Use the right tool for the feature. Calipers read outside dimensions to about 0.02 mm in practiced hands, but they will not tell you whether a bore is round. For bores and slots, use a bore gauge or pin gauges. For flatness and parallelism, a surface plate and dial indicator give a clearer answer than a caliper on a wavy face.
Watch three things on every check: dimensional drift, surface finish change, and burr size. A finish that goes from matte to shiny without a change in parameters usually means the tool edge has worn. Burrs that grow on the exit side point to a dull cutter or a fixture that is starting to loosen.
Write the results down with the date and the tool number. When a batch goes wrong three weeks later, that log is the fastest way to find out whether the machine moved, the material changed, or the tool life ran out.
Step by Step: Dial In a New Job on the HY 6040
Work through these in order. Skipping ahead usually means redoing the setup.
- 11. Clean and levelWipe the bed and T-slots, then set the machine level to within 0.1°. Re-check tram on the spindle with a dial indicator; target under 0.05 mm over 100 mm.
- 22. Measure the toolTouch off Z on the stock surface with a gauge block or probe. Log the offset. A 0.02 mm error here repeats on every part in the batch.
- 33. Set the zero pointPick X and Y from a hard edge or a machined corner, not from a rough saw cut. Rough edges can be off by 0.3 mm over a 100 mm length.
- 44. Start conservativeCut the first pass at 70 percent of your calculated feed. Listen for chatter and check the chip shape, then step up to full feed.
- 55. Check the first part fullyMeasure the critical dimensions, wall thickness, and floor finish before running the rest of the batch.
- 66. Adjust stepover for finishUse 40 to 50 percent radial engagement for roughing, then a 5 to 10 percent finishing pass at full depth for a clean wall.
- 77. Watch the chipsThin, silver, curled chips mean the cut is working. Dust or dark blue chips mean heat is going into the part or the tool.
- 88. Log the runRecord feed, speed, depth, tool number, and measured results. The next batch starts from data instead of guesswork.
Starting Parameters for Common Materials on a Benchtop Router
Two-flute carbide end mill, 6 mm, light gantry machine. Adjust from these, do not treat them as final.
| Material | Spindle speed | Feed rate | Axial depth |
|---|---|---|---|
| 6061 aluminum | 12,000 rpm | 600 mm/min | 0.5 mm |
| Brass C36000 | 10,000 rpm | 500 mm/min | 0.4 mm |
| ABS / POM | 14,000 rpm | 900 mm/min | 1.0 mm |
| PMMA acrylic | 12,000 rpm | 800 mm/min | 0.8 mm |
| Carbon fibre | 16,000 rpm | 700 mm/min | 0.3 mm |
| Mild steel 1018 | 6,000 rpm | 200 mm/min | 0.2 mm |
Common Questions About the HY 6040 CNC Router
Why does my HY 6040 leave chatter marks on aluminum?
Chatter on a light gantry almost always comes from one of three places: too much radial engagement, a workpiece that is not fully supported, or a cutter with too much stick-out. Shorten the tool to the minimum length that reaches the feature, then reduce radial engagement to 40 percent of cutter diameter and raise feed slightly.
If the marks stay in the same place on every part, check the gantry and rail bolts. If they move with the toolpath, it is a cutting-data or fixturing problem.
What spindle speed should I use for plastic on this machine?
Plastics cut best with high spindle speed and a sharp single-flute or two-flute cutter. For ABS and POM, start near 14,000 rpm with a feed that gives 0.03 to 0.05 mm per tooth. Acrylic is more brittle and tends to chip on the exit edge, so reduce the feed near the end of the cut and use a down-cut cutter where the geometry allows.
The bigger risk with plastics is heat. If the chips come off stringy and warm, the tool is rubbing. Increase feed or reduce spindle speed until the chips come off as clean flakes.
How do I know when the tool is worn out?
Three signs show up before a cutter fails. Surface finish goes shiny or smeared, burrs grow on the exit edge, and the spindle note changes, usually rising in pitch as the edge rubs. On aluminum, a worn cutter also starts packing chips into the flutes.
Log cutting time per tool and replace on a schedule rather than waiting for a break. A broken 6 mm end mill costs far more than the tool, especially if it drags through the finished wall.

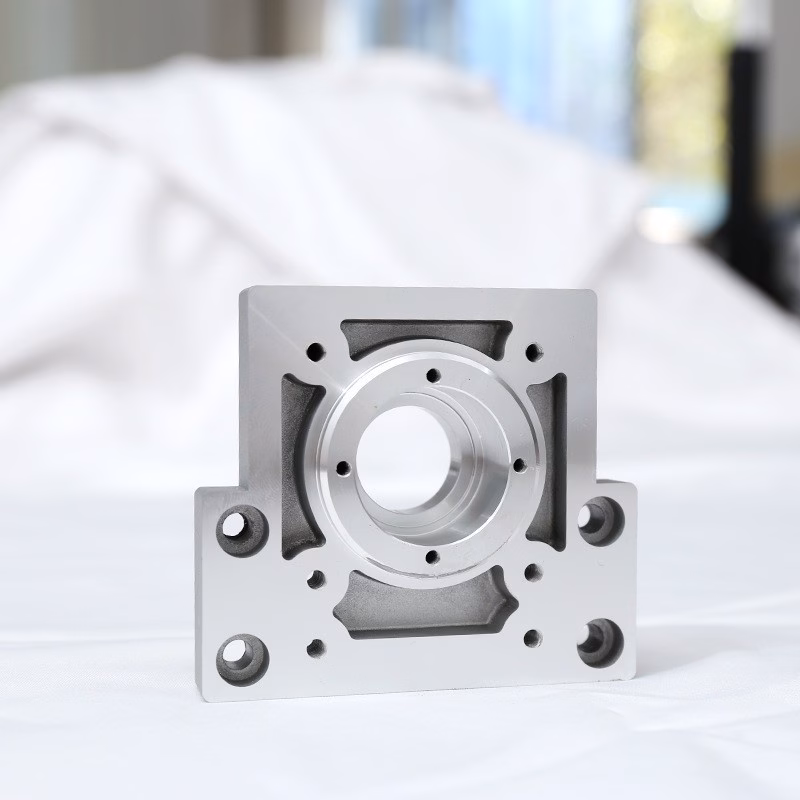

Can the HY 6040 hold tight tolerances on small metal parts?
A well-trammed HY 6040 with a rigid fixture can hold roughly ±0.05 mm on small aluminum features in a controlled shop. Pushing below that on a benchtop gantry is unreliable because thermal drift and frame flex start to dominate.
If a design needs ±0.005 mm and a documented inspection report, the part belongs on a production machining center. We run 127 high-precision CNC machines, including 16 simultaneous 5-axis centers, and hold ±0.005 mm with 100 percent inspection before shipment.
How deep can I cut in one pass?
On aluminum with a 6 mm two-flute cutter, 0.5 mm axial depth at 50 percent radial engagement is a safe starting point on a benchtop gantry. You can often push to 1 mm axial depth with a stub cutter and a rigid vise.
The limit is not the cutter; it is the machine frame and the fixture. Increase depth in 0.25 mm steps and listen. Any change in spindle note means you have found the ceiling.
Do I need coolant on this router?
Most benchtop routers run dry or with a mist system. Aluminum benefits from a small amount of lubricant to stop built-up edge, especially in deep pockets where chips do not clear. Plastics and wood should be cut dry with strong air blast.
Avoid flood coolant on an open-frame benchtop machine unless it is designed for it. The mess and the risk to electronics usually outweigh the gain.
