10 Essential Facts About the Wabeco D6000E Every CNC Machinist Must Know

The D6000E is built for medium to high precision work. In good conditions the machine repeats inside about 0.01 mm. That is a fair number for a benchtop or light industrial frame, and it covers a wide range of brackets, bushings, housings, and prototype parts.

Getting to ±0.005 mm or tighter is a different problem. At that level the machine is no longer the only variable. Room temperature, spindle warm-up, tool holder runout, and workholding all move the result. A shop that wants tighter numbers needs temperature control, daily alignment checks, and inspection after machining, not a different spec sheet.

So treat the ±0.01 mm figure as a working target for the machine in a normal shop, not a guarantee on every feature of every part. Features that carry a tight tolerance should be planned with a finishing pass, a sharp tool, and a measurement step.

The base is cast iron. That matters more than the spec sheet suggests. Cast iron absorbs vibration well, and vibration is what kills surface finish on a light machine. A rigid base lets you take a reasonable depth of cut in aluminum and mild steel without the chatter that shows up as a rippled floor.

The column and the head are the softer part of the structure. They are stiff enough for the work envelope, but they are not a substitute for a heavier industrial frame. Long tools, deep pockets, and hard materials will show deflection. If a part needs a 4 mm deep slot in 4140 with a long reach tool, expect to take it in steps and accept a slower cycle.

This is the trade-off the D6000E makes: a good base for its class, a light upper structure, and a compact footprint. Know which one you are leaning on.

A 2.2 kW variable-speed spindle turning 500 to 6000 RPM is the heart of the machine. That range suits carbide tooling in aluminum, brass, and mild steel. It also suits small-diameter drills and end mills where you can run the tool at its rated surface speed.

It is not a high-speed spindle. For light alloy finishing with 1 mm tools, or for micro-machining where you want 15,000 RPM and up, the top speed is too low. You can still cut those parts, but the feed rate drops and the finish suffers. On a job like that, it is cheaper to run the finishing op on a machine that was built for it.

What the spindle does well is hold a moderate load for a long time. Running 6 mm and 8 mm carbide end mills in 6061 or 1018 at conservative parameters is a comfortable day for this machine.

The spindle nose takes both MT3 taper tooling and ER32 collets. That is a practical combination. MT3 covers drills, reamers, and boring heads. ER32 covers end mills and any shank from 1 mm up to 20 mm, with good concentricity when the collet and nut are clean.

Tool changes are manual. In a prototype run or a one-off fixture that is fine. In a 200-piece batch with eight tools, the change time starts to eat the cycle time. That is not a fault of the machine. It is the class it belongs to.

Keep a spare set of ER32 collets and a torque wrench on the bench. Over-tightening the nut distorts the collet and shows up as runout at the cutter. A clean taper and a correctly seated collet will do more for your finish than any parameter change.

X 450 mm, Y 200 mm, Z 400 mm with a 700 × 200 mm table defines the class. Small gears, brackets, plates, enclosures, and fixture components fit. A single small vise plus a stop and a tool-setting block is a realistic setup.

Larger parts do not fit, and no amount of clever fixturing changes that. A housing that needs 600 mm of travel, a panel, or a structural component has to go to a bigger machine. Shops that run a D6000E usually keep a second tier of equipment for exactly this reason: prototype and small-batch work on the benchtop, production on a larger mill.

Before you quote a job, lay the part out in the envelope including the tool length and the fixture. The number that catches people is Z. A tall part plus a long tool plus a chuck can run out of travel faster than expected.

An optional dividing head, for example an HU-200 class unit, adds limited 4-axis indexing. You can machine one face, index 90 degrees, machine the next face, and hold a repeatable angular position. For parts with features on three or four sides, that saves a lot of re-fixturing.

It is not simultaneous 4-axis or 5-axis motion. The control and the mechanics are not set up for the coordinated moves that a curved blade or an impeller needs. If your part requires the tool to follow a continuous path around a rotating axis, this machine cannot do it, and no post-processor will fix that.

Use the dividing head for what it is: a way to reach more faces of a prismatic part in one setup. Treat anything with sculpted surfaces as a job for a dedicated multi-axis machine.

The control side is PC based and open. Mach3, Mach4, or LinuxCNC are the usual choices. That means you can tune acceleration, set soft limits, and add a probe or a touch plate without asking a vendor for permission. For a shop that likes to solve its own problems, that is a real advantage.

It also means the control is only as good as the PC and the setup. A noisy parallel port, a slow laptop, or a badly tuned motor will show up as lost steps and bad parts. Keep the control PC clean, use a decent breakout board, and back up your configuration.

Open architecture does not mean free of responsibility. Someone in the shop needs to own the machine configuration, the tool table, and the post-processor. When that person leaves, the machine gets slower.

The spindle motor can be replaced with a 3 kW or 4 kW unit driven by a VFD. The gain is real but narrow. More power helps when you are running a larger cutter in aluminum or taking a heavier finishing pass in mild steel, where the 2.2 kW unit would start to bog down.

Do not expect the upgrade to turn this into a heavy roughing machine. The frame, the column, and the slideways set the ceiling. A 4 kW spindle pushing a cutter that the structure cannot support will chatter, and chatter is worse than a slow pass. Power without rigidity just wastes tool life.

If you do the upgrade, match the VFD to the motor, set the current limit correctly, and check the spindle runout after installation. A new spindle that is not dialed in will finish worse than the old one.

A large share of D6000E machines end up in schools, training centers, and small shops where someone is learning. That is a good fit. The machine is small enough to be safe around students, the control is open enough to explain what is happening, and the work envelope keeps the parts affordable.

For training, the value is that a student can see the whole process. Set the zero, touch off the tool, run the program, measure the part, and adjust. On a large enclosed machining center, most of that is hidden behind doors and a controller.

If you are buying for a training shop, budget for tooling and workholding as well as the machine. A mill with two end mills and one vise teaches less than the same mill with a proper set of collets, a face mill, and a few fixtures.

The last fact is the one that matters most. The D6000E rewards a machinist who plans the process. Tool selection, stepover, depth of cut, workholding stiffness, and measurement discipline decide the result more than the machine badge does.

That is true on any mill, but it is obvious here because the machine has limits. When the frame is light and the envelope is small, you cannot brute-force a part. You have to think about how the cutter enters the material, where the vibration comes from, and how you will measure the feature when it is done.

The same thinking scales up. A shop that runs a benchtop mill with good process control will run a 5-axis machine the same way. A shop that skips the process step will struggle on both.

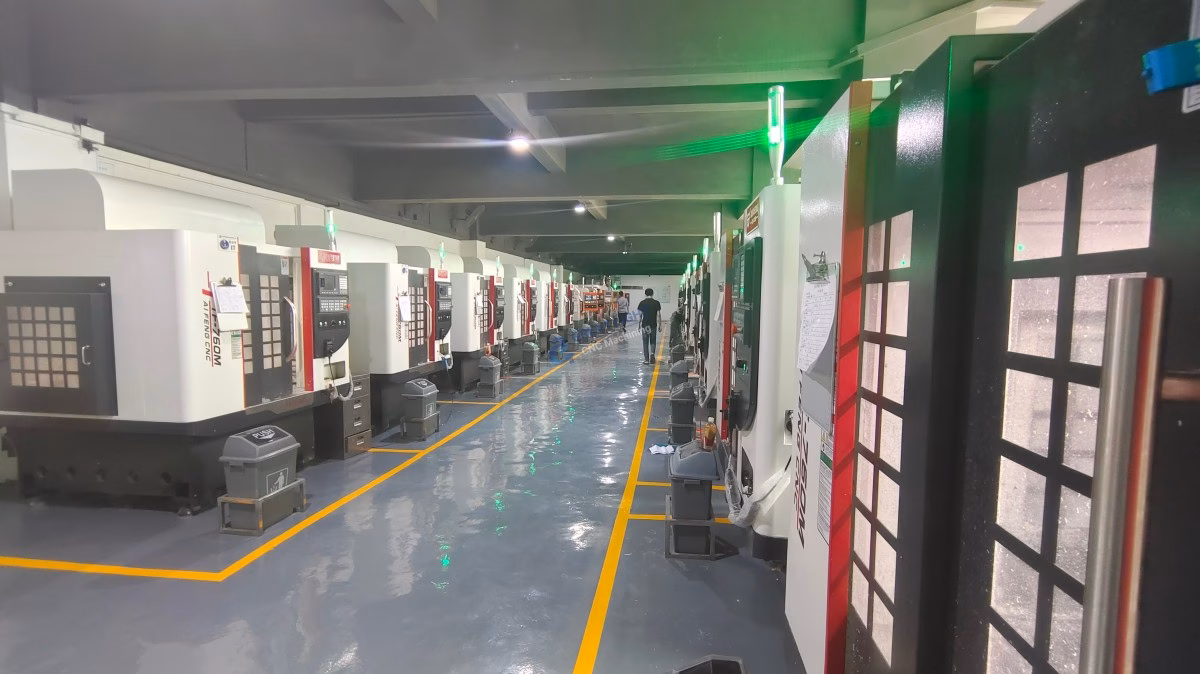

If a job outgrows the envelope, the spindle speed, or the rigidity, that is not a failure of the machine. It is a signal to move the work to a machine built for it. GreatLight runs 127 high-precision CNC machines, including 16 simultaneous 5-axis centers and a maximum processing size of 4,000 mm, so parts that leave the benchtop can continue on equipment sized for them. Tolerances run to ±0.005 mm with finishes from Ra 0.2–0.8 μm, and every order is inspected before shipment.
