7 Essential Tips for Choosing the Right High Precision CNC Milling Machine

Rigidity is the first thing to check when choosing the right high precision machine, because everything downstream depends on it. A 15,000 rpm spindle bolted to a thin frame will chatter in aluminum and burn tools in 17-4PH stainless. Cast iron mass, rib layout and the way the column meets the base decide how much cutting force the structure absorbs before vibration reaches the tool tip.

Ask for the casting weight and the linear guide size, not just the travel. On a machine with a 750 × 1,150 × 550 mm envelope, a base that weighs a few hundred kilograms behaves very differently from one that weighs several tonnes. Thermal behavior matters too. Spindle, ball screws and sometimes the bed need cooling or compensation, otherwise the first part of a long run and the last part drift apart.

A useful check for any supplier: how many of the machines are owned rather than subcontracted, and what the maintenance interval is. A rigid machine that has not been leveled or re-scraped in years will not hold ±0.005 mm.

Short version: heavy frame, cooled screws, documented service. Skip any of the three and precision becomes a per-part gamble.

• 1
  Cast iron base and columnMass damps chatter, which protects tool life and surface finish.
• 2
  Cooled ball screwsLimits growth during long unattended cycles.
• 3
  Leveling and re-scraping recordsGeometric accuracy decays without scheduled service.

Spindle choice follows the material and the feature, not the other way around. Aluminum 6061 and 7075 want high rpm and high feed. Titanium TC4 (Ti-6Al-4V) and Inconel want torque at low rpm plus through-spindle coolant, because heat has to leave the cut with the chip. Deep pockets, thin walls and small internal radii all push the same way: a stiffer, slower, better-cooled cut beats a fast one that deflects.

Then look at the control. The question is not which brand, it is whether the control supports the toolpaths your parts need. Look-ahead for many small segments, 5-axis transformation, in-process probing and tool breakage detection all live in the control. If the machine has to be re-posted every time the CAM version changes, that is a hidden cost.

Automation readiness is the same conversation. A pallet pool, a bar feeder or a robot cell changes the economics of a 10,000-part run far more than a small gain in rapid traverse. For a single prototype, none of it matters.

One rule of thumb: buy the spindle the part needs and the control the shop can maintain. Both must be serviceable locally.

• 1
  Aluminum and plasticsHigh rpm, high feed, generous coolant.
• 2
  Titanium and InconelLow rpm, high torque, through-spindle coolant.
• 3
  Thin walls and deep pocketsStiffness and toolpath control beat raw speed.
• 4
  High-volume runsPallet changing or a robot cell pays back fastest.

A catalog tolerance is a promise. A measurement report is evidence. When a supplier quotes ±0.005 mm, ask what it applies to: the machine geometry, a specific feature on a real part, or an ideal test coupon. These are three different numbers.

The practical checks are boring and effective. Ballbar or laser interferometer reports, a first-article inspection report on your own drawing, and a clear statement of where the measurement was taken. For turned features, a Ø400 mm rotary table adds its own error stack, so the combined tolerance is what matters.

Surface finish should be quoted the same way. Ra 0.2–0.8 μm is a fine finish that usually needs a separate operation or a purpose-built tool. Ra 0.8–1.6 μm is a normal high-precision machined finish. Ra 1.6–3.2 μm is as-machined and often fine for internal surfaces.

If the report does not name the instrument and the date, treat the number as a target, not a capability.

• 1
  Ballbar or laser reportShows geometric and dynamic error of the machine itself.
• 2
  First-article reportShows what the process holds on your geometry.
• 3
  Gage R&R on critical featuresSeparates process variation from measurement variation.
• 4
  100% inspection before shipmentCatches drift that sampling would miss.

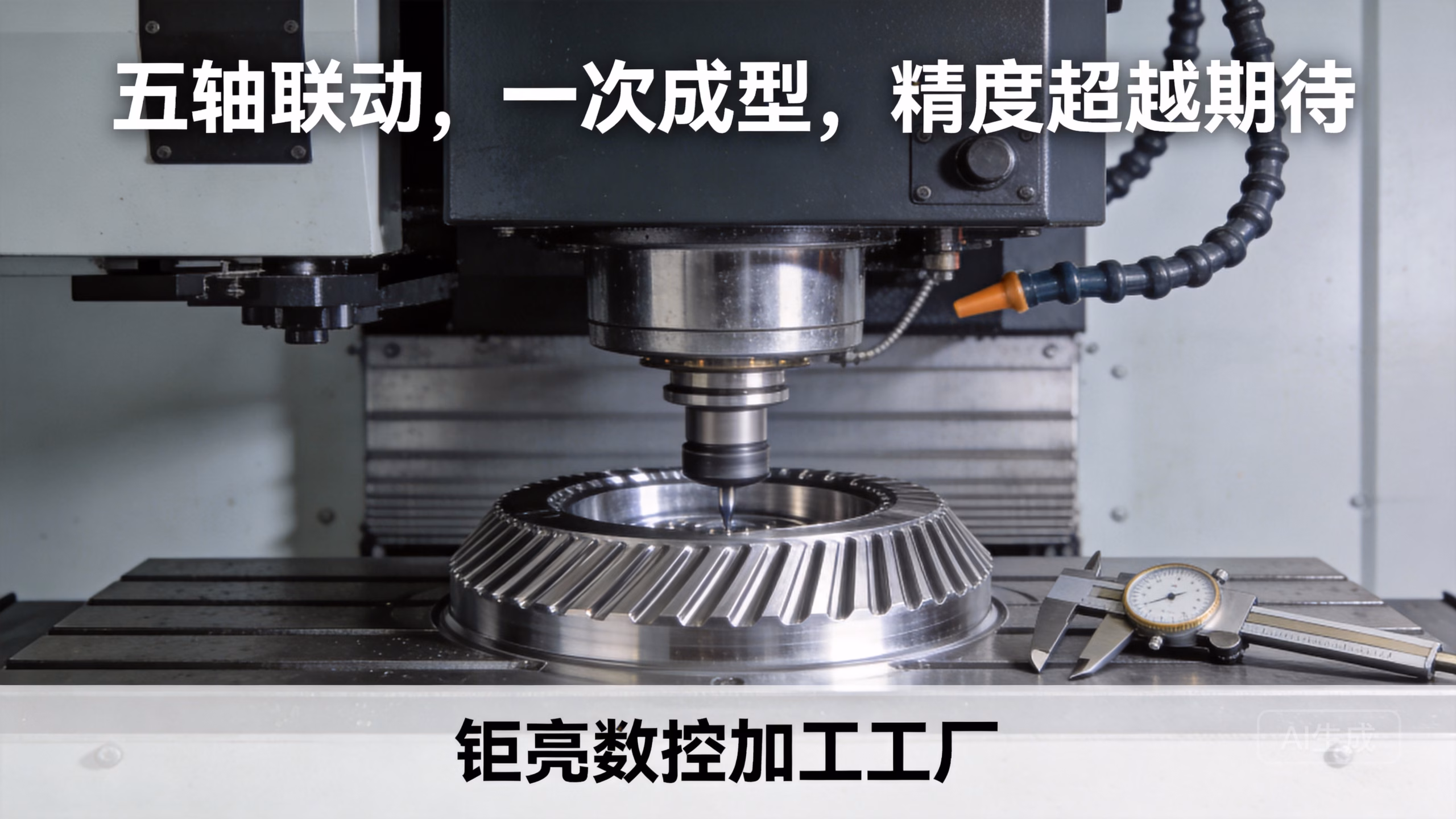

Five-axis is not automatically better. It pays off when the part has compound angles, undercut features, or needs to be finished in one setup to protect datums. A 5-axis machine also needs a post-processor, simulation and a probing routine that are maintained. Without those, the extra axes just add programming risk.

For simpler geometry, a 3-axis machine with good fixturing will hold tighter tolerances at lower cost. The honest test is whether your part needs the tool to approach from more than one direction at the same time. If not, do not pay for simultaneous motion.

The quality system is the other half. ISO 9001:2015 covers process discipline. IATF 16949:2016 is what automotive programs expect. ISO 13485:2016 applies to medical devices, where traceability is not optional. ISO 27001:2022 covers information security, which matters when you upload CAD files and drawings to a supplier portal.

Ask how material certificates, inspection records and revisions are linked to the part number. If that chain breaks, a good part cannot be proven good.

• 1
  Use 5-axis whenCompound angles, undercuts or one-setup datum control.
• 2
  Stay on 3-axis whenFeatures are accessible from one or two simple directions.
• 3
  Check certificationsMatch the certificate to your industry, not the brochure.
• 4
  Check traceabilityMaterial certs and inspection data tied to the revision.

Per-part price hides the expensive parts of a program. Scrap rate, rework, inspection time, freight and the engineering hours spent chasing a supplier are all real cost. A machine that holds tolerance over a 10,000-part run usually beats a cheaper one that needs babysitting.

Setup and fixturing belong in the calculation. A part that needs three setups on a 3-axis machine may cost less to program but more to run than the same part in one 5-axis setup. Tooling cost follows the material: titanium and Inconel wear tools faster, and that shows up in the quote.

Volume changes the answer. For a single prototype, no minimum order quantity and a fast quote matter most. For production, automation and process capability matter. For both, late delivery is the quiet killer, which is why historical on-time data is worth asking for.

Run the numbers on scrap and inspection first. They are usually larger than the difference in machining rate.

• 1
  Scrap and reworkA 1% scrap rate on a complex part can cost more than setup.
• 2
  Setup countEach refixturing adds time and position error.
• 3
  Tool wearTitanium and Inconel consume tools faster.
• 4
  Delivery riskDelays cost more than a few cents per part.
