7 Essential Tips for Mastering Your CNC Threading Machine

A thread is a controlled helical form. The insert has to match the flank angle, pitch and root radius of that form before any speed or feed is set. A 60° insert cutting a 55° Whitworth form will produce a thread that gauges poorly no matter how well the machine runs.

Match the insert to the material, not the other way around. Aluminium 6061 and 7075 cut cleanly with sharp, polished carbide and a positive rake. For 304 or 316 stainless, use a tougher grade with a PVD coating to limit built-up edge, and expect to change inserts sooner than in aluminium.

Thread milling changes the decision. On a mill, a single-point or multi-flute thread mill can cut threads larger than the tool diameter, which matters on large bores and on thin-wall parts where lathe chucking distorts the thread. It is slower per thread, but it removes the risk of a thread that cannot be gauged.

One practical check: write the required pitch diameter and tolerance class on the setup sheet before the first part, not after.

• 1

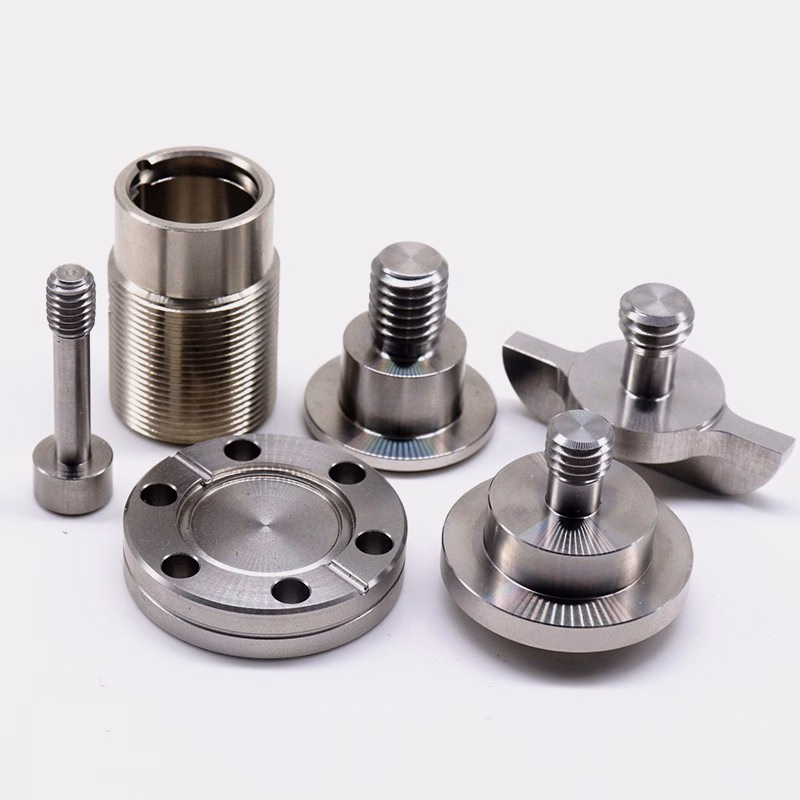

  External threadsShank, stud, fitting and fastener work, usually on a lathe with a single-point or chaser insert.
• 2
  Internal threadsBores, ports and housings; tool overhang and chip evacuation become the main limits.
• 3
  Thread millingBest on large diameters, thin walls and parts that cannot be turned between centers.

Catalog speeds are a starting point. The real limit is machine rigidity, tool overhang, workpiece condition and how the thread is held. A long threading bar in a small bore will chatter at a speed that a short bar handles without noise.

On a rigid setup, thread depth is usually taken in passes rather than one plunge. The first passes remove most of the material; the last passes skim the flanks and control finish. Reduce the last-pass depth on hard materials and on threads where the gauge is close to the limit.

Torque feedback is worth watching on long runs. If spindle load rises part to part on the same program, the insert edge is wearing or the material batch changed. Adjust before the threads go out of tolerance, not after the gauge rejects a batch.

Threading makes long, stringy chips. On an external thread they wrap the part. On an internal thread they sit in the bore and get recut, which damages the flank and can break the tool. Neither is a speed problem; both are chip problems.

Direction helps. On an internal right-hand thread, cutting from the bottom of the bore outward pushes chips ahead of the tool and out of the hole. On deep bores, program a peck cycle with a retraction point so the chip breaks or clears instead of packing.

Through-tool coolant at high pressure is the most reliable way to break chips in stainless and titanium. Where the tool cannot deliver through-coolant, use a strong directed stream and a shorter thread depth per pass. Do not rely on air alone in gummy materials.

Check the chip after the first part. A short, curled chip means the setup is close. A long ribbon means the depth, coolant or insert geometry still needs work.

Thread inspection is not one number. Pitch diameter, flank angle, lead, root radius and surface finish all matter, and the acceptance method should be agreed before production. If the customer gauges with a go/no-go ring, inspect the same way.

For critical threads, add a thread micrometer or a three-wire measurement on the pitch diameter. Optical comparison against a thread form chart catches flank and root problems that a go gauge passes. On medical and aerospace parts, this is normal practice, not extra work.

Record the readings at first-off, mid-run and last part. A drift of a few tenths on the pitch diameter over a run tells you the insert is wearing before the gauge fails the part. That data is also what supports a documented inspection report if one is requested.

• 1
  Go/no-go gaugeFast, functional, and the usual acceptance method for production threads.
• 2
  Thread micrometerDirect pitch diameter reading on external threads; good for drift tracking.
• 3
  Three-wire methodUseful when a micrometer or a ring gauge is not available for the size.
• 4
  Optical checkConfirms flank angle and root radius on first-off and on suspect parts.

A thread that needs a second operation is a thread with two chances to go wrong. On a mill-turn or 5-axis center, a bore can be drilled, tapped or thread milled, and the mating face machined in one setup. Concentricity between the thread and the sealing face stays where the machine put it.

This matters on hydraulic and pneumatic parts, where a thread and an O-ring face share a tolerance stack. It also matters on parts with threads on more than one axis, which otherwise need a fixture per orientation.

Multi-axis does not automatically mean faster. Cycle time can rise against a dedicated lathe with a second op. Choose it when the setup reduction or the geometric control pays for the extra cycle time.

For runs from one prototype to 10,000+ parts, it is often worth comparing both routes before committing the tooling.

Coolant in threading does three jobs: cool the edge, lubricate the flank, and move the chip. The mix and pressure should follow the material. Aluminium wants high flow and good lubrication. Stainless and titanium want high pressure and a concentration that keeps the edge alive.

Through-tool delivery is the preferred route on internal threads in deep bores. Where the tool does not support it, aim the nozzle at the entry of the thread and keep the bore clear. A weak, poorly aimed stream is worse than no coolant, because it lets chips pack while giving the impression of coverage.

Track concentration and tramp oil at the machine, not only at the central tank. A sump that has drifted will show up as inconsistent finish long before it shows up as a rejected thread. Clean the tank on a schedule and treat the fluid as part of the process.

Every thread on a drawing should have a setup sheet: insert part number, grade and coating, holder, overhang, program number, pass depths, coolant setting, gauge type and the pitch diameter limits. It takes an hour to write and saves a shift when the job returns.

Keep the first-off inspection readings with the sheet. When a thread fails months later, the record shows whether the process drifted or the drawing changed.

Training is the other half. A new operator should be able to read the sheet, set the tool, run a first-off and know which reading to check. If the sheet cannot be followed without asking, it is not finished.

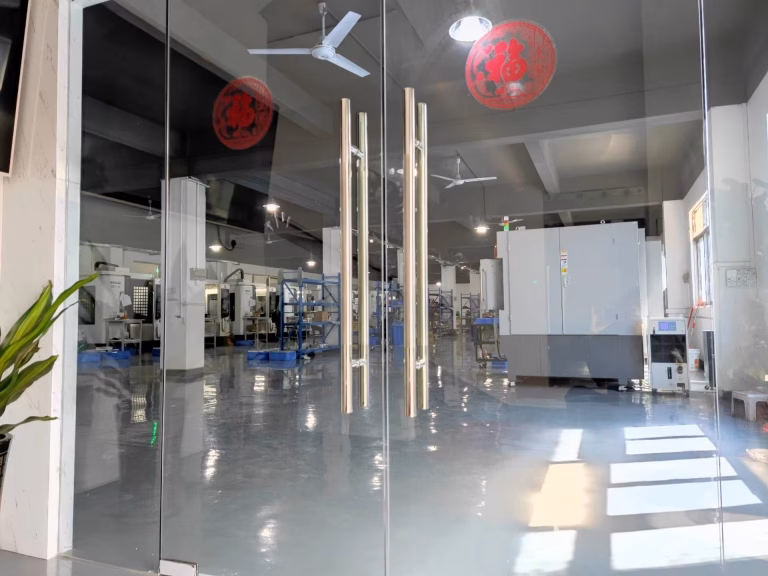

At GreatLight, threading runs sit inside the same process control as the rest of the part: raw material check, in-process monitoring and a full inspection before shipment, with reports on request.
