Most prototyping cost is locked in at the CAD stage, long before a spindle turns. A prototype CNC machine cuts whatever geometry you send it, so an unbounded sketch turns into extra tooling, extra setups and extra inspection. Ask for a DFM review while the model is still editable. At GreatLight the quotation and DFM analysis come back within 12 hours, and the notes are usually about three or four features, not the whole part.

Start with internal corners. A sharp inside corner cannot be cut by a rotating tool, so the shop either sinks an EDM electrode or leaves a radius anyway. Model 0.5–1 mm fillets on pocket corners and the part machines with standard tooling. On a deep pocket, keep depth-to-width under about 4:1 unless the function really needs more. Beyond that ratio, a long-reach end mill deflects, and the shop slows the feed to hold size.

Check the floor-to-wall junctions too. A small fillet where the wall meets the floor removes the stress riser the tool leaves behind and lets a bull-nose cutter run at a normal feed rate. Draft angles matter less in machining than in molding, but they help if the part may later move to casting.

Add a note about datum surfaces. Two flat faces and a clean hole pattern give the machinist something to clamp and probe. Parts with no flat reference often need a soft jaw fixture, which is real cost for a one-off.

Engineers default to the production material. That is safe for a final validation build and expensive for a fit check. Decide what the prototype must prove. If it only proves geometry and assembly, the cheapest alloy that holds the tolerances wins. 6061-T6 covers a wide range of brackets, housings and plates, and it machines fast.

Strength, temperature and chemical exposure change the answer. Titanium TC4 (Ti-6Al-4V) or Inconel are justified when the part sees heat, load or corrosion. If the prototype only demonstrates packaging, they are money burned on tool wear and long cycle times.

Plastics follow the same logic. ABS, POM or PA handle most enclosures and fixtures. PEEK and similar high-performance polymers earn their price only when thermal or chemical resistance is the point of the test.

Material form matters as well. Plate stock is cheaper than an oversized billet, and near-net extrusions cut roughing time. Send the shop the finished envelope and let them pick the stock size. A part modeled inside a 200 mm cube may machine from a 160 mm plate with no loss of function.

• 1
  Fit and form onlyAluminum 6061-T6, ABS, POM
• 2
  Load or heat4140, 17-4PH, TC4 (Ti-6Al-4V)
• 3
  Chemical exposure316L, PEEK, PTFE

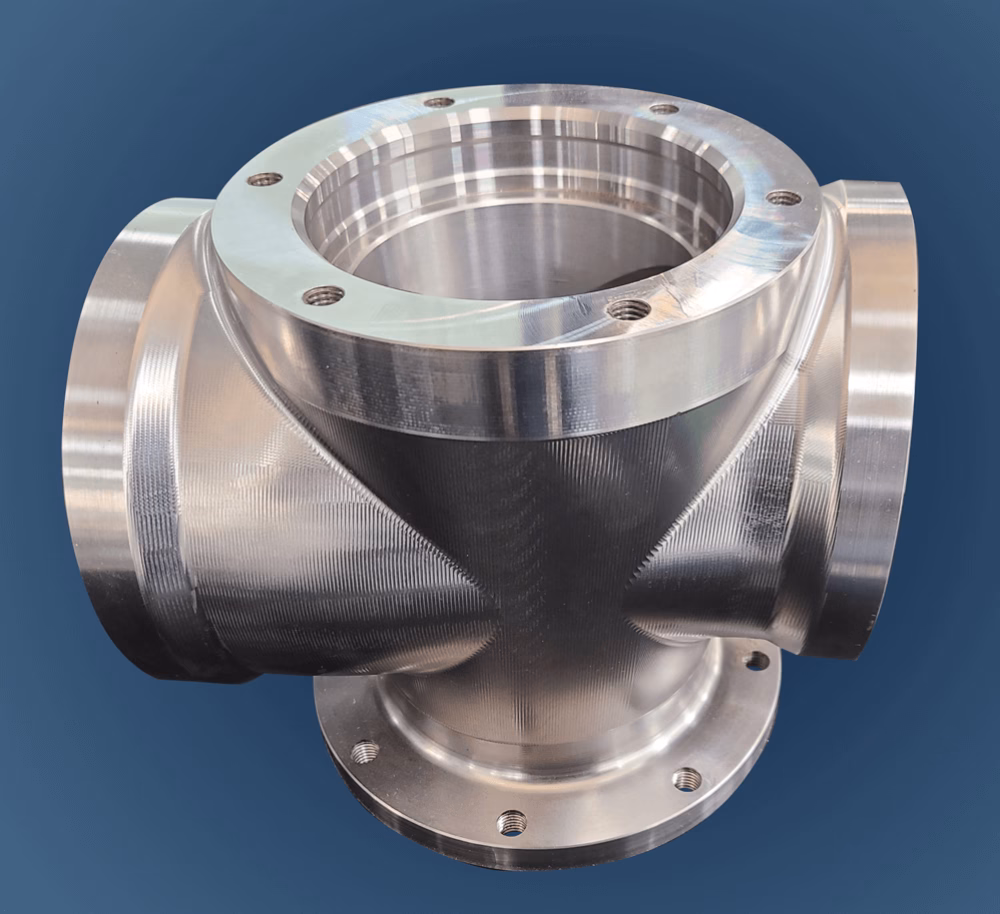

Setup is the quiet cost driver. Every time a part leaves the vise, someone re-zeroes it, and the tolerance stack grows with each move. A part that runs in one 5-axis operation is usually cheaper than a simpler part that needs three 3-axis setups, even though the machine rate is higher.

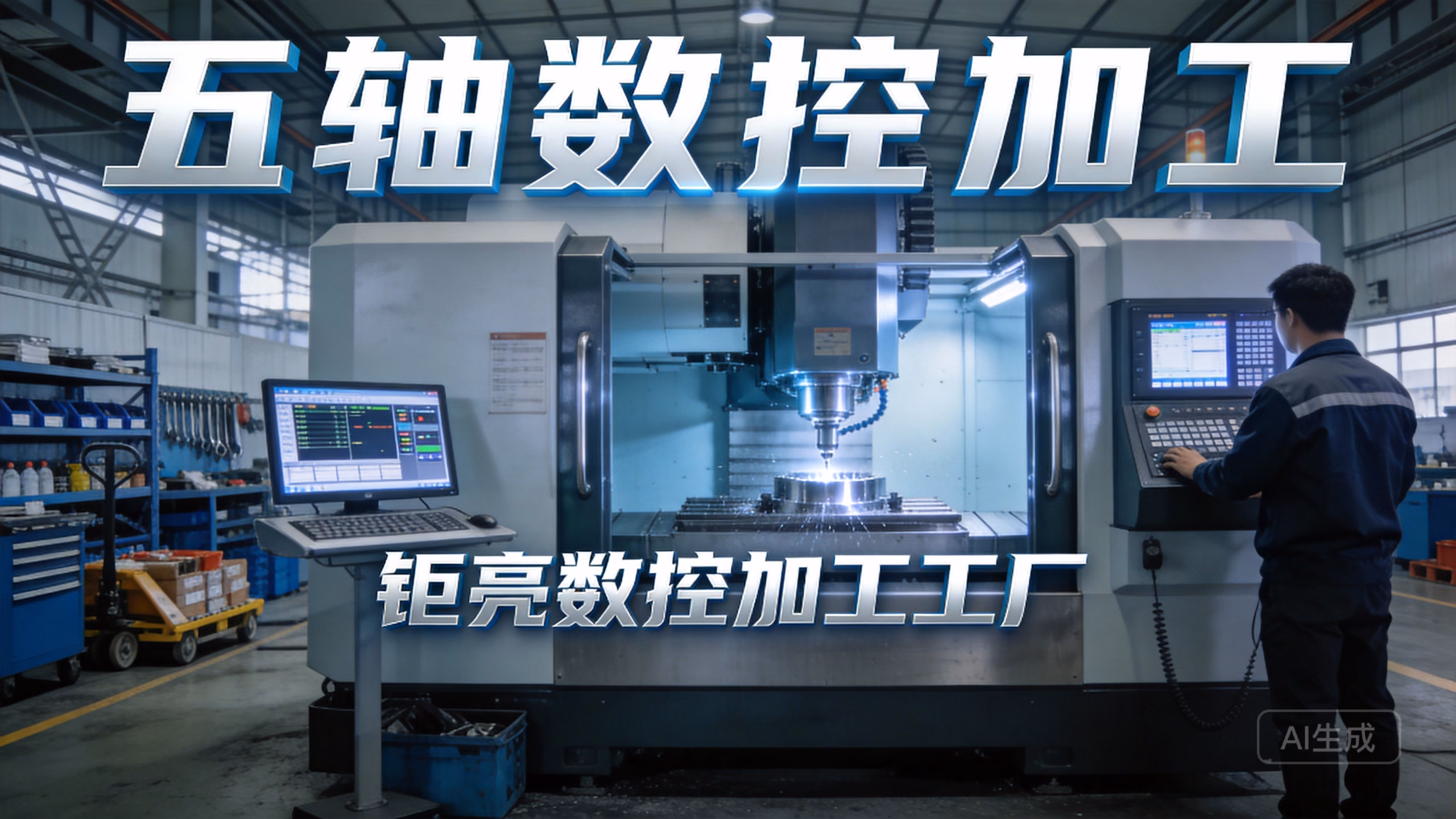

Look for features that can be reached from one direction. If a hole pattern sits on the opposite face, ask whether it can be drilled from the same side by tilting the table. GreatLight runs 16 simultaneous 5-axis machining centers with a Ø400 mm rotary table, which covers most prototype envelopes in a single operation.

When multiple setups are unavoidable, design the sequence. Rough the first side, flip, finish both, then drill cross holes. Give the machinist a flat face to clamp on each time.

Watch thin walls. A 0.8 mm wall on a 100 mm part will chatter and spring. Thicken it to 1.5–2 mm for the prototype and note that production can go thinner once the process is proven.

Tolerances drive inspection time more than machining time. A drawing where every dimension carries ±0.005 mm means every dimension gets measured and reported. Apply tight tolerance only to the features that control function: bearing bores, mating faces, alignment holes. Leave general dimensions on a title-block tolerance.

The same applies to surface finish. Ra 1.6–3.2 μm as-machined is correct for most functional prototypes, and it is what a normal finishing pass produces. Ra 0.8–1.6 μm needs a finer step-over and more time. Ra 0.2–0.8 μm is for sealing faces and optical seats, not for a bracket.

Batch the parts. Setup, programming and first-article inspection are fixed costs, so two or three units cost far less than double one unit. Extra units also give you spares for destructive testing. Run five instead of one if the budget allows, then test two to failure.

Keep the finish schedule honest. Anodizing, plating and powder coating add days and handling. If the prototype is going on a test rig, bead blasting or tumbling may be enough. Laser marking needs a minimum character height of 1.5 mm to stay legible.
