7 Proven Aerospace Milling Strategies to Boost Efficiency and Reduce Costs

A conventional offset toolpath holds one stepover for the whole pass. When the cutter swings into a corner, radial engagement jumps and the tool loads up. On a 1.5 mm titanium rib that shows up as chatter, and in a deep pocket it shows up as a broken cutter. Adaptive toolpaths vary stepover to keep radial engagement and chip load steady instead.

The gain is largest where the part is weakest. Thin-walled structures, deep cavities and long contours are exactly the geometry that punishes a constant stepover. Holding a steady chip load also cuts the thermal shock that wears an edge, so the same insert lasts longer and the wall stays straight.

Adaptive roughing is not free. It generates far more code, so look-ahead and machine acceleration matter. On a small three-axis machine with a slow control, the toolpath can spend more time decelerating than cutting. On a rigid machine with a fast control it usually wins, especially in titanium.

One caution: adaptive paths leave a thinner floor and lighter finishing allowance than offset paths. Leave enough stock for the finishing pass, or the final wall thickness will drift on the last cut.

• 1
  Use it forDeep pockets, thin ribs, tall walls, long contours
• 2
  Skip it forShort passes and slow controls with little look-ahead
• 3
  WatchFinishing allowance and floor thickness

Ti-6Al-4V and Inconel 718 do not behave like 7075 aluminum, so a single feed and speed table across the shop floor guarantees suboptimal results. Titanium work-hardens and holds heat at the edge. Inconel pushes cutting temperature much higher and notches the insert on entry. Aluminum lets you run fast but galls and burrs if the geometry is wrong.

We keep cutting data by material and by operation: roughing, semi-finish, finish, slotting. Each record notes the tool, coating, coolant strategy, depth of cut and the measured tool life. New jobs start from the closest record and get tuned on the first part, not guessed from scratch.

The parameters that matter most are surface speed, feed per tooth, axial depth and radial engagement. Change engagement and you change chip thinning, so the feed per tooth has to move with it. If your CAM posts the same feed for a 10 percent radial step and a 50 percent radial step, the tool load is not what the programmer thinks it is.

Speeds and feeds are also the cheapest place to fix tool life. Doubling feed per tooth in aluminum while keeping the same surface speed often doubles removal rate with no penalty. Doing the same in Inconel without adjusting surface speed burns the edge in minutes.

• 1
  Record per materialSpeed, feed per tooth, depth, engagement, tool life
• 2
  Recheck whenEngagement, tool coating or coolant changes
• 3
  Do notCopy titanium data onto nickel alloys

High-speed machining is a chip-load strategy, not a spindle-speed number. The idea is to take lighter radial cuts at higher feed per tooth so the heat leaves with the chip instead of soaking into the part. On thin aerospace skins that keeps distortion down.

The limiting factor is rarely the spindle. It is the control, the acceleration of the axes and the rigidity of the setup. A machine that cannot follow the commanded feed in corners will rub instead of cut, and rubbing work-hardens titanium.

Chip thinning has to be accounted for. When radial engagement drops below about half the cutter diameter, the actual chip gets thinner than the programmed feed per tooth suggests, so feed has to be raised. CAM software handles this, but only if the programmer enters real engagement values.

We run high-speed paths on 16 simultaneous five-axis centers, with a Ø400 mm rotary table for parts that need to be repositioned without losing the datum. For long airframe sections, travels reach 4,000 × 400 × 150 mm.

In titanium and nickel alloys the edge fails gradually before it fails suddenly. Flank wear grows, cutting forces rise, surface finish drifts, and then the insert notches or breaks. If you only notice at the break, you have already scrapped the feature.

Two practical tools: spindle load monitoring and a tool life counter tied to actual cutting time rather than cycle count. Load monitoring catches the gradual rise. The counter catches the tool that has run its hours even if the load still looks fine.

Planned changes beat reactive ones. Changing a roughing tool at 80 percent of expected life costs a few minutes. Changing it after a break costs a recut, an inspection and sometimes the part.

Mark each tool holder and log its history. When the same edge fails early three times in a row, the problem is usually the parameters, not the tool.

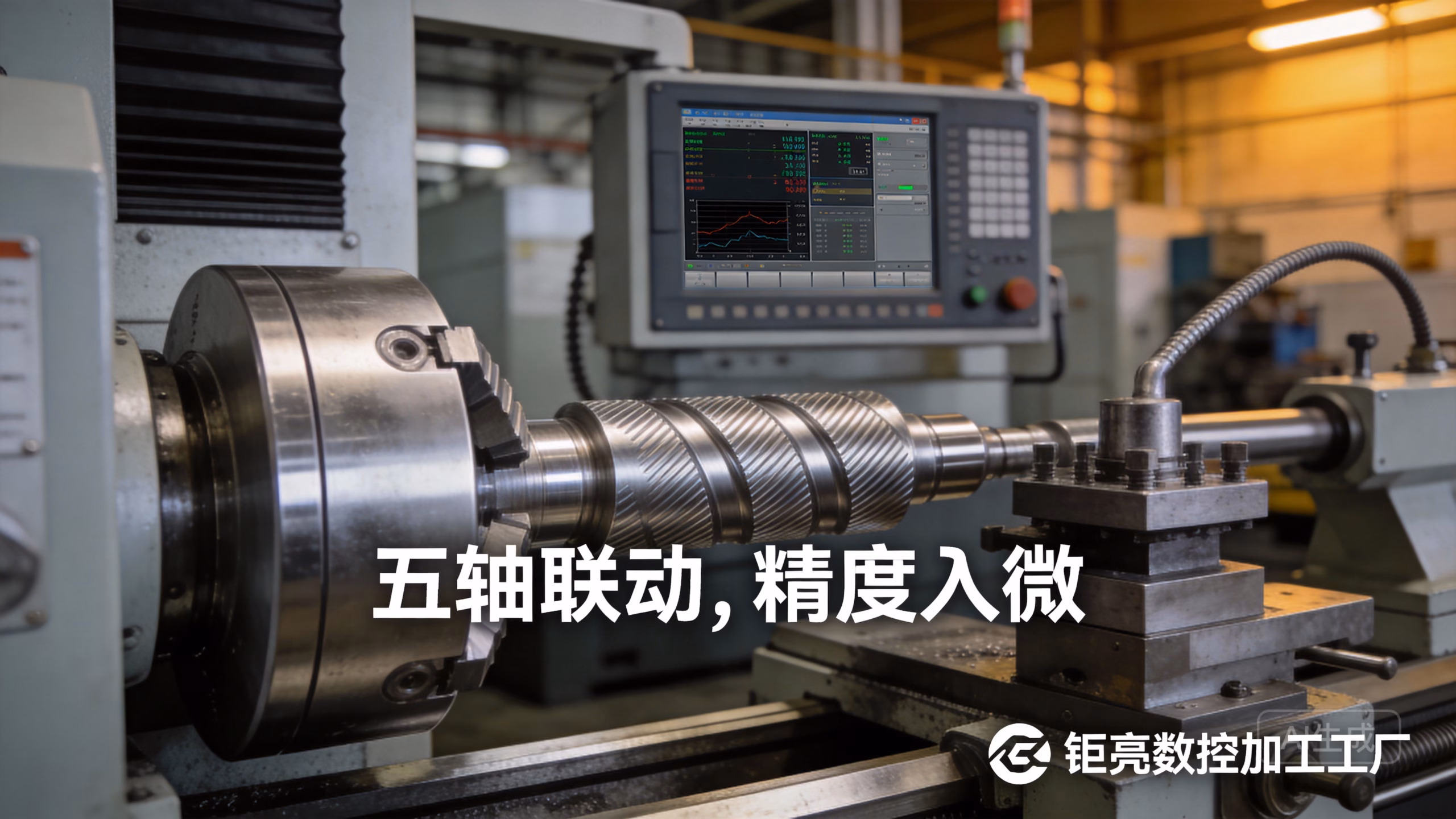

Three-axis machining of a contoured aerospace bracket needs multiple setups. Every setup adds a datum error, a fixture and queue time. Five-axis simultaneous machining tilts the tool to reach the feature and keeps one datum from start to finish.

The real saving is not the axis count. It is the setups you delete. A part that went through four operations on three-axis machines can often be done in two on a five-axis center, and the tolerance stack shrinks because the part is not moved between operations.

Tilting the tool also lets you use the side of the cutter on a surface instead of the tip. In a deep pocket that means a shorter, stiffer tool, less deflection and a better floor finish.

Not every part belongs on a five-axis machine. Simple prismatic parts with holes and slots are faster and cheaper on a three-axis mill. Five-axis time should be spent on features that cannot be reached any other way.

A weak setup defeats every other strategy. If the fixture flexes, the toolpath is not what the machine is cutting. The first thing to check on a chattering job is the workholding, not the speeds.

For thin-walled parts, support matters more than clamping force. Over-tightening a thin rib bends it, and the part springs back after the clamps come off. Soft jaws machined to the part profile, vacuum plates or low-melt fixturing spread the load and keep the wall where it belongs.

Access is the second half. The fixture must not block the toolpath or force long tool holders. Long holders deflect, and deflection shows up as taper in a deep pocket and as chatter at the top of a wall.

Design the fixture together with the process, not after. A fixture that takes an extra hour to build can save two hours of cutting and a scrapped part.

Final inspection tells you whether the batch is good. In-process inspection tells you whether the part you are cutting right now is drifting, while there is still time to correct it.

On aerospace parts we probe critical features between operations: a bore, a wall thickness, a datum face. If the measured value sits outside a set band, the offset is adjusted before the next part, not after the run.

Thermal drift is the usual reason a run drifts. The machine warms up, the spindle grows, and the last ten parts in a shift measure differently from the first ten. Probing catches that, and so does letting the machine warm up before the first cut.

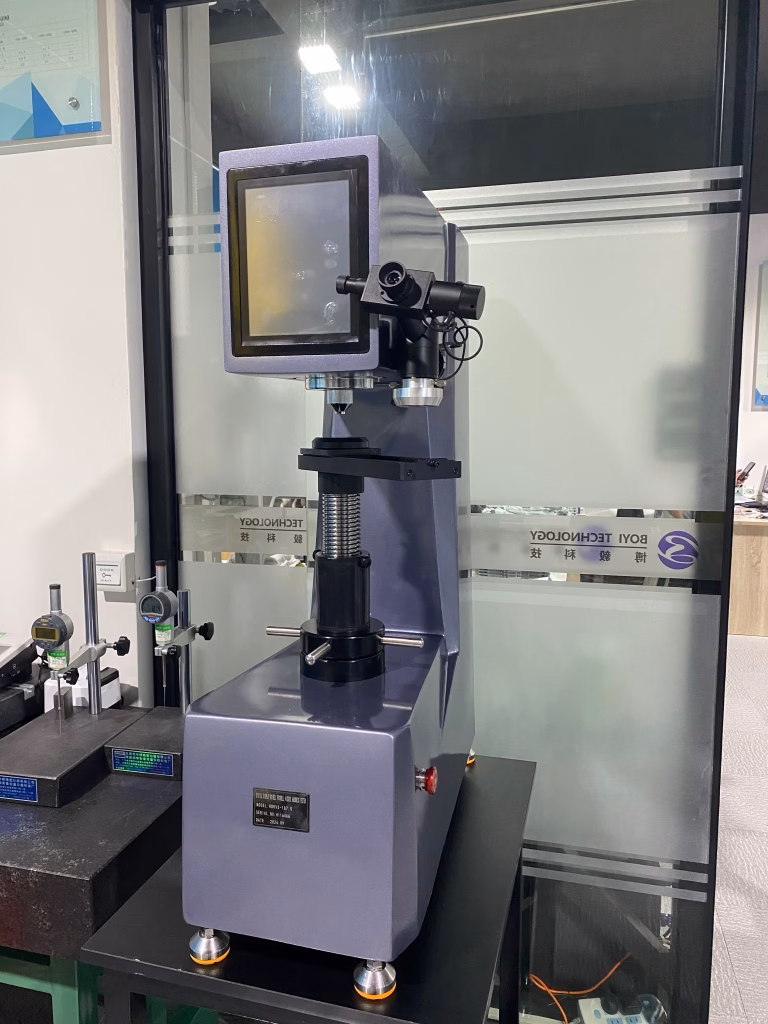

Every order ships with 100 percent inspection and reports on request: raw material check, in-process monitoring and final inspection. Tolerance holds at ±0.005 mm, and surface finish can be held at Ra 0.8–1.6 μm or finer where the drawing calls for it.

Faster cutting is not always cheaper. A toolpath that saves 20 minutes of cycle time but adds two hours of programming and a new fixture may never pay back on a five-part order. The reverse is true on a 500-part run.

The split usually falls along quantity. For one prototype, use proven parameters and simple workholding, and accept a longer cycle. For a repeating run, spend the engineering time on adaptive paths, dedicated fixtures and probing, because the savings repeat with every part.

Material drives the decision too. Aluminum forgives aggressive parameters. Titanium and Inconel punish them, so on those alloys we favor predictable tool life over the shortest possible cycle.

The seven strategies above are not a checklist to apply everywhere. Pick the two or three that match your part geometry, material and quantity, and measure the result against the previous process.
