7 Proven CNC 5 Axis Strategies to Boost Precision and Cut Production Costs

Every time a part leaves the fixture, error stacks. Re-clamping a complex part typically adds 5 to 20 μm of position error, and a five-setup job can collect that error five times. With a proven CNC 5 axis process, one workholding setup reaches five faces, so bores, faces, and contours are cut in the same coordinate frame.

The cost effect is larger than the accuracy effect. Each setup carries load time, proving time, and an inspection step. On a housing with six critical features, moving from four setups to one usually removes more hours than the faster cut path does.

One caution: the part still has to fit the work envelope and stay rigid while the table tilts. A long, thin shaft with an unsupported overhang is often better on a 3-axis lathe with a steady rest than on a trunnion table.

Chatter comes from too much radial engagement at a low lead angle. Tilting the tool changes the contact geometry, and this is where the rotary axes earn their keep. A 45° lead angle spreads the cut across more of the flute, dropping the radial chip load and the cutting force that drives vibration.

For deep pockets in 7075 or 17-4PH, the tool can be leaned into the wall so only the tip of the corner radius touches the material. Axial depth of cut goes up, radial stepover goes down, and the tool lasts longer because heat leaves with the chip instead of soaking into the edge.

Set the tool axis so the shank clears the wall before you tune speeds and feeds. If the holder rubs, no feed rate will fix it. Short, stubby tools with a large core diameter still beat long reach in most chatter cases.

Positional 5-axis, often called 3+2, locks the rotary axes and machines like a 3-axis job from a clever angle. It is rigid, easy to program, and the right answer for flat faces and straight bores that happen to sit at an angle.

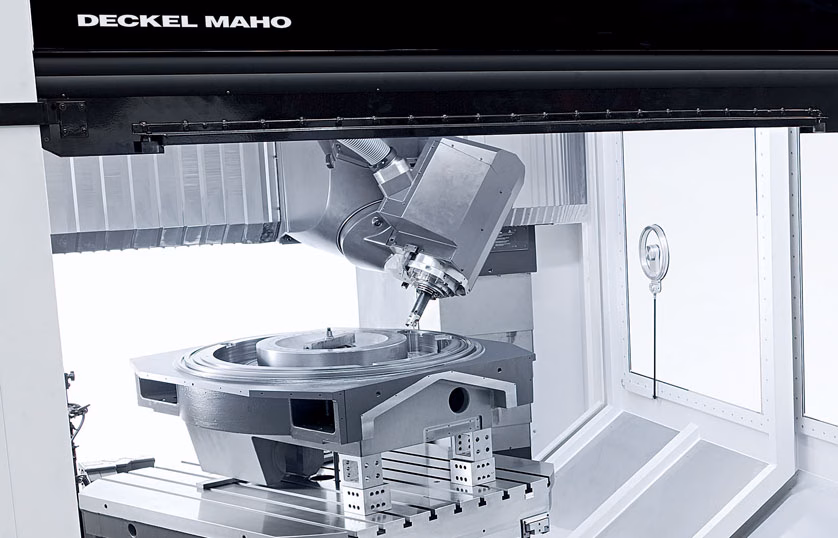

Simultaneous motion moves all five axes at once. This matters for swept surfaces, impeller blades, and any contour where the tool has to stay normal to a changing surface. The finish comes off the machine closer to final, so hand polishing drops or disappears.

Simultaneous cutting is slower to program and harder to verify, so use it where the geometry demands it. For a part with three angled pads and one free-form blend, run 3+2 for the pads and simultaneous only for the blend. Mixing both in one program is normal practice here.

Hard milling cuts hardened steel after heat treatment, in the 45 to 62 HRC range, using coated carbide and small stepovers. When the part is already on the machine for the soft operation, a second hard-milling pass removes the trip to an outside grinder and the re-fixturing that comes with it.

The limits are real. Hard milling wants a rigid setup, a thermally stable machine, and light radial cuts. Deep cavities with long reach tools will chatter, and thin walls can spring. Those parts go to grinding or EDM, and there is no shame in that.

Boring is the other accuracy lever. A boring head that can be adjusted on the machine lets us dial a bore to size and check it without pulling the part. Holding a Ø40 mm bore to ±0.005 mm is routine this way, while a reamer only gives you the size it was ground to.

Formed and stamped parts often need their edges trimmed, and the traditional route is a trim die or a wire EDM path. Both carry tooling cost and lead time. Five-axis trimming cuts the finished edge directly from the 3D model, following the same contour the die produced.

This suits low and mid volume work best. Under a few thousand pieces, a trim die rarely pays for itself, and EDM on a large formed panel is slow. Trimming on a five-axis center handles the curve, the draft, and the corner reliefs in one pass.

The part still needs a fixture that repeats its position, because a stamped panel has springback and no two sit exactly alike. Locate from the same datums the die used, and the trimmed edge lands where the drawing says it should.

Workholding decides whether the five-axis plan survives contact with the spindle. A trunnion tombstone, a self-centering vise on a Ø400 mm rotary table, or a custom soft-jaw nest all do the same job: hold the part so the tool can reach every face without the fixture blocking the path.

Design the fixture around the toolpath, not the other way round. Check the holder and the shank against the model at every tilt angle, because a fixture that looks clear in one view can foul the holder at 60° of table rotation.

For thin-walled parts, add support where the wall is weakest. Wax, low-melt alloy, or a bolted sacrificial lug can carry the cutting force while the wall is thin, then come off after the finishing pass. It costs a little time and saves a scrapped part.

An in-process probe turns the machine into its own inspector. Touch off the datums after the first op, update the work offset, and the second op starts from where the part actually is instead of where the fixture was supposed to put it. That closes the loop on setup variation.

Probing also catches drift before it becomes scrap. Measure a critical bore after roughing, and if it is running small, the finish pass can be offset before it cuts. The same probe data goes into the inspection report if the customer wants one.

It is not free. Probe cycles add minutes to each part, and the probe itself needs calibration. For a one-off prototype the time rarely pays back. For a 500-piece run with a ±0.005 mm bore, it usually does.
