In 3-axis milling the cutter approaches the part from one direction. Z stays vertical, and the table moves in X and Y. That limit is also an advantage: the setup is simple, the machine is stiff, and the programmer has full control over radial engagement and stepover.

Many shops still run parallel or zigzag paths because they are easy to generate. These paths cause sudden engagement spikes at corners and plenty of air cutting. Adaptive clearing and trochoidal milling keep the radial engagement constant instead. The tool spends more time in the cut at a lower load, which raises material removal rate without raising spindle load.

Stepover is the lever most people ignore. Dropping it by a small amount can raise tool life sharply while adding only a little cycle time. If a tool breaks every 40 minutes, the fix is usually engagement, not feed rate.

Not every part benefits. Adaptive paths make sense for deep pockets, hard materials and thin walls. For a flat plate with a few holes, a plain offset path is faster to program and just as quick to cut.

• 1
  Good fitDeep pockets, hardened steel, thin ribs, long reach tools
• 2
  Skip itFlat plates, open profiles, short cycle jobs under a few minutes
• 3
  Check firstAsk the CAM programmer for radial engagement values, not just the path name

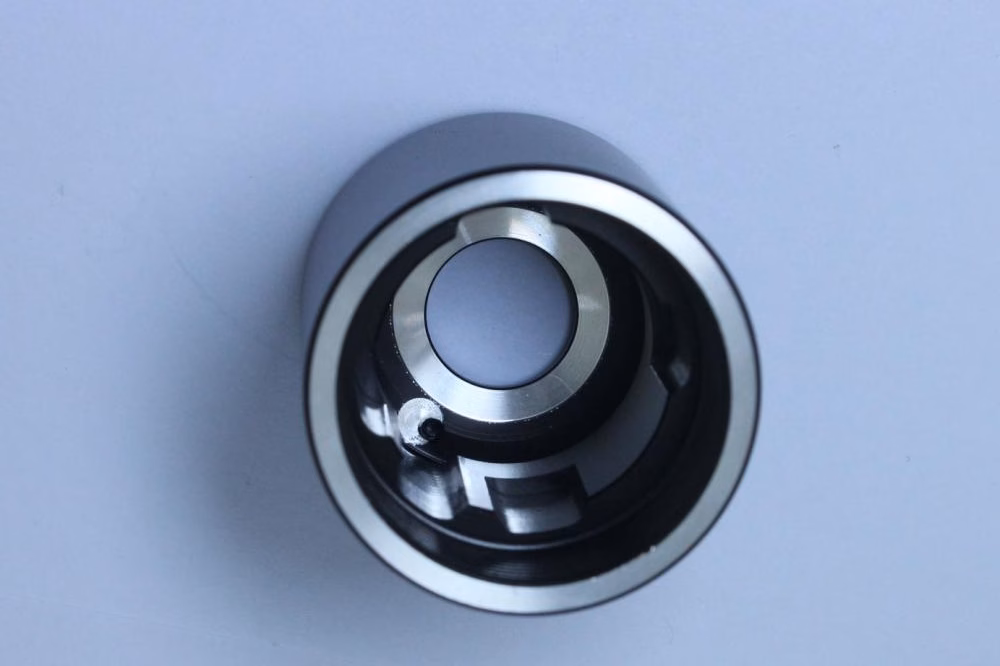

Cost reduction in 3-axis milling often starts at the tool holder. A cheap collet chuck with 0.02 mm runout forces you to slow the feed to protect the corners. A hydraulic or shrink-fit holder holds runout near 0.003 mm, so the same end mill can run faster and leave a better floor finish.

Carbide grade and coating matter as much as geometry. Variable helix end mills break up chatter harmonics, which is what allows aggressive depths in aluminum and stainless. AlTiN and DLC coatings extend tool life in abrasive and gummy materials.

Speeds and feeds should come from a cutting data source, then be adjusted on the machine. Start conservative on the first part, listen to the cut, and step up feed until chip color and sound change. That takes one setup, and it pays back across the whole run.

Balanced tool assemblies help too. Balance grade G2.5 or better at the spindle nose reduces vibration at high rpm, which protects both surface finish and tool life.

Every additional setup adds re-fixturing time, a new zero point and a new chance of error. On a 3-axis machine you cannot reach five sides in one operation the way a 5-axis machine can, so the goal is to plan the fewest setups that still reach every feature.

A soft jaw cut in place on the machine gives you a true, repeatable pocket for the blank. That single habit removes most of the tapping and shimming that eats setup time. For flat parts, a vacuum plate or a fixture plate with dowel pins lets you load and go.

Where the part allows it, plan a dovetail or a carrier tab into the stock. The tab holds the part while you cut the profile, then comes off in a second light operation. This keeps small parts from flying and lets you mill the full outline in one pass.

For low-volume work, a modular fixture plate beats a dedicated welded fixture. The plate costs less, arrives faster and can be reused on the next job.

On many 3-axis jobs the spindle is idle for a third of the cycle. Tool changes, rapid moves, probe cycles and manual checks all add minutes that do not remove metal. Tracking them is the first step.

Group tools by length and by function so the changer moves in a short sequence. Keep the tool library accurate: a wrong length offset triggers a slow, cautious first pass and sometimes a scrapped part. Verify offsets offline where the controller supports it.

In-process probing pays off on batches above a few dozen parts. The probe finds the stock position at the start of each cycle, so the operator does not need to dial in every blank by hand. On a long run, that alone can save more than the probe costs.

For prototypes, do not automate a job that runs twice. Setup time dominates, and a simple vice and a good CAM template will be faster.

High-speed machining is not only about rpm. It means shallow radial cuts, deep axial cuts, a constant chip load and a control that can look ahead through thousands of blocks. The result is a lighter, more consistent load on the spindle and the tool.

A 3-axis machine with a 12,000 rpm spindle and a look-ahead control can run HSM paths well in aluminum and mild steel. The limits show up in harder materials: spindle torque and machine rigidity decide how far you can push axial depth.

Corner accuracy is the usual failure point. Without look-ahead and feed rate limiting, the tool overshoots on tight radii and the wall thickness drifts. If your controller is older, keep a small radius allowance and finish with a spring pass.

The payoff is real on deep cavities and long profiles. On many parts we see cycle time drop noticeably, and tool life improve at the same time, because the load is steady instead of spiking at every corner.

A worn tool does not fail suddenly. It starts rubbing, then the finish goes dull, then the dimensions drift. Watching spindle load and chip shape catches this early. On long runs, log load per tool and change tools on a count, not on a hunch.

Predictive maintenance follows the same logic. Track spindle run hours, changer cycles and coolant condition, and service on a schedule. A machine that is out of alignment will not hold ±0.005 mm no matter how good the program is.

The cheapest saving happens before the job is released. A DFM review of the 3D model and 2D drawing catches features that force extra setups, tools that need long reach, and tolerances tighter than the function requires. Those three items drive most of the cost in 3-axis milling.

Send the model early. A short review before you cut metal is worth more than any change made after the first article is inspected.
