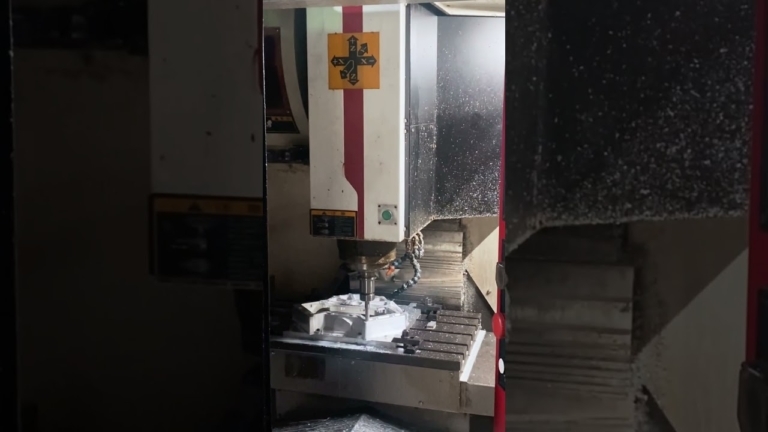

Every machined auto part is a stack of features. A bore, a face, a slot, a thread, a chamfer. The machine choice follows the features, not the other way around. Turning handles round, concentric geometry in one setup, so a shaft with two bearing journals and a shoulder stays on a lathe. Milling handles prismatic shapes, pockets and flat mounting faces. When a part needs both, a mill-turn center or a second setup takes over.

Engineers often ask whether 5-axis is worth it. It is worth it when the part has features on more than two faces, or when a single setup removes a stack-up error that would otherwise eat the tolerance budget. Off-axis oil holes, angled sensor bosses and contoured surfaces fall into this group. For a simple bracket with three drilled holes, 3-axis milling is faster and cheaper.

The number of setups is the quiet cost driver. Each setup adds a workholding step, a datum shift and a chance for chip re-cutting. A part held in a vise, flipped, and re-clamped four times can lose more accuracy than a part cut on a 5-axis machine in one pass. Designers who reduce the feature count across faces reduce the real cost.

Fixture design deserves a look before quoting. Thin walls deflect under clamping pressure. Long, unsupported sections vibrate. A workpiece that is 4,000 mm long but only 150 mm tall needs support along its length, which is why large-travel machines are paired with custom fixturing. The fixture is not an afterthought; it sets the achievable tolerance.

• 1
  Round and concentricKeep on a lathe or mill-turn center.
• 2
  Prismatic and pocketedKeep on a 3-axis or 4-axis mill.
• 3
  Features on many facesMove to 5-axis to cut setups.
• 4
  Thin or long sectionsBudget for a custom fixture.

A ±0.005 mm callout does not sit alone. It competes with machine thermal drift, tool wear, material springback and fixture repeatability. On a well-maintained 5-axis center, ±0.005 mm is achievable on a bored hole under 50 mm. Push the same callout onto a long, unsupported face and the number becomes a wish, not a spec.

The practical rule is to tighten only the features that touch something else. A bearing bore, a seal groove and a mating face carry the tight number. Clearance holes, non-critical fillets and cosmetic edges can sit at ±0.1 mm or looser. When every dimension on a drawing is ±0.005 mm, the shop either quotes high or asks for a change, and the change usually helps both sides.

Surface finish interacts with tolerance. A Ra 0.8–1.6 μm finish on a sealing face supports the fit. A Ra 1.6–3.2 μm as-machined finish on a bracket is fine and cheaper. Fine finishes below Ra 0.8 μm need slower passes, sharper tools and often a secondary operation, so they belong only on functional surfaces.

Material changes the picture again. Aluminium 6061 and 7075 hold tight tolerances well because they cut cleanly and move little. Stainless 316 and 17-4PH work-harden, so a light finishing pass can rub instead of cut. Titanium TC4 and Inconel move more under heat and need conservative depths of cut. The tolerance is not a property of the machine alone.

• 1
  Tight only where it matesBores, seal grooves and mounting faces.
• 2
  Loosen the rest±0.1 mm on clearance holes is normal.
• 3
  Match finish to functionRa 0.8–1.6 μm for seals, rougher elsewhere.
• 4
  Expect material effectsStainless and titanium resist fast finishing passes.

The material list for auto work is narrow compared with general machining. Aluminium 6061-T6, 7075 and ADC12 cover brackets, housings and covers. Stainless 303, 304, 316L and 17-4PH cover fittings, shafts and parts near exhaust or coolant. Steel 1018, 1045, 4130 and 4140 cover structural and wear parts. Titanium TC4 and Inconel appear in high-temperature or high-strength positions.

Each family carries a machining signature. Aluminium 6061 cuts at high spindle speeds with good chip evacuation. Stainless 316 needs slower surface speeds and generous coolant to avoid work-hardening. 17-4PH in the H900 condition is harder to cut than the annealed state, so the drawing should state the condition. Inconel and titanium need rigid setups, sharp tools and low engagement.

Finishing follows the function. Anodizing in clear, colour or hardcoat suits aluminium brackets and covers. Electroless nickel and zinc plating protect steel and add wear resistance. Powder coating and black oxide cover larger surfaces. Bead blasting, brushing and polishing tune appearance and surface roughness. Laser marking adds part numbers and traceability codes, with a minimum character height of 1.5 mm.

Two finishing choices are easy to get wrong. Hardcoat anodizing builds a thick oxide layer that can shift a tight bore by a few micrometres, so mask or ream after coating. Plating on threads changes the pitch diameter, so specify the pre-plate size. These are small notes on a drawing, but they prevent a rework loop.

• 1
  Aluminium 6061-T6Fast to cut, holds tolerance, anodizes well.
• 2
  Stainless 316 and 17-4PHState the condition; expect slower speeds.
• 3
  Steel 4140Structural and wear parts, good fatigue life.
• 4
  Titanium TC4Rigid setup, low engagement, extra cost.

Inspection starts before the first cut. Raw material certificates confirm the alloy and heat number. A first-article inspection checks every dimension on the drawing against the CAD model. In-process checks catch tool wear and thermal drift during the run. Final inspection confirms the shipped parts match the approved sample.

For automotive work, the paperwork matters as much as the part. IATF 16949:2016 defines the quality system requirements for automotive production. ISO 9001:2015 covers general quality management. ISO 13485:2016 applies to medical devices. ISO 27001:2022 covers information security, which protects customer drawings and CAD files. These certificates tell a buyer that the shop has a documented process, not that every part is perfect.

A control plan ties the drawing to the measurement method. A bore checked with a plug gauge is not the same as a bore checked with a CMM. Both can be valid, but the drawing should say which one governs. When the tolerance is ±0.005 mm, a gauge R&R study keeps the measurement uncertainty below the tolerance band.

Traceability closes the loop. A lot number links the raw material heat, the machine, the operator, the inspection record and the finish batch. If a field failure appears months later, the lot number narrows the search to a specific run. That is the difference between a containment and a recall.

• 1
  Material certs firstAlloy and heat number before cutting.
• 2
  First article plus in-processCatches drift, not just the first part.
• 3
  Measure method on the drawingGauge and CMM are not interchangeable.
• 4
  Lot traceabilityLinks material, machine, operator and finish.

The processing route changes with volume. A single prototype can be cut from a billet on a 3-axis or 5-axis machine with no tooling investment. A 10,000-part run justifies a soft-jaw fixture, a custom workholding plate and sometimes a dedicated second-operation machine. The geometry stays the same; the setup time per part drops.

Prototype and production should share a datum scheme. If the prototype is measured from one face and the production part from another, the two will not agree. Designers who fix the datums early avoid a surprise at the first production shipment. The CAD model, the drawing and the inspection plan should all reference the same three planes.

Lead time is a planning input, not a promise. A quotation and free DFM analysis can come back within 12 hours, and production can start within 24 hours after approval. Parts typically ship in 3–5 days. Those are working figures for a well-defined part with available material, not a guarantee for every order.

Cost follows the same logic. Fewer setups, looser non-critical tolerances, standard material and a finish that matches the function all reduce price. Adding a tight tolerance to a cosmetic surface adds cost without adding value. That trade is worth a conversation before the drawing is frozen.

• 1
  One-offBillet, no tooling, fastest to first part.
• 2
  Low volumeSoft jaws and simple fixtures.
• 3
  High volumeDedicated workholding and second-op machines.
• 4
  Keep datums fixedPrototype and production must agree.
