CNC Centerless Grinding Machine Service: 7 Checks Before You Order

• 1
  Key takeaways
• 2
  What to Compare Across CNC Centerless Grinding Machine Service Suppliers
• 3
  Which Parts Suit a CNC Centerless Grinding Machine Service
• 4
  Tolerance, Finish and What the Numbers Really Cost
• 5
  How to Vet a CNC Centerless Grinding Machine Service
• 6
  Where Buyers Get Burned on Centerless Grinding Quotes
• 7
  Step by Step: Running a Centerless Grinding Job

Centerless grinding removes material from the outside diameter of a cylindrical part. The workpiece rests on a work rest blade between two wheels: a grinding wheel that cuts and a regulating wheel that controls rotation and feed. There is no chuck and no center hole, so the part is supported along its full length. That is why long, thin shafts hold straightness better here than on a cylindrical grinder.

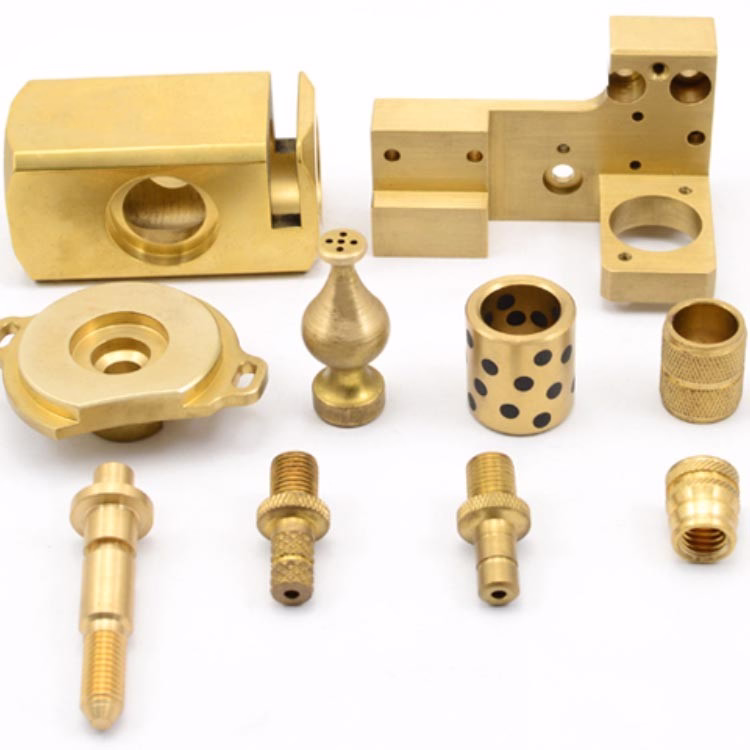

The process suits hardened pins, spindle shafts, dowel pins, hydraulic rods, bearing races, bushings, valve stems and rollers. A useful rule: if the part is round and the diameter is the main functional surface, centerless is a strong candidate. Materials we grind regularly include 1045 and 4140 steel, 303, 304, 316 and 440C stainless, 17-4PH, TC4 titanium and Inconel.

Size range matters. Thru-feed grinding handles long bars, while infeed grinding handles shorter parts with a shoulder or a formed profile. Typical shop capacity covers diameters from roughly Ø1 mm up to Ø80 mm, and lengths from a few millimeters to several hundred. Very large diameters or heavy forgings usually move to a cylindrical grinder instead.

Not every round part fits. Parts with a keyway, flat, hex or cross hole interrupt the wheel contact and can catch on the blade. Parts with a large length-to-diameter ratio need a support steady, which centerless does not provide in the same way. Send the drawing early and we will tell you in the DFM review whether centerless or cylindrical grinding is the better route.

• 1
  Good fitPlain round shafts, pins, bushings and rollers with a clean outside diameter.
• 2
  Possible with careParts with a light shoulder, short undercut or a small chamfer.
• 3
  Better on another machineKeyways, flats, hexes, deep cross holes or a very short length to diameter ratio.

Diameter tolerance is the first number to fix. On a well-set centerless machine, ±0.005 mm is achievable on production lots when the wheel is dressed on schedule and the regulating wheel speed is stable. If the callout is looser than ±0.02 mm, grinding may be more expensive than turning, because you are paying for a second operation to remove far less material.

Surface finish and tolerance interact. A Ra 0.2–0.8 μm finish needs a finer grain wheel, a slower infeed and more spark-out passes. A Ra 0.8–1.6 μm finish is a normal production target and keeps cycle time reasonable. If you ask for both a very fine finish and a wide tolerance, you pay for the finish and gain nothing from the tolerance.

Roundness and taper are separate from diameter. A part can sit at nominal diameter and still fail on roundness, which shows up as noise or vibration in a rotating assembly. Ask the supplier to state the roundness limit in micrometers and to supply measurement data. We inspect 100% of parts before shipment and provide reports on request.

Tell the supplier how the diameter is measured. Micrometer over wires, air gauge, laser scan and CMM can give slightly different readings on the same part. Agree on the method before the first article, especially on thin walls where contact force can deflect the part.

• 1
  State tolerance and finish togetherOne without the other leads to a quote you cannot compare.
• 2
  Name the gauging methodMicrometer, air gauge or CMM readings differ on thin parts.
• 3
  Ask for roundness dataDiameter alone does not describe a rotating part.

Start with the machine and the wheel, not the brochure. A servo-controlled regulating wheel holds speed better than a mechanical drive, and that shows up as tighter diameter spread across a long run. Ask what wheel grade and bond the shop uses for your material, and how often the wheel is dressed. A shop that cannot answer this has not run your family of parts often.

Then check the quality system. ISO 9001:2015 covers general quality management. IATF 16949:2016 adds automotive requirements, ISO 13485:2016 covers medical devices and ISO 27001:2022 covers information security. If your part goes into a car or a surgical instrument, a supplier holding the matching certificate saves you an audit later.

Look at the surrounding operations. Many ground parts also need turning, milling, heat treatment, plating or anodizing. A shop that finishes the diameter in-house and then sends the part out for coating adds freight and handling, which is where scratches and dents come from. GreatLight runs 127 high-precision CNC machines across three plants, so turning, grinding and finishing can stay under one roof.

Finally, confirm the commercial terms in writing. Ask for the quotation and DFM feedback window, the production start time after PO, and the inspection plan. An NDA is available on request, and uploads stay confidential. Our quotation and free DFM analysis are returned within 12 hours, and production can start within 24 hours.

• 1
  Wheel and dressingAsk for grade, bond and dressing interval for your material.
• 2
  Matching certificatePick ISO 9001, IATF 16949 or ISO 13485 based on your industry.
• 3
  One-roof finishingFewer handoffs means fewer handling defects.

The most common mistake is specifying a tolerance the function does not need. A ±0.005 mm callout on a decorative sleeve adds cost and adds risk. Go back to the assembly drawing and check what the diameter actually controls: bearing fit, seal lip, sliding clearance. If ±0.02 mm works, say so and the quote will drop.

The second mistake is ignoring stock removal. Centerless grinding is a finishing process. If the incoming bar or turned blank is 0.5 mm oversize, the shop has to take heavy passes, which burns the wheel and can bow a thin part. Leave 0.05–0.3 mm of stock on the diameter for grinding, and tell the supplier the condition of the incoming part.

The third mistake is a drawing without a datum or a straightness note. Centerless grinding follows the part as it sits on the blade. If the incoming shaft is bent, the ground diameter will follow the bend. State straightness and, when it matters, add a pre-straightening step to the plan.

The fourth mistake is chasing the lowest piece price on a 50-piece lot. Setup, wheel dressing and first-article inspection are fixed costs. On small lots, a shop with fast setup and no minimum order quantity often beats a cheaper per-piece rate from a shop that batches your job behind a large automotive run.

• 1
  Do not over-specifyMatch the tolerance to the fit, not to a habit.
• 2
  Control the stockLeave 0.05–0.3 mm on the diameter for grinding.
• 3
  Watch the small lotFixed setup cost dominates below a few hundred pieces.
