CNC System Design at High Speed: Where Milling Limits Come From

• 1
  What the Control Loop Actually Governs
• 2
  Why Fast Cuts Lose Accuracy First at the Corners
• 3
  Where the Loop Stops and the Iron Starts
• 4
  What This Means for the Parts You Send Out
• 5
  Which Specification Matters for Which Job

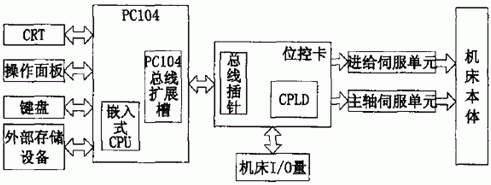

A high-speed milling control is a chain, not a box. The CAM post produces a stream of points or arcs. The interpreter converts them into motion commands. The interpolator turns those into position setpoints at the servo update rate. The drive closes the loop on the motor, and the mechanical train carries the torque to the tool edge. Every link adds delay, and delay is what limits speed.

The loop closes at two very different rates. Interpolation typically runs at 1–4 kHz, while the current and velocity loops run at 8–16 kHz. A block executed in 0.25 ms leaves very little time for anything complex, so the controller must be predictable rather than clever.

Look ahead is the part that separates a fast control from a smooth one. The interpolator reads 100–1,000 blocks forward, estimates the feedrate each block can sustain, then slows down before a tight arc instead of after it. Without that buffer, the machine overshoots the corner and the cutter bites too much material.

Servo stiffness sets how fast the axis can be pushed before it starts to lag. A stiffer loop tracks the setpoint with less following error, which keeps the tool on the commanded path. Push the gain higher than the mechanics allow and the axis starts to ring at the natural frequency.

Encoder resolution is the floor under all of it. A 1 μm encoder cannot resolve a 5 μm step, no matter how the gains are tuned. This is why a control upgrade alone rarely fixes an accuracy problem that starts in the feedback device.

Feedrate and accuracy trade against each other, but not evenly along a path. Straight sections tolerate high feed with almost no loss. Arcs, corners and direction reversals are where error shows up, because that is where the axis must accelerate.

Centripetal acceleration is the governing number on an arc. For a radius R and a commanded feed F, the required acceleration scales with F²/R. Halve the radius and you quadruple the acceleration demand at the same feed. That is why a control rated for 40 m/min on a large contour may only hold 8 m/min on a 2 mm corner.

The controller has three ways to handle that demand: reduce feed, accept the error, or use a tolerance mode that lets the path deviate inside a set band. Tolerance mode is legitimate for roughing. It is not acceptable on a sealing face or a bearing bore.

Jerk limiting is the softer answer. Instead of letting acceleration step instantly, the control ramps it over 10–50 ms. The path stays closer to nominal, the machine vibrates less, and the cycle time cost is usually small. On hard materials it also reduces tool chipping at entry points.

A control can only correct what it can measure and what the mechanics can deliver. Once the command leaves the drive, the ball screw, the linear guide and the machine frame take over. Their stiffness and their thermal drift set the ceiling on what any tuning can achieve.

Ball screw pitch error is repeatable and can be mapped. Thermal growth is not. A screw that warms 5 °C over a long run shifts position by roughly 0.06 mm per meter of length for steel. On a 4,000 mm travel machine that is a real number, and it is why thermal compensation or a cooled screw is standard on large high-speed machines.

Backlash is the other quiet failure. It appears as a small hesitation when the axis reverses, which shows up as a witness mark on the wall of a pocket. A control with backlash compensation can mask it, but the wear is still there and the compensation value drifts.

Guide preload matters more at high feed than at low feed. A lightly preloaded linear guide can hold 5 μm at 2 m/min and lose 20 μm at 20 m/min under the same cutting load, because the changing direction of the cutting force moves the carriage inside its clearance.

For a buyer, the practical question is not which control brand is on the machine. It is whether the shop has matched the control settings to the feature being cut. A shop that runs one global feed and tolerance setting for every job will produce good parts on simple geometry and marginal parts on thin walls and tight corners.

Toolpath strategy follows from the same physics. Trochoidal and constant-engagement paths keep the radial cut width steady, which keeps the cutting force steady, which keeps the following error steady. That is why they hold tolerance on deep pockets where a conventional offset path fails.

Material choice sets the ceiling too. Aluminum 6061 and 7075 allow high surface speed with modest force, so the control is usually the limit. Inconel and Ti-6Al-4V generate high force at low surface speed, so rigidity and tool life dominate and the control becomes secondary.

Surface finish claims need to be read with the geometry in mind. A finish of Ra 0.2–0.8 μm is achievable on a stable machine with a sharp tool and a light finishing pass. The same control on a long, slender tool will chatter and produce a far rougher surface regardless of the settings.

Verification is what closes the loop for the buyer. A first article with a dimensional report, checked on a CMM against the drawing, tells you whether the control and the mechanics together held the tolerance on the features that matter.
