Most documents with that name are machine maintenance schedules: spindle warm-up, way-lube intervals, ball-screw backlash checks. Useful for the shop floor, but not what a buyer needs. The version that matters to you covers the plan for your part, from purchase order to shipping carton.

It should name the machines assigned to the job and their travel limits. At GreatLight that means 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. Maximum processing size is 4,000 mm, with a Ø400 mm rotary table for round features.

The manual should also tie each material class to a process route. Aluminium 6061-T6 cuts differently from 17-4PH stainless, which behaves nothing like Inconel. If the document lists materials without saying how the route changes, it is a catalog, not a service manual.

One more thing to look for: a defined path for non-conformances. What happens when a bore comes out 0.01 mm over? Who is told, in what time, and what evidence comes back to you? A manual that answers this in two sentences is worth more than ten pages of boilerplate.

A single tolerance figure for a whole part is a red flag. Real shops quote per feature. A mounting face might be ±0.05 mm and be perfectly fine; a bearing bore at ±0.005 mm needs a different setup, sometimes a different machine, and often a temperature-controlled room.

Ask which features need the tight number and whether the quote reflects it. If a supplier offers ±0.005 mm across every dimension without asking, they have not read the drawing. On a 4,000 mm part, thermal drift alone eats that budget.

Surface finish works the same way. Ra 0.2–0.8 μm usually means a finishing pass on a dedicated tool path, sometimes lapping or polishing after machining. Ra 1.6–3.2 μm is a normal as-machined result on aluminium and mild steel. Ra 0.8–1.6 μm sits in between and is the range most functional sealing faces land in.

The manual should say which finish the shop can hold as-machined and which one needs a secondary operation with added cost and days. That single sentence saves most quoting arguments later.

Four certificates appear on GreatLight documentation: ISO 9001:2015 for general quality management, IATF 16949:2016 for automotive and EV work, ISO 13485:2016 for medical devices, and ISO 27001:2022 for information security. Each one answers a different question, and a supplier who only holds the first will struggle with the other three.

For automotive buyers the useful part of IATF 16949 is the discipline around change control and production-part approval. For medical work, ISO 13485 pushes the same discipline toward device history records. Neither is a marketing badge. They change how drawings, revisions and inspection data are stored.

ISO 27001 matters more than most engineers expect. Your CAD files, material specs and volumes are commercially sensitive. A shop handling them without an information security management system is a leak path, not just a quality risk.

Traceability runs from the material certificate through to the shipping label. Ask for the raw material check and the final inspection report on the first order, even when the part is simple. If the paperwork arrives clean and matches the drawing revisions, the process is real.

Quotation speed tells you whether the shop has an engineering review before pricing. At GreatLight, quotation and free DFM analysis come back within 12 hours, and production can start within 24 hours of approval. Parts typically ship in 3–5 days.

Those numbers only hold when the drawing is complete. Missing datums, undefined threads or a finish callout with no Ra value will push the quote back to you as questions, which is the correct behavior. A price returned in an hour with no questions usually means nobody looked closely.

Order size is the other filter. Plenty of shops want 500 pieces minimum and will quote a prototype at a punishing rate. GreatLight runs no minimum order quantity, from one prototype to 10,000+ part runs, on the same process route.

Historical late-delivery probability sits below 2%. That is worth asking about directly, because a shop that tracks it will have a number, and one that does not will change the subject.

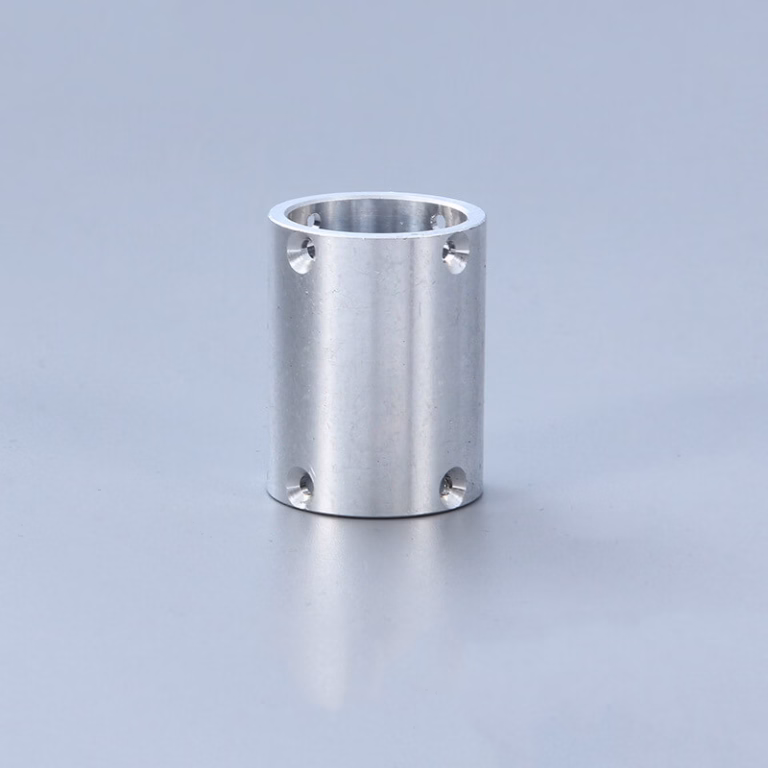

A useful manual lists materials by the route they take, not by catalog number. Aluminium 6061, 7075, 2024, 5052, 5083, 6063, 6082 and ADC12 all machine well but differ in strength, corrosion behavior and anodizing response. 7075 gives high strength and poor weldability; 6061 is the safe general choice.

Stainless covers 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH (SUS630). 303 machines freely and is common for shafts. 316L is the medical and marine pick. 17-4PH can be aged to high strength but needs the heat-treat step written into the schedule, and that adds days.

Steel grades 1018, 1045, 4130, 4140, 4340, A36 and tool steel behave predictably, though 4140 and 4340 want pre-hardened stock or a post-machining heat treat to hold geometry. Titanium TA1, TA2, TC4 (Ti-6Al-4V) and Inconel cut slowly, generate heat and wear tools; expect longer cycle times and a higher price per part.

Finishes close the loop: anodizing (clear, color, hardcoat, conductive), electroless nickel, zinc, silver and gold plating, powder coating, black oxide, bead blasting, tumbling, brushing and polishing, plus laser marking with a minimum character height of 1.5 mm. If a finish is listed without a lead-time effect, ask why.
