CNC Machining Service PA: How to Vet a Supplier Before You Order

• 1
  Key takeaways
• 2
  What to check, what good looks like, and what to walk away from
• 3
  What a CNC machining service PA Buyers Keep on the List Actually Does
• 4
  Tolerance, Surface Finish, and Inspection: Read the Numbers
• 5
  Certifications and Material Fit Decide Who Can Take the Job
• 6
  One-Stop Process Chain: Fewer Vendors, Fewer Gaps
• 7
  Cost, MOQ, and Lead Time: Where Quotes Hide Risk
• 8
  Industry Fit: The Same Shop Is Not Right for Every Part
• 9
  7 steps to vet a CNC machining service PA supplier

Most buyers searching for a cnc machining service pa are not looking for a website. They are looking for a shop that will still answer the phone in month three, when a revision lands and the launch date has not moved. That is a different question from price per part.

A useful test is the drawing itself. Send one part with a real tolerance stack, two tight bores, a surface finish callout, and one feature that needs a second setup. How the shop responds tells you more than a catalog page. Does it come back with a DFM note, or just a number?

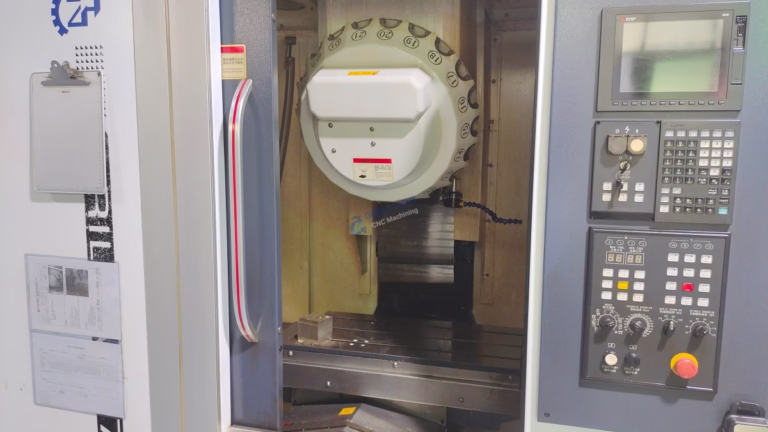

GreatLight runs three wholly-owned plants, 127 high-precision CNC machines, and about 150 technicians. Sixteen of those are simultaneous 5-axis machining centers and twelve are four-axis mills. That mix matters when your part has features that cannot be reached from one direction.

The maximum processing size here is 4,000 mm, with large travel of 4,000 × 400 × 150 mm. Medium and compact travels cover 750 × 1,150 × 550 mm down to 500 × 310 × 200 mm, and there is a Ø400 mm rotary table for round work. If your part sits outside those envelopes, say so early.

• 1
  Good fitParts from one prototype to 10,000+ pieces, aluminum through titanium
• 2
  Good fitWork needing second-op setups, tight bores, or 5-axis reach
• 3
  Poor fitParts far outside a 4,000 mm envelope
• 4
  Poor fitProjects where the tolerance callout is still undecided

A tolerance claim without a measurement method is marketing. The useful question is: which machine holds ±0.005 mm, on what size part, and with what gauge? A small turned bushing and a 2 m frame are not the same problem, even when the drawing says the same number.

Surface finish works the same way. As-machined parts land around Ra 1.6–3.2 μm. If the drawing asks for Ra 0.8–1.6 μm, the shop needs a finishing pass and probably a different cutter and feed. Asking for Ra 0.2–0.8 μm on a deep pocket usually means hand work or a second process, and that shows up in cost and lead time.

Inspection is where cheap quotes fall apart. A report that arrives with the box is worth more than a certificate on a wall. Look for raw material check, in-process monitoring, and final inspection, with reports on request.

GreatLight inspects 100% of parts before shipment and reports a qualification rate of 99.99%. Ask any supplier how they sample. If the answer is "we check the first part and the last part," the middle of your batch is unverified.

• 1
  ±0.005 mmTolerance we hold, equal to ±0.0002 in
• 2
  Ra 1.6–3.2 μmTypical as-machined finish
• 3
  Ra 0.8–1.6 μmFine finish, extra pass needed
• 4
  100% inspectionRaw material, in-process, and final checks before shipment

Certifications are not paperwork. They tell you which quality system is running behind the machine. ISO 9001:2015 is the baseline. IATF 16949:2016 is what automotive and EV buyers ask for. ISO 13485:2016 covers medical devices. ISO 27001:2022 covers how your files are handled.

If your part goes into a vehicle or a surgical instrument, a shop without the matching certificate will create a paperwork problem later, no matter how good the parts look. Raise it before the PO, not during first article approval.

Material range is the other filter. Common aluminum grades include 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075, and ADC12. Stainless covers 303, 304, 316, 316L, 420, 430, 431, 440C, and 17-4PH (SUS630). Steels run from 1018 and 1045 to 4130, 4140, 4340, A36, and tool steel.

On the harder side, titanium TA1, TA2, and TC4 (Ti-6Al-4V) are workable, along with Inconel and magnesium AZ31B or AZ91D. Plastics include ABS, PC, PMMA, POM, PA, PEEK, PP, HDPE, and carbon fibre. If your alloy is not on that list, ask before assuming.

The most common schedule killer in machining is not the cut. It is the handoff. A shop machines the part, then a second vendor anodizes it, then a third does laser marking, and your delivery date is now the weakest link in that chain.

A single process chain fixes most of it. Machining (3-axis, 4-axis, 5-axis), die casting, vacuum casting, sheet metal fabrication, metal and plastic 3D printing, and rapid prototyping can sit under one roof, with post-processing attached. Anodizing in clear, colour, hardcoat, or conductive; electroless nickel, zinc, silver, and gold plating; powder coating and black oxide; bead blasting, tumbling, brushing, and polishing; laser marking with a minimum character height of 1.5 mm.

For an engineer this means one drawing revision reaches one inbox. When a bore changes by 0.02 mm, the machinist and the anodizer are in the same building, not trading emails through you.

It also means fewer places for your IP to travel. Confidentiality is easier to hold when the file does not get forwarded four times.

• 1
  Machining3-axis, 4-axis, 5-axis, mill-turn
• 2
  Casting and formingDie casting, vacuum casting, sheet metal
• 3
  AdditiveMetal and plastic 3D printing, rapid prototyping
• 4
  FinishingAnodizing, plating, powder coating, laser marking

Two quotes for the same part can differ by 40% and both be honest. One shop plans a single setup on a 5-axis center. The other plans three setups on a 3-axis machine, adds a fixture, and builds in a deburring step. The number reflects the plan, not the market.

MOQ is the fastest way to read a supplier. A shop with no minimum order quantity is set up to run one prototype and a 10,000+ piece order. A shop that refuses anything under a few thousand pieces is a production house, and your prototype will be an annoyance there.

Lead time needs a date, not a range. GreatLight returns a quotation and free DFM analysis within 12 hours, can start production within 24 hours, and ships parts in 3–5 days. The historical late-delivery probability is below 2%.

Ask what happens when a part fails inspection. A supplier that reruns the batch and tells you is cheaper in the long run than one that ships a marginal lot and hopes you do not measure it.

Aerospace, automotive and EV, medical devices, robotics and automation, electronics, industrial machinery, and new energy all buy machined parts, but they do not buy the same evidence. Aerospace buyers want traceability and material certs. Medical buyers want process control and ISO 13485. Automotive buyers want IATF 16949 and PPAP-style documentation.

Robotics and automation work often means low volume and high mix: joint housings, brackets, and end-effector plates in small batches, revised often. A shop with no MOQ and fast quoting fits that rhythm better than a high-volume specialist.

Industrial machinery and new energy tend to push part size and material hardness. That is where the 4,000 mm envelope and the 5-axis count matter, because a large frame with angled features cannot be finished in three setups without stacking error.

If your industry is regulated, list the required certificates in the RFQ. Suppliers self-select, and you stop wasting weeks on shops that cannot take the job.
