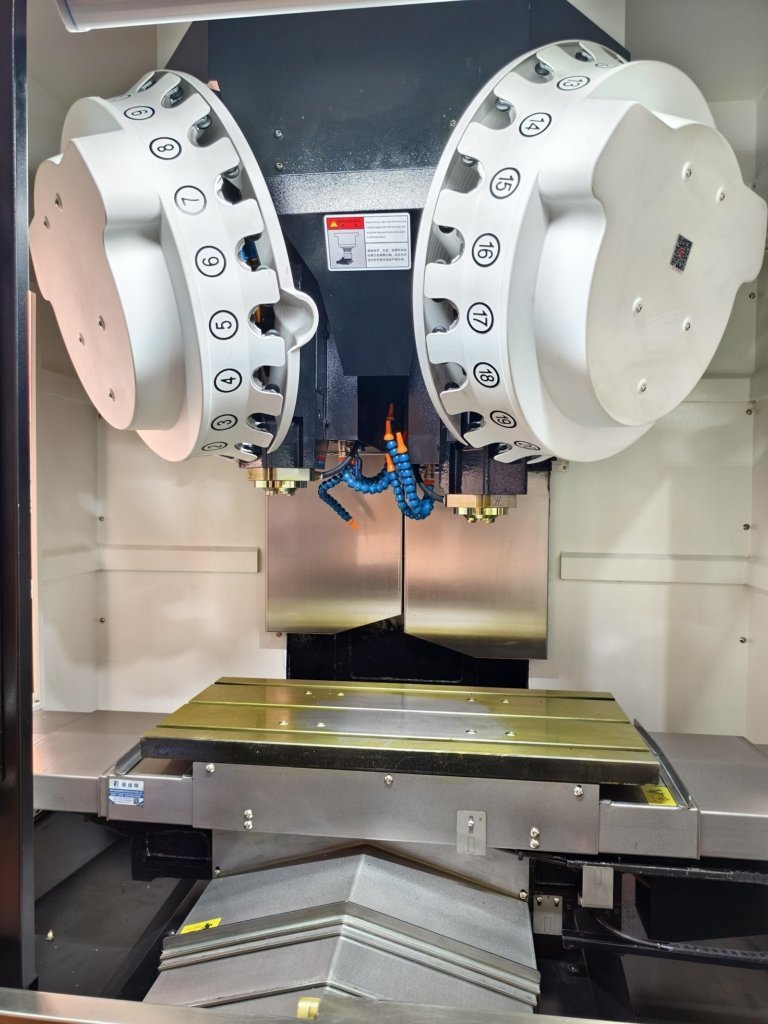

A milling cutter removes material by shear. The edge is forced into the workpiece, the metal ahead of it yields, and a chip slides up the rake face. Almost all of the mechanical energy turns into heat, and most of that heat leaves with the chip. If the chip cannot carry heat away, the heat goes into the tool and the part instead.

Chip thickness is not constant. On a side cut, each flute enters at zero thickness and exits at the maximum. Rubbing at entry is what wears a cutter fastest, not the heavy part of the cut. That is why feed per tooth matters more than spindle speed for tool life. Too light a feed lets the edge rub. Too heavy a feed overloads the corner.

The cutter also pushes the part. Radial force bends thin walls and lifts unsupported floors. A long reach end mill deflects more than a stub one, and deflection shows up as taper, chatter and a worse surface finish. If a feature needs both reach and accuracy, expect to take a roughing pass, then a light finishing pass with a new or freshly ground cutter.

• 1
  Shear, not abrasionThe edge forms a chip; it does not scrape material away.
• 2
  Entry rubZero-thickness entry at each flute is a main wear driver.
• 3
  Force goes somewhereThin walls and long reaches move under cutting load.

Carbide is tungsten carbide powder sintered in a cobalt binder. Higher cobalt gives more toughness, lower cobalt gives more wear resistance. It keeps a sharp edge at high temperature, which is why it dominates CNC milling. The trade-off is brittleness: carbide chips under impact or when a setup flexes.

High-speed steel is tougher and cheaper. It loses hardness sooner as temperature rises, so it suits low-speed work, hand-fed setups and materials that grab the cutter. On aluminium and mild steel at moderate speed, HSS can still be economical for one-off work.

Cermet sits between the two: a ceramic and metal composite with high hot hardness and good chemical stability. It resists crater wear on steel and gives fine finishes, but it is not a roughing tool. For most job-shop milling on aluminium, stainless and titanium, carbide is the default.

• 1
  CarbideHigh hot hardness; brittle under impact.
• 2
  HSSTough and cheap; loses hardness with heat.
• 3
  CermetFine finishes on steel; not for heavy roughing.

A coating is a thin hard layer, usually 1–5 μm, that lowers friction and slows diffusion between chip and tool. It raises the temperature the edge can survive, so you can run faster. It does not fix a weak setup or a wrong geometry.

Titanium aluminium nitride (TiAlN) forms an aluminium oxide layer at high temperature and works well on steel and stainless. Titanium nitride (TiN) is general purpose and cheaper, with a lower temperature ceiling. Diamond-like carbon suits aluminium, where built-up edge is the main problem, because it resists aluminium sticking to the edge.

Uncoated carbide still has a place. On aluminium it leaves a cleaner edge and can be re-ground more cheaply. On plastics and composites, a sharp polished uncoated cutter often beats a coated one because coating micro-roughness adds friction and heat.

• 1
  TiAlNSteel and stainless at high temperature.
• 2
  TiNGeneral purpose, lower cost, lower ceiling.
• 3
  UncoatedAluminium, plastics and composites.

Flute count sets chip room and rigidity. A two-flute cutter has a large gullet for chip evacuation and suits aluminium at high feed. A four-flute cutter has more cutting edges per revolution, so it feeds faster on steel, but the smaller gullet can clog in soft, gummy material.

Helix angle controls how the cutting force is directed. A high helix, around 45°, pulls the chip up and out, which helps deep pockets but also pulls the part upward if the workholding is weak. A low helix, around 30°, pushes the force down into the table and is safer for thin plates.

Corner radius is the unsung variable. A sharp corner concentrates stress and breaks first. A 0.4–1.0 mm corner radius spreads the load and lasts longer, and it can be used to leave a fillet in the part. For finishing, a smaller radius or a bull-nose gives a tighter internal corner.

• 1
  Flute countMore flutes feed faster; fewer flutes clear chips better.
• 2
  Helix angleHigh helix pulls chips up; low helix pushes down.
• 3
  Corner radiusA small radius sharply improves tool life.

Runout is the wobble of the cutting edge around the spindle axis. Total indicator runout (TIR) at the cutting edge is the number that matters, not the holder's rated accuracy. At 0.02 mm TIR, one flute does most of the work. That flute wears fast, the cut gets noisy, and the finished diameter drifts.

The chain matters: spindle taper, holder, collet, nut and cutter shank. A worn collet or a chip trapped in the taper can add more error than the holder's spec. Measuring TIR at the edge with a dial indicator takes under a minute and saves far more time than chasing chatter later.

Heat shrink and hydraulic holders hold tighter and run truer than a standard collet, which matters for small-diameter cutters and long reaches. For high-speed finishing, low runout is often the single largest factor in surface finish and tool life. It is not a cutter problem; it is a system problem.

• 1
  Measure at the edgeHolder spec is not edge runout.
• 2
  Clean the taperA trapped chip can double your error.
• 3
  Low runout winsIt improves finish and life together.

Aluminium wants sharp edges, high rake and polished flutes. It galls and welds to the edge, so a polished uncoated or DLC cutter with two or three flutes and high helix clears chips fast. Run coolant or air blast to break the chip and keep the edge cool.

Stainless work-hardens. If the cutter rubs, the surface hardens and the next pass is worse. Keep a positive feed, avoid dwelling, and use a sharp, coated carbide cutter. Titanium is worse for heat: it conducts poorly, so the heat stays at the edge. Reduce speed, keep the feed up, and flood with coolant.

Plastics and composites cut cleanest with sharp, polished, uncoated carbide at high speed and moderate feed. Heat is the enemy, because it melts or burns the matrix. A vacuum or air blast removes chips that would otherwise be re-cut and rub the surface.

• 1
  AluminiumSharp, polished, high helix, two to three flutes.
• 2
  StainlessPositive feed, no dwelling, coated carbide.
• 3
  TitaniumLower speed, higher feed, heavy coolant.
• 4
  PlasticsSharp uncoated carbide, control the heat.

Flank wear is normal and progressive. A uniform wear land of about 0.2–0.3 mm is a common replacement point. Beyond that, cutting forces rise, the finish degrades and the diameter drifts. Check the wear land with a loupe every few parts on a long run.

Chipping and thermal cracking tell a different story. Chipping usually means impact or a flexing setup: reduce feed per tooth or shorten the reach. Thermal cracks, fine comb-like lines on the edge, come from interrupted cooling. On a roughing cut, dry or flooded is better than a weak mist.

Built-up edge is soft material welding to the edge, common on aluminium and gummy stainless. It changes the effective geometry and leaves a smeared finish. A sharper edge, a different coating or a higher speed can clear it. If a tool fails early, look at the whole system before blaming the cutter.

• 1
  Flank wearNormal; replace around 0.2–0.3 mm land.
• 2
  ChippingImpact or flex; reduce feed or reach.
• 3
  Built-up edgeSoft material welding; sharpen or recoat.
