CNC Parts Near Me: How to Pick a Shop You Can Audit

• 1
  Key takeaways
• 2
  What Each Requirement Actually Filters Out
• 3
  Why CNC Parts Near Me Is Really a Capability Question
• 4
  Tolerance and Finish: What ±0.005 mm Buys You
• 5
  Machine Mix: Choosing 3-Axis, 4-Axis, 5-Axis or Mill-Turn
• 6
  Lead Time, Order Quantity and the Real Cost of Waiting
• 7
  Certifications, Inspection and File Security
• 8
  7 Steps to Vet a CNC Parts Supplier

Search results for CNC parts near me are ranked by map distance, not by whether the shop can hold your tolerance. For a bracket with ±0.2 mm callouts, the nearest shop is fine. For a hydraulic manifold with intersecting bores and a sealing face, distance tells you nothing useful.

What buyers actually need from a nearby supplier is speed of communication and a short logistics loop. Both matter. Neither replaces the ability to machine the feature and prove it with a measurement. We have quoted jobs where the customer drove parts across town three times for rework, and we have shipped the same geometry 8,000 km away with zero rework, because the setup and inspection plan were fixed before cutting started.

So treat location as one column in a comparison table, not as the deciding filter. The rest of this guide covers the columns that change outcomes: tolerance feasibility, machine selection, finish, certification, lead time, order quantity and how the shop handles your files.

• 1
  Location helps mostWhen a design is still changing and you want parts in hand the same week.
• 2
  Location helps leastWhen the drawing has tight positional tolerance and a sealing or bearing fit.
• 3
  Always ask firstWhich machine will run my part, and what tolerance will you verify on it?

Tolerance is not a single number for the whole shop. It is a number per feature, and it depends on the machine, the fixture and the material. A 5-axis machining center can hold ±0.005 mm (±0.0002 in) on a well-supported feature in aluminium or brass. The same machine on a thin titanium wall will move more, and no supplier can quote a blanket tolerance honestly.

Finish follows the same logic. As-machined surfaces sit around Ra 1.6–3.2 μm and are fine for brackets, covers and non-sealing faces. Mating faces and O-ring grooves usually want Ra 0.8–1.6 μm. Optics, seal bores and some medical contact surfaces go to Ra 0.2–0.8 μm, which often means a finishing pass, lapping or polishing rather than a single cut.

When you screen a supplier, give them the critical dimensions instead of the whole drawing. A shop that returns a note saying 'this bore is achievable, this wall is not' is doing the DFM work you want. A shop that accepts every tolerance without comment is the one to worry about.

Material choice moves the number too. Aluminium 6061 and 7075 cut clean and hold size well. Stainless 316L and 17-4PH work-harden and pull more, so allow more stock and expect more passes. Inconel and titanium TC4 need slower speeds and rigid setups. None of that is a reason to avoid the material, but it does change the price and the number of setups.

• 1
  Give the critical listFive to fifteen dimensions that decide fit, not the full drawing.
• 2
  State the datumTolerance means nothing without a datum scheme the inspector can repeat.
• 3
  Separate cosmetic from functionalA visible scratch on a cover is not the same defect as a scratch in a seal bore.

A shop with 127 high-precision CNC machines still routes your part to one machine, so ask which one and why. Three-axis machines handle flat plates, housings with features on one face, and simple turned parts. They are the cheapest per hour and the easiest to fixture. If your part is a plate with holes and a pocket, do not pay for 5-axis time.

Four-axis and mill-turn centers cover round parts with flats, slots or cross holes. A mill-turn center machines a shaft and its flats in one setup, which removes the concentricity error you get from moving between a lathe and a mill. For hydraulic spools, motor shafts and sensor housings, this is usually the right call.

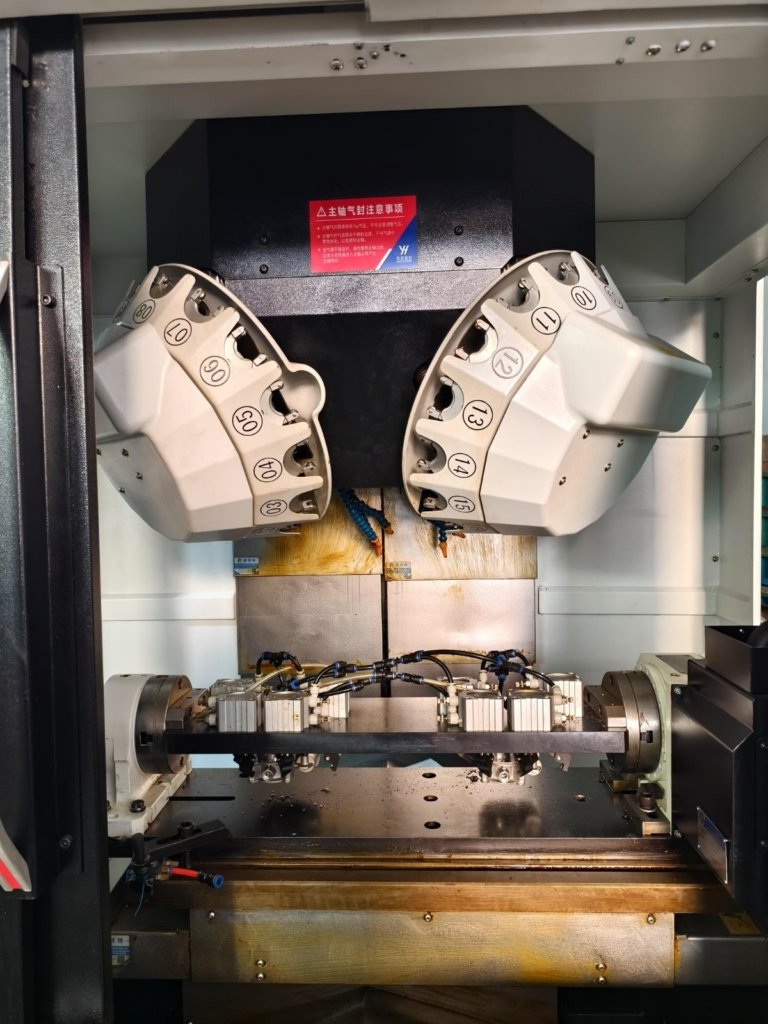

Five-axis machining earns its cost on angled holes, undercuts, deep cavities and parts with features on five sides. A single setup on a trunnion table keeps all features in one coordinate system, which is where tight true position comes from. We run 16 simultaneous 5-axis machining centers, and the reason a part goes there is access, not prestige.

Size decides as well. Our largest travel is 4,000 × 400 × 150 mm, with 4,000 mm maximum processing size. Mid-size work goes on 750 × 1,150 × 550 mm or 600 × 600 × 600 mm machines, and compact parts on 500 × 500 × 450 mm or 500 × 310 × 200 mm tables, with a Ø400 mm rotary table for round work. Send the envelope and the shop can tell you the machine in one reply.

• 1
  3-axisPlates, covers, single-face features. Lowest cost per part.
• 2
  4-axis and mill-turnShafts, spools and round parts with cross features.
• 3
  5-axisAngled holes, undercuts, five-sided parts, tight true position.

Quotation and free DFM analysis come back within 12 hours at our shop, and production can start within 24 hours of a released PO. Parts ship in 3–5 days for typical runs. Those numbers only hold when the drawing is frozen and material is in stock, so ask what happens if the model changes mid-run.

Order quantity is the other filter. Plenty of shops will quote a prototype at a high price and then refuse the production order because the fixture is not worth their time, or the reverse. No minimum order quantity removes that gap: one prototype, then 10,000+ part runs on the same process, so the first article you approve is the process you scale.

Cost comes from setups, not from material alone. A part with features on three faces may need three setups on a 3-axis machine and one on a 5-axis. Ask for the setup count in the quote. If a shop cannot tell you how many setups your part needs, the price is a guess.

Historical late-delivery probability at our plant is below 2%. That is a record, not a promise for your order. Treat any supplier's on-time claim the same way: ask how they measure it and what they do when a machine goes down. A second identical machine on the floor is a better answer than an apology.

• 1
  Freeze the drawing firstChanges after setup start cost more than the parts.
• 2
  Ask for setup countTwo setups versus five explains most of a price gap.
• 3
  Check the backup planSpare capacity matters more than a best-case lead time.

Certifications are a fast way to cut a long supplier list. ISO 9001:2015 covers the quality system. IATF 16949:2016 is what automotive and EV programs ask for. ISO 13485:2016 applies to medical devices. ISO 27001:2022 covers information security, which matters when you send CAD files and prints to an outside shop. Check the scope and the expiry date, not just the logo.

Inspection is the part buyers skip and later regret. Every shipment from our plant is inspected 100% before it leaves, covering raw material check, in-process monitoring and final inspection, with reports on request. If a shop only inspects the first article and then ships on trust, your incoming inspection becomes the real quality gate, and that cost lands on you.

Ask what measuring equipment the shop owns and how it is calibrated. Calipers on a ±0.005 mm bore are not evidence. CMM reports, roundness checks and surface roughness traces are. The qualification rate we track is 99.99%, and that number only means something because the measurement method is fixed.

File security is a commercial risk, not just an IT one. Uploads are kept secure and confidential, and an NDA is available on request. For programs under NDA, confirm who inside the shop can open the files and where they are stored. This is a fair question, and a serious supplier will answer it in writing.

• 1
  Match the certificate to the industryAutomotive, medical and general industrial programs need different ones.
• 2
  Ask for the report formatFirst article, in-process and final inspection reports are separate documents.
• 3
  Confirm the NDA scopeWho sees the files, and for how long they are retained.
