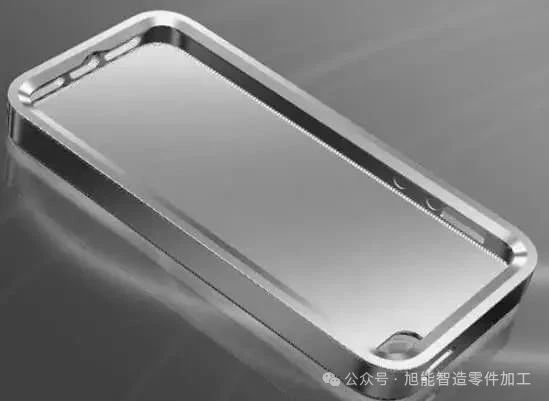

CNC Treatment and Manufacturing of Metallic Phone Shells: Why Mirror Finishes Fail
A mirror face is not a polish you add at the end. It is the result of a stable machine, a single-crystal diamond tool, a clean cut, and a material that behaves. This page explains the mechanism behind haze, grain pull-out and waviness on aluminium, copper and stainless steel shells, and helps you judge when a mirror requirement belongs on the drawing.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
What CNC treatment and manufacturing actually does to a mirror surface
When a diamond tool passes over aluminium at the right feed, it does not grind the surface. It shears a thin layer of metal off in one continuous chip. The cut face that remains is a copy of the tool edge. If the tool edge is sharp and the machine does not vibrate, the copy is smooth enough to reflect an image. That is the entire trick behind a mirror finish on a phone shell.
The problem starts when the copy is imperfect. A tool edge with a 2 μm radius instead of 0.5 μm will smear instead of shear. The material tears, and the tear scatters light. Under a microscope the surface looks like a ploughed field rather than glass. The eye reads that as haze.
So the mirror quality is set at the moment of cutting, not afterwards. Buffing a torn surface only rounds the peaks. It cannot put back the material that was ripped out. This is why a shell that comes off the machine dull will usually stay dull no matter how long it spends on a polishing wheel.
For CNC treatment and manufacturing, the useful question is not "can you polish it?" It is "can you cut it clean the first time?" Everything downstream is easier if the answer is yes.
Machine rigidity and diamond tooling: the real limits
A mirror cut is a low-force operation, but it is very sensitive to any force that changes. Thermal drift, spindle runout and servo reversal all leave a mark. A machine that holds ±0.005 mm on a normal part can still put visible waviness on a mirror face if the structure flexes under a 0.02 mm depth of cut.
In practice we run mirror passes on machines with low spindle runout: the 5-axis and mill-turn centers, not the general-purpose 3-axis mills. The 3-axis machines handle the roughing and the pocketing. The finishing pass goes on a machine where the tool tip tracks the same path twice with almost no deviation.
Single-crystal diamond is the standard tool for non-ferrous mirror cuts. Its edge can be prepared to a very small radius, it does not build up aluminium on the flank, and it holds size over a long run. Polycrystalline diamond and coated carbide will cut, but they leave a slightly rougher face and wear faster.
Diamond has one hard limit: it cannot cut steel. Carbon diffuses into iron at cutting temperature and the edge disappears in minutes. Stainless steel shells therefore need a different route, usually carbide with a sharp edge followed by a separate polishing step.
Why aluminium, copper and stainless steel behave differently
Aluminium gives the brightest mirror and the lowest tool wear, provided the alloy is chosen with care. 6061 and 7075 cut clean and hold a sharp edge. Cast alloys such as ADC12 contain silicon particles that sit proud of the matrix and scatter light, so they never reach a true mirror even after polishing.
Copper and brass sit in the middle. They cut to a high brightness and take a very fine diamond edge, but they are soft. A shell that looks perfect on the bench can pick up a fingerprint-shaped dull patch during assembly. Copper also work-hardens at the surface, so the finishing pass has to be light enough to cut below the disturbed layer.
Stainless steel is the difficult case. 304 and 316 are tough and gummy. The chip does not break cleanly, the tool edge rubs, and the face comes out grey and matte. Tool wear is high. Mirror stainless shells are possible, but they are made by polishing or by a plated layer over the machined surface, not by a direct diamond cut.
The practical rule: if the drawing calls for a mirror on a stainless steel shell, expect a longer process and a higher unit cost. If the design can use aluminium, the mirror is a much simpler problem.
When a mirror finish is the wrong requirement
A mirror face shows everything. Every handling mark, every dust particle trapped under a coating, every slight change in surface angle. On a shell that will be assembled, packed and shipped, that is a real risk. One smudge on the line can turn a good part into a reject.
Mirror also amplifies geometry errors. A flatness deviation of 0.01 mm that is invisible on a bead-blasted face becomes a visible distortion on a mirror face. The reflection acts as an optical magnifier. This is why mirror parts usually need tighter flatness and a more careful fixture than the same part in a matte finish.
There is an economic boundary too. A mirror pass is slow, the tool is expensive, and the inspection is manual. On a 10,000-unit run the cost gap between a mirror face and a fine bead-blasted face is significant. If the marketing value of the mirror is small, the matte face usually wins. If the mirror is the product, the cost is justified and the process should be designed around it from the start.
One more boundary: laser marking. On a mirror face, a marked logo reads well only if the mark is deep enough to break the reflection. Minimum character height 1.5 mm is a safe floor for legibility.
The sequence we follow for a mirror phone shell
- 11. Fix the geometry firstRough the shell to leave 0.3–0.5 mm on the mirror face. Check flatness before finishing, not after.
- 22. Stress relief if neededFor thin walls under 1.0 mm, a stress-relief step between roughing and finishing stops the shell from moving under the finishing pass.
- 33. Semi-finishLeave 0.05–0.08 mm for the mirror pass. A face left too thick will spring and chatter.
- 44. Diamond mirror passDepth of cut 0.01–0.03 mm, feed 0.02–0.05 mm per rev, on a machine with low spindle runout. One pass, no spring passes.
- 55. Inspect and protectCheck with a gloss meter and under low-angle light. Apply a protective film within minutes of cutting.
- 66. Secondary operationsAnodize, plate or coat as specified. Mask the mirror face if the finish would etch it.
Mirror capability by material and finish route
Ratings assume a diamond finishing pass on a rigid machine, followed by the stated secondary operation.
| Material | Mirror after cutting | Tool wear | Better route |
|---|---|---|---|
| 6061 / 7075 aluminium | Bright, near-mirror | Low | Diamond cut, then anodize |
| ADC12 die-cast aluminium | Hazy, silicon visible | Medium | Bead blast or paint |
| C110 copper / brass | Bright, soft surface | Low | Diamond cut, then clear coat |
| 304 / 316 stainless steel | Grey and matte | High | Polish or plate over machined face |
| Titanium TC4 | Dull, galls easily | High | Bead blast or anodize |
| Magnesium AZ91D | Moderate, corrosion risk | Medium | Diamond cut, then conversion coat |
| Plated aluminium shell | Mirror from the plate | Low | Cut, plate, then light buff |
| Anodized aluminium | Satin to semi-gloss | Low | Bead blast before anodize |
The one decision that matters
If the shell is aluminium and the mirror is the product, cut it with diamond on a rigid machine and design the whole sequence around that face. If the shell is stainless steel, titanium or a cast alloy, or the mirror is only a small trim detail, choose a bead-blasted or brushed finish and put the polish only where the eye actually lands.
Questions engineers ask about mirror shells
Can you cut a true mirror on a 3-axis mill?
It is possible on a flat face if the machine is very rigid and the tool path is short. In practice we move mirror passes to a 5-axis or mill-turn center because thermal drift and spindle runout are lower.
For curved or 3D mirror surfaces, a simultaneous 5-axis path is usually the only way to keep the tool normal to the surface.
Why does my aluminium shell look mirror on the bench and hazy after anodizing?
Anodizing grows an oxide layer that follows the underlying surface and adds its own scatter. A cut face at Ra 0.2 μm will read as semi-gloss after clear anodize.
If a bright anodized look is required, specify the cut quality and the anodize type together. Hardcoat anodize will always look darker and less reflective than a clear thin coat.
How do I specify a mirror finish on a drawing?
Give a roughness number and a measurement area. Ra 0.2–0.8 μm is a realistic mirror band for a diamond-cut aluminium face.
Also state which faces need it. A note that says "mirror finish" without a zone will either cost too much or come back as a dispute.
Does a mirror face need a different tolerance?
Not automatically, but flatness and waviness matter more because the reflection magnifies them. A 0.01 mm deviation that is invisible on a matte face becomes visible in a reflection.
We hold ±0.005 mm on mirror faces and inspect with low-angle light rather than a standard surface plate check alone.
Can the mirror be repaired if it gets scratched?
A shallow scratch in a soft metal can sometimes be blended out locally, but the repair zone usually shows as a different gloss level.
For aluminium and copper, protective film or a clear coat before assembly is the practical answer. Prevention is cheaper than rework.
