Custom CNC Precision Machine Services: 5 Checks Before You Release a PO

• 1
  Key takeaways
• 2
  Which supplier type fits your part
• 3
  Tolerance: what custom cnc precision machine services actually guarantee
• 4
  Inspection evidence and certification fit
• 5
  Lead time, MOQ and how the quote is structured
• 6
  Material and finishing choices that change the outcome
• 7
  Where custom cnc precision machine services are the wrong answer
• 8
  How to run the supplier comparison

Every shop will tell you it holds tight tolerance. The useful question is which feature, on which machine, with which fixture. A ±0.005 mm callout on a 20 mm bore in a 6061-T6 housing is routine for a simultaneous 5-axis center with a temperature-stable shop floor. The same callout across a 4,000 mm weldment is a different problem, because thermal growth and clamping stress dominate the error budget, not the spindle.

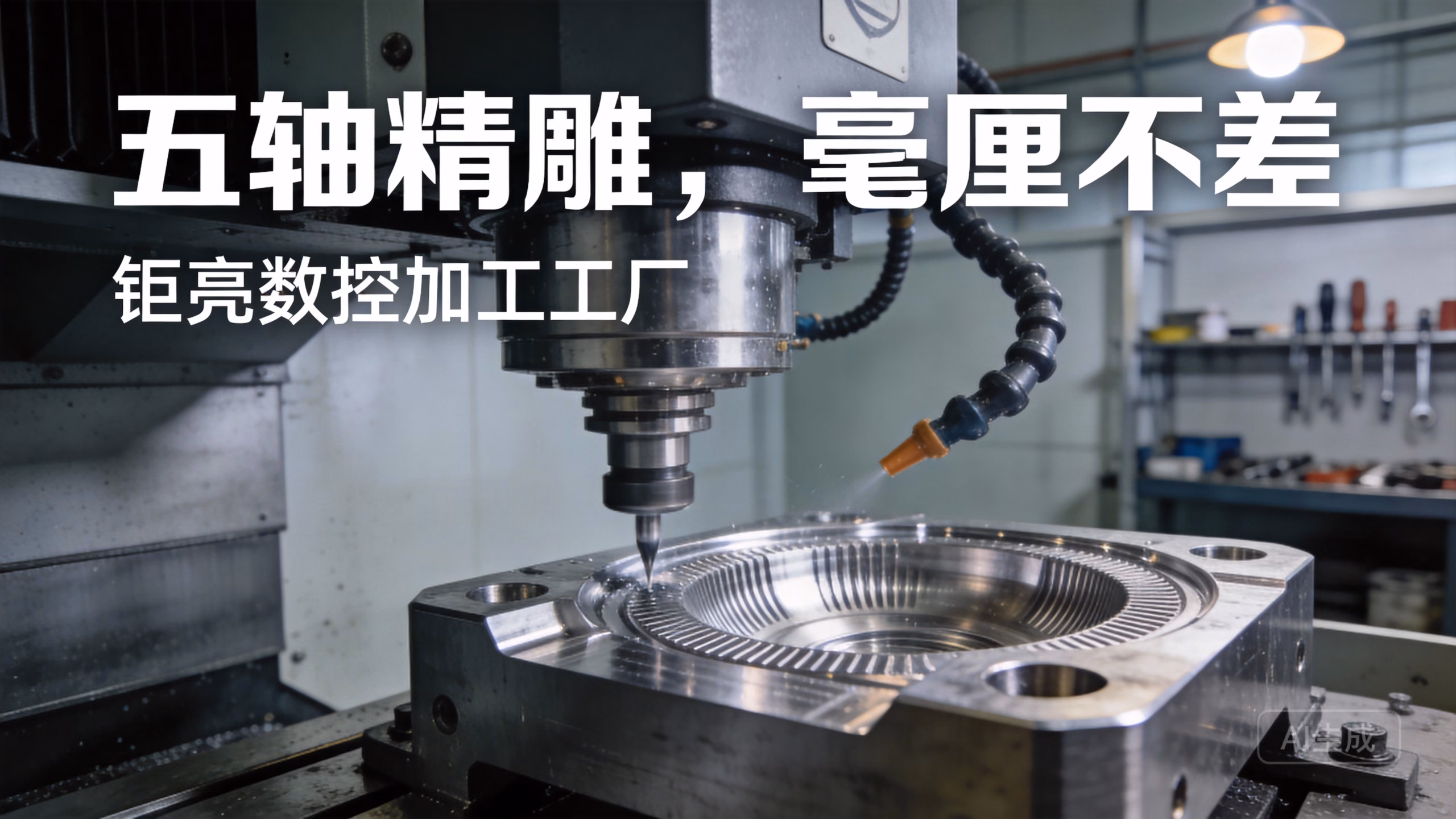

So start by mapping your drawing's tightest callouts to the features that carry them. A shop with 16 simultaneous 5-axis machining centers, 16 mill-turn centers and a Ø400 mm rotary table can hold position on multi-face parts in one setup. Single-setup machining removes the re-fixturing error that shows up when a part moves between three machines and two operators.

Surface finish belongs in the same conversation. As-machined aluminum lands around Ra 1.6–3.2 μm. Fine finishing gets to Ra 0.2–0.8 μm on the right alloy with the right tool path and coolant. If your drawing asks for both a mirror finish and a sharp internal corner, expect a second operation, a smaller tool, and a longer cycle. That is a cost decision, not a capability failure.

One more thing to settle before quoting: datum strategy. If your drawing defines datums on a surface that the shop will machine last, the inspector has nothing stable to measure from. Ask how they plan to hold and probe the part. A shop that answers this in the quote is a shop that has thought about your part.

• 1
  Routine range±0.005 mm on turned and milled features under 200 mm, in one setup
• 2
  Needs discussionTight tolerance across long parts, thin walls under 1 mm, deep bores
• 3
  Cost driverSecond operation, extra fixture, or slower feed to control chatter

Ask what gets measured, on what machine, and what you receive. A supplier running 100% inspection before shipment should be able to describe three stages: incoming raw material check, in-process monitoring, and final inspection with reports on request. Vague answers here usually mean the part ships on the operator's word and a caliper reading.

Certifications matter, but only the ones your buyer or regulator asks for. ISO 9001:2015 covers general quality management. IATF 16949:2016 is the automotive expectation. ISO 13485:2016 applies to medical device work. ISO 27001:2022 covers information security, which matters if you send proprietary CAD files and want a controlled handling process behind them.

Do not treat a certificate as a substitute for process control. A shop can hold a certificate and still lose your tolerance on run two. The evidence you want is a first-article inspection report tied to your drawing revision, plus a plan for how in-process checks will catch drift. Ask for the report format before you place the order so nobody is surprised at shipment.

If your parts are regulated, ask who signs the inspection report and how long records are retained. This is a five-minute question that saves a week later.

• 1
  General industrialISO 9001:2015 plus material certs and dimensional report
• 2
  Automotive / EVIATF 16949:2016, PPAP-style documentation on request
• 3
  Medical devicesISO 13485:2016, traceable material lots, controlled records
• 4
  IP-sensitive programsISO 27001:2022 and an NDA before files move

Lead time is not one number. There is time to quote, time to start cutting, and time to ship. A clear quote separates them. For reference, a well-run process returns a quotation and free DFM analysis within 12 hours, starts production within 24 hours of approval, and ships parts in 3–5 days. If a supplier quotes a single delivery date with no breakdown, you cannot tell which stage will slip.

MOQ is the second silent cost. A shop with no minimum order quantity lets you run one prototype and then the same process for a 10,000+ part run. That continuity matters, because the fixture and tool path you validated on the prototype carry into production. If the prototype shop and the production shop are different, you pay for re-validation.

Read the quote line by line. Material, machining, finishing, inspection and freight should be visible. Surface finishing is where budgets quietly move: anodizing, hardcoat, electroless nickel, powder coating, bead blasting and laser marking all add cost and time, and laser marking has a minimum character height of 1.5 mm. Ask now, not after the parts are made.

Finally, ask how the shop handles a design that cannot be machined as drawn. Free DFM feedback within 12 hours is worth more than a low unit price, because it removes the rework round trip before the spindle ever turns.

• 1
  Quote and DFMWithin 12 hours, including manufacturability notes
• 2
  Production startWithin 24 hours after drawing and PO approval
• 3
  ShippingParts ship in 3–5 days for standard scope
• 4
  Order sizeNo minimum, from one prototype to 10,000+ parts

Material selection drives tolerance stability as much as the machine does. Aluminum 6061-T6, 7075 and 6082 machine cleanly and hold finish well. Stainless 303 and 304 are common for housings and shafts, while 17-4PH and 316L appear in higher-demand applications. Titanium TC4 (Ti-6Al-4V) and Inconel cut slowly and generate heat, so cycle time and tool wear rise sharply. Budget for that before you assume a low unit price.

Plastics behave differently again. POM and PEEK hold dimension better than ABS or PP, but all of them move with temperature and moisture. If your part is a fixture or a housing that must stay in tolerance in service, say so in the RFQ. The shop can adjust stock removal and let the part stabilize before the finishing pass.

Finishing is a process chain, not a menu. Anodizing before laser marking gives a different result than marking before anodizing. Hardcoat changes dimensions by a few microns and can close a tight bore. Passivation on stainless removes free iron but does not fix a scratch. Sequence matters, and a supplier that asks about the sequence is reading your drawing properly.

If a part needs three finishes, ask whether they run in-house or through a partner. Both can work. What you want is one point of accountability when the color is off or the coating thickness drifts.

• 1
  Easiest to hold tolerance6061-T6, 7075, 303 stainless, brass C36000
• 2
  Harder to machineTi-6Al-4V, Inconel, 17-4PH in hardened condition
• 3
  Dimension shift riskHardcoat anodizing, thick plating, powder coating
• 4
  Sequence questionAsk which operation runs last on critical features

CNC is not always the right process. If you need 50,000 identical brackets with no tight tolerance, die casting or sheet metal fabrication will beat machining on unit cost. If the geometry is a hollow shell with internal channels and no load path, 3D printing in metal may get you a functional part faster. If the part is a flat panel with holes, sheet metal is cheaper and faster.

CNC wins when the part needs tight tolerance, good surface finish, real material properties, and a geometry that cannot be molded or stamped. It also wins in the middle of a program, when a design is still changing and tooling investment is not justified. A machined prototype keeps you flexible until the design freezes.

The other case where CNC is wrong is when you have no drawing discipline. If the 3D model has no datums, no tolerance callouts, and no material specification, no shop can quote it accurately. You will get a low number and a corrective conversation later. Fix the model first.

A short list helps. Machining is the right call for 1 to 10,000 parts, tight tolerance, multi-face geometry, and materials like aluminum, stainless, titanium and engineering plastics. It is the wrong call for very high volume, very simple geometry, or a part that is essentially a bent sheet.

• 1
  Choose CNCTight tolerance, multi-face geometry, small to mid volume, changing design
• 2
  Choose castingHigh volume, simple geometry, no tight machining callouts
• 3
  Choose sheet metalFlat or folded parts, brackets, enclosures, panels
• 4
  Choose 3D printingInternal channels, lattice, or a form-fit check before machining
