An electrospindle is a motor and a bearing pack in one housing. No belt, no gearbox, no separate motor mount to flex. That shortens the load path from rotor to tool holder, and a short load path means less deflection per newton of cutting force. On extruded aluminum profiles with 1.5–3 mm walls, deflection breaks tolerance long before the servo runs out of resolution.

Speed matters for a different reason. Aluminum cuts cleanly at high surface speed, so a spindle that holds 18,000–24,000 rpm lets small-diameter tools run at the feed rate the cutter geometry was designed for. Drop the speed and the same tool has to be fed slower, which rubs instead of shears. Built-up edge follows, and Ra drifts.

Rigidity and speed are not the same property, and the trade shows up at the tool tip. A stiff spindle keeps the tool on the programmed path during a heavy radial engagement. A fast spindle keeps the chip thin and the heat in the chip rather than in the workpiece. The X4 class of machine is usually specified for the second case, then asked to do the first.

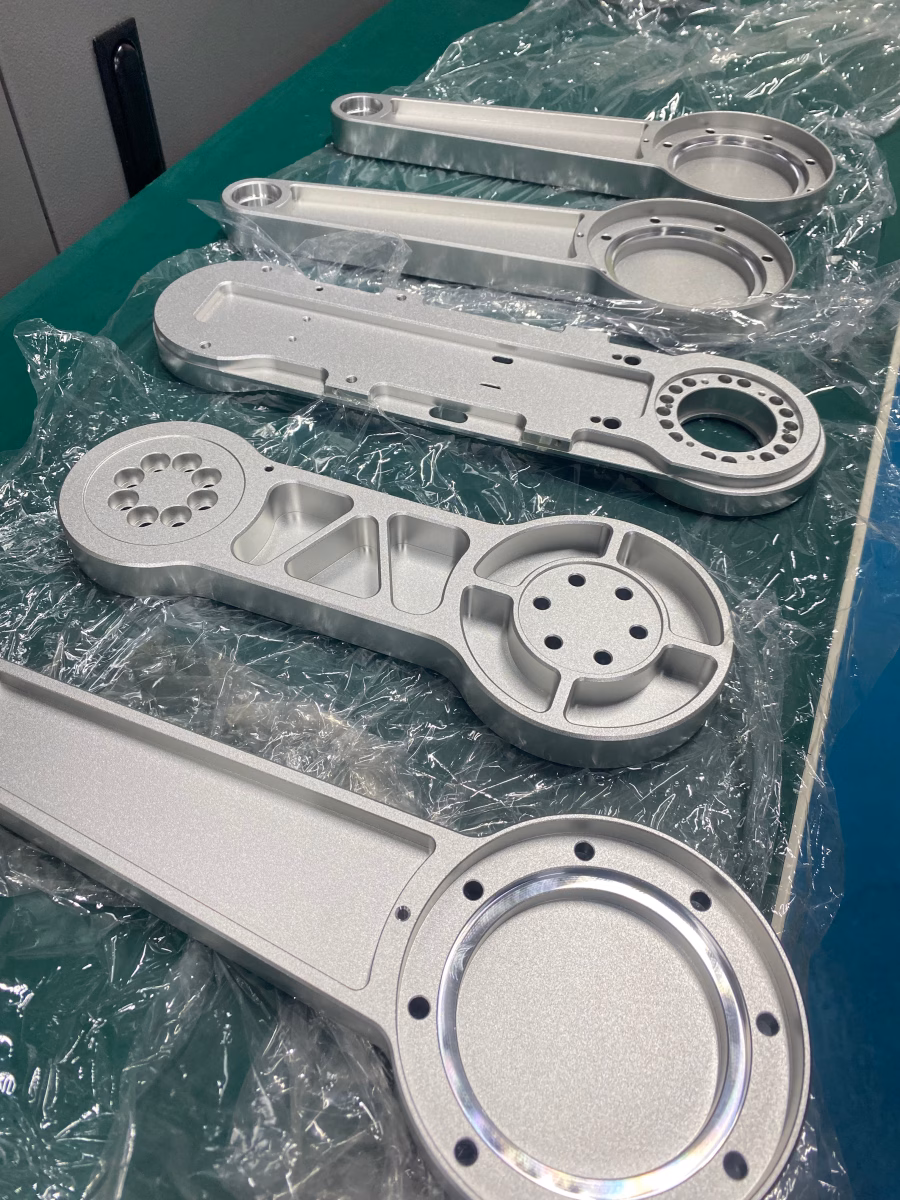

What this means for a buyer: if your part is a 6 mm thick 6061 plate with a few pockets, spindle speed is a convenience. If it is a 2 mm wall 6063 window profile with a visible anodized face, spindle behavior is the difference between a part that passes inspection and one that gets stripped and rerun. A shop that reaches ±0.005 mm and Ra 0.8–1.6 μm on thin-wall profiles is getting there through spindle stability first, not through a finer finishing pass.

• 1
  Thin walls react firstDeflection shows on 1.5–3 mm walls before any axis alarm.
• 2
  Chip thickness is a speed decisionThin chips carry heat away from the part.
• 3
  Surface finish is a spindle metricRa 0.8–1.6 μm on an anodized face depends on stability, not on a slower pass.

A profile that is 4,000 mm long and 2 mm thick in the web is a spring. Clamp it like a solid block and it moves. Clamp it too lightly and it sings during the cut. The workholding system on this class of machine is built around that conflict: distributed support, controlled clamp pressure, and access to five faces without re-fixturing.

The practical limit is not the clamp, it is the datum. Every time a part is moved to a second setup, the stack-up from fixture to fixture adds error. On a profile with holes on four faces, three setups can easily consume more than half of a ±0.005 mm budget before the cutter touches metal.

Vacuum and modular clamping both have a place. Vacuum suits large thin panels and non-magnetic alloys, and it leaves the top face clear. Modular vises and profile-specific jaws suit parts with a stable cross-section and higher cutting loads. The choice usually follows the wall thickness, not the part name.

Here is where a job goes wrong. A shop fixtures a thin-wall extrusion the same way it fixtures a machined block, runs a full-depth roughing pass, and then blames the machine for chatter. The fixture gave the part nowhere to go except into the tool. Reducing radial engagement and adding support under the web fixes it faster than any controller setting.

• 1
  Fewer setups, less stack-upEach extra setup spends part of the tolerance budget.
• 2
  Vacuum vs modularVacuum for thin panels, modular jaws for stable cross-sections.
• 3
  Support under the webUnsupported spans resonate at the cutter tooth frequency.

Chip-to-chip time is the only tool change number that matters. A 2-second change that requires a manual offset entry is slower in practice than a 5-second change that is fully mapped. On jobs with 12 to 20 tools, the difference over a shift is measured in spindle hours, not seconds.

Automatic tool management also removes a class of error. When the controller holds the length and diameter offsets, and the tool setter writes them directly, nobody types 43.75 instead of 43.57 at the end of a long shift. That single digit costs a scrapped part and a re-cut.

Tool life monitoring is often oversold. On aluminum it works well, because flank wear is gradual and the cutting force curve is predictable. On stainless or titanium it is less reliable, because edge chipping happens between measurement intervals. Use it as a trend, not as a switch.

For high-mix work, the practical benefit is setup time. A machine that stores 20+ tools and keeps offsets tied to the program lets an operator load a fixture, call the program, and cut. That is what actually raises throughput on small batches. On a 10,000-part run, tool change time is a rounding error next to cycle time.

• 1
  Measure chip-to-chipInclude offset entry and any manual verification in the number.
• 2
  Offsets belong to the controllerHand-typed offsets are the most common single-digit scrap cause.
• 3
  Tool life monitoring has limitsReliable on aluminum, less so on stainless and titanium.

The controller decides how much of the machine's mechanical capability reaches the part. Look-ahead and jerk limiting determine whether the machine can hold feed through a corner or has to slow down. On a profile with many short moves, that is the difference between a 4-minute and a 7-minute cycle.

Simulation is the other half. Verifying the toolpath against the actual fixture model catches a collision before the first cut, not during it. On a five-axis part with a tilted head and a tall fixture, that check is worth more than a faster spindle.

Data logging is quieter but useful. Feed override, spindle load, and alarm history tell you whether the process is drifting over a run. A slow rise in spindle load across 200 parts usually means the tool is wearing or the material lot changed.

Do not buy a controller for its feature list. Buy it for the post-processor support behind it. A capable controller with a weak post produces code that the machine cannot run at full speed, and the operator spends the shift editing instead of cutting.

• 1
  Look-ahead sets corner speedMany short segments punish weak motion planning.
• 2
  Simulate against the fixtureCollision checks belong before the first cut.
• 3
  Post-processor quality mattersThe best motion planner is wasted on badly posted code.

Interchangeable heads let one machine cover operations that would otherwise need two. A routing head for large pockets, an angular head for side drilling, and a saw head for clean profile cuts. Changing a head takes time, but it is far less than moving the part to a second machine and re-datuming it.

Automation is the feature most often bought and least often used. A pallet changer pays back when the spindle would otherwise sit idle during load and unload. On a 30-minute cycle with a 3-minute load, it does not pay back. Run the arithmetic on your own parts before specifying it.

Lights-out operation has a hard boundary at chip evacuation and tool wear. Aluminum makes stringy chips that can wrap a tool and stall a job at 2 a.m. Unattended running works best on short-chip operations with conservative parameters and reliable tool life data.

The honest summary: automation multiplies whatever the process already does. A stable process becomes more productive. An unstable one becomes more expensive, because it fails without anyone watching.

• 1
  Head changes beat re-datumingOne setup covers routing, side drilling, and sawing.
• 2
  Pallet changers need long cyclesPayback depends on load time versus cycle time.
• 3
  Unattended work needs short chipsStringy aluminum chips are the usual night-shift failure.
